Crestron Collab Medium Meeting Room — Zoom Rooms with 1 Beyond i12D, Sennheiser Ceiling Mic and PoE Speakers

A single-camera, plug-and-play Zoom Rooms system built around the Crestron 1 Beyond IV-CAM-I12D-B, sized for small to medium huddle rooms and standard conference rooms where a single auto-tracking camera covers the entire space. No companion cameras and no Camera Manager network configuration are required — the i12D's on-board AI engine handles speaker tracking, group framing, and conversation mode entirely on its own.

What's included

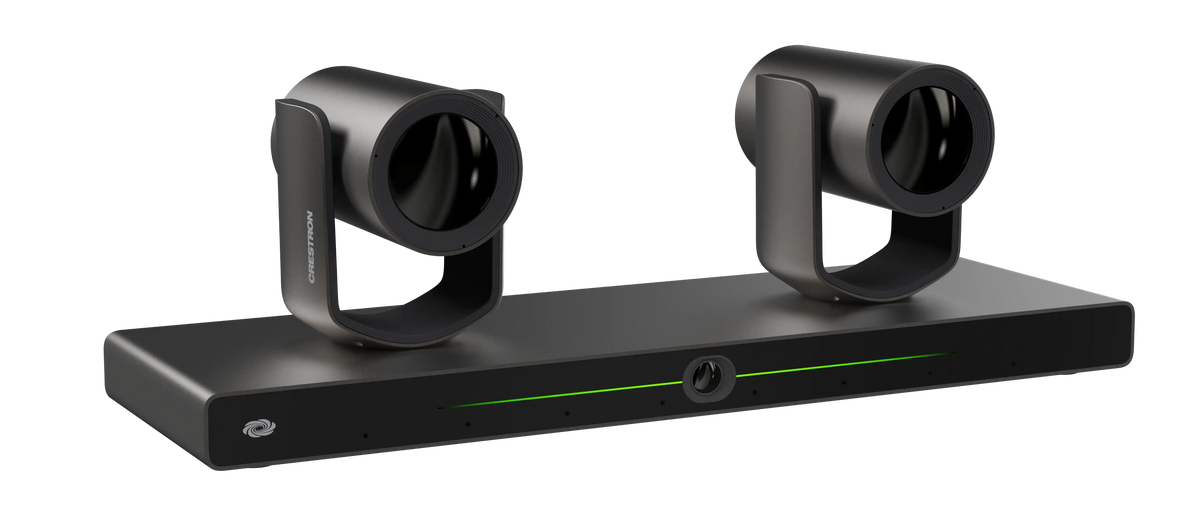

• 1x Crestron 1 Beyond IV-CAM-I12D-B — dual 4K PTZ camera bar (a 12x optical zoom AI-tracking PTZ block plus a 110° wide-angle reference camera in one housing). Up to 512 presets. Wall mount bracket included.

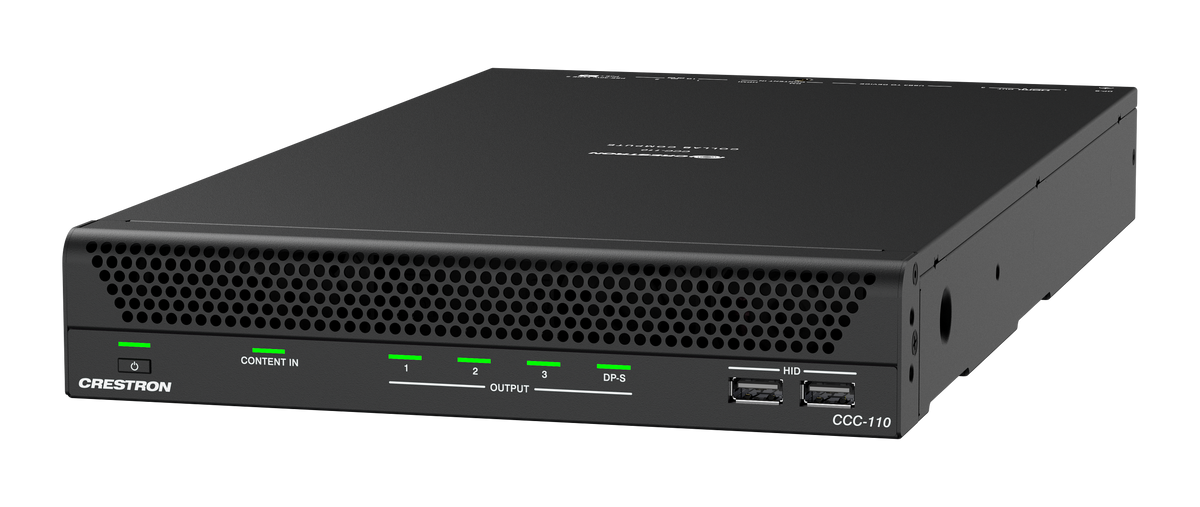

• 1x Crestron CCC-110-Z Collab Compute — Intel Core Ultra 5 125H processor, 32GB DDR5, 256GB storage, running Zoom Rooms software preinstalled and certified. The i12D connects directly over USB.

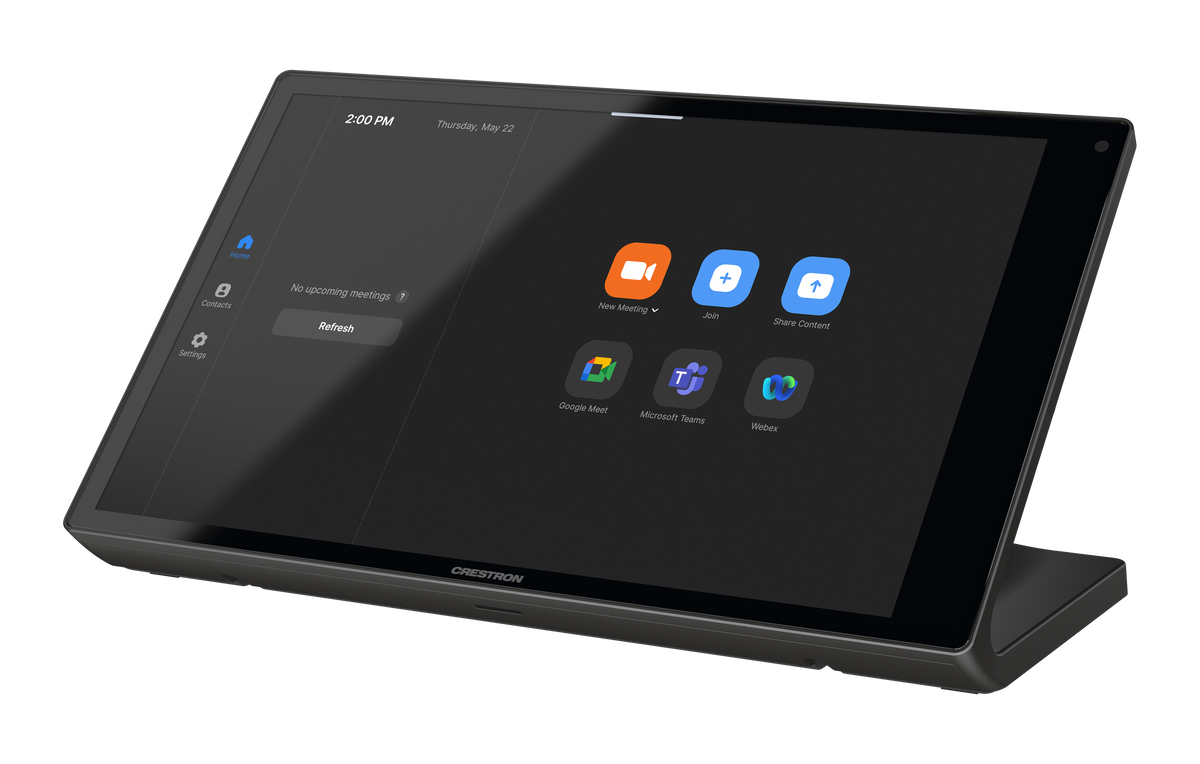

• 1x Crestron TS-1080-UC-B - Zoom Tabletop Touch Screen — 10.1 in. UC-version touch screen, licensed and configured for Zoom Rooms at commissioning (same hardware as the Teams variant, different room-type configuration).
• 1x Crestron CCC-BYOD-KIT — direct USB-C path for a visitor's laptop to the room's camera and audio, without disturbing the native Zoom Rooms configuration.
• 1x Crestron CCCA-CMK-110/120 Toolless Mounting Bracket for the compute unit.

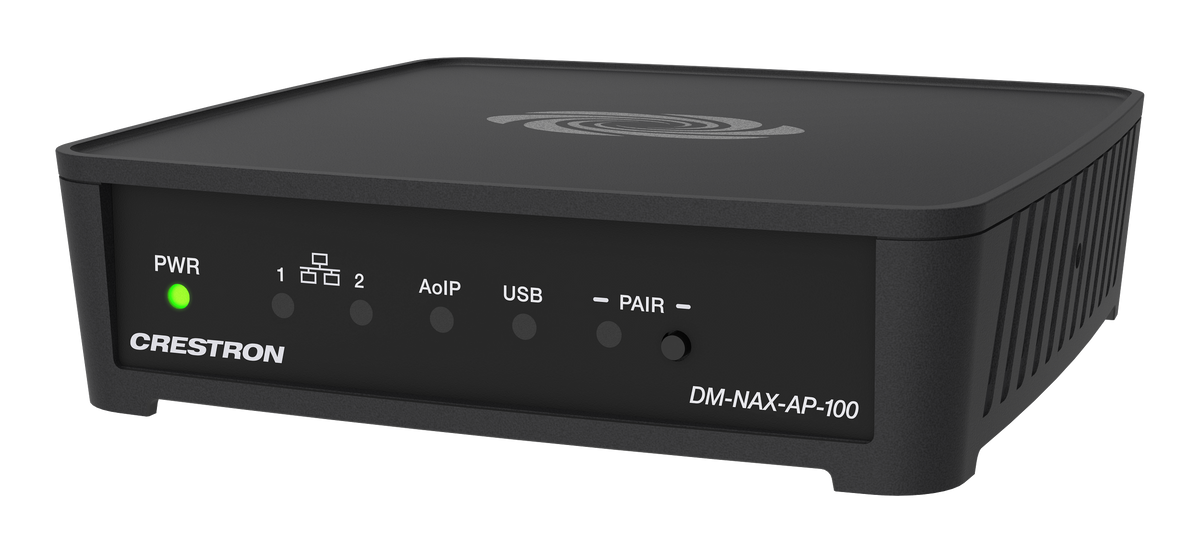

• 1x Crestron DM-NAX-AP-100 Intelligent Audio Processor — DM NAX audio-over-IP processor networking the ceiling microphones and speakers as one system.
• 2x Sennheiser TeamConnect Ceiling Medium (TCCM) — beamforming ceiling microphone arrays, Crestron's own specified pairing for DM NAX ceiling audio.

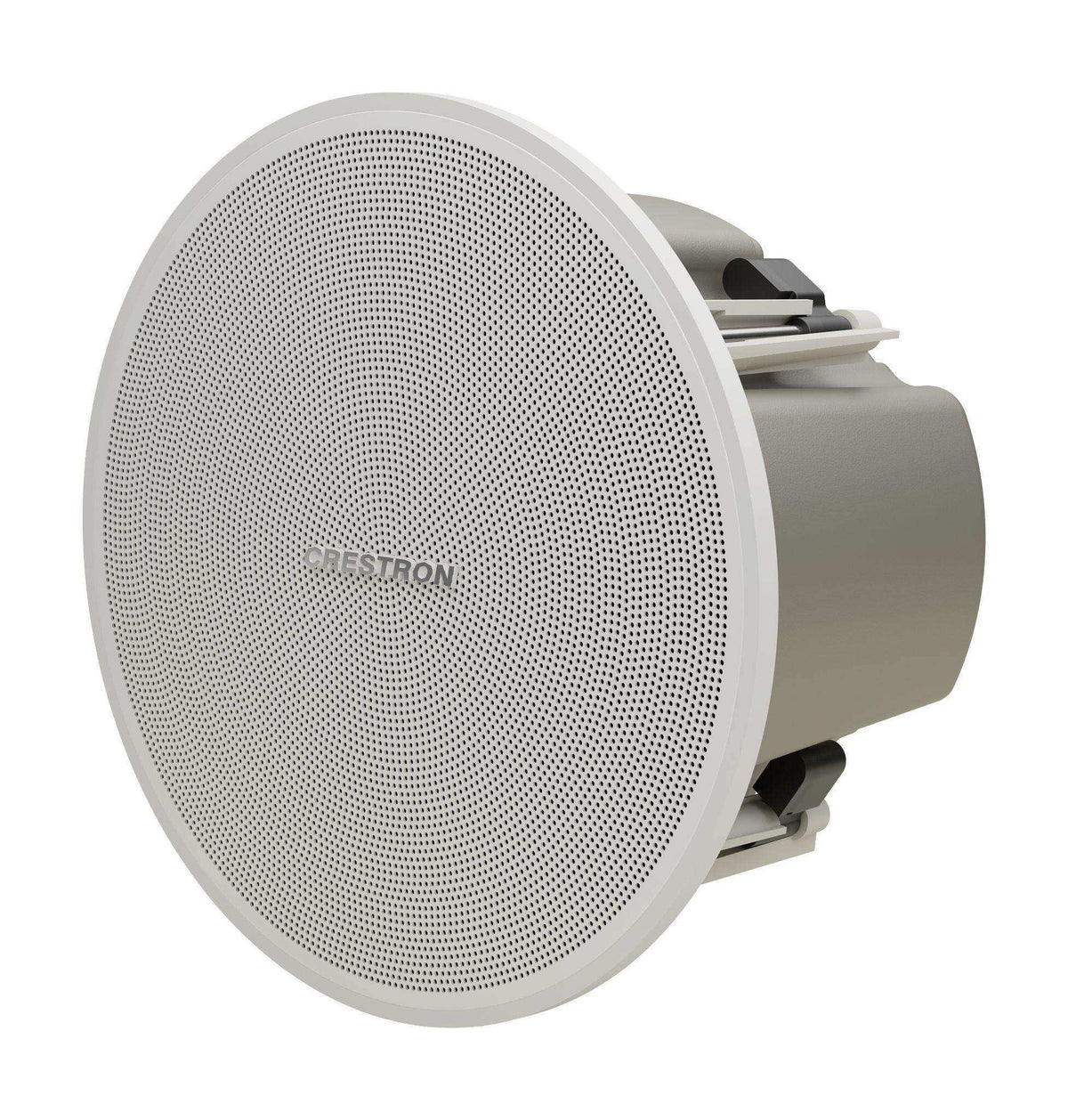

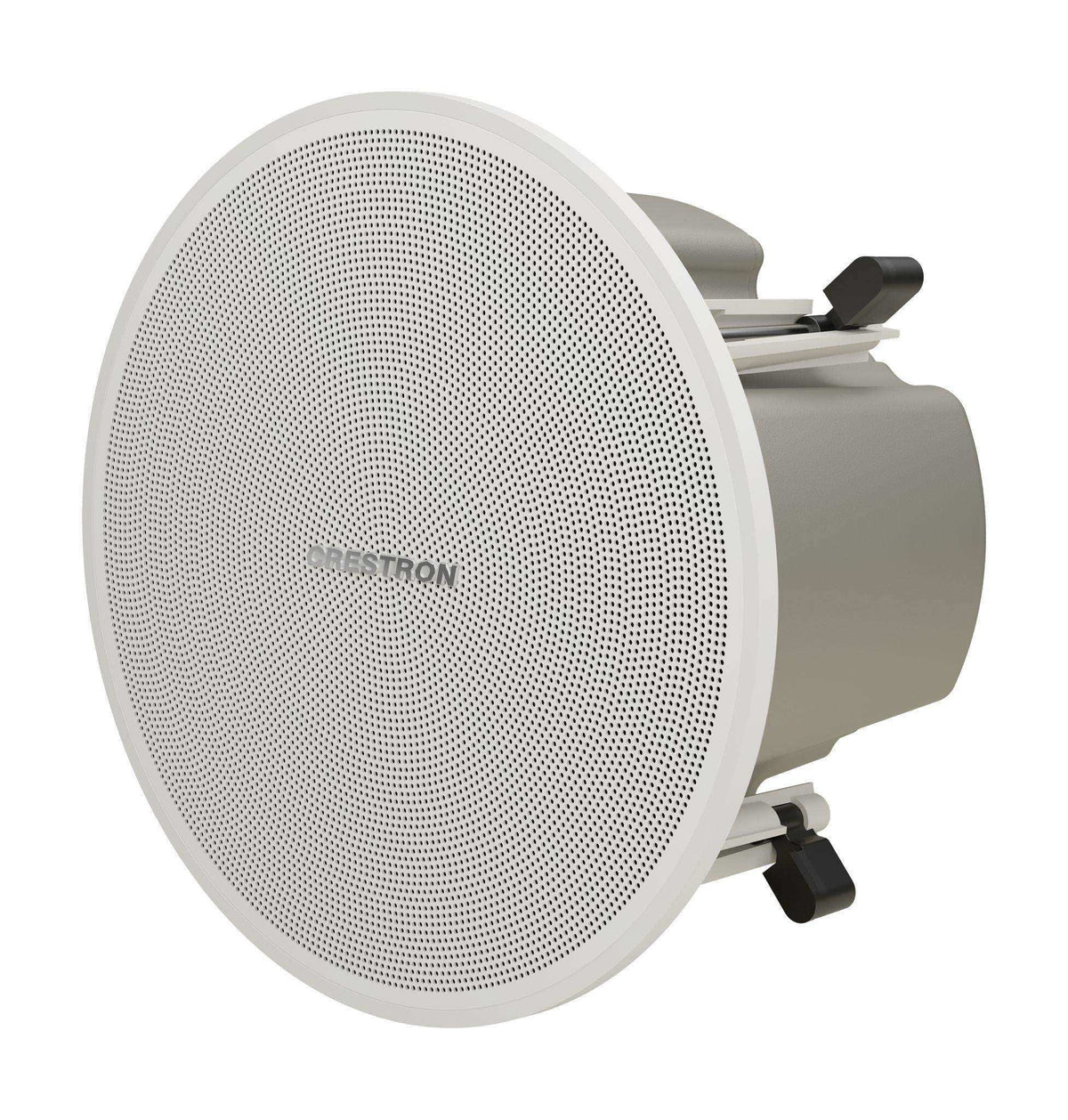

• 4x Crestron SAROS DM-NAX-IC4A-W active PoE+ ceiling speakers plus 6x Crestron SAROS IC4P-W passive ceiling speakers — each active unit drives its own passive satellites over the DM NAX network, with no separate amplifier required.

Why there's no Camera Manager step in this kit

Crestron 1 Beyond Camera Manager software exists to discover companion cameras and feed them into the primary camera's Multi-Camera Tracking settings. Because this kit is a single-camera deployment, that workflow is skipped entirely: the IV-CAM-I12D-B connects over USB to the CCC-110-Z, which boots into Zoom Rooms software, and the i12D's built-in AI begins speaker tracking, group framing, and conversation-mode switching automatically as soon as the room is in a call.

The two Sennheiser TeamConnect Ceiling Medium arrays and DM-NAX-AP-100 processor handle full-room audio pickup, and the active/passive SAROS speaker pairing delivers even program audio, all networked over Crestron's DM NAX audio-over-IP platform — matching the exact bill of materials Crestron's own Collab Room Builder configurator generates for a Medium Meeting Room. The TS-1080-UC-B — Zoom touch screen and CCC-BYOD-KIT round out the native and BYOD conferencing experience.

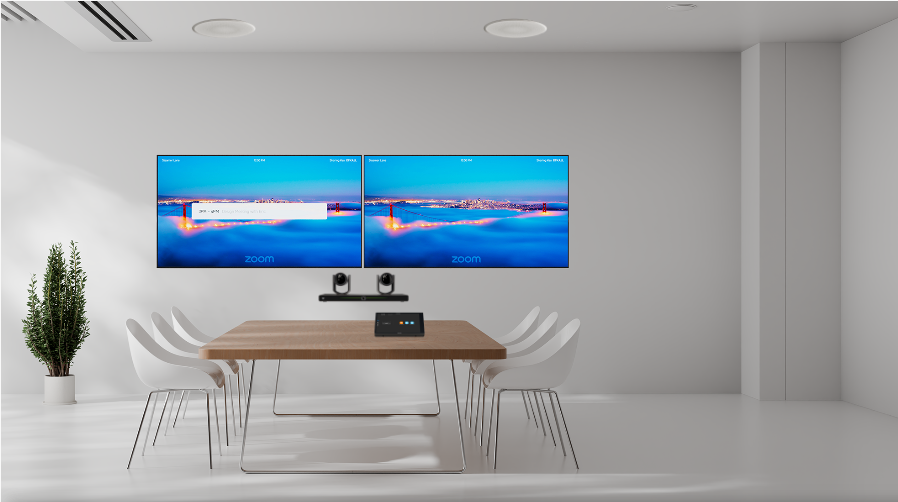

Room fit

Sized for huddle rooms, small conference rooms, and standard mid-size meeting rooms — typically seating up to roughly 10–12 people around one table. A Microsoft Teams Rooms version of this same kit is also available. Browse the full Crestron collection for additional room components and accessories.
