Crestron SAROS IC4P Saros® 3 in. Passive Full-Range In-Ceiling Speaker, White, Textured
Crestron SAROS IC4P Saros® 3 in. Passive Full-Range In-Ceiling Speaker, White, Textured
Roll over image to zoom in Click on image to zoom
Crestron SAROS IC4P Saros® 3 in. Passive Full-Range In-Ceiling Speaker, White, Textured
Crestron SAROS IC4P Saros® 3 in. Passive Full-Range In-Ceiling Speaker, White, Textured
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Crestron SAROS IC4P Saros® 3 in. Passive Full-Range In-Ceiling Speaker, White, Textured

Availability: Call for Availability
Crestron SKU: SAROS IC4P-W
No reviews
Price:
$450.00

Description

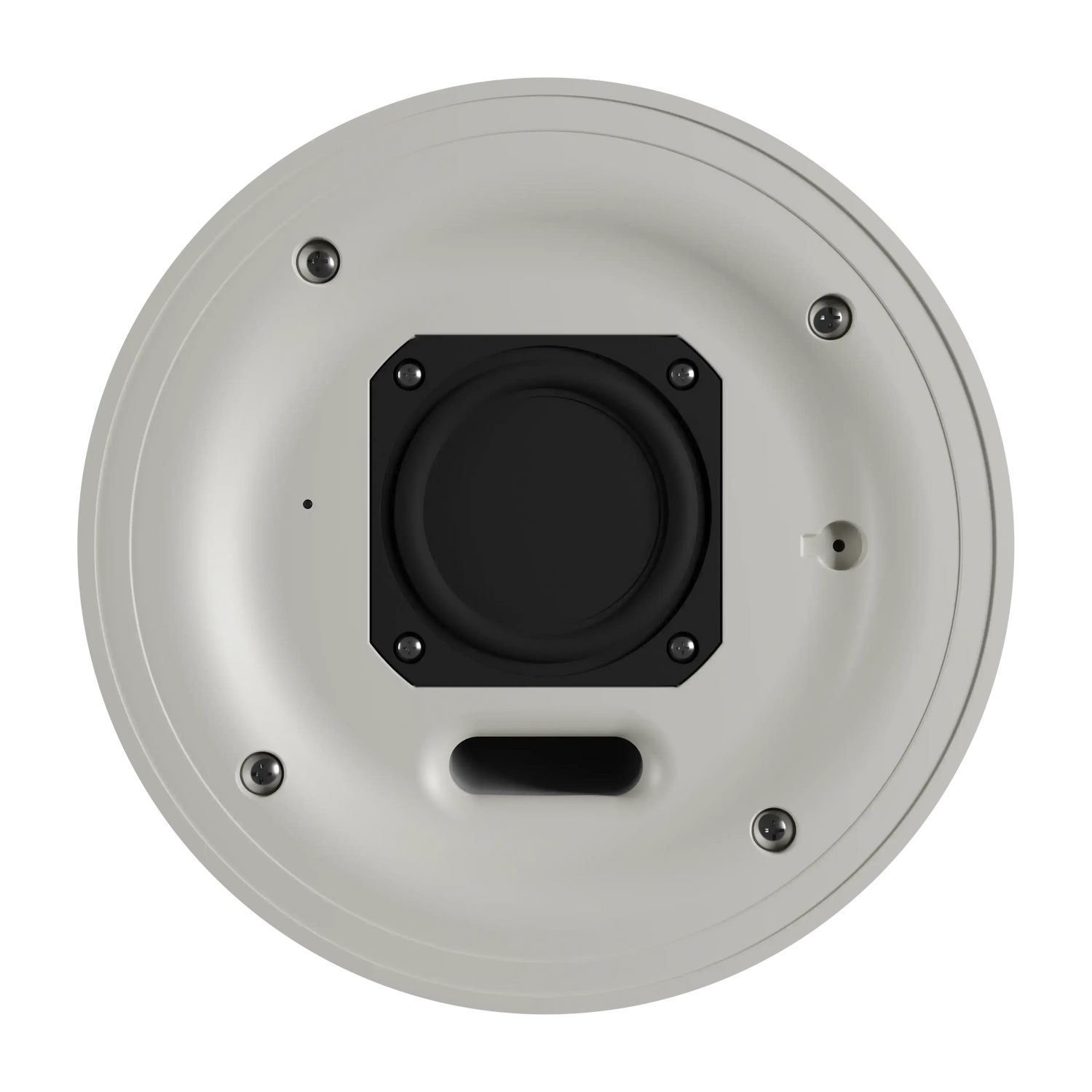

 The SAROS IC4P‑W in-ceiling speaker with a Balanced Mode Radiator (BMR) transducer offers broad coverage angles and simple installation. A single 2.83 in. (72 mm) BMR transducer drives the entire 90 Hz to 30 kHz frequency range, with coverage angles exceeding the capabilities of a traditional conical, pistonic woofer and concentric tweeter.

Simple and Clean Installation

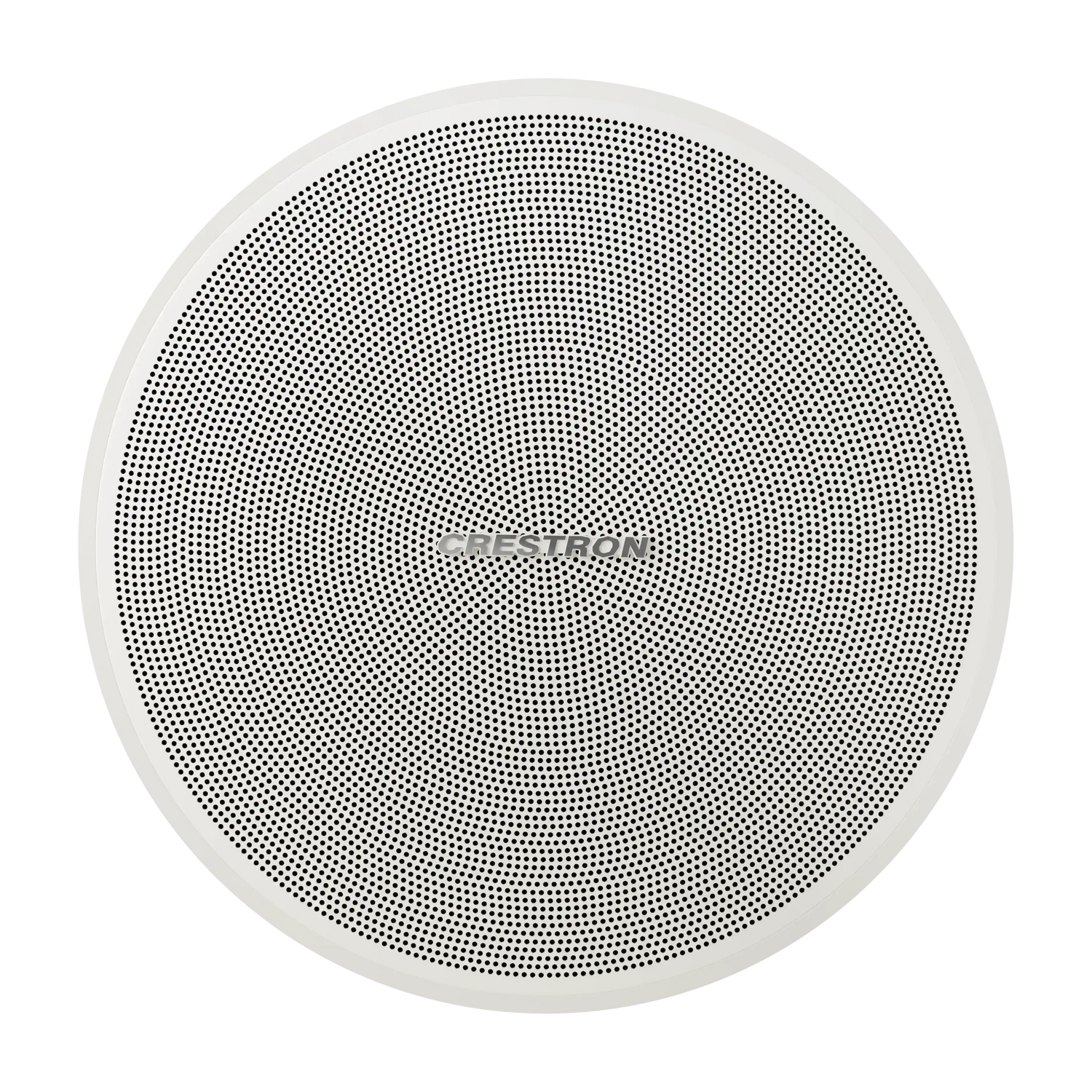

The SAROS IC4P‑W is designed for quick and easy installation and years of reliable performance. Its unobtrustive and contemporary grille achieves an appearance well-suited for use in restaurants, retail spaces, houses of worship, universities, and office buildings. Installing the grille requires no hardware or tools, utilizing powerful magnets to hold it in place.

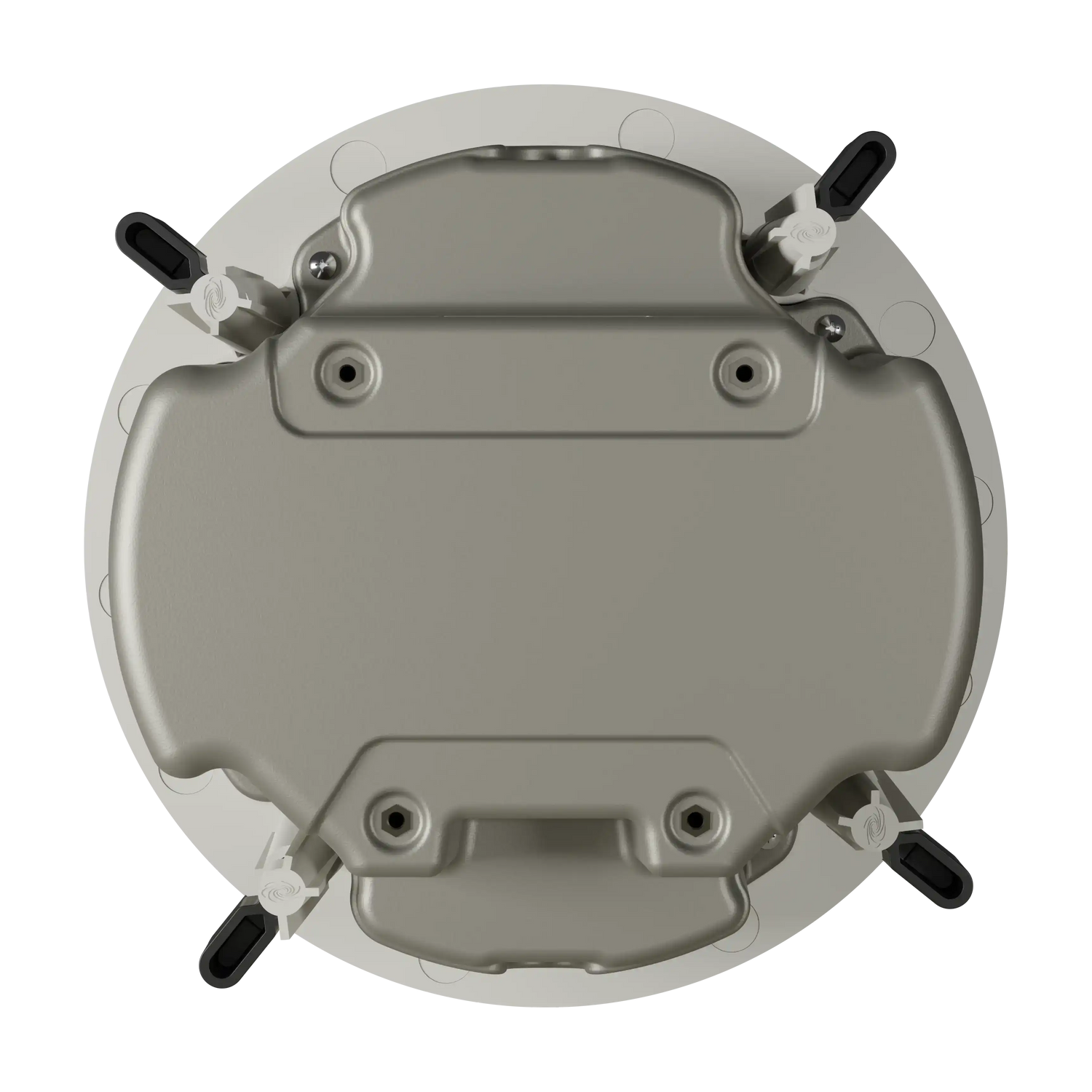

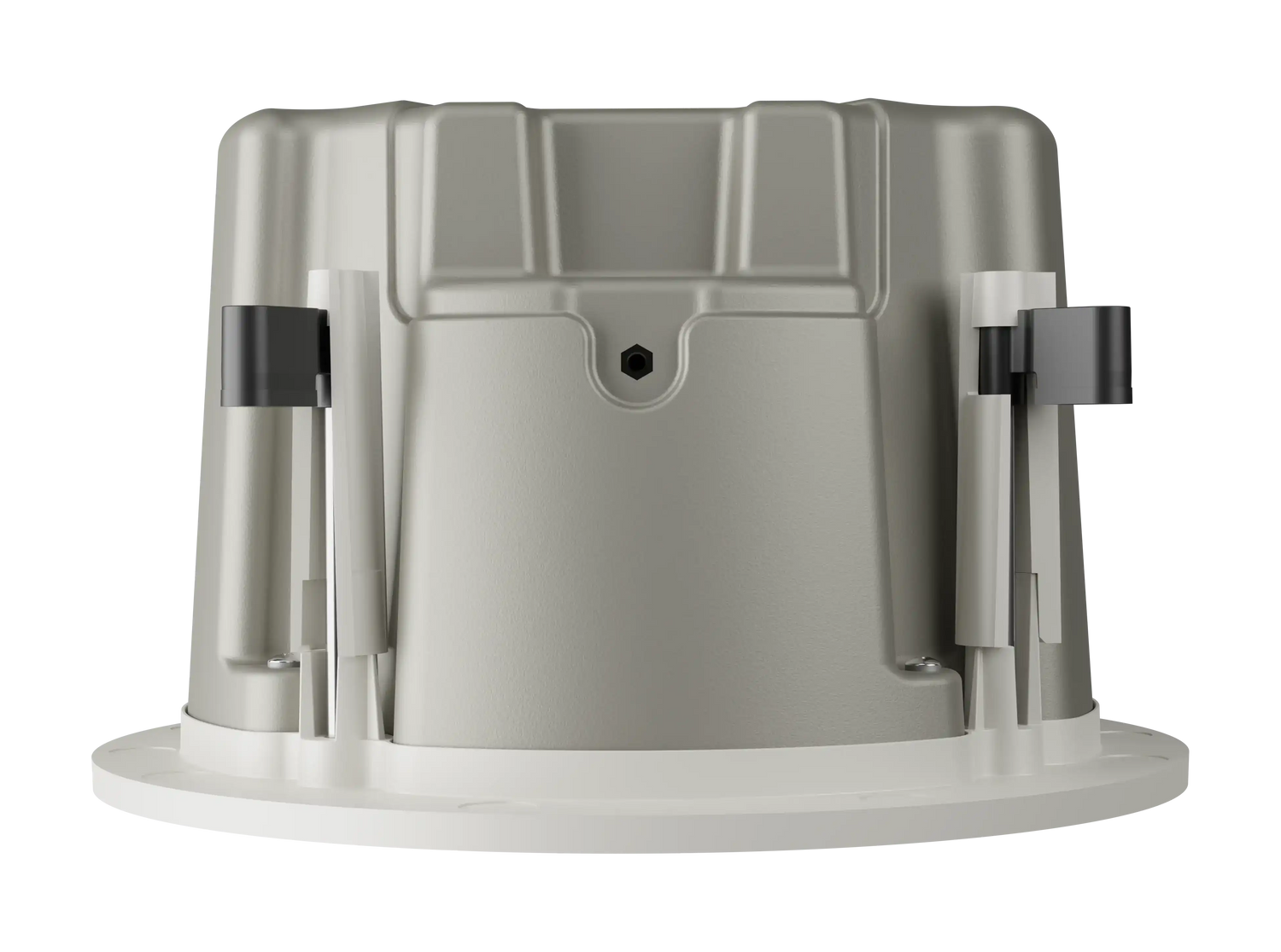

Mounting the speaker is facilitated using swiveling mounting dogs integrated into the enclosure. The mounting dogs feature two positions to accommodate standard and extra thick surfaces up to 2.4 in. (61 mm). A tile bridge is included to provide proper support when installed in a typical drop-tile ceiling. The tile bridge is adjustable to enable off-center speaker positioning, and can be folded to fit through the speaker cutout. A rigging point is also provided on the speaker enclosure for securing to the building structure using an optional safety tether kit (SPKA‑ST‑15, sold separately).

Plenum Rated
The speaker is housed in an integral metal back can, which meets the requirements of UL® 2043 for installation in a plenum space. The wiring connections are accessible behind a rear cover panel. Two mutually exclusive inputs are available, an RJ-45 connector to receive signal from the outputs of a SAROS DM‑NAX‑IC4A-W (sold separately) and a two pin terminal block connector to receive signal from an external audio amplifier. For a plenum rated patch cable, use CBL‑ZUMLINK‑P‑25 (sold separately) or a third-party CAT5 cable 32 ft. (10 m) or shorter.


  • Balanced Mode Radiator (BMR) transducer offers enhanced clarity and wider dispersion than a typical conical driver
  • Clean, contemporary grille design
  • Two-step toggle clamps for quick and easy installation
  • Includes tile bridge for installation in a drop-tile ceiling
  • 90 Hz to 30 kHz frequency response
  • 170° coverage for speech content, 140° coverage for music
Features & Performance
Transducer 2.83 in. (72 mm) Balanced Mode Radiator (BMR)
Frequency Response 90 Hz to 30 kHz (±3 dB)
Sensitivity 86 dB @ 1 W/1 m
Coverage 170° conical (speech, up to 4 kHz);
140° conical (music, up to 8 kHz)
BMR Power Handling 25 W
BMR Max Power Output 25 W, connected to an external amplifier via 2-pin audio input;
10 W, connected to the SPEAKER-LEVEL OUTPUT of a SAROS DM‑NAX‑IC4‑A;
6.5 W, connected to the SPEAKER-LEVEL OUTPUT of a SAROS DM‑NAX‑IC4‑A with one other SAROS IC4‑P connected;
4.5 W, connected to the SPEAKER-LEVEL OUTPUT of a SAROS DM‑NAX‑IC4‑A with two other SAROS IC4‑P connected
Connectors
2-Pin Audio Input (1) 2-pin 5 mm detachable terminal block;
Speaker input (alternate);
For use with an external amplifier;
Impedance: 8 Ohms (7.4 Ohms nominal);
Maximum Wire Size: 12 AWG;
Do not connect both inputs simultaneously
RJ-45 Audio Input (1) 8-pin RJ-45 connector, female;
For use with SAROS DM‑NAX‑IC4A‑W only1
Controls and Indicators
Power (1) White LED, behavior determined via SAROS DM-NAX-IC4A-W web UI configuration;
Solid indicates that the device is paired with a SAROS DM-NAX-IC4A-W;
Blinking indicates that the device is in identify mode;
Off indicates the device is not paired with a SAROS DM-NAX-IC4A-W or that the LED has been disabled from the SAROS DM-NAX-IC4A-W
Environmental
Temperature 32° to 104°F (0° to 40°C)
Humidity 10% to 90% RH (noncondensing)
Construction
Enclosure Painted steel, plenum-rated;
0.75 in. (19 mm) conduit knockout on top and sides;
(1) cable clamp included
Baffle ABS UL® 94V‑0 plastic
Grille Steel with white textured finish;
Magnetically held;
Safety tether included
Mounting Flush ceiling mount using 4 integral 2-step toggle clamps;
2.36 in. (60 mm) maximum clamping thickness;
6.5 in. (165 mm) recommended cutout diameter;
Tile bridge included
Dimensions
Baffle Diameter 7.49 in. (191 mm) not including mounting clamps
Back Can Diameter 6.33 in. (161 mm) not including mounting clamps
Depth 4.28 in. (109 mm) mounting depth;
4.50 in. (115 mm) including grille
