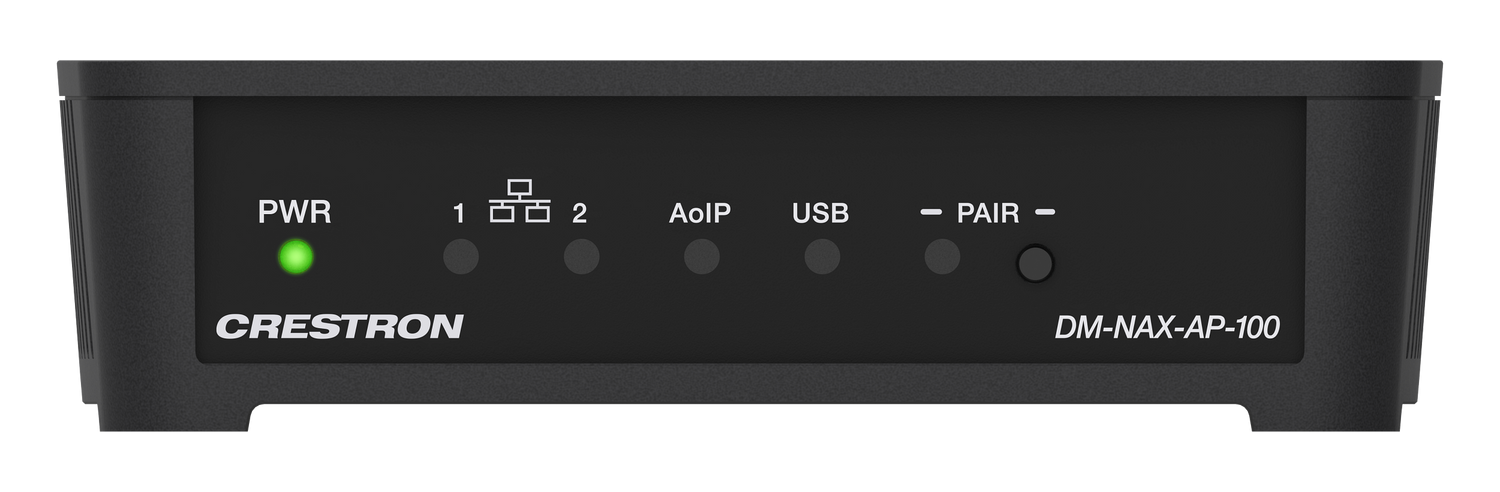

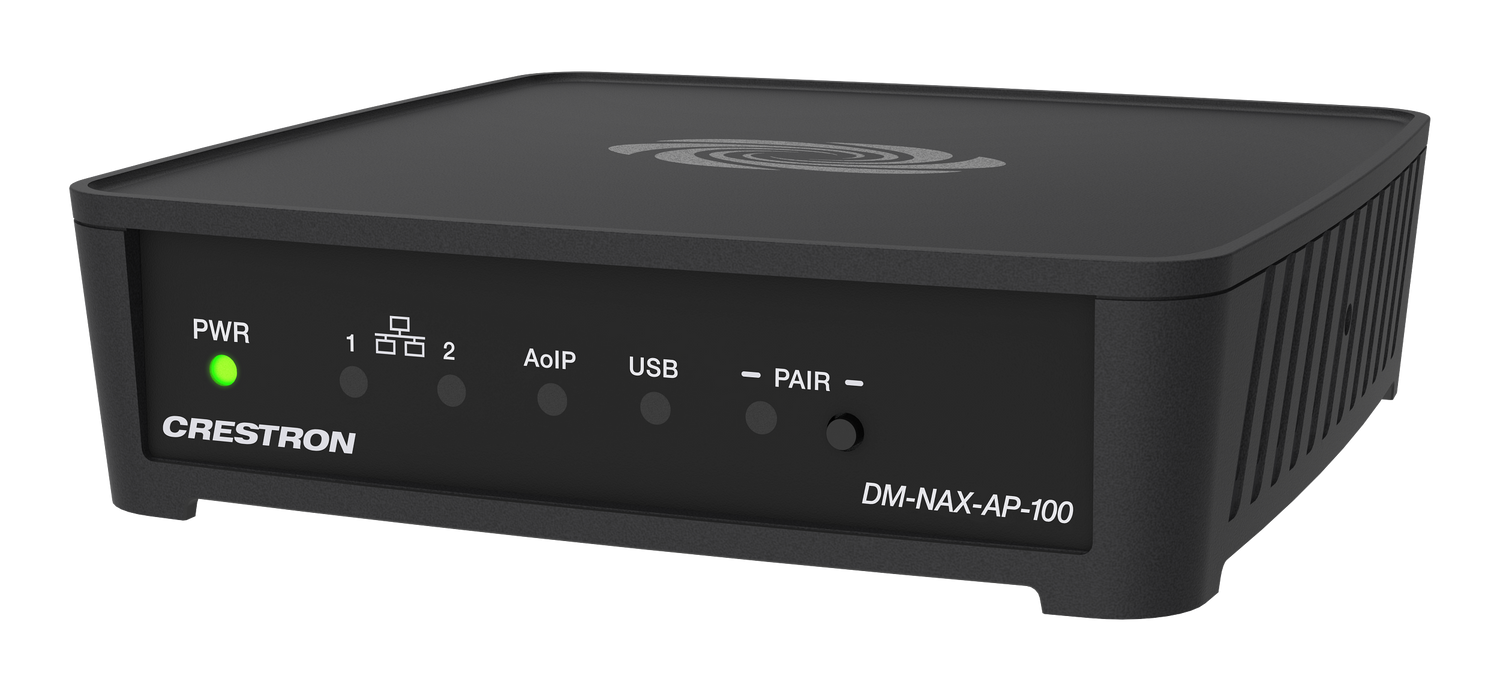

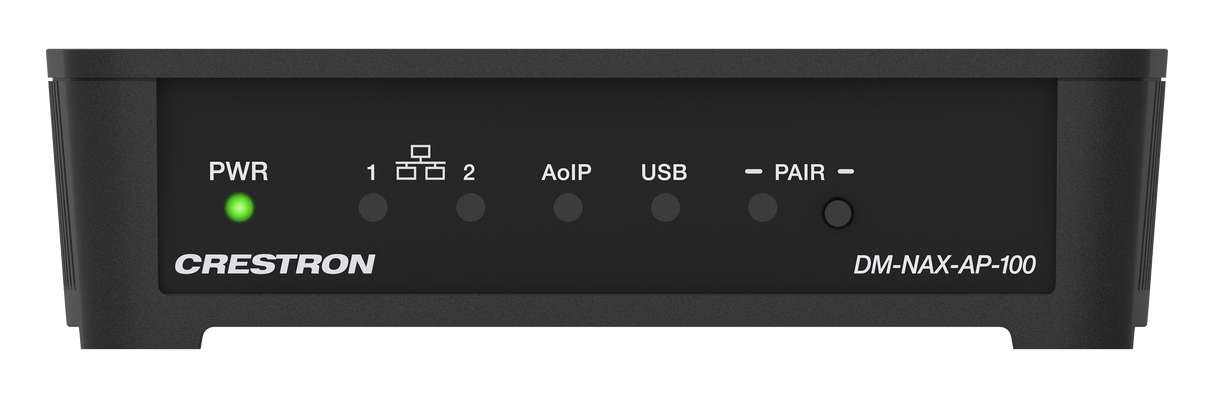

Crestron DM-NAX-AP-100 – DM NAX Intelligent Audio Processor

Product Overview

The Crestron DM-NAX-AP-100 is a compact PoE-powered audio processor that adds DSP-based acoustic echo cancellation (AEC), automatic gain control (AGC), and dynamic noise suppression to USB audio devices in conference rooms and collaboration spaces. It connects between a room’s USB audio chain and the DM NAX audio-over-IP network, allowing a laptop or UC platform to benefit from professional-grade audio processing without requiring a dedicated DSP system. AV integrators and IT managers use it in rooms where USB conference systems need improved call quality without a complex audio infrastructure deployment.

Product Description

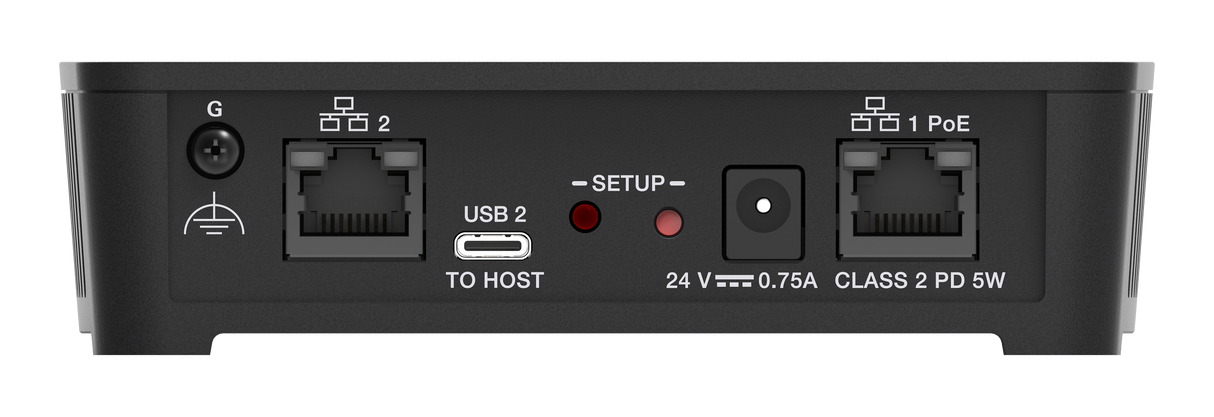

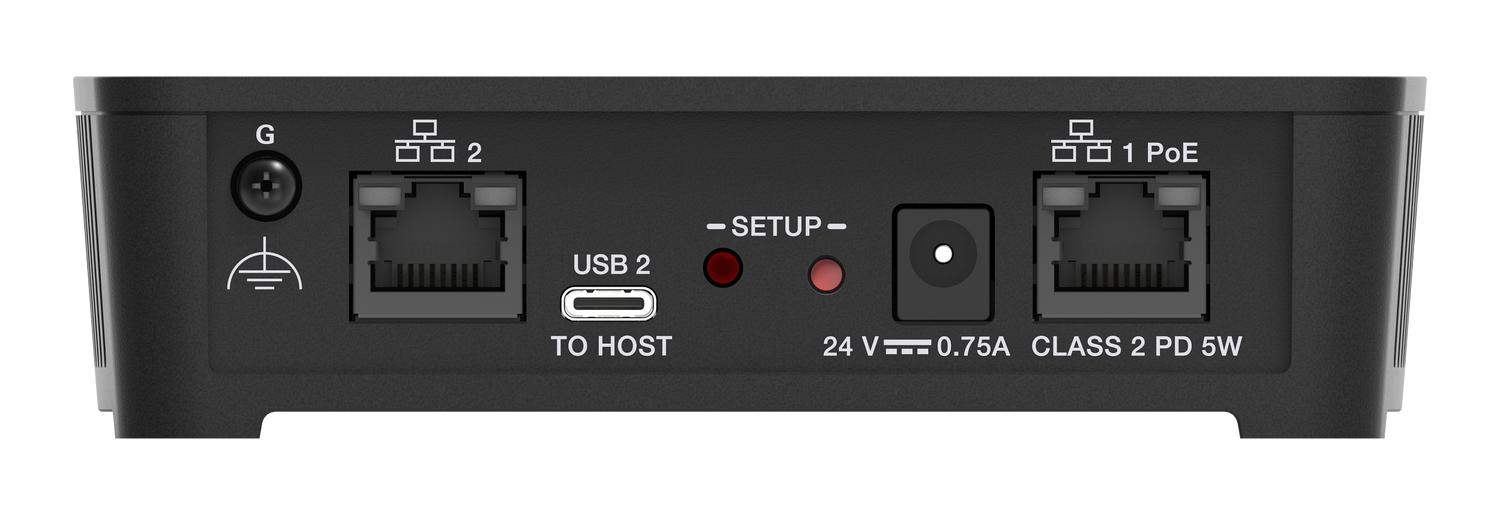

The DM-NAX-AP-100 appears to connected computers as a "Crestron Echo-Canceling Speakerphone" USB device (UAC2 class compliant), requiring no special drivers on the host machine. It accepts USB stereo audio bidirectionally (up to 24-bit/48 kHz) and simultaneously encodes and decodes DM NAX / AES67 audio-over-IP streams. Two Ethernet ports are provided: LAN 1 accepts PoE (IEEE 802.3af) for power and control, and LAN 2 is a dedicated audio-over-IP port for the AES67 network. The device mounts via an included bracket and fits in a 1.35 in. profile for under-table or wall-box installations.

Key Features

• DSP acoustic echo cancellation (AEC), automatic gain control (AGC), and dynamic noise suppression
• Enumerates as "Crestron Echo-Canceling Speakerphone" USB device (UAC2, no drivers required)
• USB stereo audio: bidirectional, up to 24-bit/48 kHz
• DM NAX / AES67 audio-over-IP encoding and decoding
• LAN 1 (PoE): IEEE 802.3af Type 1 Class 0, 12.95 W; for control and power
• LAN 2: dedicated Audio-over-IP network port
• USB Type-C connector for host connection
• PoE powered — no separate power supply required
• Optional 24 VDC adapter power input
• Compact form factor: 1.35 in. H; includes mounting bracket

Typical Applications

• Conference rooms requiring USB AEC audio processing without a full DSP system
• Rooms with UC/BYOD laptops needing professional-grade echo cancellation for video calls
• DM NAX audio-over-IP networks where USB devices need integration with the network audio infrastructure
• Huddle spaces and small meeting rooms with PoE infrastructure already in place
• Installations bridging USB conference peripherals to AES67 AoIP systems

Technical Specifications

• Model: DM-NAX-AP-100
• Processing: Acoustic echo cancellation (AEC), automatic gain control (AGC), dynamic noise suppression
• USB Audio: UAC2 class compliant; bidirectional stereo; up to 24-bit/48 kHz
• Audio-over-IP: DM NAX / AES67
• LAN 1 (Control/PoE): 100/1000BASE-T, IEEE 802.3af Type 1 Class 0, 12.95 W
• LAN 2 (AoIP): 100/1000BASE-T, dedicated audio network
• USB Connector: Type-C (UAC2 host connection)
• Power: PoE IEEE 802.3af (12.95 W) or optional 24 VDC adapter
• Dimensions: H 1.35 in. x W 5.04 in. x D 5.04 in. (H 1.77 in. with mounting bracket)
• Weight: 0.77 lb (348 g)
• Certifications: FCC Part 15 Class B, IC Class B, CE, Intertek Listed (US and Canada)

Frequently Asked Questions

Q: Does the DM-NAX-AP-100 require any software or drivers on the connected computer?
A: No. The DM-NAX-AP-100 is a UAC2 class-compliant USB audio device and is recognized by any modern operating system as a standard USB audio device without requiring the installation of drivers or Crestron software on the host computer.

Q: Can the DM-NAX-AP-100 be used without a DM NAX network?
A: Yes. The DM-NAX-AP-100 can function as a USB echo-canceling audio processor independent of a DM NAX network, providing AEC, AGC, and noise suppression for the USB audio path. The AES67 audio-over-IP capability on LAN 2 is used when integrating into a DM NAX or AES67 network.

Q: How is the DM-NAX-AP-100 mounted?
A: The unit is 1.35 in. high and includes a mounting bracket that increases the height to 1.77 in. It can be mounted under tables, inside furniture, or in other concealed locations common in conference room AV infrastructure.
