Crestron CCCA-CMK-110/120 – Collab Compute Toolless Mounting Bracket

Product Overview

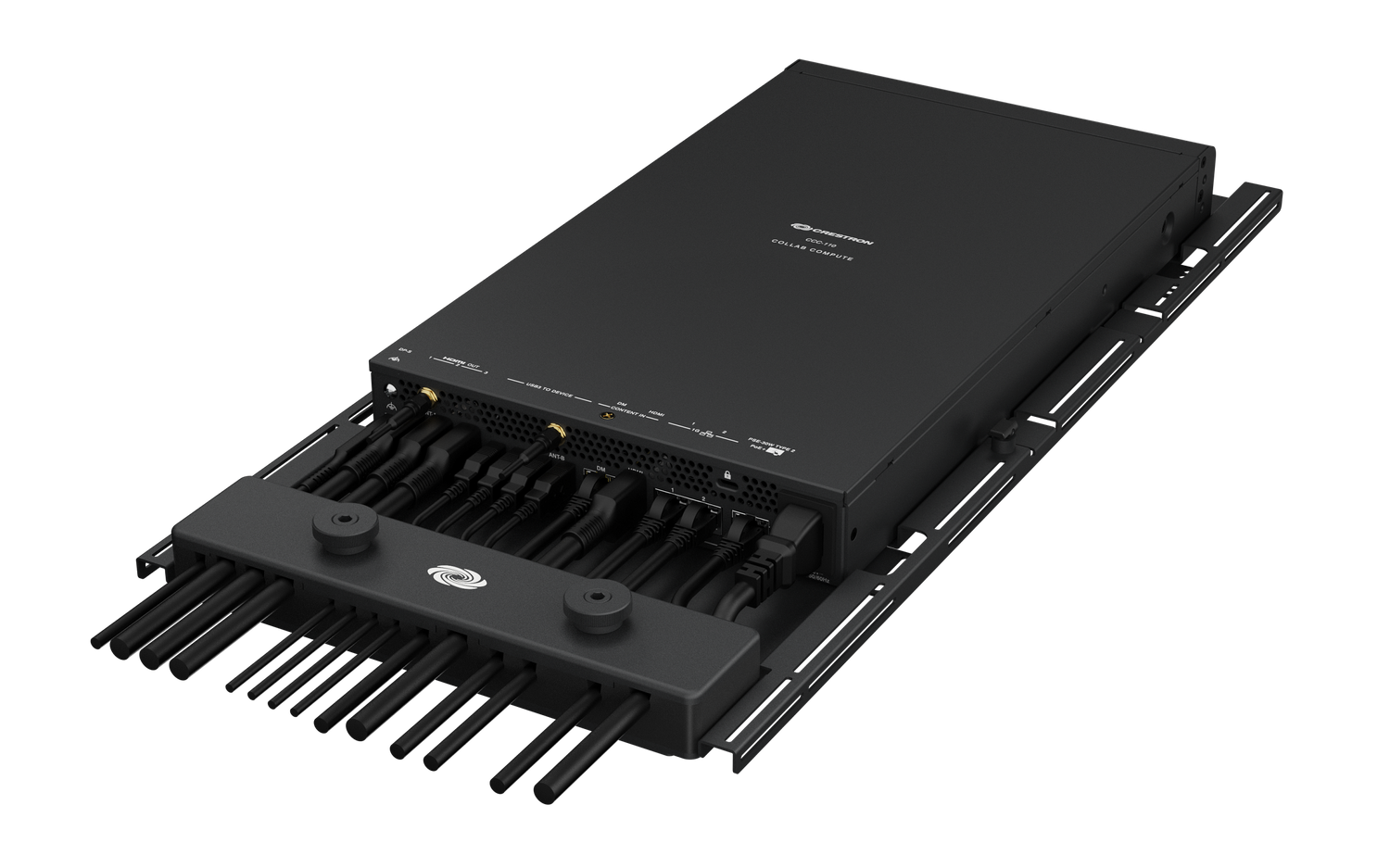

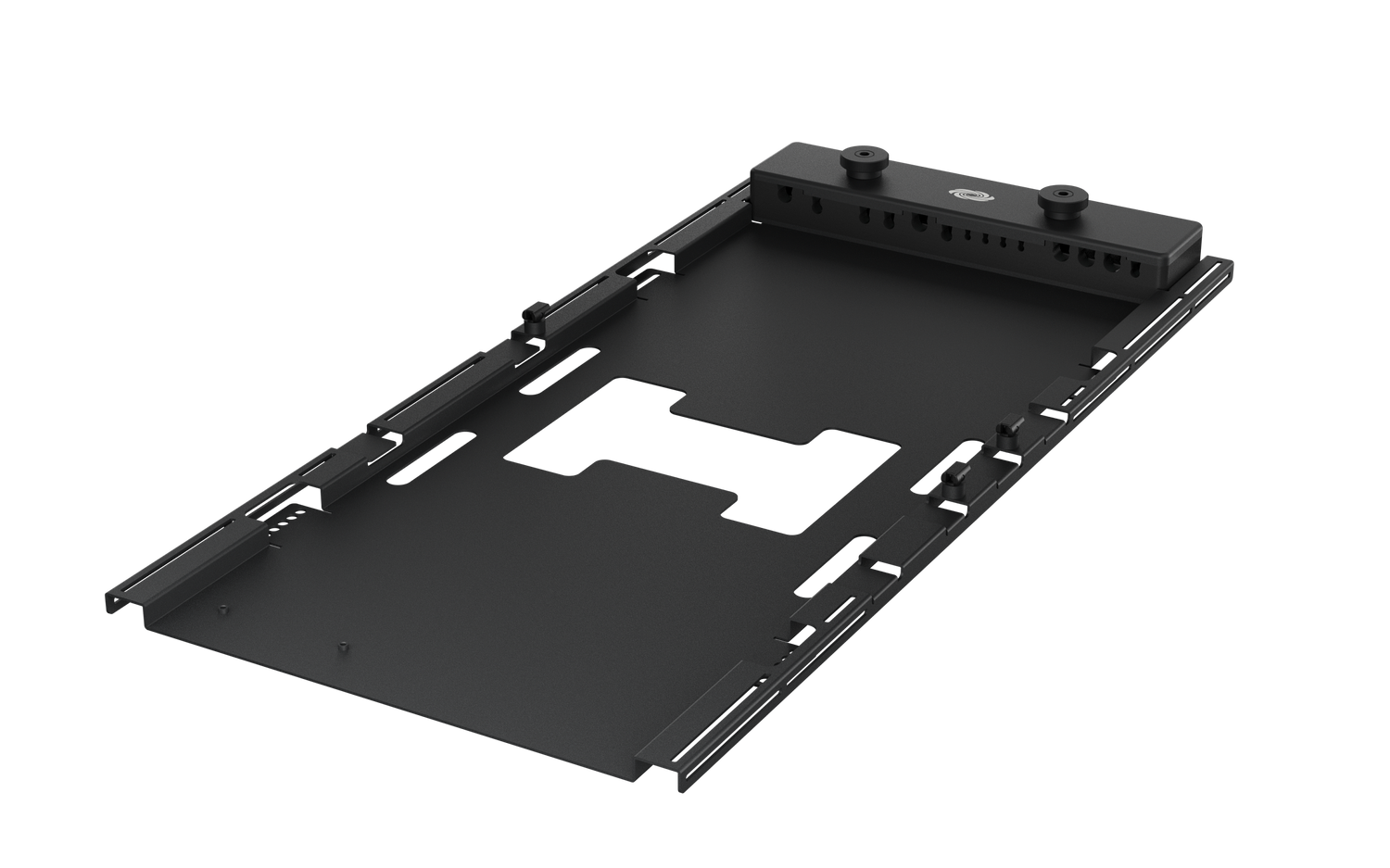

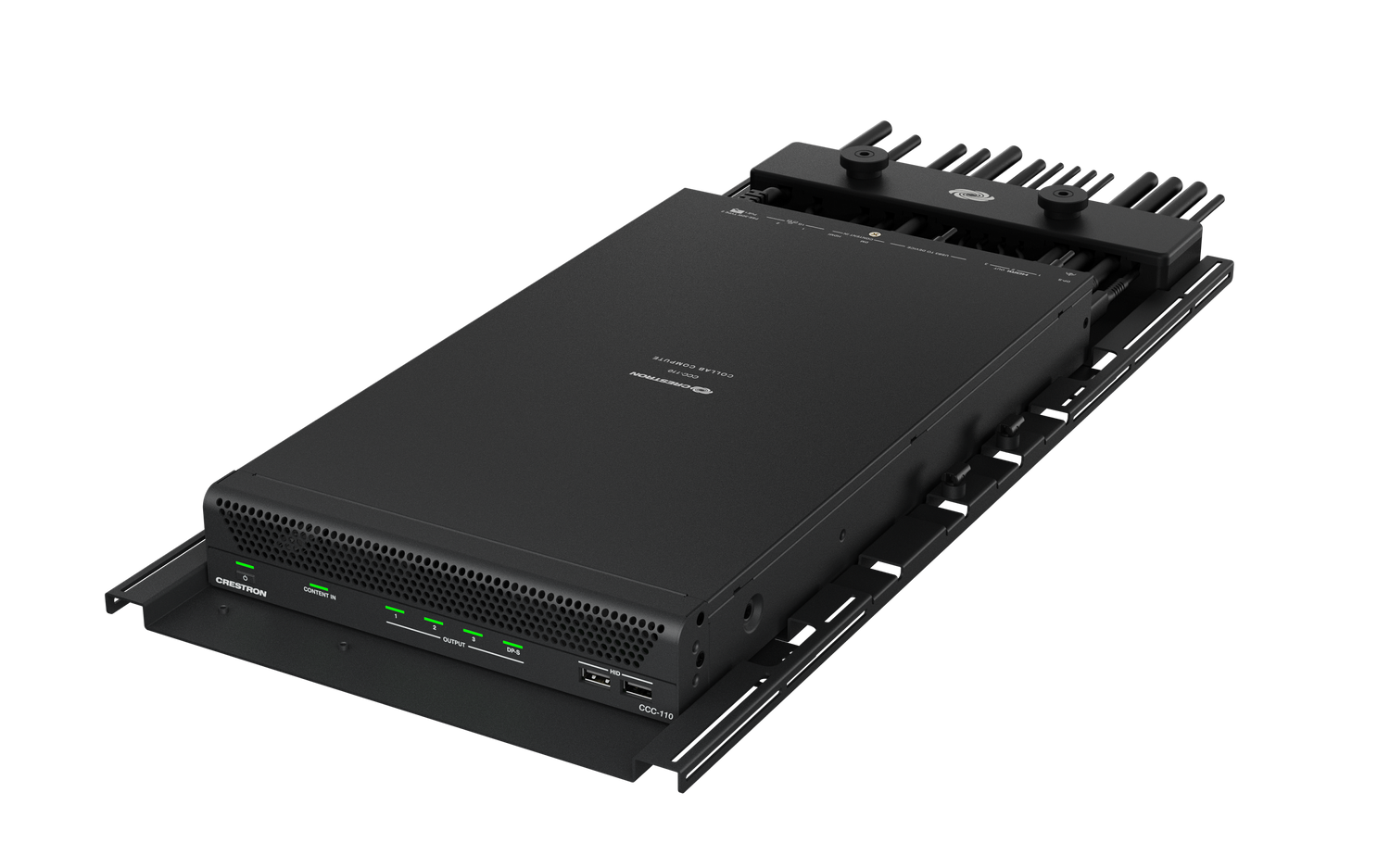

The Crestron CCCA-CMK-110/120 is a steel toolless mounting bracket designed to install Crestron Collab Compute (CCC Series) devices on a wall or table surface. Once the bracket is secured, the CCC unit slides in without additional tools, simplifying installation in conference rooms, huddle spaces, and classrooms.

Product Description

The CCCA-CMK-110/120 provides a clean mounting solution for the CCC-110 and CCC-120 series Collab Compute devices, including all T, Z, and I variants. The all-steel construction ensures rigidity during normal use, while the toolless slide-in design reduces installation time at the point of deployment. Integrated cable management keeps cabling organized and reduces strain on rear-panel connections. The bracket mounts to a flat wall or table surface using standard hardware and is suitable for both new installations and equipment refresh projects where the compute module needs to be repositioned or replaced quickly.

Key Features

• Compatible with CCC-110-T, CCC-110-Z, CCC-120-T, CCC-120-Z, and their international (-I) variants
• Toolless slide-in mounting — no tools required once bracket is installed
• Steel base and cable management cover for durable, long-term installation
• Mounts to wall or table surface
• Simplifies compute module replacement or upgrade without full reinstallation
• Compact footprint suits tight equipment placement near displays or AV furniture

Typical Applications

• Conference room Microsoft Teams or Zoom Rooms installations using Crestron Collab Compute
• Huddle space deployments where compute modules mount behind or under displays
• Classroom AV installations requiring secure but accessible compute mounting
• Enterprise AV environments where standardized equipment refresh processes are required
• Any CCC Series deployment requiring wall or table surface mounting

Technical Specifications

• Model: CCCA-CMK-110/120
• Compatible Devices: CCC-110-T, CCC-110-Z, CCC-120-T, CCC-120-Z, CCC-110-T-I, CCC-110-Z-I, CCC-120-T-I, CCC-120-Z-I
• Base Material: Steel
• Cable Management Cover Material: Steel
• Dimensions: H 1.56 in (40 mm) × W 10.43 in (265 mm) × D 21.76 in (553 mm)
• Weight: 4 lb (1.81 kg)

FAQs

Does the CCCA-CMK-110/120 work with CCC-110-Z (Zoom Rooms) and CCC-120-Z units?

Yes. The bracket is compatible with all CCC-110 and CCC-120 variants, including Microsoft Teams (T) and Zoom Rooms (Z) models, as well as their international (-I) counterparts.

Is any hardware included with the mounting bracket?

The bracket itself is sold as a standalone unit. Standard mounting hardware for wall or table attachment is typically required separately and will vary based on the surface material and installation requirements.

Can the compute module be removed from the bracket after installation?

Yes. The toolless design allows the CCC Series device to slide out of the bracket without tools, which supports equipment maintenance or replacement without disturbing the bracket installation.
