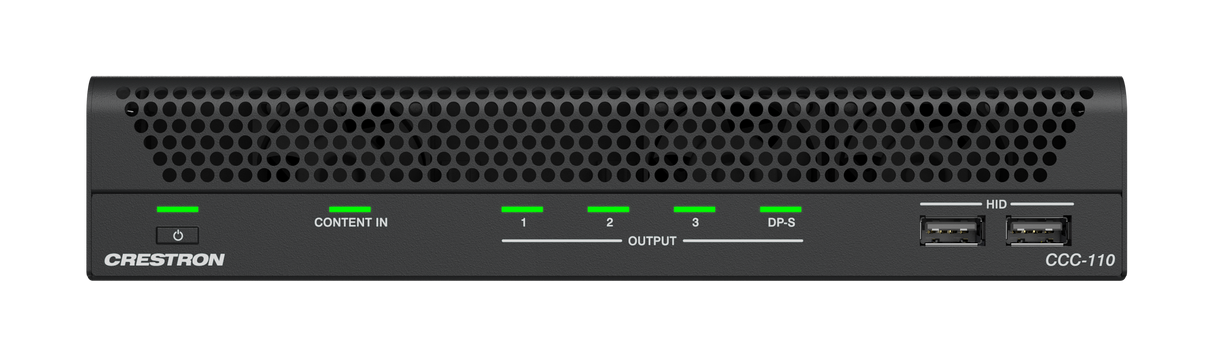

Crestron CCC-110-Z – Collab Compute Intel Core Ultra 5 for Zoom Rooms [Pre-Order]

Product Overview

The Crestron CCC-110-Z is a dedicated Zoom Rooms compute appliance powered by an Intel Core Ultra 5 125H processor, scheduled for availability in June 2026. Available to pre-order now, it ships with Windows 11 Enterprise IoT Edition and Zoom Rooms software preloaded and certified. The CCC-110-Z is the cost-optimized companion to the CCC-120-Z, sharing identical memory (32 GB DDR5), storage (256 GB SSD), port configuration, and software stack — differentiated only by its Core Ultra 5 processor rather than the Core Ultra 7 in the 120-Z. A rear PoE+ LAN port powers and connects up to three Crestron TS(W)-1080-UC touch screens, and Wi-Fi 7 with three Ethernet ports provides flexible network connectivity for enterprise deployments.

Product Description

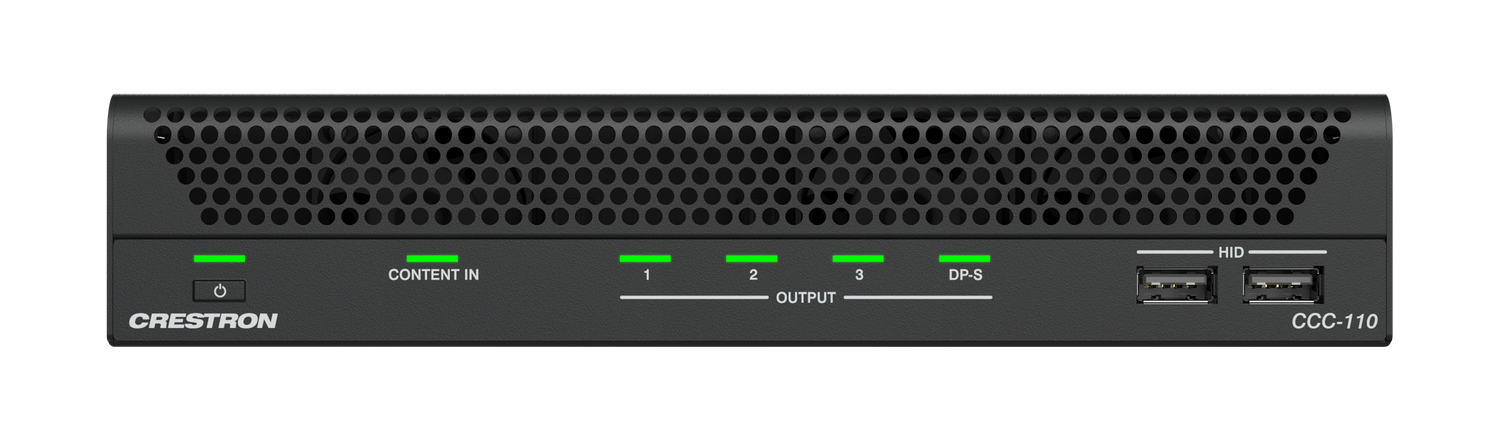

The CCC-110-Z is built for organizations that need a certified, purpose-built Zoom Rooms appliance without the incremental cost of the Core Ultra 7 platform. The Intel Core Ultra 5 125H (up to 4.50 GHz boost) with Intel ARC integrated graphics handles all standard Zoom Rooms workloads — video encoding and decoding, multi-display output, AI-assisted features, and concurrent USB peripherals — within the same hardware platform as the CCC-120-Z. Memory and storage are identical: 32 GB dual-channel DDR5 SODIMM and 256 GB SSD. Display outputs match the CCC-120-Z: one rear HDMI and one rear USB-C with DisplayPort Alt Mode, supporting up to three simultaneous displays with HDCP 2.3, EDID, and CEC. Four USB ports (two rear USB 3.0 at 10 Gbps, two front USB 2.0) support the same four-device USB peripheral maximum. Network connectivity includes the same three Ethernet ports (one Intel I219-LM dedicated room system NIC, two Intel I210), a rear PoE+ LAN port for touch screen power and connection, Wi-Fi 7 (Intel BE200, 2x2 MIMO), and Bluetooth 5.4. The PoE+ LAN port drives up to three TS(W)-1080-UC series touch screens over single Ethernet cables, eliminating separate power supplies for room control panels. BYOD presentation is supported via the optional CCC-BYOD-KIT (sold separately). XiO Cloud provides centralized provisioning, firmware updates, monitoring, and alerts for multi-room deployments. Toolless rack or furniture mounting via the CCCA-CMK-110/120 bracket (sold separately). Integrators specifying Zoom Rooms infrastructure should evaluate the CCC-110-Z for standard conference rooms and the CCC-120-Z for rooms requiring higher sustained processing performance.

Key Features

• Intel Core Ultra 5 125H — Up to 4.50 GHz boost; Intel ARC graphics; handles all standard Zoom Rooms workloads at a lower cost than the Core Ultra 7 variant.
• Zoom Rooms Preloaded and Certified — Windows 11 Enterprise IoT Edition and Zoom Rooms software installed and certified; no manual OS setup required.
• Identical Hardware to CCC-120-Z (Except Processor) — Same memory, storage, ports, and software as the CCC-120-Z; differentiator is processor tier only.
• Three-Display Support — HDMI and USB-C with DisplayPort Alt Mode support up to three simultaneous displays with HDCP 2.3, EDID, and CEC.

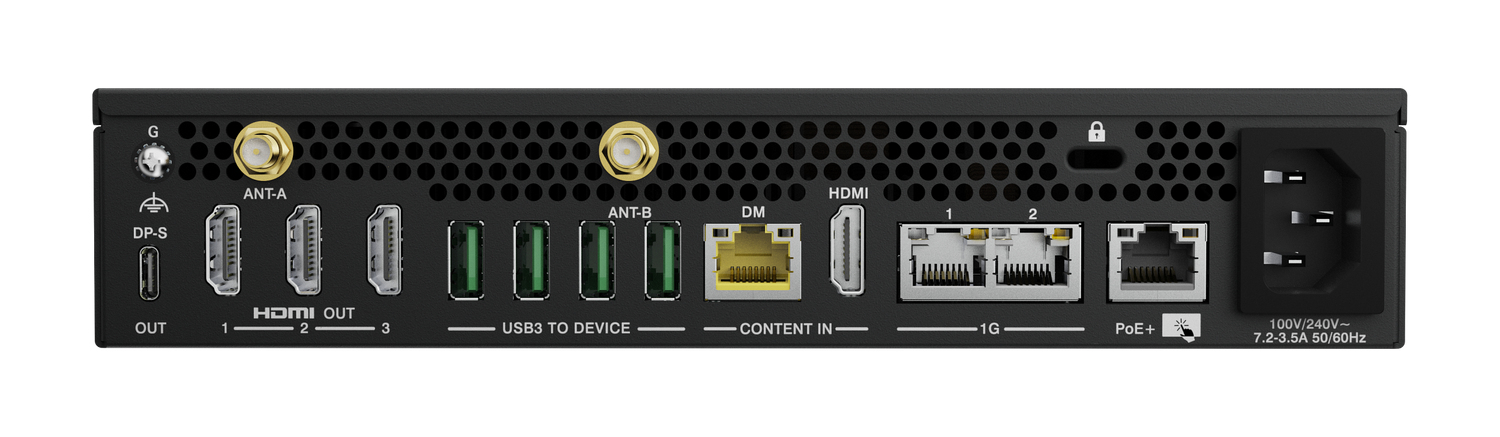

• PoE+ Touch Screen Port — Rear PoE+ LAN port powers and connects up to three TS(W)-1080-UC touch screens over single Ethernet cables.
• Wi-Fi 7 + Three Ethernet Ports — Intel BE200 Wi-Fi 7 (2x2 MIMO), Bluetooth 5.4, and three wired Ethernet ports including a dedicated room NIC.
• 32 GB DDR5 / 256 GB SSD — Dual-channel DDR5 SODIMM and solid-state storage for enterprise Zoom Rooms deployments.
• XiO Cloud Managed — Remote provisioning, monitoring, firmware updates, and alerts via Crestron XiO Cloud.
• BYOD Ready — Optional CCC-BYOD-KIT (sold separately) enables wireless content sharing from guest devices.

Typical Applications

• Enterprise conference room and meeting room Zoom Rooms deployments
• Training room and all-hands room multi-display Zoom Rooms setups
• Commercial meeting space standardizing on Zoom Rooms compute appliances
• Multi-site corporate deployments requiring a cost-optimized certified Zoom Rooms appliance
• Huddle room and small conference room Zoom Rooms installations

Technical Specifications

Frequently Asked Questions

When will the CCC-110-Z ship?
Scheduled availability is June 2026. Pre-orders are accepted now through Creation Networks. Contact us to confirm lead times and project scheduling.

What is the difference between CCC-110-Z and CCC-120-Z?
The only hardware difference is the processor: CCC-110-Z uses an Intel Core Ultra 5 125H; CCC-120-Z uses an Intel Core Ultra 7 155H. Memory, storage, ports, software, and certifications are identical. For most standard conference room Zoom Rooms workloads, the Core Ultra 5 provides sufficient performance. The Core Ultra 7 is recommended for demanding multi-display or AI-intensive scenarios.

Does the CCC-110-Z include the Zoom Rooms license?
No. The Zoom Rooms software is preloaded and certified on the hardware, but the Zoom Rooms subscription license is purchased separately through Zoom.

How many touch screens can be connected?
Up to three Crestron TS(W)-1080-UC series touch screens can be connected via the rear PoE+ LAN port, each receiving power and data over a single Ethernet cable.

Is there a Microsoft Teams Rooms version of this unit?
Yes. The CCC-110-T is the hardware-identical Teams Rooms certified variant. The CCC-110-Z is certified exclusively for Zoom Rooms.

Can this unit be managed remotely?
Yes. The CCC-110-Z integrates with Crestron XiO Cloud for remote provisioning, firmware updates, monitoring, and alert management without physical access to the device.
