Avocor AVE-7540 – 75" 4K Commercial Touchscreen, E-40 Series Value

The Avocor AVE-7540 is a 75-inch 4K commercial touchscreen from the E-40 Series, the value line for organizations standardizing interactive displays across multiple conference rooms without paying for built-in computing they will not use.

Product Overview

The AVE-7540 75" 4K commercial touchscreen display is built for PC-driven conference rooms — spaces where a room computer, UC codec, or presenter laptop supplies the content and the display supplies a bright 4K canvas with accurate touch. The 3840 x 2160 direct-lit panel produces 400 cd/m² with a 4000:1 contrast ratio, and Avocor Intelligent Touch delivers up to 20 touch points with fine-tip stylus support on zero-parallax bonded glass. For integrators specifying an interactive display for commercial installation at scale, the E-40 keeps cost per room down while preserving the connectivity a professional AV design needs.

Product Description

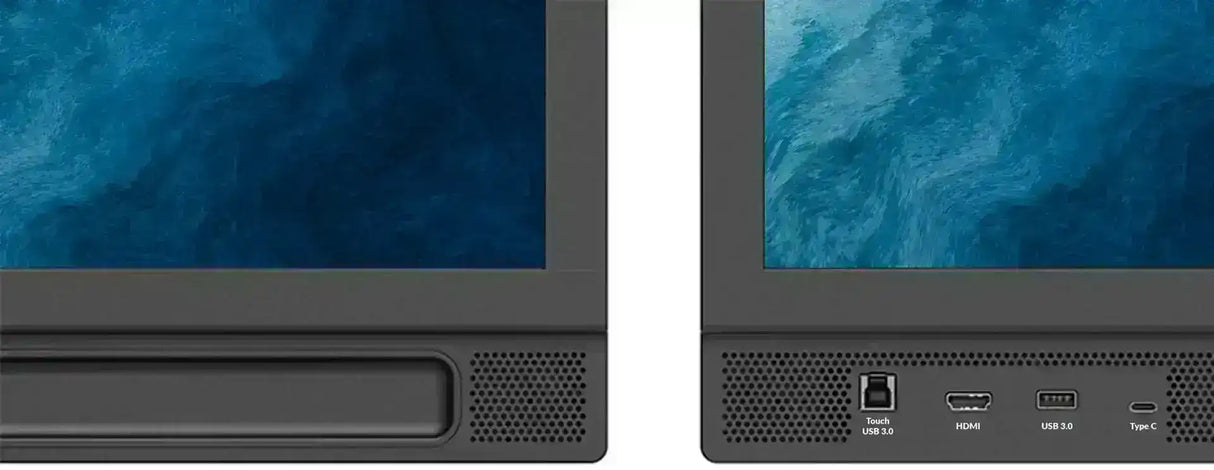

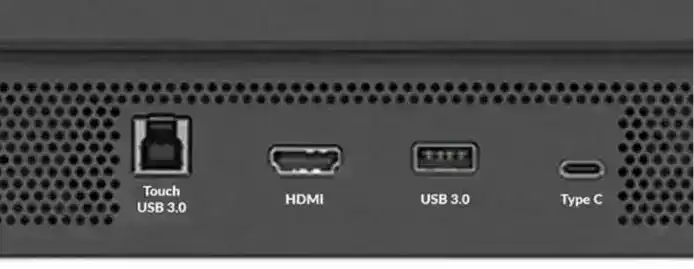

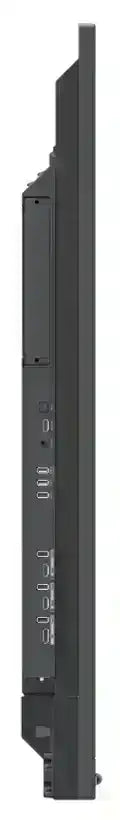

The AVE-7540 suits six-to-ten-person conference rooms and dedicated video conferencing spaces. The guest input set — USB-C with 45W power delivery, HDMI 2.0, USB-B touch, and a USB-A 3.0 hub — handles walk-up presenters, while side I/O adds two more HDMI 2.0 ports, DisplayPort 1.2, and an HDMI output for repeater or confidence displays. The OPS slot accepts a 4K @ 60Hz slot-in PC for clean Teams Rooms and Zoom Rooms builds, and RS-232 plus dual LAN ports give control programmers reliable hooks for power, source, and volume management across a fleet of rooms.

Anti-glare, anti-fingerprint bonded glass holds up to daily annotation, and 2 x 20W forward-facing speakers cover standard rooms without added audio gear. Teams that want onboard Android, 40-point touch, and Wi-Fi should step up to the Avocor AVE-7550 75" E-50 display. Within the E-40 line, the 65" AVE-6540 fits huddle rooms and the 86" AVE-8640 covers training rooms. Compare all sizes in the Avocor collection.

Key Features

• Value-Line 75" 4K Panel — The 3840 x 2160 direct-lit LED screen with 4000:1 contrast keeps per-room cost down in multi-room rollouts.
• 20-Point Avocor Intelligent Touch — Accurate multi-touch with a fine-tip stylus supports natural whiteboarding and markup in Windows.
• Bonded Anti-Glare Glass — Zero-parallax bonding puts ink directly under the pen tip while resisting glare and fingerprints in lit rooms.
• USB-C Guest Input with 45W PD — Visiting presenters get video, touch, and charging from a single cable at the front of the room.
• Three HDMI 2.0 Inputs plus DisplayPort — Enough source capacity for room PC, codec, and auxiliary inputs without an external switcher in basic rooms.
• HDMI Output — Pass content to a second display at up to 4K @ 60Hz for dual-screen or overflow configurations.
• OPS Slot at 4K @ 60Hz — House the room PC inside the display chassis for a clean, serviceable installation.
• RS-232 and Dual LAN Control — Standard control ports integrate the display into managed commercial AV systems.

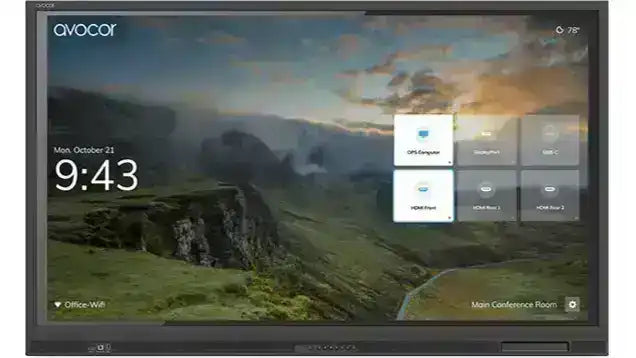

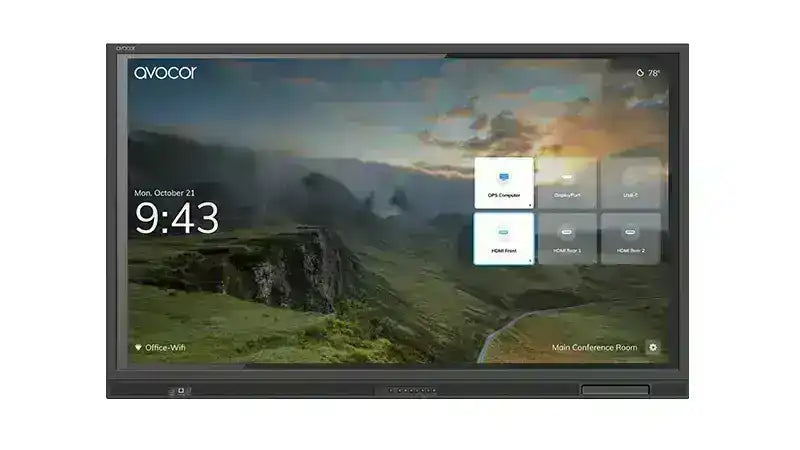

• Auto-Source Detection and Preview — The display switches to live inputs automatically and previews sources, reducing support calls.

Typical Applications

• Conference room
• Commercial meeting space
• Boardroom
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

What drives the AVE-7540 — does it have a built-in computer?

The E-40 Series is PC-driven by design: connect a room PC, UC codec, or laptop over HDMI/DisplayPort with USB-B touch, or install an OPS slot-in PC. This keeps cost down and lets IT standardize on its own compute platform.

Which video conferencing platforms does it work with?

The AVE-7540 is platform-agnostic. It serves as the touch display for Microsoft Teams Rooms, Zoom Rooms, and other UC builds when paired with the platform's compute device through HDMI and USB touch.

What should installers plan for mounting?

The display is VESA 800 x 400mm compatible, weighs 52 kg (114.64 lbs), and includes four handles. Confirm structural backing for the mount, and route conduit for the side I/O panel. Creation Networks can include certified installation in your quote.

Can it feed a second screen in the room?

Yes. The HDMI output passes content at up to 4K @ 60Hz for dual-display rooms or overflow spaces.

How is the AVE-7540 different from the AVE-7550?

The AVE-7540 is the E-40 value model with 20-point bonded touch and no onboard OS. The E-50 AVE-7550 adds Android 13, 40-point IR touch, Wi-Fi, and a presence sensor at a higher price.

What warranty applies?

The AVE-7540 ships with Avocor's commercial warranty, and Creation Networks provides system design assistance and ongoing support for commercial deployments.
