Avocor AVE-7550 – 75" 4K Touchscreen Display, E-50 Series Android

The Avocor AVE-7550 is a 75-inch 4K interactive touchscreen from the E-50 Series — Avocor's step-up interactive line with built-in Android 13, 40-point touch, and Wi-Fi — sized for mid-size conference rooms of six to ten people.

Product Overview

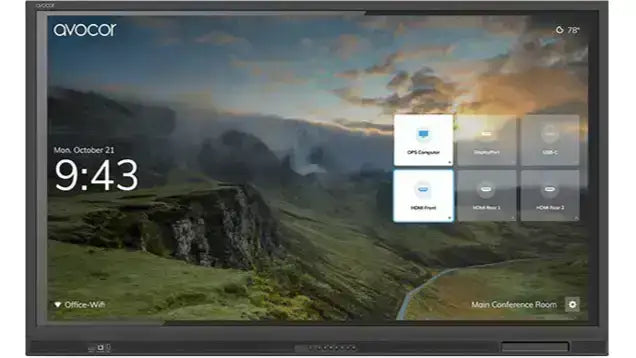

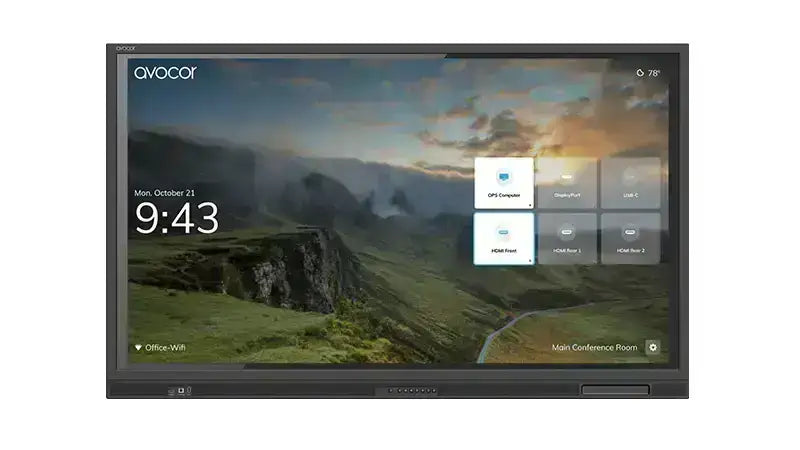

The AVE-7550 75" 4K interactive touchscreen display brings whiteboarding, wireless screen sharing, and video conferencing sources together on one panel for the standard mid-size conference room. Unlike value-line displays that depend entirely on an attached PC, the E-50 Series runs Android 13 on an Amlogic 311D2 chipset with 4GB RAM and 32GB storage, so annotation and apps are available the moment the room is booked. Up to 40-point IR touch with a fine-tip stylus and zero-bond anti-glare glass makes it a responsive interactive flat panel for commercial meeting spaces.

Product Description

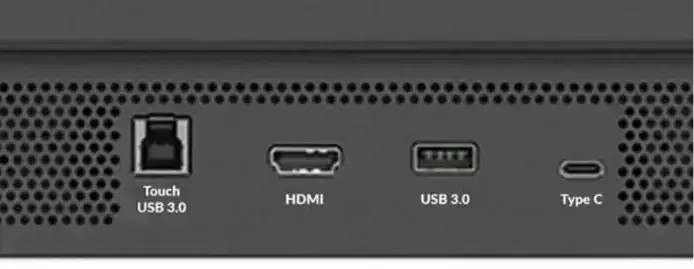

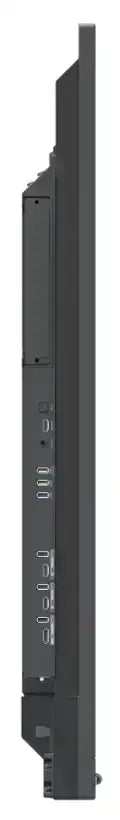

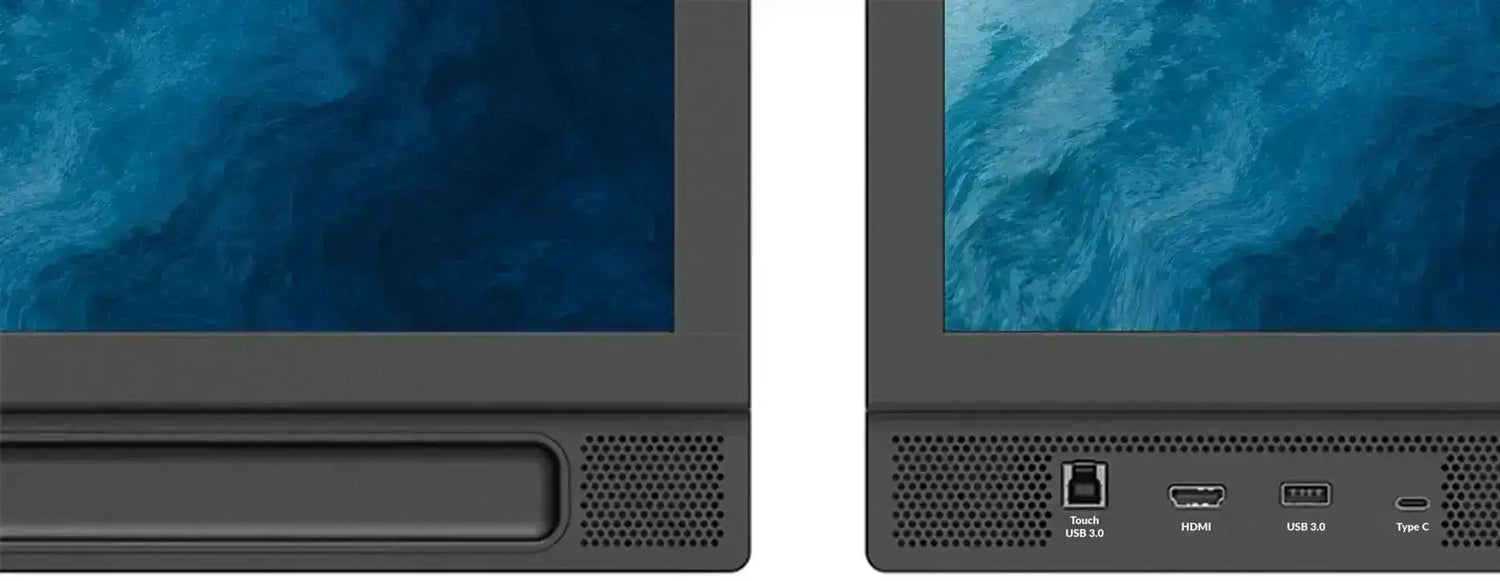

In a 75-inch conference room display deployment, presenters connect through the front USB-C port with 65W power delivery — one cable for 4K video, touch-back, and laptop charging. Installed sources route through two side HDMI 2.0 inputs, DisplayPort 1.2, and a secondary 15W USB-C port, while an HDMI output feeds confidence monitors or overflow displays at 4K @ 60Hz. The OPS slot accepts a slot-in Windows PC for Teams Rooms or Zoom Rooms builds, and RS-232 plus dual LAN ports tie the display into room control and network management. A built-in presence sensor wakes the display when people enter the room.

If budget leads the spec, the value-line Avocor AVE-7540 75" E-40 display covers the same room size without the Android SoC. Smaller huddle spaces suit the 65" AVE-6550, larger rooms the 86" AVE-8650, and Front Row 21:9 rooms the 92" ultrawide AVE-9200. See all models in the Avocor collection.

Key Features

• Built-in Android 13 — An Amlogic 311D2 SoC with 4GB RAM and 32GB storage runs whiteboarding and apps without a connected PC.
• 40-Point IR Touch — Up to 40 simultaneous touch points with a fine-tip stylus support multi-user annotation in working sessions.
• 75" 4K UHD Panel — The 3840 x 2160 direct-lit LED screen at 400 cd/m² with 178° viewing angles fits six-to-ten-person conference rooms.
• USB-C with 65W Power Delivery — The front guest input carries video, touch, and full laptop charging over a single cable.
• Presence Sensor — The display wakes automatically when participants enter the room, which cuts energy use and removes a step from meetings.
• Wi-Fi and Dual LAN — Wireless or wired networking, with RJ-45 in and out, simplifies device management across a building.
• OPS Slot — Add a slot-in Windows PC for Microsoft Teams Rooms, Zoom Rooms, or dedicated room computing without external boxes.
• HDMI Output — Mirror content to a second display or overflow room at up to 4K @ 60Hz.
• Zero-Bond Anti-Glare Glass — Zero-parallax glass with anti-fingerprint coating keeps writing precise and the surface presentable.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Training room
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Does the AVE-7550 include a wall mount?

Yes. An 800 x 400 VESA wall mount ships in the box along with power cords for US, UK, EU, and Australian outlets, styluses, and HDMI, USB-B, and USB-C cables — a complete kit for a standard conference room installation.

Can the AVE-7550 run apps without a connected computer?

Yes. The built-in Android 13 platform with 4GB RAM and 32GB storage handles whiteboarding and collaboration apps directly on the display, with Wi-Fi or wired networking.

How do I deploy it as a Microsoft Teams Rooms or Zoom Rooms display?

Connect a certified room compute device over HDMI with a USB-B touch return, or install a Windows OPS PC in the display's OPS slot. The 65W USB-C front input also supports BYOD meetings from any laptop.

What is the difference between the AVE-7550 and the AVE-7540?

The AVE-7550 (E-50 Series) adds Android 13, 40-point IR touch, Wi-Fi, 65W USB-C charging, and a presence sensor. The AVE-7540 (E-40 Series) is the value line with 20-point bonded touch and PC-driven operation.

Does it integrate with AV control systems?

Yes. RS-232 and dual LAN (RJ-45 in/out) ports support control and monitoring from Crestron, Extron, and similar room control platforms.

What warranty and support come with the display?

The AVE-7550 is covered by Avocor's commercial warranty. Creation Networks supports system design, installation planning, and post-deployment service for commercial AV projects.
