Avocor AVM-6570-NA – Google Meet Series One Board 65

The Google Meet Series One Board 65 by Avocor (AVM-6570-NA) is a 65-inch all-in-one video conferencing board that turns any conference room, executive office, or huddle space into a one-touch Google Meet room — no separate codec, camera, or soundbar required.

Product Overview

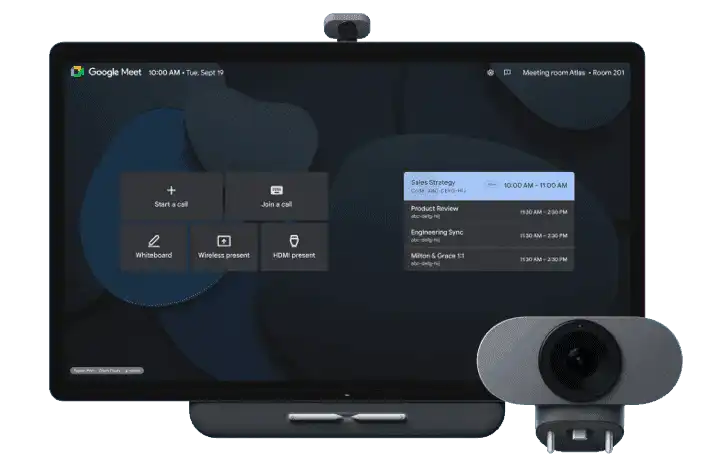

Built by Avocor in partnership with Google, the Series One Board 65 combines a 4K interactive touchscreen, a 12MP conference camera, an integrated stereo soundbar, and Series One TrueVoice microphone technology in a single wall-mounted or cart-mounted device. As a Google Meet hardware board, it joins scheduled meetings with a single tap through Google Calendar integration, and native Microsoft Teams interoperability also lets teams join Teams, Zoom, and Webex calls directly from the on-screen dashboard. For organizations standardizing on Google Workspace, this all-in-one Google Meet touchscreen display is the simplest path to consistent meeting room deployment.

Product Description

The Board 65 pairs a 65" 3840 x 2160 direct-lit LED panel with Avocor InGlass intelligent touch and zero-parallax bonded anti-glare cover glass, so whiteboarding feels accurate and natural. An Intel Core i7 processor drives the Google Meet experience and digital whiteboarding with FigJam, Lucidspark, and Miro. The 12MP 4K camera with 120-degree horizontal field of view uses digital pan, tilt, and zoom to frame participants automatically, while TrueVoice audio with a dedicated TPU removes typing, paper shuffling, and other distracting sounds in real time. BYOD is handled through a single USB-C cable that delivers 45W power to a laptop while extending the display, camera, microphones, and speakers to any conferencing application. Installation is straightforward for AV integrators: wall-mount on the 400 x 400mm VESA pattern or specify the optional rolling stand for shared and spontaneous meeting spaces.

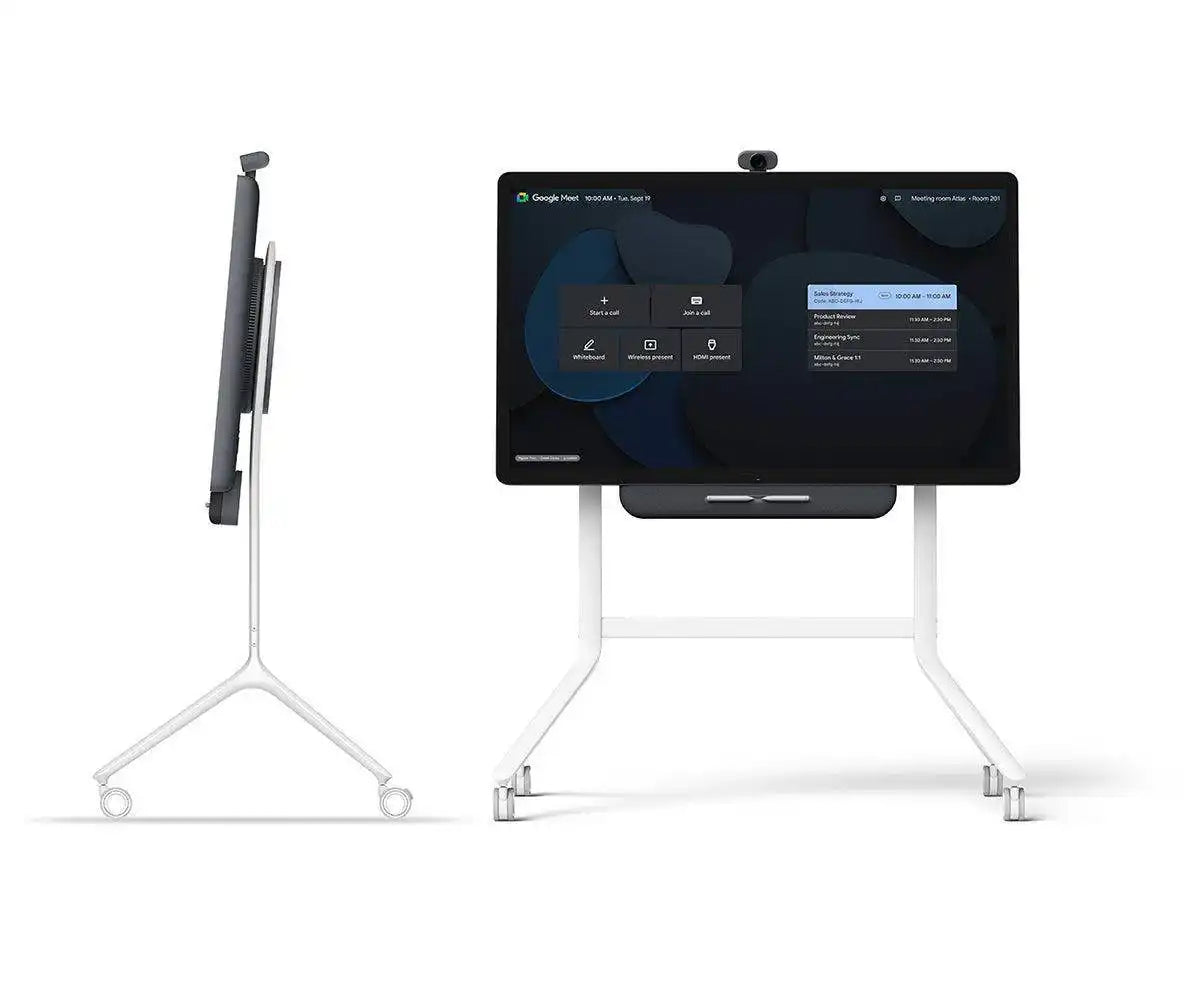

Pair the Board 65 with the Avocor mobile stand for Board 65 to move the device between rooms, or browse the full Avocor collection for interactive displays in other sizes and platforms.

Key Features

• One-Touch Google Meet — Google Calendar integration puts the next meeting on screen so participants join with a single tap.
• Native Multi-Platform Joining — Microsoft Teams interoperability lets users join Teams, Zoom, Webex, and Google Meet calls directly from the display without extra hardware.
• 12MP 4K Conference Camera — The oversized CMOS sensor with 120° horizontal field of view supports 30 fps capture with autofocus and digital PTZ framing.
• TrueVoice Audio Processing — A dedicated TPU detects and eliminates distracting sounds in real time while leveling human voices for clear conversations.
• Avocor InGlass Touch — Zero-parallax bonded anti-glare cover glass delivers responsive, accurate whiteboarding with FigJam, Lucidspark, and Miro.
• Single-Cable BYOD — One USB-C connection provides 45W laptop charging plus access to the camera, microphones, speakers, and touchscreen up to 4K @ 60Hz.
• HDMI Output for Dual-Screen Rooms — Mirror or extend to a second monitor at up to 4K @ 60Hz for content-plus-people layouts.
• Presence Detection — K-band presence sensing supports screen dimming and energy saving when the room is empty.

Typical Applications

• Conference room
• Boardroom
• Huddle room
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Does the Board 65 work with platforms other than Google Meet?

Yes. While the Board 65 is optimized as a Google Meet hardware device, native interoperability lets users join Microsoft Teams, Zoom, and Webex calls with one touch from the on-screen dashboard, and BYOD mode over USB-C exposes the camera, microphones, and speakers to any conferencing application running on a connected laptop.

What is needed to install the Board 65?

The board is an all-in-one device — connect power and a network (Ethernet or WiFi) and it is ready to enroll. Wall-mount it on the 400 x 400mm VESA pattern or order the optional rolling stand if the display needs to move between rooms.

Does it require additional AV equipment in the room?

No. The 12MP camera, stereo soundbar, TrueVoice microphones, and Intel Core i7 compute are all integrated, which removes the codec, camera, and DSP line items from a typical conference room bill of materials.

Can I extend a laptop to the Board 65?

Yes. A single USB-C cable delivers 45W of power to a laptop while extending the laptop display to the board at up to 4K @ 60Hz, with full access to the camera, audio, and touch input.

Is a second display supported?

Yes. The HDMI output mirrors or extends the board to a second monitor at up to 4K @ 60Hz — useful for dual-screen conference room layouts that separate people and content.

How is licensing and management handled?

The Board 65 enrolls as Google Meet hardware and is managed through the Google Workspace admin console alongside other Series One room devices. Contact Creation Networks for guidance on licensing and fleet deployment.

What support does Creation Networks provide?

Creation Networks supports the product through manufacturer warranty coverage and can scope full conference room integration, including mounting, network configuration, and rollout across multiple rooms. See the complete Avocor collection for related displays and accessories.
