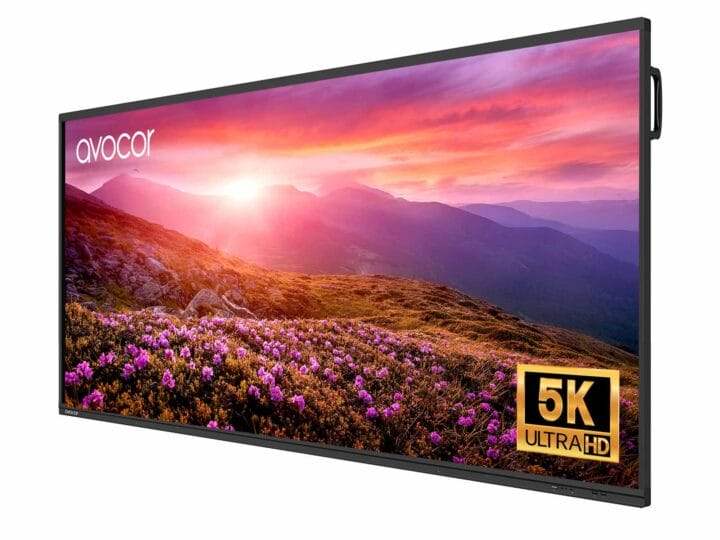

Avocor AVE-9200 – 92" 5K 21:9 Ultrawide Touchscreen

The Avocor AVE-9200 is a 92-inch 5K 21:9 ultrawide interactive touchscreen designed for Microsoft Teams Front Row and other panoramic meeting layouts that put remote participants, shared content, and chat side by side at eye level. Where a 16:9 panel crops the Front Row experience, this ultrawide format displays it as intended.

Product Overview

The AVE-9200 92-inch ultrawide touchscreen display delivers 5120 x 2160 resolution at 60Hz across a 21:9 aspect ratio, with up to 50 points of IR touch and a fine-tip stylus for annotation. It is purpose-built for 21:9 video conferencing rooms: remote attendees appear life-size along the bottom of the screen while content and meeting chat occupy the rest of the canvas. With a 100W power-delivery USB-C input, an OPS slot, three HDMI 2.0 inputs, and RS-232/LAN control, it integrates cleanly into managed commercial conference room AV systems.

Product Description

Hybrid meeting equity is the driving use case for the AVE-9200. In a Microsoft Teams Front Row layout on this 21:9 ultrawide display, far-end participants sit at natural eye level across the width of the room, which makes conversations feel more like everyone is at the same table. The direct-lit LED panel produces 450-nit brightness with a 4000:1 contrast ratio and 178-degree viewing angles, and the panel is rated for 16-hour, 7-day commercial operation. Built-in audio is stronger than most flat panels: two 20W speakers plus a 20W subwoofer give voice and program audio real presence in mid-size rooms.

Under the glass, a Rockchip RK3588 processor with 8GB RAM and 64GB storage runs Android 13 and Avocor's UiQ interface for source switching and whiteboarding without an attached PC. Side I/O includes a 100W USB-C, DisplayPort 1.4, three HDMI 2.0 inputs with HDCP 2.3, an HDMI 2.0 output, USB-B touch ports, and dual RJ45 plus RS-232 for control system integration — everything an integrator needs for a fully managed ultrawide conferencing room. For a standard 16:9 room at a lower price point, see the 86-inch Avocor AVE-8650; if you want an even larger 21:9 canvas, compare the 105-inch Avocor L Series AVL-1050-T. The full lineup lives in our Avocor collection.

Key Features

• 92-inch 5K 21:9 Ultrawide Panel — The 5120 x 2160 resolution gives you a third more horizontal canvas than 4K, matching the native format of Microsoft Teams Front Row and panoramic content layouts.
• 50-Point IR Touch with Stylus — Up to 50 simultaneous touch points and a fine-tip stylus on zero-parallax anti-glare glass support whiteboarding across the full ultrawide surface.
• Conference-Grade Built-in Audio — Two 20W speakers and a 20W subwoofer deliver clear far-end voice without immediately adding external speakers.
• 100W USB-C Connectivity — A single Type-C cable carries 5K video, audio, touch, and 100W laptop charging for walk-up presenters.
• Embedded Android 13 Compute — The RK3588 processor with 8GB/64GB runs UiQ tools and whiteboarding directly on the display.
• OPS Slot for Room Compute — Install a Windows OPS module or connect certified Teams/Zoom room systems over HDMI with USB touch return.
• Integrator Control Ports — RS-232 and dual RJ45 connections support Crestron, Extron, and other control processors in managed AV deployments.
• Commercial Duty Rating — The panel is rated for 16-hour by 7-day operation and ships with a wall mount and WiFi module included.

Typical Applications

• Conference rooms running Microsoft Teams Front Row or Zoom panoramic layouts
• Boardrooms needing life-size remote participants and content side by side
• Commercial meeting spaces standardizing on 21:9 video conferencing
• Training rooms presenting wide datasets, timelines, or dual documents
• All-hands rooms where hybrid attendance is the norm

Technical Specifications

Frequently Asked Questions

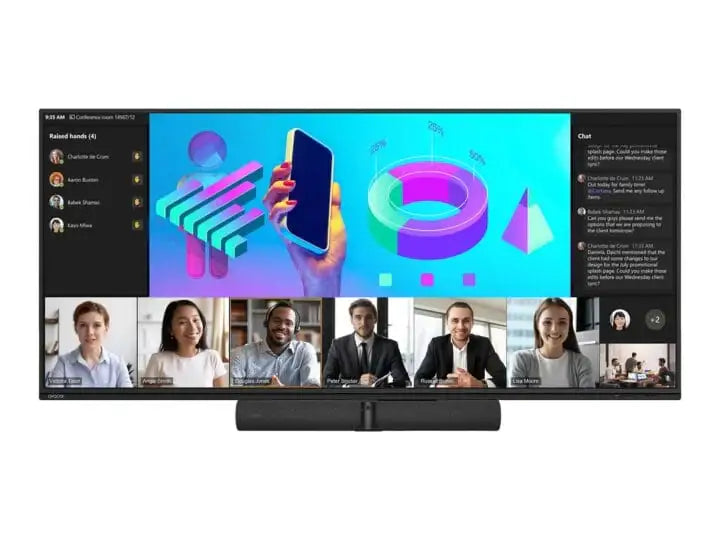

Why choose a 21:9 display for Microsoft Teams Front Row?

Front Row was designed for a 21:9 canvas: remote attendees render life-size along the bottom while chat, raised hands, and shared content fill the panorama. On a 16:9 display the layout is letterboxed and participants shrink; the AVE-9200's native 5120 x 2160 panel shows it at full scale.

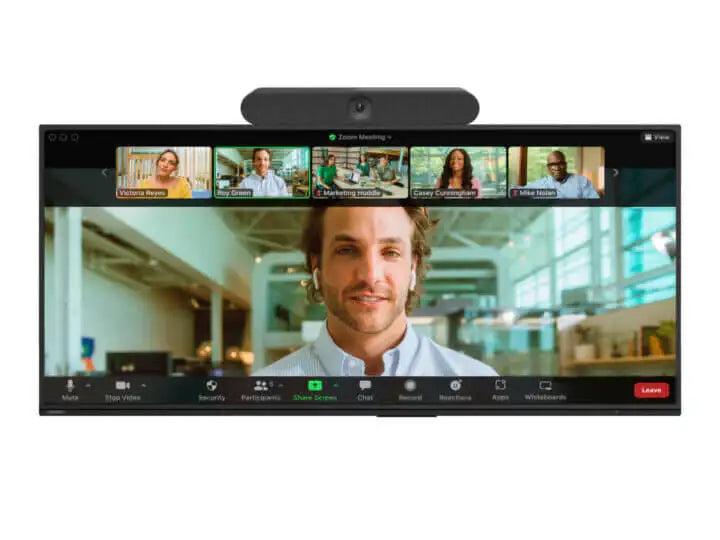

Does the AVE-9200 work with Teams Rooms and Zoom Rooms hardware?

Yes. Connect a certified MTR or Zoom Rooms compute over HDMI (or install a Windows OPS module) and return touch over USB. The display supports Windows, macOS, Linux, and Android hosts, and HDCP 2.3 covers protected content.

How should it be mounted?

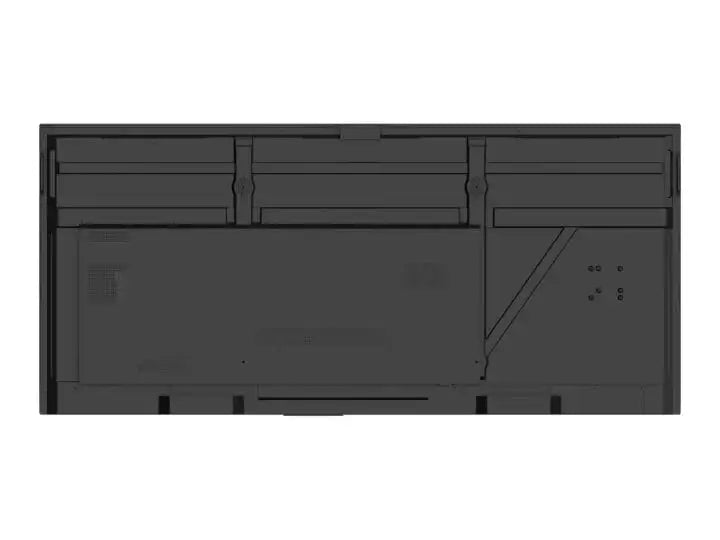

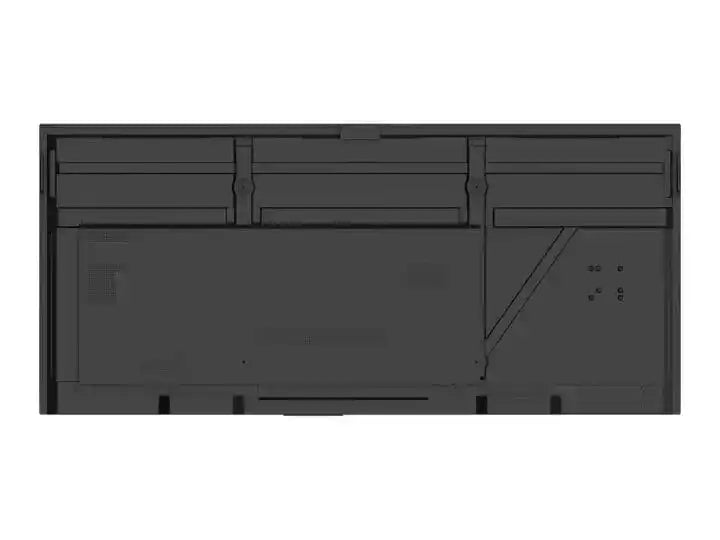

The display uses an 800 x 600mm VESA pattern, weighs 67.6kg (149 lbs), and includes the wall mount in the box. Plan a stud- or blocking-backed commercial installation; Creation Networks offers nationwide professional installation if needed.

Can my control system manage it?

Yes. RS-232 and two RJ45 network ports allow power, source, and volume control from Crestron, Extron, Q-SYS, and similar AV control platforms.

Do I need an external PC for whiteboarding?

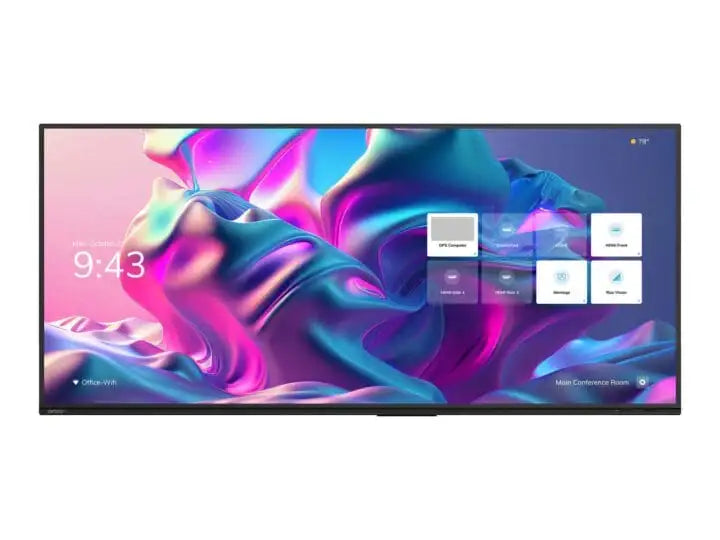

No. The embedded Android 13 system with the UiQ interface provides on-display whiteboarding and source management. For Windows-based workflows, add an OPS PC or connect a laptop over the 100W USB-C input.

What warranty applies?

The AVE-9200 carries Avocor's global commercial warranty with North American support, and Creation Networks assists with registration, claims, and integration support after the sale.

Compare ultrawide and 4K interactive displays in our Avocor collection.
