Avocor AVC-OPSi5-G11 – i5 Gen 11 OPS PC, Windows 11 Pro

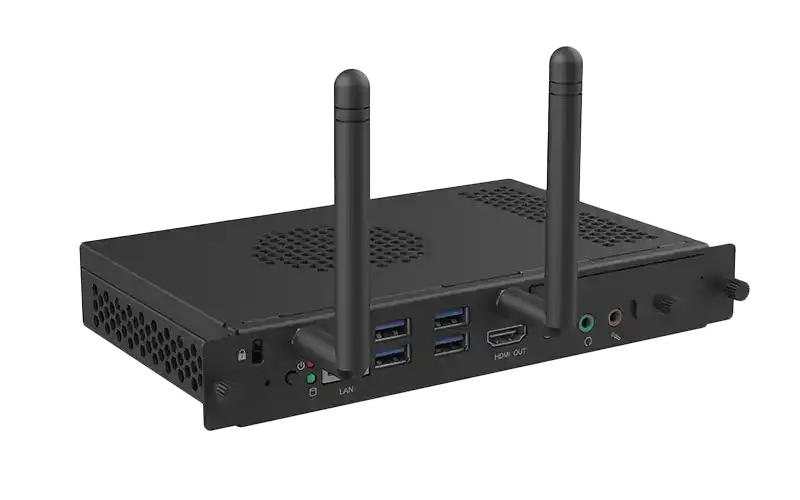

The Avocor AVC-OPSi5-G11 is a slot-in OPS computer that converts an Avocor interactive touchscreen into an all-in-one Windows 11 Pro PC, removing the need for an external room computer and the cabling that comes with it.

Product Overview

This OPS slot-in PC for Avocor displays is the standard productivity tier of the Gen 11 compute range, built for everyday conference room and classroom workloads: video conferencing, document collaboration, whiteboarding, and browser-based tools. Powered by an 11th Gen Intel Core i5-1135G7 processor and preloaded with Windows 11 Pro, it installs in seconds by sliding into the display's OPS slot. For IT and facilities managers rolling out interactive displays across multiple meeting spaces, the OPS form factor means one fewer device to mount, cable, and troubleshoot per room.

Product Description

At the heart of the AVC-OPSi5-G11 is the 11th Gen Intel Core i5-1135G7 quad-core (8-thread) processor running at 2.4 GHz with up to 4.20 GHz max turbo and 8MB cache — well matched to standard meeting room computing. It ships with 8GB DDR4-3200 memory (upgradable to 32GB) and a 256GB M.2 NVMe SSD for quick boots and responsive day-to-day use. Integrated Intel Iris Xe graphics support DirectX 12.1 and OpenGL 4.6, and an HDMI 2.0 output drives 4K at 60Hz to a secondary display when the room design requires one. Connectivity is thorough for a module this size: four USB 3.0 Type-A ports, a USB 3.2 Type-C port, Gigabit Ethernet via Intel I219-V, and dual-band wireless. TPM 2.0 support and the Windows 11 Pro OS give IT departments the security baseline expected of a managed enterprise endpoint. The JAE 80-pin OPS interface carries power and video internally, so commercial AV installation is genuinely plug-and-play.

For rooms running heavier concurrent workloads, step up to the Avocor i7 Gen 11 OPS with 16GB of RAM, or the i7 Gen 12 OPS for 5K ultrawide displays. The earlier i7 Gen 10 OPS remains available for matching existing fleets.

Key Features

• 11th Gen Intel Core i5-1135G7 — The quad-core, 8-thread processor at 2.4 GHz (4.20 GHz max turbo) handles conferencing, browsing, and productivity applications smoothly throughout the workday.
• 8GB DDR4-3200, Upgradable to 32GB — The included 8GB SODIMM covers standard workloads, and the platform accepts up to 32GB when requirements grow (upgrades not available via Avocor).
• 256GB M.2 NVMe SSD — NVMe solid-state storage keeps boot times short and applications responsive so rooms are ready when meetings start.
• Windows 11 Pro Preinstalled — The 64-bit Pro edition supports domain join, group policy, and the security features enterprise IT requires.
• Intel Iris Xe Graphics with 4K Output — Integrated graphics drive the host display and a 4K 60Hz HDMI 2.0 output for a secondary screen.
• Comprehensive I/O — Four USB 3.0 Type-A ports, one USB 3.2 Type-C, Gigabit RJ45 LAN, 3.5mm line out, and 3.5mm mic in cover peripherals and room audio tie-ins.
• TPM 2.0 and Secure OPS Interface — Hardware TPM 2.0 support and the standardized JAE 80-pin connector deliver a secure, repeatable AV system integration.
• Dual-Band Wireless — Intel dual-band 2.4GHz/5GHz wireless provides network flexibility where a wired drop is not practical.

Typical Applications

• Conference rooms standardizing on display-integrated Windows PCs
• Huddle rooms where minimal cabling and fast deployment matter
• Training rooms running productivity and whiteboarding software
• Commercial meeting spaces managed by enterprise IT
• Multi-purpose rooms that need a consistent, locked-down room PC

Technical Specifications

Frequently Asked Questions

Which displays accept the AVC-OPSi5-G11?

Any Avocor interactive display with a standard OPS slot, including the G Series, E Series, and H Series models. Verify OPS slot support on your specific display with Creation Networks before purchase.

Is any cabling required for installation?

No. The module slots into the display's OPS bay and receives power and passes video over the JAE 80-pin connector. Installation is typically a one-minute job per display, which makes large commercial deployments fast and repeatable.

When should I choose the i5 instead of the i7 Gen 11 OPS?

Choose the i5 for standard productivity rooms: conferencing, documents, browsing, and whiteboarding. If rooms regularly run multiple demanding applications at once, the AVC-OPSi7-G11 adds a faster processor and double the memory.

Can the memory be upgraded later?

The platform supports up to 32GB of DDR4 RAM. Note that Avocor does not perform upgrades, so memory changes should be handled by your IT team or integrator.

Does it meet enterprise security requirements?

It supports TPM 2.0 and runs Windows 11 Pro 64-bit, enabling BitLocker, domain policies, and the standard security controls enterprise IT departments deploy on managed endpoints.

What support does Creation Networks provide?

Creation Networks assists with display compatibility, deployment planning, and warranty questions. The module carries Avocor's standard manufacturer warranty — contact us for terms, or explore the full Avocor collection.
