Symetrix 80-0086 xIn 12

Product Overview

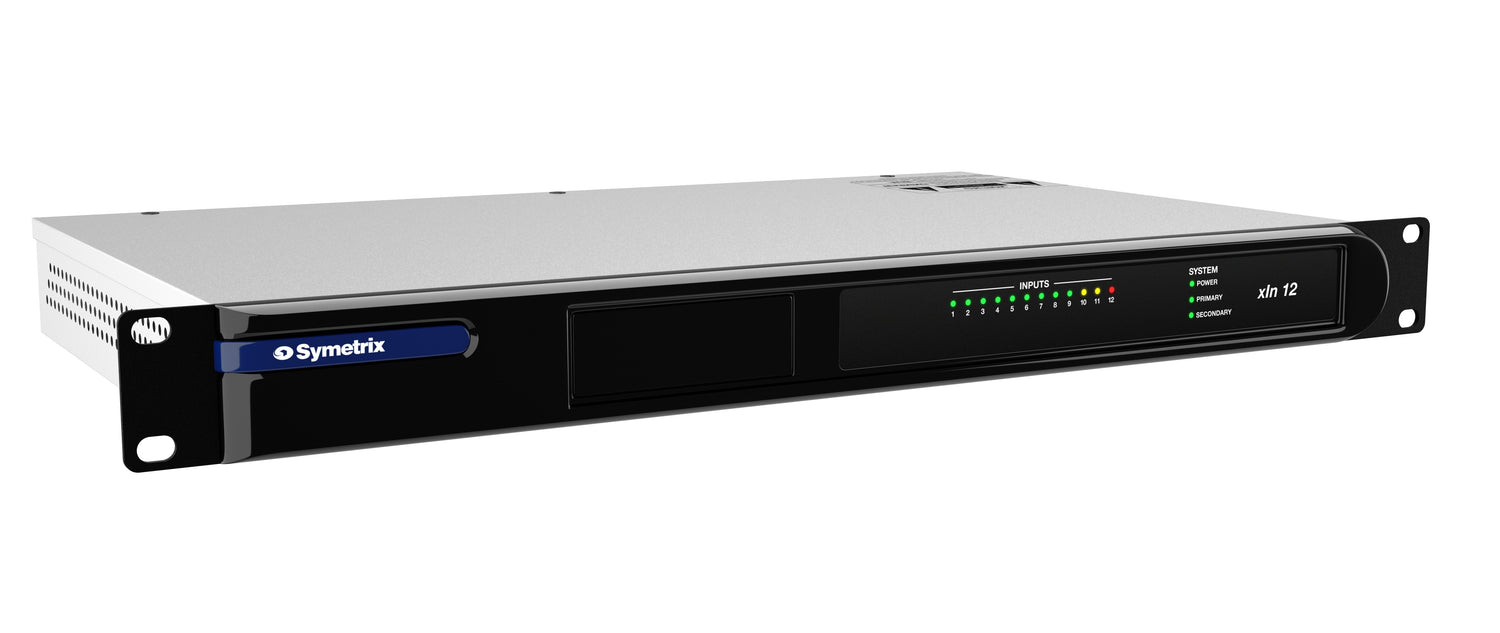

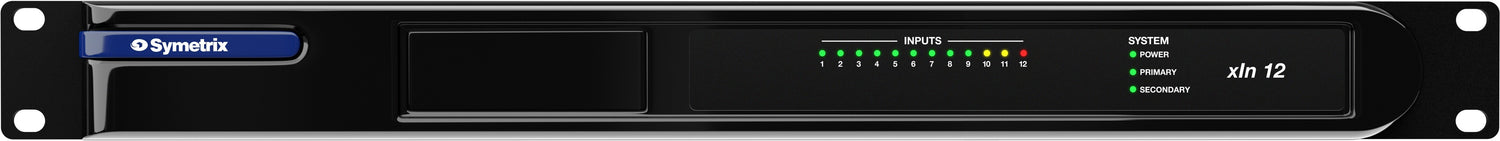

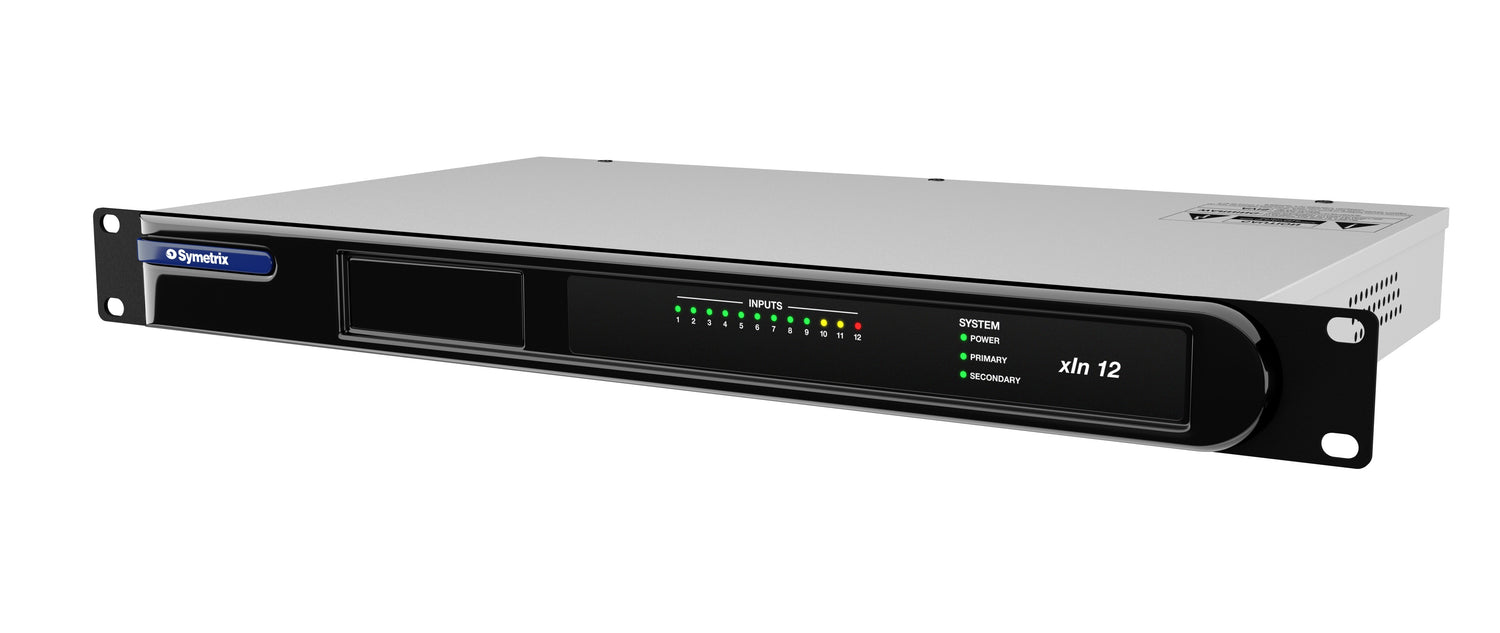

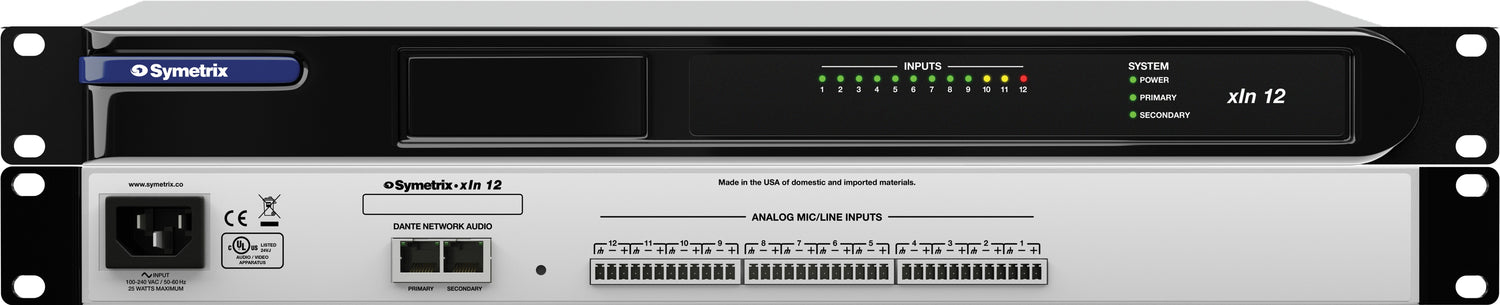

The Symetrix 80-0086 xIn 12 is a 12-channel analog-to-Dante input endpoint designed for distributed AV installations where analog audio sources need to be converted to Dante network audio and routed to Symetrix DSPs or other Dante-enabled devices across an IP network. Rack-mountable and powered via standard AC, the xIn 12 accepts 12 balanced analog inputs and transmits them as 12 Dante channels on the network, extending the analog input reach of a Symetrix DSP installation beyond the DSP chassis itself.

Product Description

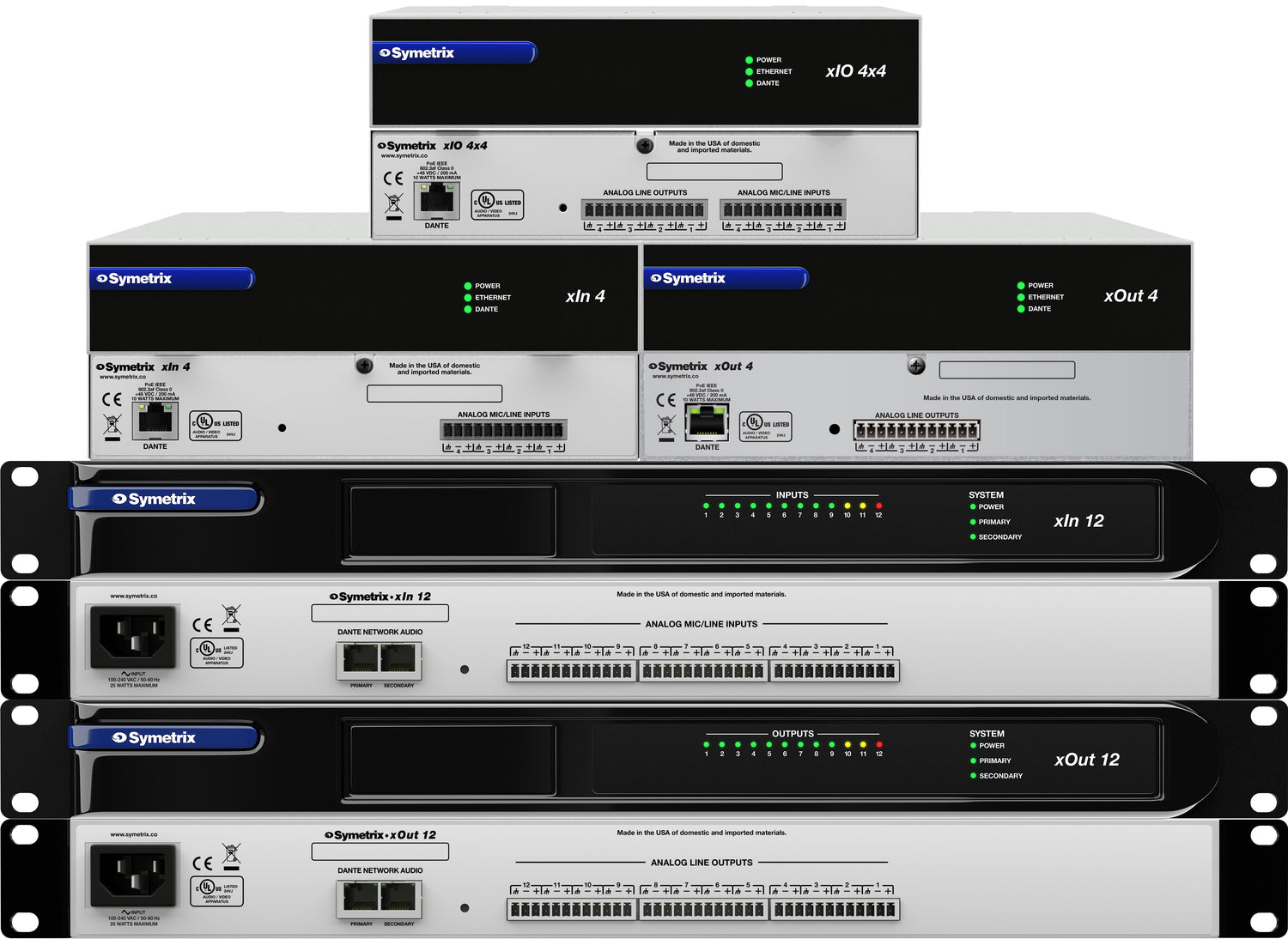

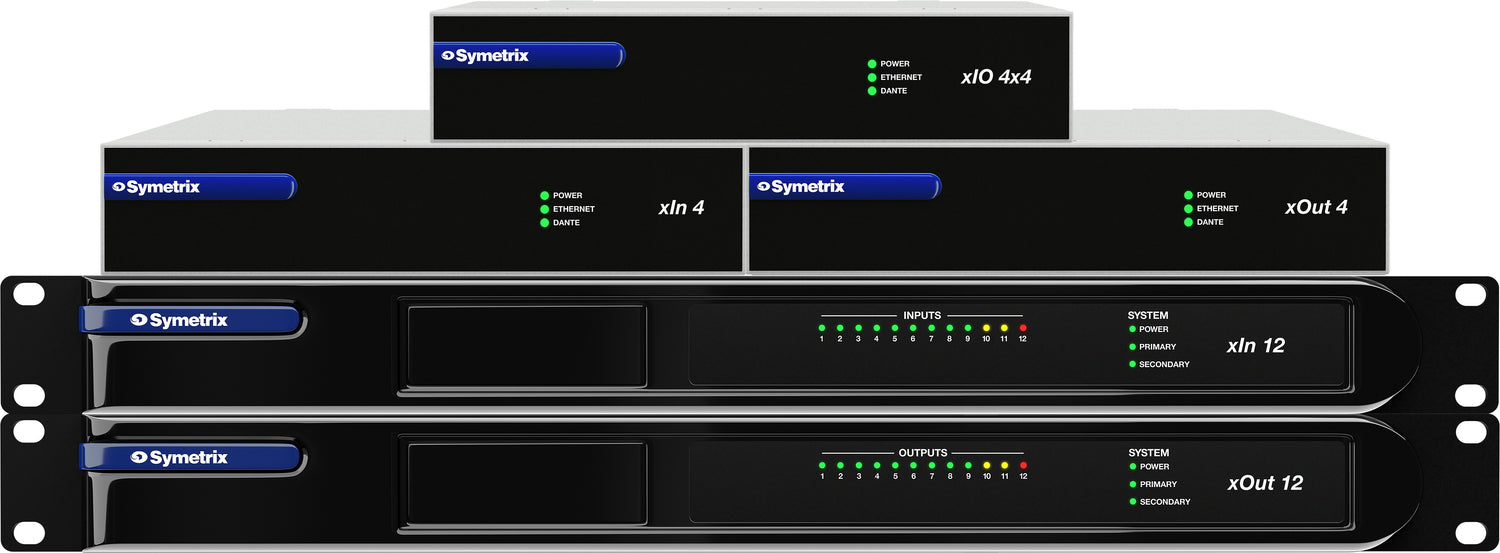

The xIn 12 is part of the Symetrix xIO rack-mount Dante endpoint family, which provides analog-to-Dante and Dante-to-analog conversion at remote locations in a distributed AV system. In a typical deployment, a Symetrix EDGE Dante or Server D100 sits in a central equipment room while xIn 12 units are installed at stage boxes, lecterns, or distributed mic locations — sending all 12 analog inputs back to the DSP over Ethernet without running individual analog cables. The xIn 12 is configured and routed from within Symetrix Composer, integrating seamlessly into the overall DSP signal chain. For the corresponding output endpoint, see the xOut 12 (80-0090). For smaller channel counts, the xIn 4 (80-0110) provides 4 analog inputs in a half-rack form factor.

Key Features

• 12 Balanced Analog Inputs — Mic/line inputs for microphones, instruments, or line-level sources at remote locations.
• 12 Dante Transmit Channels — All 12 analog inputs transmitted over the Dante network to the DSP.
• Rack-Mount Form Factor — Installs in standard equipment racks at remote locations or in the main AV rack.
• Composer Programmable — Routing and signal configuration handled in Symetrix Composer within the overall site file.
• AES67 Compatible — Supports AES67 for interoperability with non-Symetrix Dante devices.

Typical Applications

• Houses of worship with distributed stage box inputs over Dante
• Performing arts centers with remote input locations connected via Ethernet to a central DSP
• Campuses with analog mic inputs at multiple buildings routing to a central Server D100
• Large conference rooms or auditoriums with distributed analog input locations
• Broadcast studios converting analog source inputs to Dante for routing to DSP and recording systems

Technical Specifications

Frequently Asked Questions

Does the xIn 12 require a Symetrix DSP to operate?

The xIn 12 transmits Dante audio and is designed to integrate with a Symetrix DSP via Composer. It can also interoperate with other Dante-enabled devices on the same network via standard Dante Controller.

What is the difference between the xIn 12 and the xIn 4?

The xIn 12 (80-0086) provides 12 analog inputs in a full-rack form factor. The xIn 4 (80-0110) provides 4 analog inputs in a half-rack form factor for installations with smaller channel requirements.
