Symetrix 80-0048 EDGE Dante

Product Overview

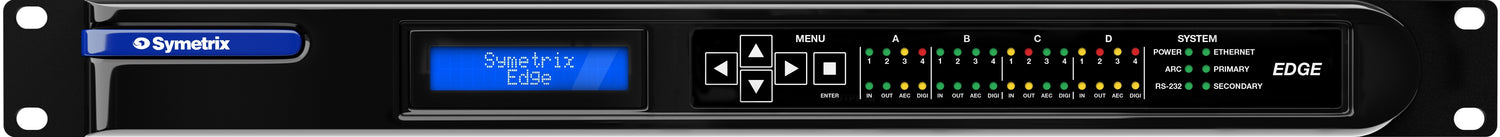

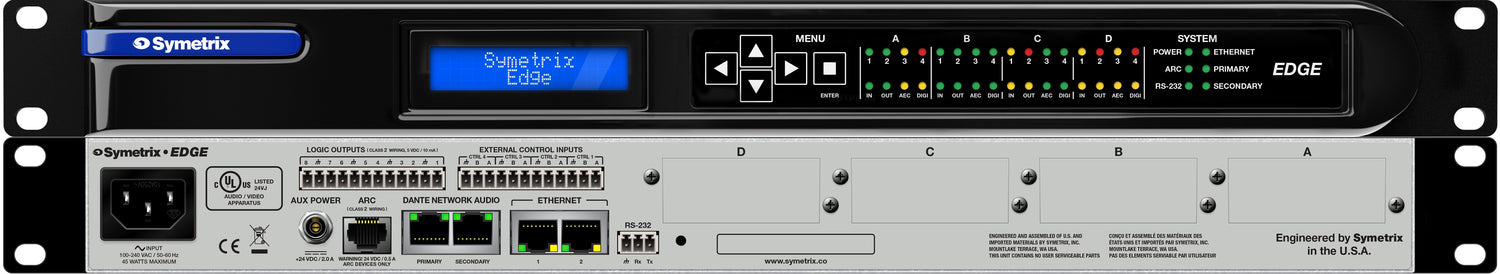

The Symetrix EDGE Dante (SKU: 80-0048) is a 1U rack-mount open-architecture DSP processor built for commercial AV installations that require flexibility in analog I/O configuration and Dante network audio. With 8 balanced analog inputs, 8 balanced analog outputs, onboard 64x64 Dante networking, and four configurable expansion card slots, the EDGE Dante adapts to the specific I/O requirements of each project without requiring a larger or more expensive chassis. It is programmed entirely in Symetrix Composer, the same software used across the full Symetrix DSP range.

Product Description

The EDGE Dante ships with 8 balanced mic/line inputs and 8 balanced analog outputs as its base I/O, supplemented by 64x64 Dante channels for distributed audio over standard IP networks. The four expansion card slots accept any combination of Symetrix EDGE-compatible I/O cards: the 4-Channel Analog Input Card, 4-Channel Analog Output Card, 4-Channel AEC Input Card, 2-Line VoIP Interface Card, 2-Line Analog Telephone Card, and the USB Audio Card. This modular design allows the EDGE to serve conference rooms requiring AEC and USB-B BYOD audio, broadcast environments needing VoIP integration, or multi-zone audio systems requiring additional analog outputs — all within the same physical chassis. The EDGE is programmed in Symetrix Composer, which provides open-architecture DSP design with no per-seat license fee, and a single site file can include EDGE alongside Prism, Radius NX, Server D100, and xIO endpoints.

Key Features

• 8 Balanced Analog Inputs + 8 Balanced Analog Outputs — Base I/O covers most conference room and multi-zone audio installations out of the box.
• 64x64 Dante (Onboard) — Full 64-channel bidirectional Dante networking for AVoIP distribution across the installation; AES67 compatible.

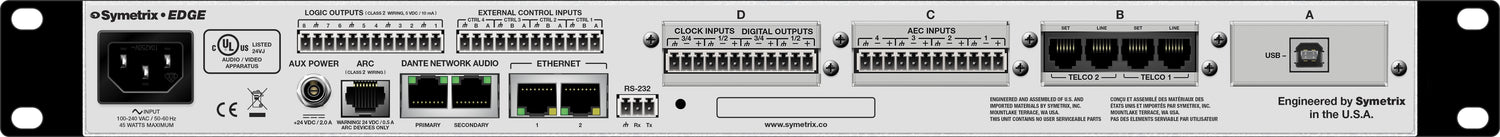

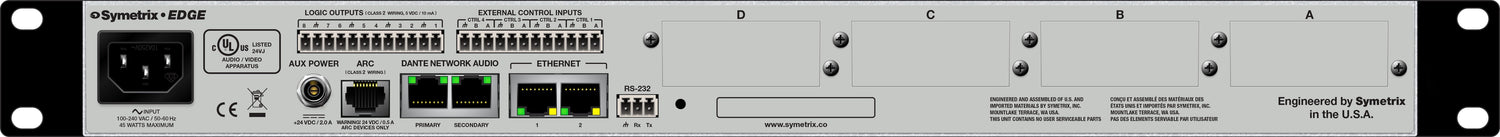

• 4 Expansion Card Slots — Accepts AEC, analog, VoIP, PSTN, and USB Audio cards; slot configuration is specified at order time or upgraded in the field.
• AEC-Capable via Expansion — Adding the 4-Channel AEC Input Card enables acoustic echo cancellation for conferencing without an external processor.
• USB-B BYOD Audio via Expansion — The USB Audio Card enables direct computer audio connection for soft-codec conferencing (Teams, Zoom, WebEx).
• Open-Architecture DSP in Composer — No fixed-function processing; every signal path is designed graphically in Symetrix Composer with drag-and-drop modules.
• Single Composer Site File Compatibility — Interoperates with all Symetrix platforms in a single Composer file, from Prism 4x4 to Server D100.
• 1U Rack-Mount Form Factor — Standard 1U footprint for installation in equipment racks alongside amplifiers, switchers, and control systems.

Typical Applications

• Conference Rooms and Boardrooms — AEC card + USB Audio card configuration provides complete conferencing DSP for Teams, Zoom, or Cisco WebEx rooms.
• Multi-Zone Audio Systems — Additional analog output cards expand zone count for background music, paging, and distributed audio in commercial spaces.
• Houses of Worship — Flexible card configuration supports FOH mixing, broadcast feed processing, and multi-zone distribution.
• Training Rooms — BYOD-friendly USB audio with AEC for instructor capture and soft-codec conferencing.
• Government and Corporate Meeting Spaces — PSTN integration via analog telephone card for legacy phone system connectivity alongside VoIP.
• Auditoriums and Multi-Purpose Rooms — Open-architecture processing adapts to changing room configurations and use cases.

Technical Specifications

Frequently Asked Questions

How many expansion cards can the EDGE Dante accept?

The EDGE Dante has four expansion card slots. Each slot accepts one I/O card, and slots can be mixed freely: for example, two AEC Input Cards and one USB Audio Card and one Analog Output Card in a single chassis.

Does the EDGE Dante include AEC out of the box?

No. AEC requires the addition of the 4-Channel AEC Input Card (SKU 80-0064) in one or more expansion slots. Each card adds four AEC-capable input channels.

What is the difference between the EDGE Dante (80-0048) and the EDGE non-Dante (80-0204)?

The EDGE Dante (80-0048) includes onboard 64x64 Dante networking. The EDGE non-Dante (80-0204) has the same analog I/O and expansion slots but does not include Dante; it uses only the analog I/O and any cards installed in its expansion slots.

Can the EDGE Dante be programmed in the same site file as a Symetrix Prism or Server D100?

Yes. Symetrix Composer supports all current Symetrix DSP platforms in a single site file. EDGE, Prism, Radius NX, and Server D100 can all share a single Composer design.

What warranty applies to the EDGE Dante?

Contact Creation Networks for current Symetrix warranty terms and extended support options.
