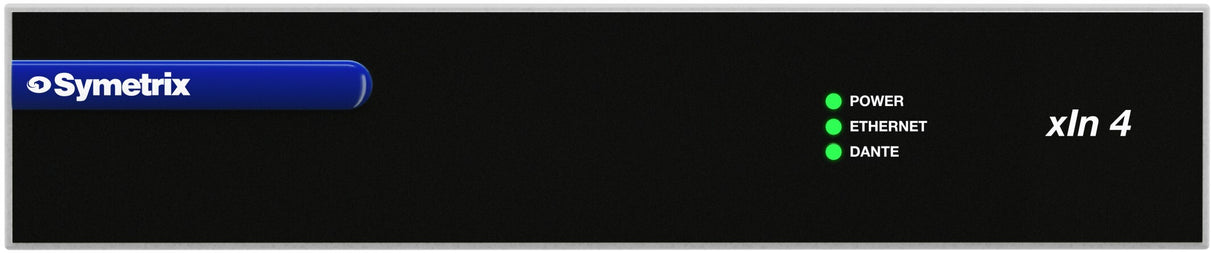

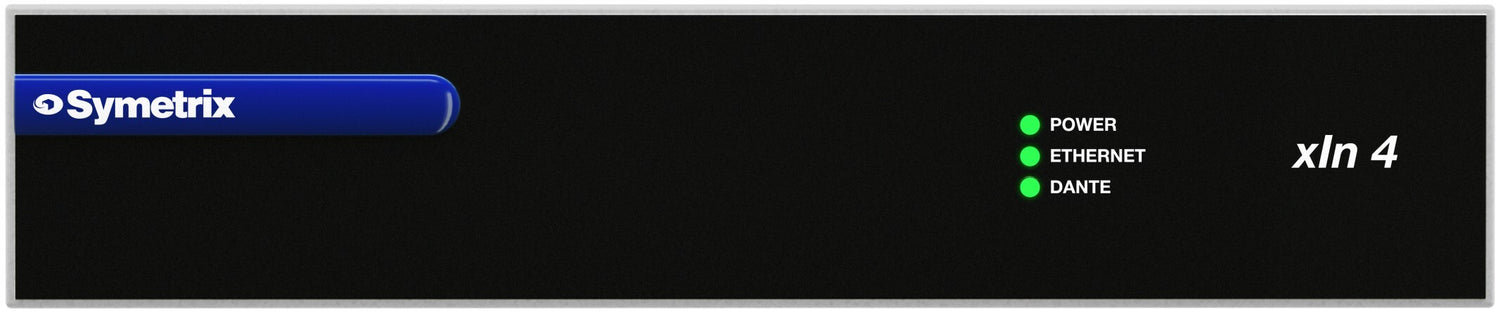

Symetrix 80-0110 xIn 4

Product Overview

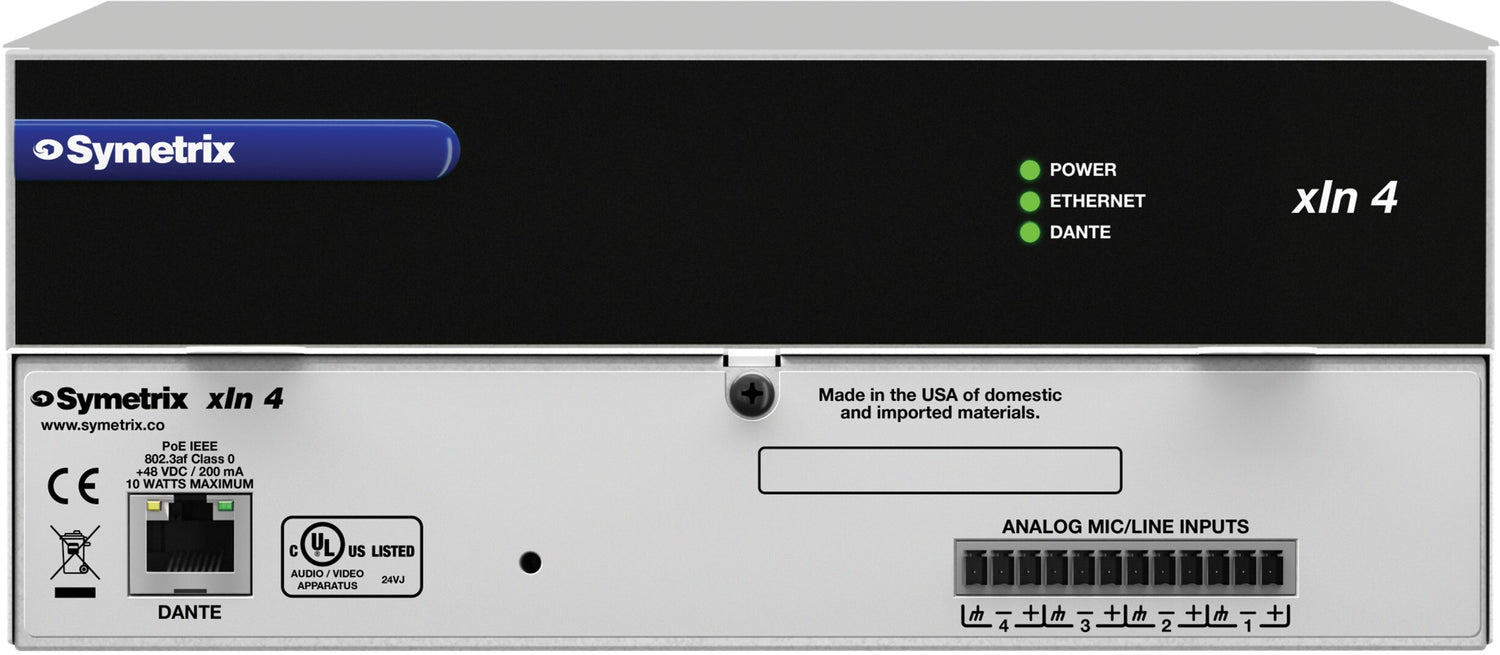

The Symetrix 80-0110 xIn 4 is a 4-channel analog-to-Dante input endpoint that converts 4 balanced analog inputs to 4 Dante network audio channels. In a half-rack form factor, it provides compact analog-to-Dante conversion for distributed AV installations where 4 channels of analog input — from microphones, line sources, or program audio — need to reach a Symetrix DSP or other Dante device over an IP network without running analog cables from the source to the DSP rack.

Product Description

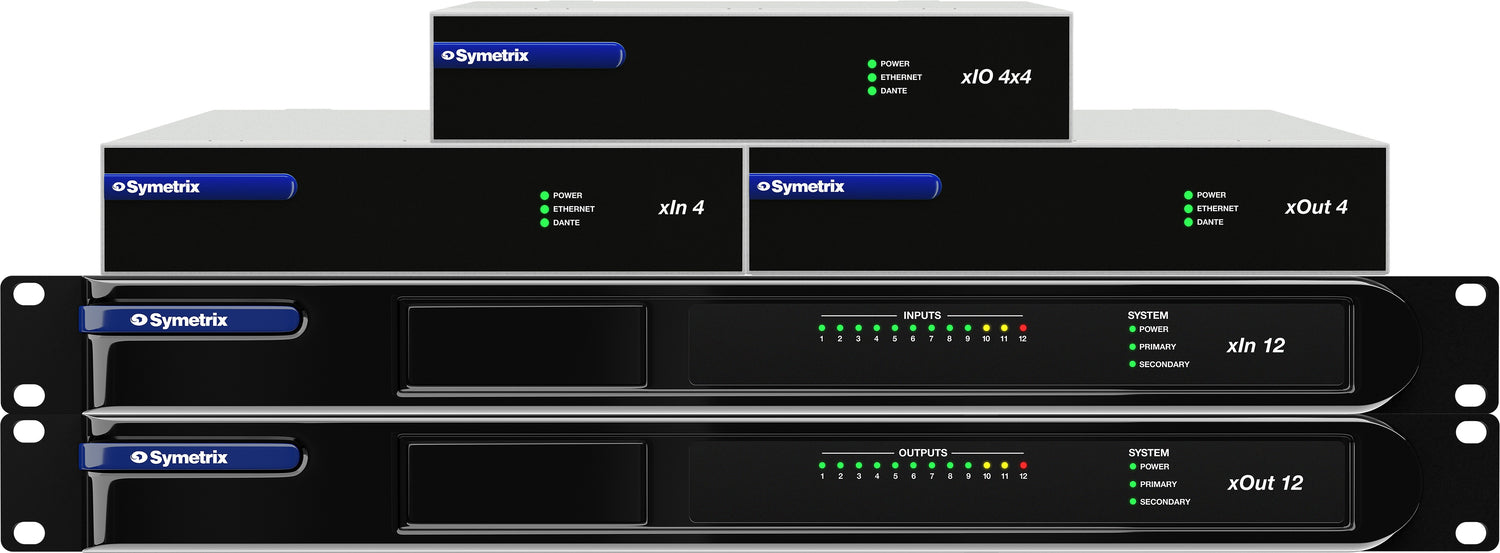

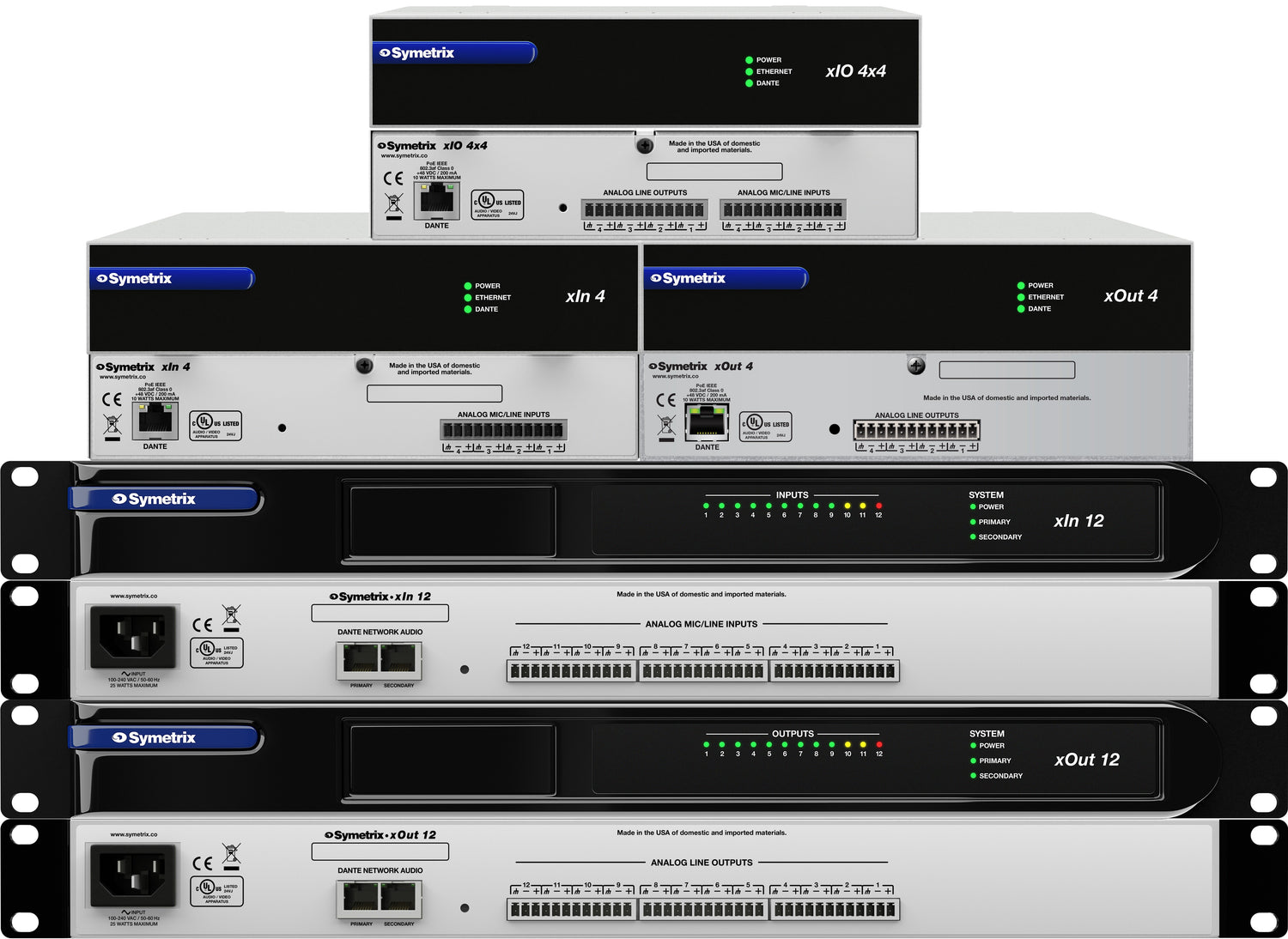

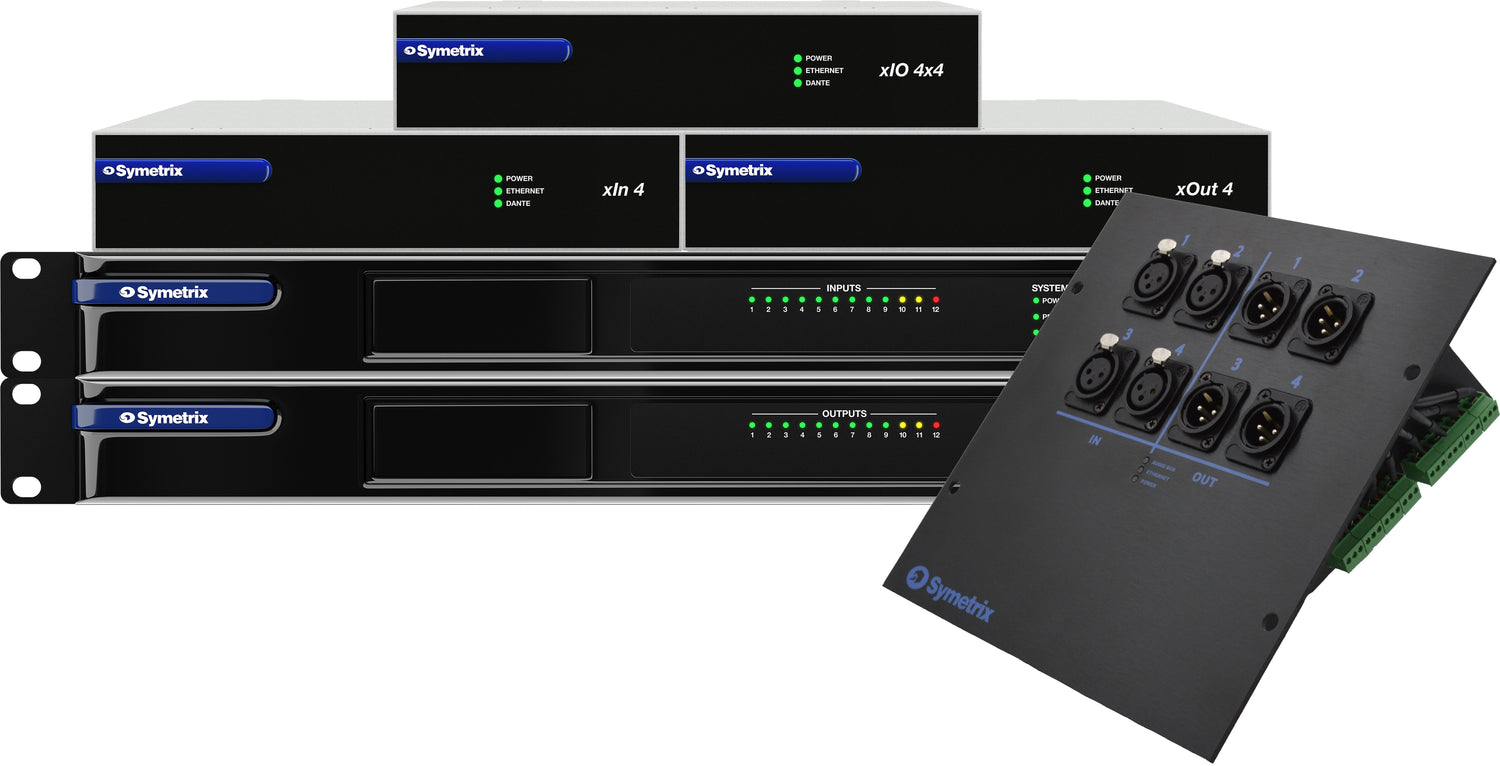

The xIn 4 is the smaller-channel counterpart to the xIn 12 (80-0086) and serves installations where 4 analog inputs at a remote location are sufficient — such as a single-room stage box, a lectern input panel, or a conference room analog source connection point. All routing and signal assignment is managed in Symetrix Composer within the overall DSP site file. The half-rack form factor can be mounted in a standard equipment rack using the optional 1U Rack Tray (80-0107) or installed surface-mount with the 1/2U Surface Mount Bracket (80-0108). For 4-channel bidirectional I/O (inputs and outputs in one unit), see the xIO 4x4 (80-0106).

Key Features

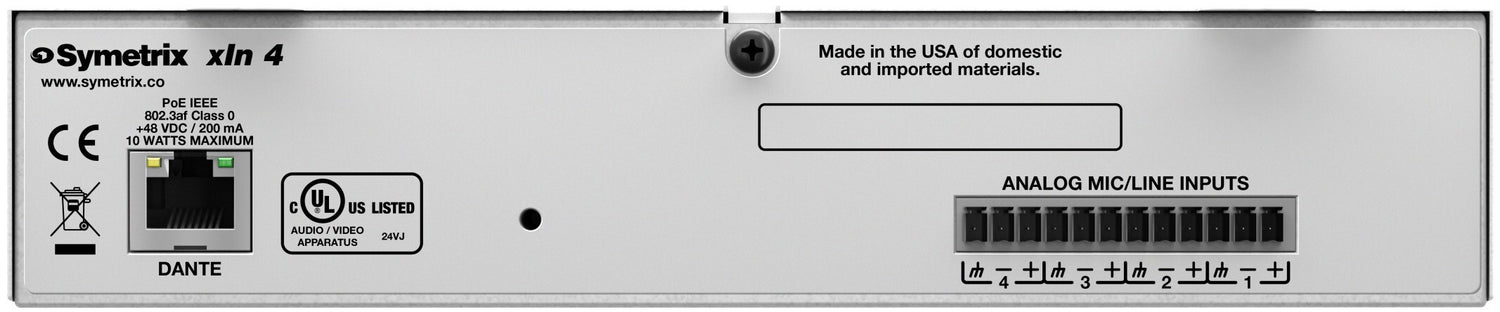

• 4 Balanced Analog Inputs — Mic/line inputs for remote source locations.
• 4 Dante Transmit Channels — Sends 4 analog inputs over Dante to any destination on the network.
• Half-Rack Form Factor — Compact; pairs with the 1U Rack Tray or 1/2U Surface Mount Bracket for flexible installation.
• Composer Programmable — Routing managed within the Symetrix DSP site file.
• AES67 Compatible — Interoperates with non-Symetrix Dante devices.

Typical Applications

• Lectern or podium analog input connections routed over Dante to a central DSP
• Small conference rooms with remote analog input conversion
• Stage box inputs at small venues routing to a Prism or EDGE Dante DSP
• Classrooms and training rooms with analog source inputs distributed over Dante

Technical Specifications
