Q-SYS RoomSuite Bundle Small Conferencing Solution

What is the Q-SYS RoomSuite Bundle Small?

The Q-SYS RoomSuite Bundle Small is a pre-configured, enterprise-grade conferencing solution built for small-to-medium meeting spaces of up to 12 people. It combines the Q-SYS RoomSuite Modular System with a Sennheiser TeamConnect Ceiling M Plus beamforming microphone, a network ePTZ camera, and a network soundbar into a single package that's fully configured through a web browser — no Q-SYS Designer programming required.

How does the Q-SYS RoomSuite Bundle Small work?

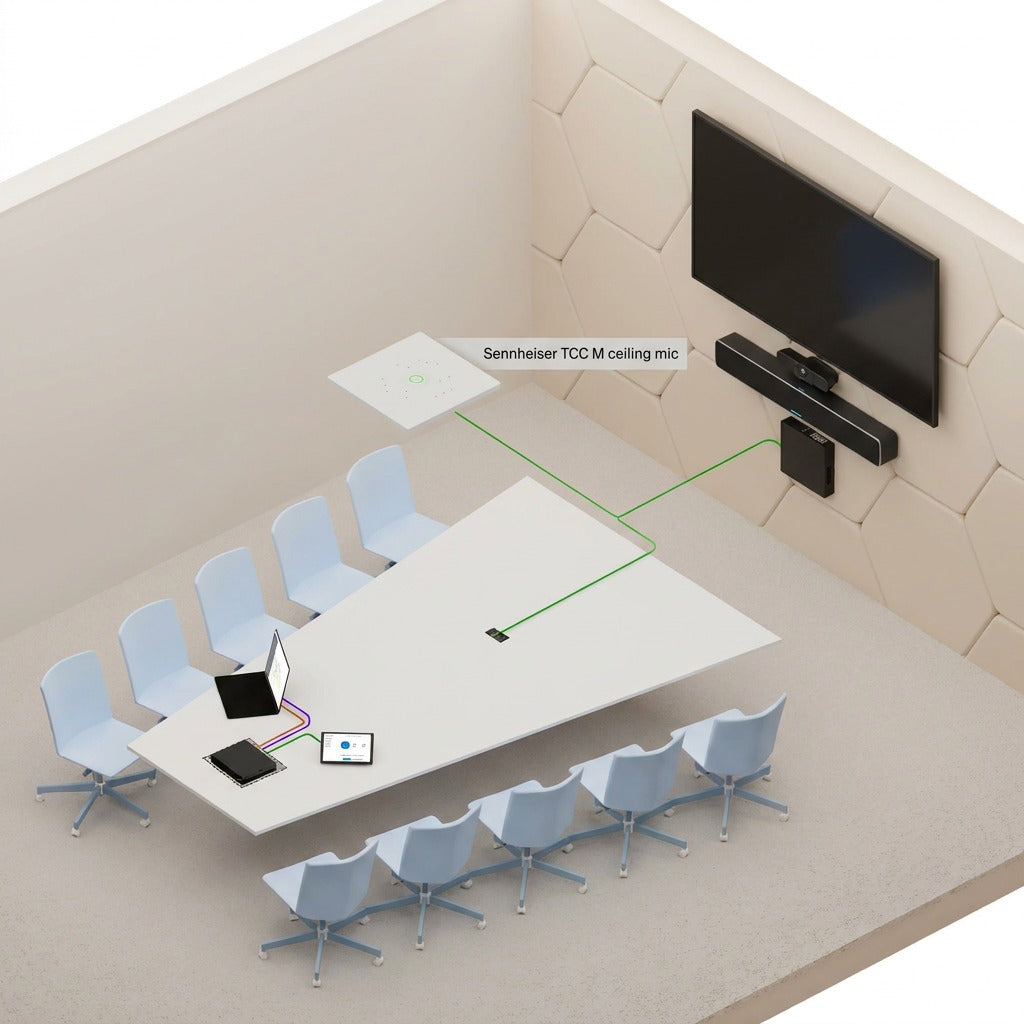

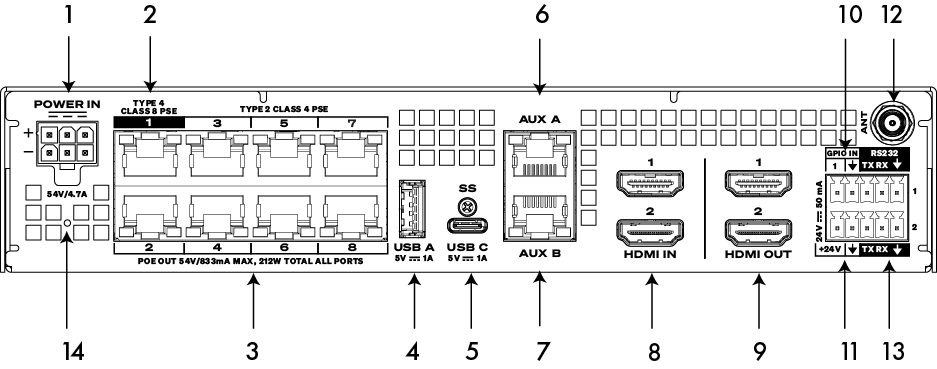

At the center of the bundle sits the RS-MOD-BB RoomSuite Modular System, an integrated processor that consolidates the audio processing, network connectivity for Q-SYS peripherals, video distribution, and UC platform bridging that traditionally required separate DSP hardware and custom control programming. Every device in the bundle — the Sennheiser ceiling mic, the NC-90 ePTZ camera, the NL-SB42 soundbar, and the TSC-70 touch controller — discovers and registers to the RMP-100 processor automatically over the network, with day-to-day room management, monitoring, and configuration handled entirely through the Q-SYS RoomSuite Manager web interface hosted on the processor itself. The Sennheiser TeamConnect Ceiling M Plus provides dynamic beamforming microphone coverage with ambient noise suppression, while the motorized ePTZ camera delivers intelligent auto-framing so remote participants stay properly centered as people move around the room. For organizations managing multiple rooms, Q-SYS Reflect adds optional cloud-based monitoring and remote administration on top of the local web interface — it's not required for the bundle to operate, but it extends visibility across a whole fleet of RoomSuite-enabled spaces.

What are the key features of the Q-SYS RoomSuite Bundle Small?

• Zero-touch automated configuration — browser-based web setup replaces custom Q-SYS Designer programming.
• Dynamic beamforming microphone — Sennheiser TeamConnect Ceiling M Plus with ambient noise suppression.
• Intelligent auto-framing video — motorized ePTZ camera keeps participants properly framed automatically.
• Single-cable, PoE-based connectivity — unified wiring with under-table extension support.
• Enterprise cloud management — optional Q-SYS Reflect for multi-room visibility and remote administration.
• UC-certified — ready for Microsoft Teams Rooms (MTR on Windows), Zoom Rooms, and BYOM.

• PoE+ network switch (1)

• Creation Networks Reflect remote monitoring, 1-year service (1)


Where is the Q-SYS RoomSuite Bundle Small typically used?

• Small-to-medium conference rooms (up to 12 people)
• Huddle and collaboration spaces
• Corporate meeting rooms
• Standard Microsoft Teams, Zoom, and BYOM deployments

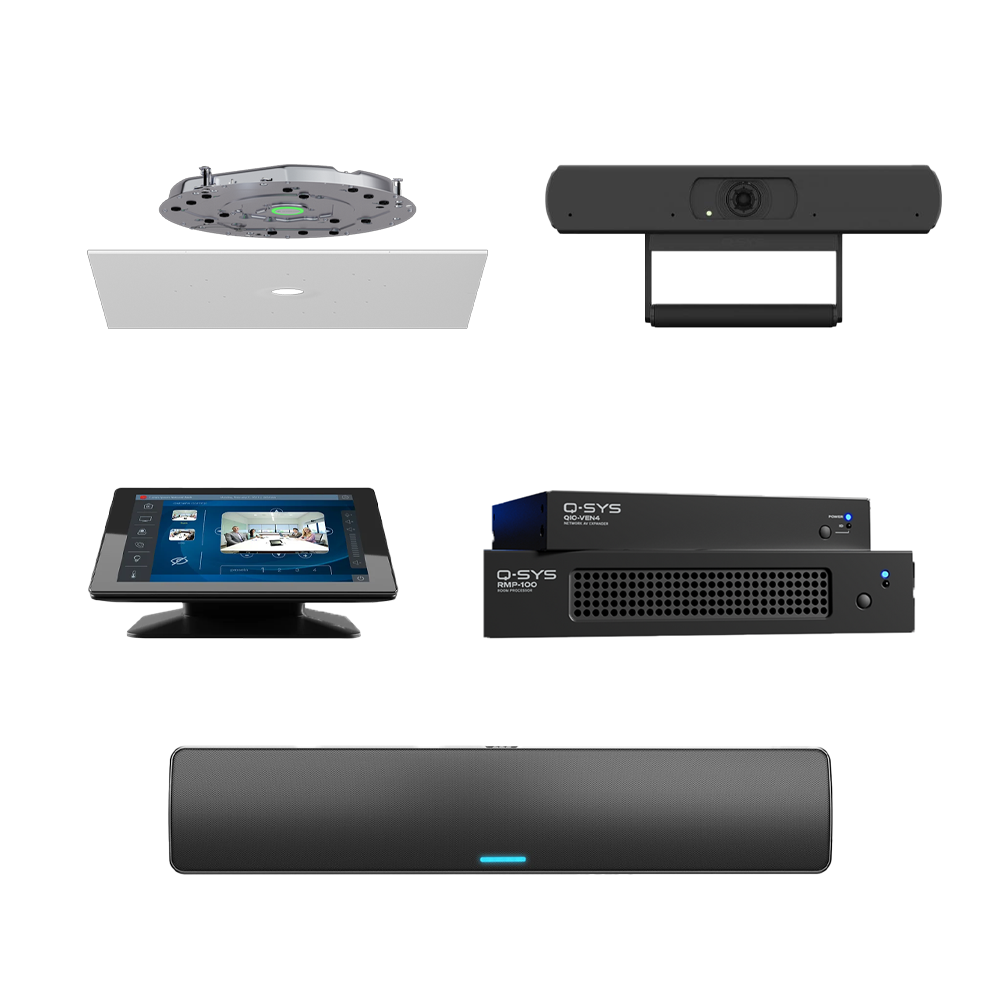

System Includes

• (1) Q-SYS RoomSuite Modular System Base Bundle (RS-MOD-BB)

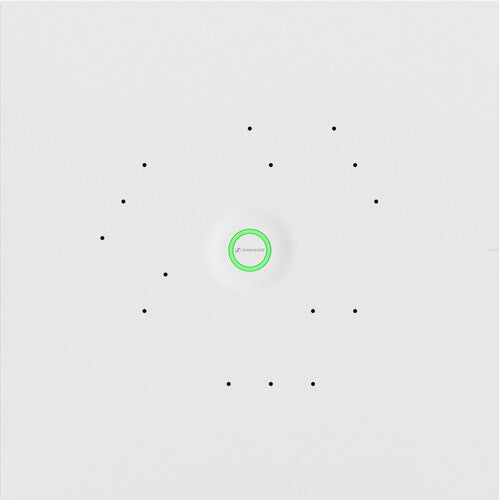

• (1) Sennheiser TeamConnect Ceiling M Plus CT-W 2FT (TCCMPLUSCTW2FT)

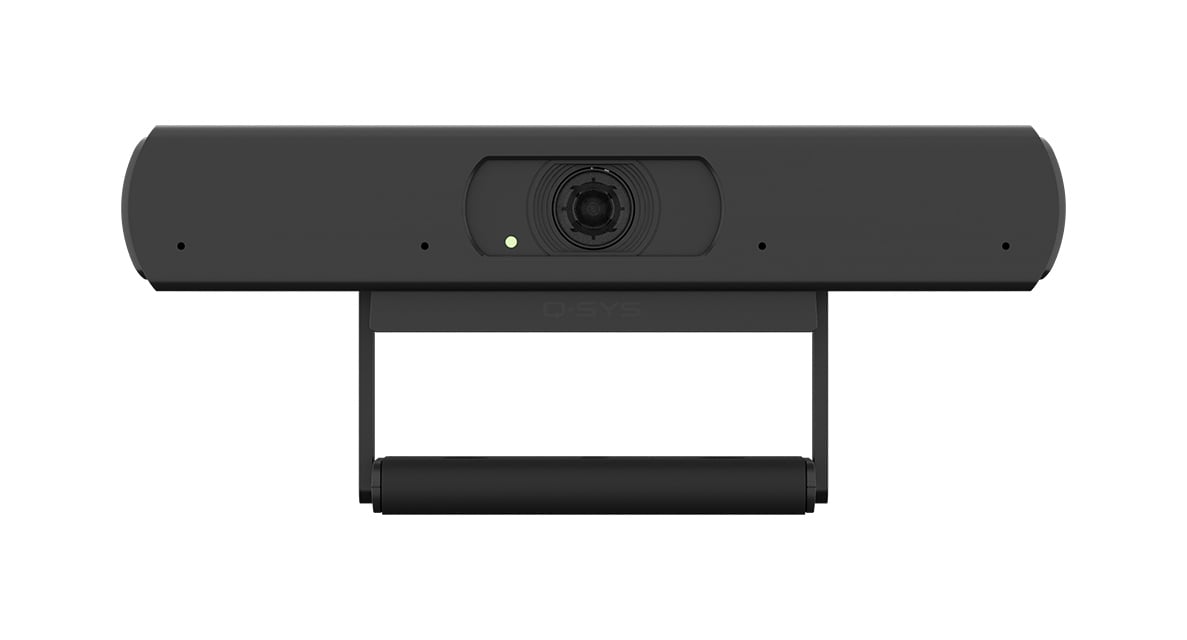

• (1) Q-SYS Network ePTZ Camera (NC-90-G2-BK)

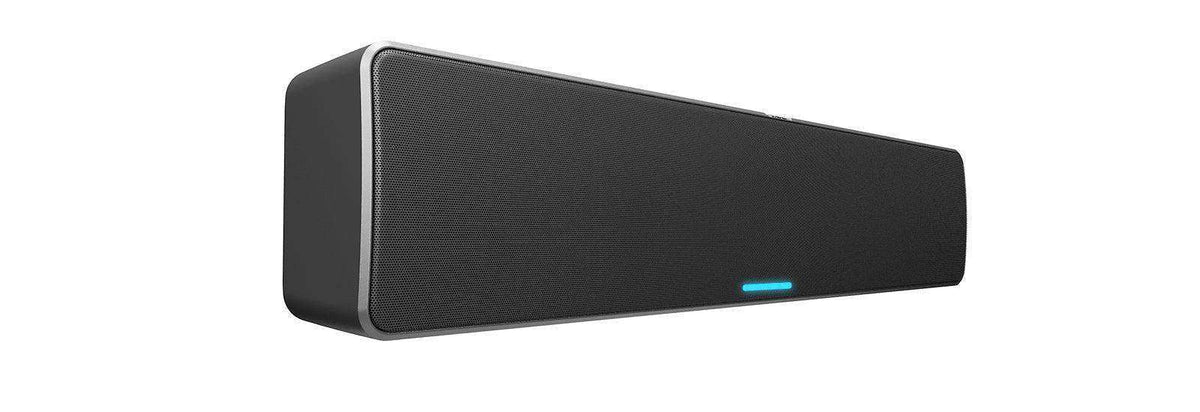

• (1) Q-SYS Network Loudspeaker (NL-SB42)

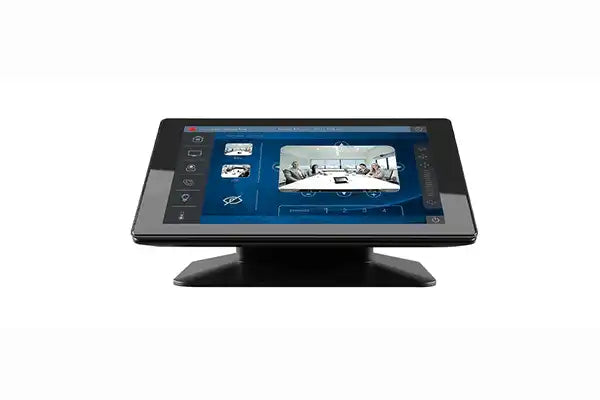

• (1) Q-SYS HD Touch Screen Controller (TSC-70-G3)

Technical Specifications

Frequently Asked Questions

Does this bundle require Q-SYS Designer programming to set up?

No. The entire RoomSuite Modular System is configured through a web browser via the Q-SYS RoomSuite Manager interface, with no custom Designer file required.

What UC platforms does this bundle support?

It's ready for Microsoft Teams Rooms (MTR on Windows), Zoom Rooms, and BYOM (Bring Your Own Meeting) deployments.

How many people does this bundle support?

The Small bundle is sized for spaces up to 12 people.

Can I monitor multiple RoomSuite rooms from one place?

Yes, with the optional Q-SYS Reflect cloud service, though it isn't required — all core functionality runs through the local web interface on the RMP-100 processor.

What's the difference between this and the Medium or Large bundles?

The Medium bundle steps up to a longer-range camera and dual ceiling speakers for 10-20 person rooms, and the Large bundle adds a second camera and four ceiling speakers for 15-30 person spaces.

Does Creation Networks install and support this system?

Yes. As a nationwide AV integrator and certified Q-SYS partner, Creation Networks provides design, installation, and support alongside the equipment — contact us at 888-230-3661 or sales@creationnetworks.net for a project quote.
