Q-SYS RoomSuite Medium conferencing Bundle

What is the Q-SYS RoomSuite Bundle Medium?

The Q-SYS RoomSuite Bundle Medium is an advanced, enterprise-grade conferencing solution engineered for mid-size meeting spaces of 10-20 people. It steps up from the Small bundle with a longer-throw network PTZ camera and dual in-ceiling loudspeakers, while keeping the same single Sennheiser TeamConnect Ceiling M Plus beamforming microphone, browser-based automated setup, and Q-SYS RoomSuite Modular System core.

How does the Q-SYS RoomSuite Bundle Medium work?

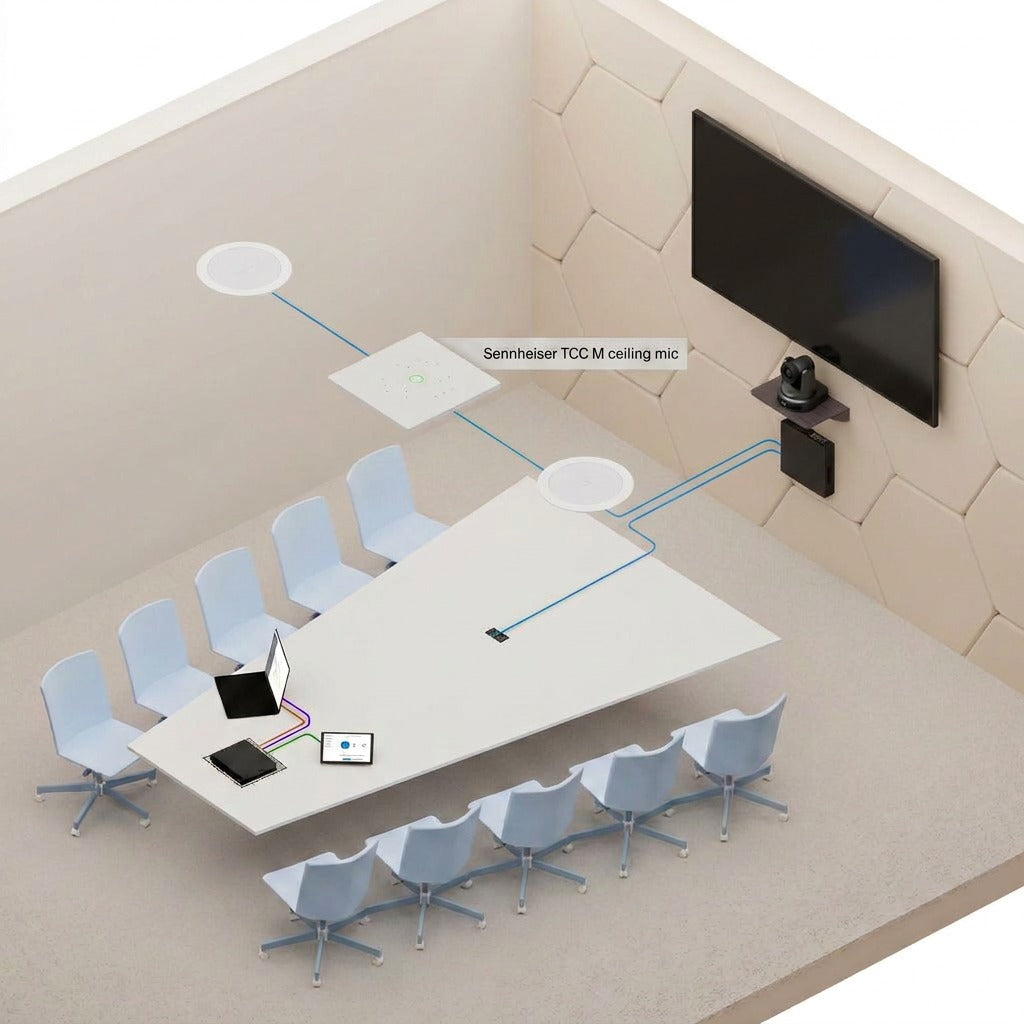

The RS-MOD-BB RoomSuite Modular System processor is the same integrated core used across the entire RoomSuite line, consolidating audio processing, Q-SYS peripheral networking, video distribution, and UC platform bridging into a single unit that's configured entirely through a web browser — no Q-SYS Designer file required. What changes for a mid-size room is reach: the Sennheiser TeamConnect Ceiling M Plus microphone is rated to cover up to 860 sq ft with automatic dynamic speaker tracking, the NC-12x80 network PTZ camera adds 12x optical zoom for sharp framing at greater distances than the Small bundle's ePTZ camera, and two NL-C4-WH in-ceiling loudspeakers replace the single soundbar to deliver balanced, PoE-powered acoustic coverage across a larger floor plan. Every device registers automatically to the RMP-100 processor, with all day-to-day management, monitoring, and configuration handled through the Q-SYS RoomSuite Manager web interface — the same zero-touch workflow as the Small bundle, just sized for a bigger room.

What are the key features of the Q-SYS RoomSuite Bundle Medium?

• Single-microphone coverage up to 860 sq ft — automatic dynamic tracking from one Sennheiser TeamConnect Ceiling M Plus.
• 12x optical zoom PTZ camera — sharp participant framing across a larger room than the Small bundle's camera.
• Dual in-ceiling loudspeakers — balanced, PoE-powered acoustic distribution across a bigger floor plan.
• Zero-touch automated configuration — browser-based web setup, no custom programming.
• Streamlined fleet management — optional Q-SYS Reflect for multi-room visibility.
• UC-certified — ready for Microsoft Teams Rooms (MTR on Windows), Zoom Rooms, and BYOM.

• PoE+ network switch (1)

• Creation Networks Reflect remote monitoring, 1-year service (1)


Where is the Q-SYS RoomSuite Bundle Medium typically used?

• Mid-size conference rooms (10-20 people)
• Larger huddle and collaboration spaces
• Corporate meeting rooms needing extended camera reach
• Standard Microsoft Teams, Zoom, and BYOM deployments

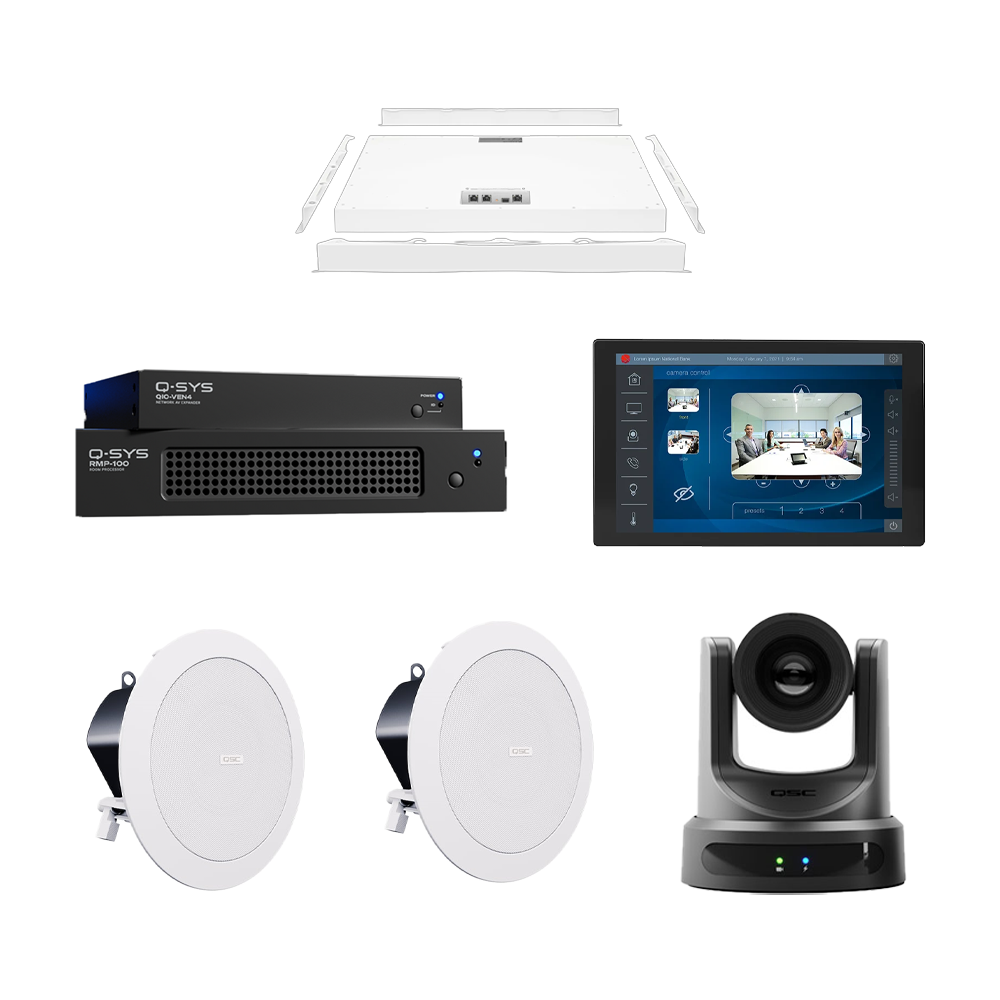

System Includes

• (1) Q-SYS RoomSuite Modular System Base Bundle (RS-MOD-BB)

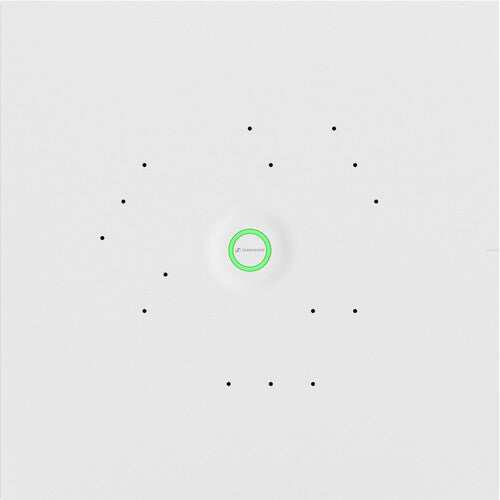

• (1) Sennheiser TeamConnect Ceiling M Plus CT-W 2FT (TCCMPLUSCTW2FT)

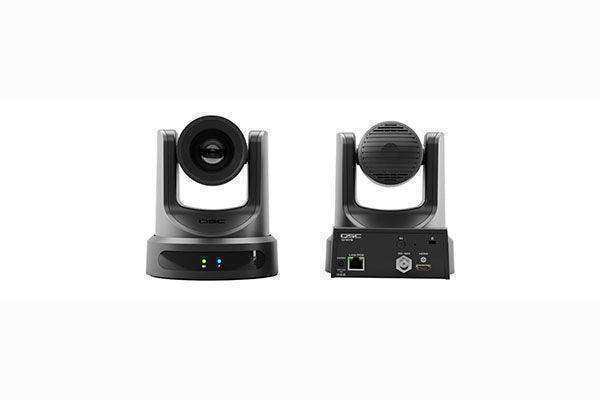

• (1) Q-SYS Network PTZ Camera (NC-12x80)

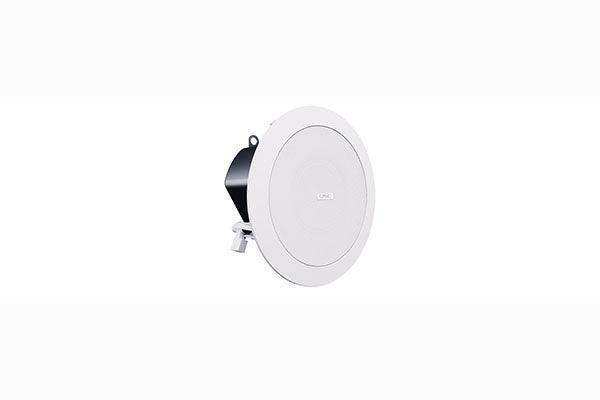

• (2) Q-SYS Network Loudspeaker (NL-C4-WH)

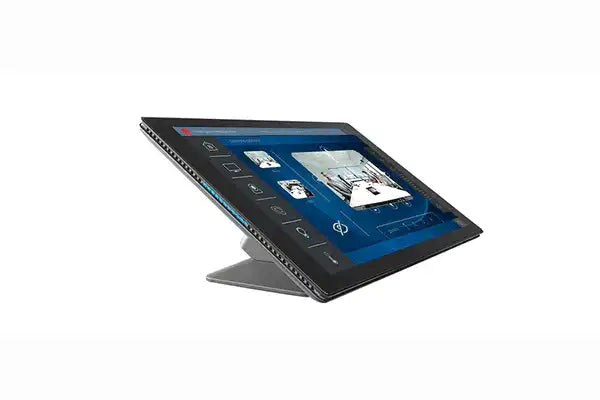

• (1) Q-SYS HD Touch Screen Controller (TSC-101-G3)

Technical Specifications

Frequently Asked Questions

What's different between this bundle and the Small bundle?

The Medium bundle upgrades to a 12x optical zoom NC-12x80 camera (versus the Small bundle's ePTZ camera), replaces the single soundbar with two in-ceiling NL-C4-WH loudspeakers, and uses a larger TSC-101-G3 touch controller — all sized for a bigger room while keeping the same single ceiling microphone.

How much area does the microphone cover?

The Sennheiser TeamConnect Ceiling M Plus in this bundle is rated for coverage up to 860 sq ft with automatic dynamic speaker tracking.

Does this bundle require Q-SYS Designer programming?

No. Like the rest of the RoomSuite line, it's configured entirely through a web browser via the Q-SYS RoomSuite Manager interface.

What UC platforms does this bundle support?

It's ready for Microsoft Teams Rooms (MTR on Windows), Zoom Rooms, and BYOM (Bring Your Own Meeting) deployments.

When should I choose the Large bundle instead?

The Large bundle adds a second NC-12x80 camera and doubles the ceiling speakers to four, sized for 15-30 person rooms and training spaces rather than this bundle's 10-20 person range.

Does Creation Networks install and support this system?

Yes. As a nationwide AV integrator and certified Q-SYS partner, Creation Networks provides design, installation, and support alongside the equipment — contact us at 888-230-3661 or sales@creationnetworks.net for a project quote.
