Q-SYS RoomSuite Large Conferencing Bundle

What is the Q-SYS RoomSuite Bundle Large?

The Q-SYS RoomSuite Bundle Large is the premier, enterprise-grade conferencing solution in the RoomSuite line, engineered for large conference rooms and training spaces of 15-30 people. It pairs the Q-SYS RoomSuite Modular System with Sennheiser's flagship automatic beamforming ceiling microphone, dual network PTZ cameras, and four in-ceiling loudspeakers for flawless multi-camera coverage and acoustic clarity across expansive floor plans — all configured through the same rapid, web-based automated setup as the rest of the RoomSuite family.

How does the Q-SYS RoomSuite Bundle Large work?

The same RS-MOD-BB RoomSuite Modular System processor anchors the Large bundle, consolidating audio processing, Q-SYS peripheral networking, video distribution, and UC platform bridging into one unit configured entirely through a browser — no Q-SYS Designer file needed. What sets the Large bundle apart is scale: two NC-12x80 network PTZ cameras provide multi-camera tracking across a wider room than a single camera can frame well, while four NL-C4-WH in-ceiling loudspeakers deliver even, PoE-powered acoustic coverage across a floor plan roughly double the size the Medium bundle is built for. The Sennheiser TeamConnect Ceiling M Plus microphone still handles voice pickup with continuous automatic tracking and ambient noise suppression, sized here for the full acoustic footprint of a large conference or training room. As with every RoomSuite bundle, every device auto-registers to the RMP-100 processor, and day-to-day management runs through the Q-SYS RoomSuite Manager web interface, with Q-SYS Reflect available as an optional add-on for organizations monitoring this room alongside others in a larger fleet.

What are the key features of the Q-SYS RoomSuite Bundle Large?

• Flagship beamforming audio — Sennheiser TeamConnect Ceiling M Plus with continuous tracking and ambient noise suppression.
• Dual network PTZ cameras — multi-camera coverage for large rooms a single camera can't frame well.
• Four in-ceiling loudspeakers — even, PoE-powered acoustic distribution across an expansive floor plan.
• Zero-touch automated configuration — browser-based web setup, no custom Designer programming.
• Enterprise management — optional Q-SYS Reflect for cloud-based monitoring and remote administration.
• UC-certified — ready for Microsoft Teams Rooms (MTR on Windows), Zoom Rooms, and BYOM.

• PoE+ network switch (1)

• Creation Networks Reflect remote monitoring, 1-year service (1)

Where is the Q-SYS RoomSuite Bundle Large typically used?

• Large conference rooms (15-30 people)
• Training rooms
• Boardrooms needing multi-camera coverage
• Standard Microsoft Teams, Zoom, and BYOM deployments at scale

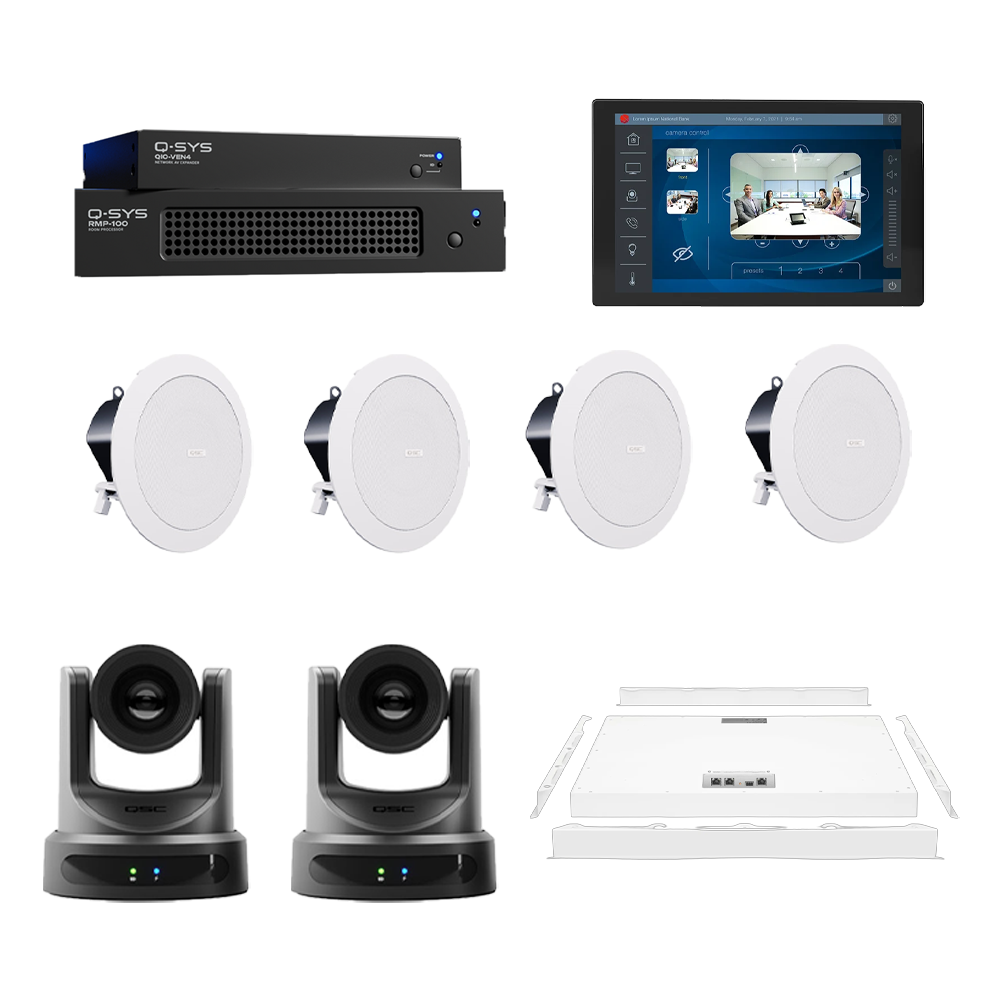

System Includes

• (1) Q-SYS RoomSuite Modular System Base Bundle (RS-MOD-BB)

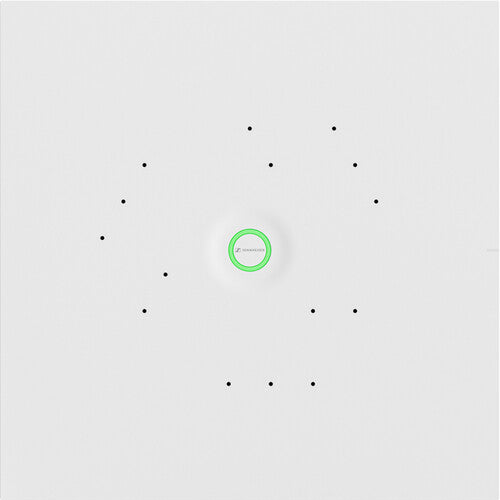

• (1) Sennheiser TeamConnect Ceiling M Plus CT-W 2FT (TCCMPLUSCTW2FT)

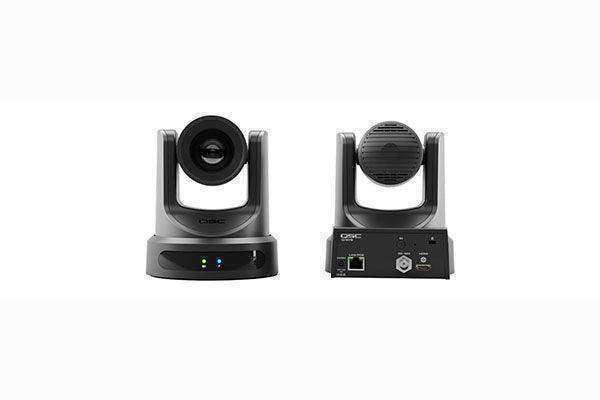

• (2) Q-SYS Network PTZ Camera (NC-12x80)

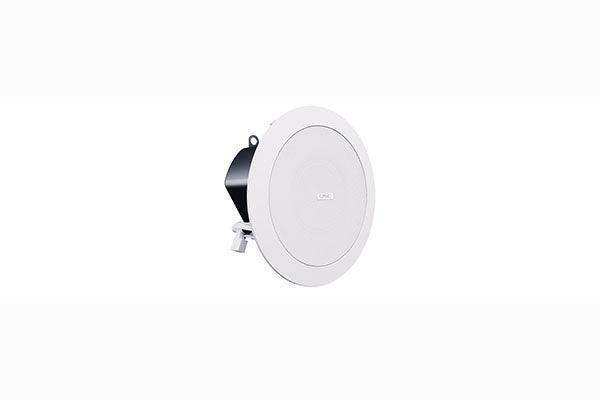

• (4) Q-SYS Network Loudspeaker (NL-C4-WH)

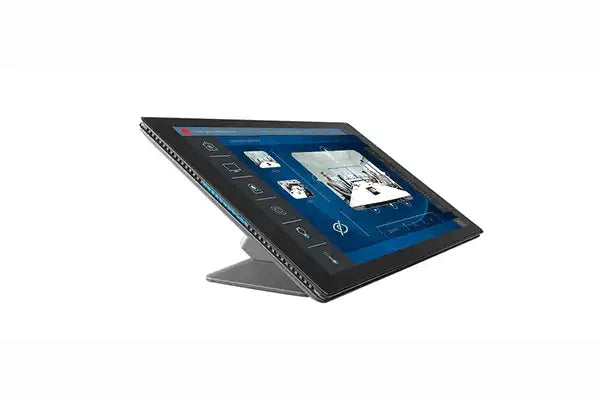

• (1) Q-SYS HD Touch Screen Controller (TSC-101-G3)

Technical Specifications

Frequently Asked Questions

Why does this bundle include two cameras?

Large conference rooms and training spaces exceed the framing range of a single PTZ camera. Two NC-12x80 cameras provide multi-camera tracking so coverage stays clear across the full width of the room.

How does the audio scale for a room this size?

Four NL-C4-WH in-ceiling loudspeakers replace the Medium bundle's two, delivering even acoustic coverage across a floor plan roughly double the size, while a single flagship Sennheiser TeamConnect Ceiling M Plus handles microphone pickup with continuous automatic tracking.

Does this bundle require Q-SYS Designer programming?

No. Like the rest of the RoomSuite line, it's configured entirely through a web browser via the Q-SYS RoomSuite Manager interface.

What UC platforms does this bundle support?

It's ready for Microsoft Teams Rooms (MTR on Windows), Zoom Rooms, and BYOM (Bring Your Own Meeting) deployments.

What's the difference between this and the Medium bundle?

The Medium bundle uses a single NC-12x80 camera and two ceiling speakers for 10-20 person rooms; the Large bundle doubles both for 15-30 person spaces.

Does Creation Networks install and support this system?

Yes. As a nationwide AV integrator and certified Q-SYS partner, Creation Networks provides design, installation, and support alongside the equipment — contact us at 888-230-3661 or sales@creationnetworks.net for a project quote.
