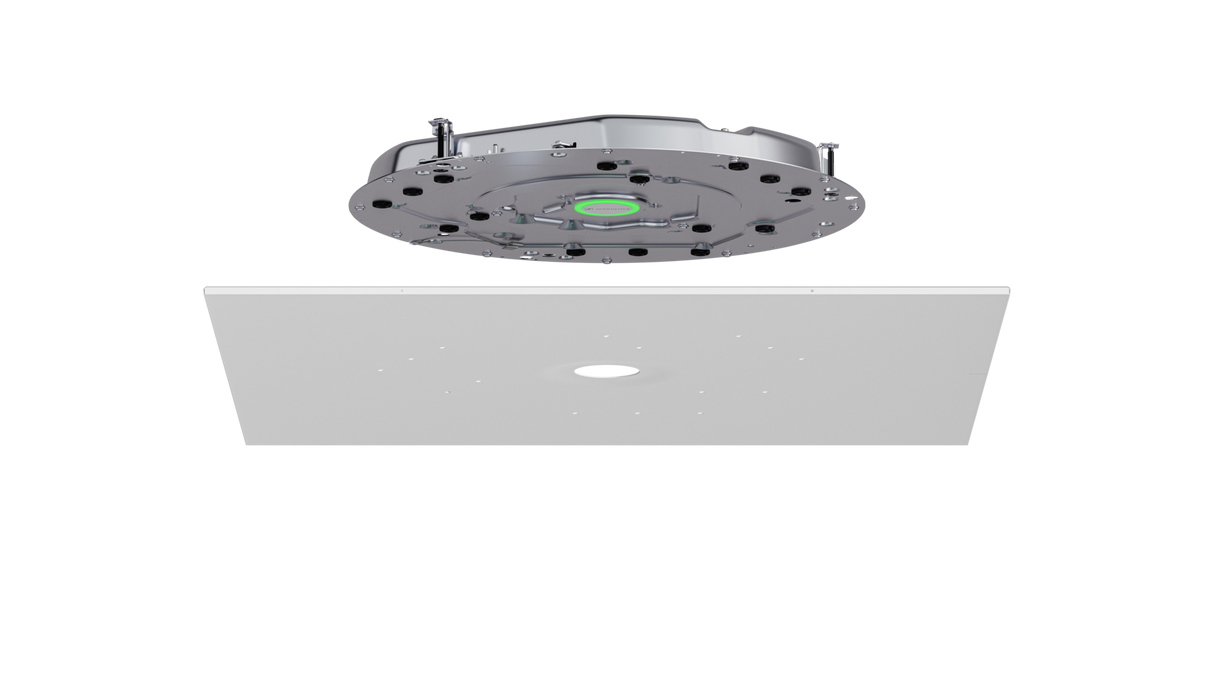

Sennheiser TeamConnect Ceiling M Plus CT-W – Ceiling Tile Microphone Array

Product Overview

The Sennheiser TeamConnect Ceiling M Plus CT-W is a beamforming ceiling microphone array built for medium and large conference rooms where a clean, tile-integrated install matters. This ceiling tile microphone drops into a standard suspended ceiling grid and uses patented automatic dynamic beamforming to track active talkers, delivering clear, natural speech across the room. As a conference room ceiling microphone, the TCC M Plus pairs trusted Sennheiser audio with PartnerLink configuration and DeviceHub cloud management to cut commissioning time and simplify deployment at scale.

Product Description

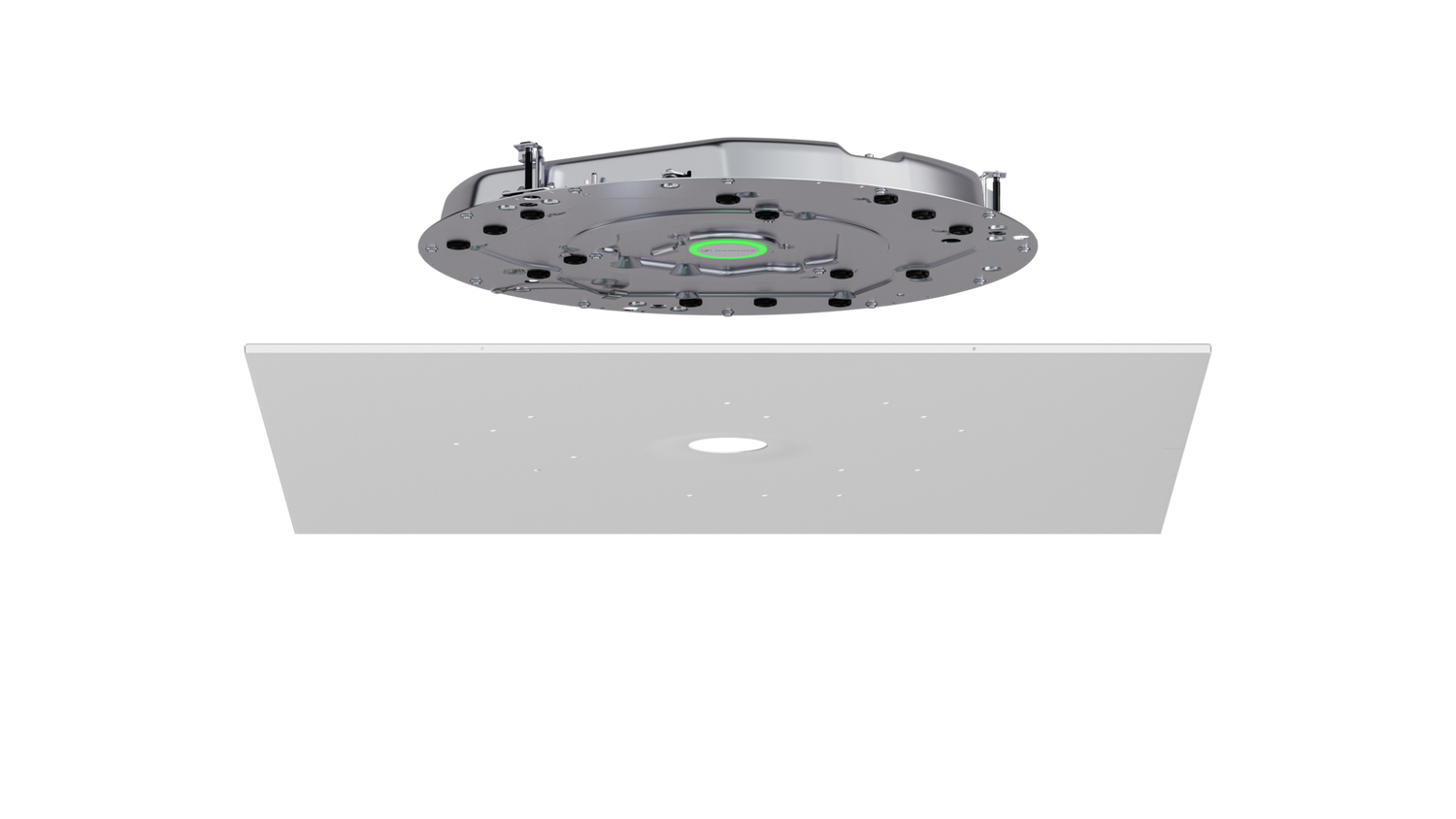

The CT-W variant ships as a ceiling tile replacement plate, so integrators can mount the array flush within a 595 mm grid for a discreet, architectural finish in commercial meeting spaces. A 15-capsule, German-engineered condenser array provides reliable voice pickup up to 4.3 m and covers rooms up to 60 m², making it a strong fit for boardrooms, training rooms, and divisible multi-purpose rooms. Patented dynamic beamforming continuously steers toward whoever is speaking, while enhanced exclusion zones suppress predictable noise sources such as HVAC diffusers, displays, and doorways to improve pickup accuracy and camera-tracking reliability. PartnerLink lets AV system designers configure the microphone directly inside Q-SYS Designer Software, reducing the back-and-forth typical of conference room ceiling microphone commissioning, with support for additional platforms planned. For multi-room and multi-site deployments, DeviceHub provides centralized, browser-based monitoring, configuration, and diagnostics with role-based access for AV and IT teams. The array outputs audio over a 3-pin terminal connector and supports single-cable, split-mode, and daisy-chain wiring to suit different commercial deployment designs. Automatic speaker-position detection passes talker coordinates to camera systems for accurate framing in hybrid meetings, and TruVoiceLift reinforces talkers naturally within the room. For teams already standardized on the platform, it complements the wider TeamConnect lineup, including the Sennheiser TeamConnect Ceiling Medium.

Key Features

• PartnerLink configuration — Configure the microphone directly inside Q-SYS Designer Software and supported AV platform workflows, shortening commissioning time.
• DeviceHub cloud management — Monitor, configure, and diagnose deployed units remotely across rooms, buildings, and sites from one browser-based platform.
• Patented automatic dynamic beamforming — Adaptive beams track active talkers and adjust to changing room layouts for consistent speech capture.
• Enhanced exclusion zones — Suppress predictable noise from HVAC, displays, and hallways to improve pickup accuracy and camera-tracking reliability.
• 15 German-engineered capsules — A precision condenser array delivers reliable voice pickup up to 4.3 m across rooms up to 60 m².
• Ceiling tile integration — Drops into a standard suspended ceiling grid as a replacement tile for a discreet, architectural install.
• TruVoiceLift — Reinforces talkers naturally within the room for local speech intelligibility without a separate microphone system.
• Automatic speaker-position detection — Talker coordinates drive camera tracking for accurate framing in video conferencing systems.
• Flexible connectivity — Supports single-cable, split-mode, and daisy-chain wiring with a 3-pin terminal output for analog integration.
• Browser-based setup (LUI) — A local web interface allows configuration and control without installing software.

Typical Applications

• Conference rooms
• Boardrooms
• Training rooms
• Multi-purpose and divisible rooms
• All-hands rooms
• Commercial meeting spaces

Technical Specifications

Specifications sourced from Sennheiser (TeamConnect Ceiling M Plus CT-W, Art. No. 700519).

Frequently Asked Questions

Which AV platforms does the TCC M Plus integrate with?
PartnerLink enables direct configuration within Q-SYS Designer Software, with additional platforms planned. The analog 3-pin terminal output also allows integration with most third-party DSP and codec ecosystems used in commercial AV.

How is the CT-W version installed?
The CT-W ships as a ceiling tile replacement plate that drops into a standard suspended ceiling grid. The box includes the ceiling tile plate, flush mount kit, Phoenix connector, safety rope, and suspension kit for a secure, code-conscious install.

What room size does it cover?
The array provides reliable voice pickup up to 4.3 m and is rated for rooms up to 60 m², which suits most medium-to-large conference rooms, boardrooms, and training rooms.

How are multiple units managed across a deployment?
DeviceHub provides centralized, cloud-based monitoring, configuration, and diagnostics with role-based access, so AV and IT teams can manage rooms across buildings and sites from one platform.

Does it support camera tracking?
Yes. Automatic speaker-position detection outputs talker coordinates that camera systems can use for accurate framing in hybrid and video conferencing rooms.

What warranty and support are included?
The TCC M Plus carries a 5-year warranty (2 years in the Americas). Creation Networks supports specification, procurement, and integration questions for commercial AV deployments.
