Video Wall Processors: How to Spec the Right Controller

A video wall is only as good as the processor feeding it. The display panels get most of the attention in a project spec because they are the visible cost, but the video wall processor determines how many sources can be shown at once, how flexibly content can be windowed and scaled across the array, whether the operations team can recall a layout in one action, and how the whole thing answers to the room's control system. Specify the processor wrong and you get a wall that demonstrates beautifully and frustrates the people who use it every shift.

The problem is that processor selection happens late. Panels are chosen first, often by pixel pitch and price; the mount and the structural work follow; and the controller becomes a line item added once the layout is already fixed. By then the source count has grown, somebody has asked for a picture-in-picture layout that the chosen unit cannot compose, and the design has to be reworked under schedule pressure.

This guide covers what makes these systems hard to specify, the order in which to make the decisions, and how the main processor classes differ in the applications they actually suit. Our current wall processors come from the RGB Spectrum Zio line — the compact Zio W4008, the 4RU W4024, W4028, and W4040, and the distributed Zio MWX.

Quick answer: Spec a video wall processor in this order: display technology (tiled LCD or direct-view LED), then the operators' real layouts, then source count and format with at least 25% headroom, then chassis architecture. Count composed windows, not displays, because output count says nothing about how many independent sources the processor can lay across the wall. Direct-view LED always needs an LED-specific controller. For the Zio line, the 1RU W4008 suits smaller walls and tight racks, the 4RU W4024, W4028, and W4040 suit mission-critical control rooms that keep adding sources, and the Zio MWX suits walls that will grow or be fed from more than one location over the network.

Browse the full Commercial Video Wall Processors collection, or see our video wall solutions and command and control center pages.

Where Video Wall Processor Specifications Go Wrong

The single most common mis-spec is counting displays instead of counting composed windows. A processor's output count tells you how many panels it can drive; it says nothing about how many independent source windows it can lay across those panels simultaneously, at what resolution, and with what scaling. A 4x2 wall driven by eight outputs might be required to show two full-wall sources, or twelve independent windows in a control-room layout, and those are very different processing loads on the same output count. Ask the operations team to sketch their three most-used layouts before anyone quotes a chassis.

The second trap is the spec sheet resolution figure. A controller rated for 4K input does not necessarily accept 4K60 4:4:4, and a unit that accepts it may still downsample when several high-resolution sources are windowed at once. Confirm the per-input format ceiling, the aggregate pixel budget, and the HDCP version required by every source in the room. A single HDCP-protected source in an otherwise open system will dictate compliance across the whole signal chain, and discovering that during commissioning is expensive.

Third, direct-view LED gets treated as a big monitor. It is not. A dvLED wall needs a sending device or LED processor that handles receiving-card mapping, pixel-level calibration, and the refresh behavior the panels require — particularly if the wall will ever be on camera, where refresh rate and scan behavior determine whether the wall bands or flickers on broadcast. A general-purpose HDMI matrix processor does not address any of that. Our guides to pixel pitch and LED video wall cost and ROI cover the panel side of that decision.

Fourth, growth is not scoped. Control rooms and operations centers add sources, not subtract them. A fixed-configuration chassis that exactly fits today's count has no answer when three more feeds arrive next year except replacement.

How to Size a Video Wall Processor to the Wall

Decide in this order: display technology, layout requirements, source count and format, then chassis architecture. Reversing that order is what generates change orders late in a job.

Start with the display technology

The decision rule is clean: an LCD tiled wall wants a general-purpose display processor with HDMI or IP outputs to each panel, and a direct-view LED wall wants an LED-specific sending device or controller regardless of how simple the layout is. Mixing the two — driving LED from a generic matrix processor — leaves calibration, brightness uniformity, and pixel mapping unmanaged, and those are the artifacts an audience actually notices.

Document the layouts, not just the sources

Get the operator's real presets on paper: how many windows, which sources in each, what happens on an alarm or an incident. That layout list is the specification. It sets the composition capability you need, the number of presets the control system must recall, and whether operators need the ability to build a new layout live rather than choosing from fixed ones.

Count sources with headroom, then decide the chassis

Add at least 25 percent input headroom over the day-one count for any operations environment, then pick the architecture that can absorb it. A modular chassis absorbs growth with cards. An IP-based platform absorbs it with additional endpoints on the network. A fixed-output unit absorbs it by being replaced.

Choosing a Zio Wall Processor: 1RU, 4RU, and Distributed

The RGB Spectrum Zio line covers the range from a compact single-rack-unit processor to a redundant, high-capacity 4RU platform, plus a distributed option that puts the processing on the network. Match the platform to the wall's output count, source count, and how critical the wall is to operations.

• Compact, 1RU: Zio W4008. The Zio W4008 chassis is a two-slot 1RU processor, available in ready-configured versions that differ by input and output type: the W4008-A with eight outputs, the W4008-B with four 4K60 HDMI inputs, the W4008-C with four 4K60 inputs and XtendPoint support, the W4008-D with eight HDMI inputs, and the W4008-E with eight XtendPoint IP inputs. It suits smaller walls and rooms where rack space is tight.

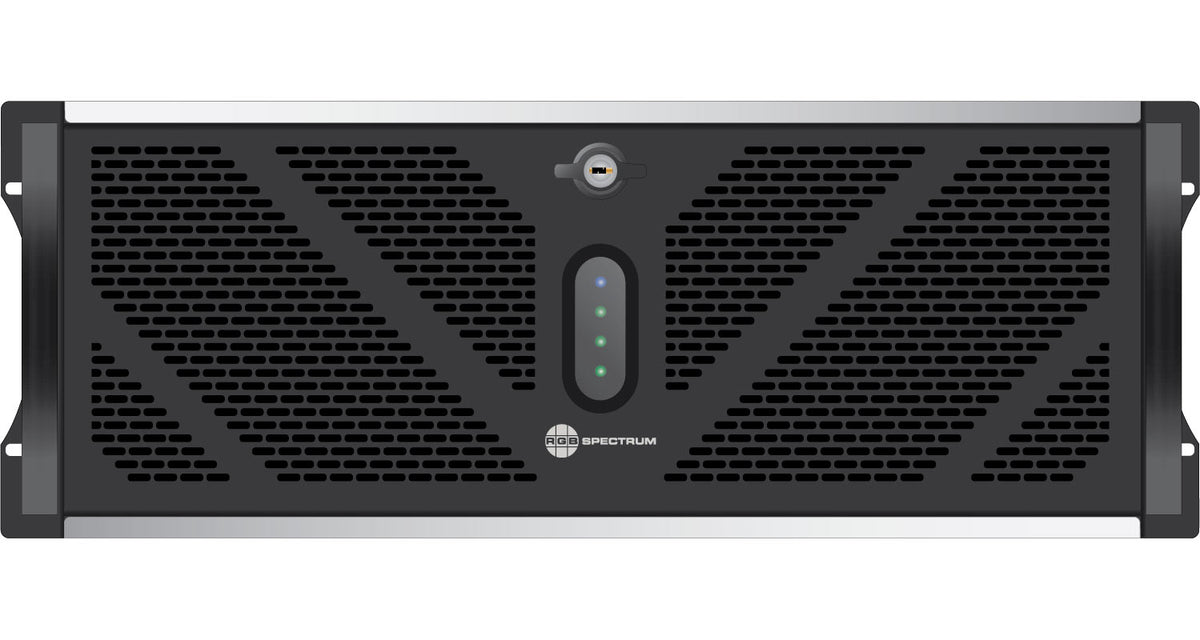

• High-capacity, 4RU: Zio W4024, W4028, and W4040. The Zio W4024 is a 4RU chassis built on a Threadripper processor with 32 GB of RAM and a 256 GB SSD. The Zio W4028 is a seven-slot 4RU chassis with dual redundant power supplies, and pairs with the Zio RS28 26-inch rack slide set for serviceability. The Zio W4040-A steps up to dual EPYC 7262 processors with 128 GB of RAM and a 1 TB SSD, also with redundant power. These are the platforms for control rooms and operations centers where the wall is mission-critical and the source count keeps growing.
• Distributed and IP-based: Zio MWX. The Zio MWX (MediaWall X) module provides four HDMI outputs up to 8K60 and up to 32 IP decodes, moving source distribution onto standard network infrastructure. The Zio MWX Kit is a starter kit that includes five Zio S2114 4K encoders, so a first wall can be stood up with the sources already encoded. For smaller IP-fed walls, the Zio W3064 is a four-output IP wall processor system.

The decision rule: choose a chassis-based W-series processor when the layout is defined, the wall is critical, and you want deterministic behavior from dedicated hardware. Choose the MWX and its IP endpoints as soon as displays may be added, relocated, or fed from more than one head-end location. The trade with any IP-based platform is that the network becomes part of the AV system: agree VLANs, multicast handling, and switch capacity with IT before commissioning, and document it in the as-builts.

Input Count, Modular Chassis, and LED Sending Devices

The starting point for any processor spec is how many simultaneous sources need to reach the wall and in what combination. Modular processors like the tvONE CORIOmaster micro C3-503, populated with card-based input modules such as the tvONE CM-HDMI-4K-2IN two-input 4K30/60 HDMI module supporting up to 4096x2160 60p, let integrators build the chassis to the exact input count a project needs rather than over-buying a fixed-configuration unit. The value of the modular approach is realized in year three, when the customer adds two sources and the answer is a card in an empty slot instead of a new chassis, a new rack layout, and a new control driver.

At the LED end, purpose-built controllers do work a general processor cannot. The Novastar VX2000 Pro integrates video processing, video control, and LED screen configuration in one unit, handling Ultra HD 4K×2K 60Hz and up to 13 million pixels, which makes it a sending device and a processor in a single chassis for direct-view LED walls. Calculate the wall's total pixel count from panel resolution multiplied by panel count and confirm it sits inside the controller's pixel capacity with margin, because pixel budget — not input count — is the binding constraint on LED.

For fine-pitch LED where calibration quality and on-camera behavior are the priority, the Planar Brompton Tessera S8 HD controller and the Tessera SX40 4K controller are built for the signal requirements of those panels, including pixel-level correction that a general HDMI processor does not address. Both are TAA compliant, which matters for federal, defense, and other public-sector procurement where the compliance status is a gating requirement rather than a preference.

Rack Space, Signal Distribution, and Control Integration

These controllers are rack-mount equipment, and the deployment details determine whether the system is serviceable. Confirm RU height and chassis depth against the enclosure before ordering: a 4RU chassis such as the Zio W4028 needs both the rack units and the depth, and a deep processor in a shallow wall-mount rack will not accept its own cable bend radius at the rear. Plan front-to-rear airflow, leave a clear rack unit above and below where the manufacturer requires it, and account for the heat load in the room's cooling calculation rather than discovering it in July.

For processors feeding displays over distance, HDMI-over-twisted-pair distribution is more reliable than long-run HDMI. The Planar 8-Out Video Controller (L version) takes four HDMI inputs and delivers eight CAT outputs at 5Gb each with an HSL loop, and is TAA compliant. Sending video over structured cabling from the rack to the wall means the run uses the same cable type, terminations, and test procedure as the rest of the building, and a failed link is diagnosed with a cable tester rather than by swapping expensive HDMI assemblies.

Control integration is where projects quietly fail. The processor has to be triggered by the room's control system to recall layouts, switch sources, and power the wall on a schedule. Confirm the control protocol — typically RS-232, IP, or a vendor API — during design, along with whether a certified driver exists for the control platform in use. Where no driver exists, budget the programming time explicitly. Also decide who holds the layout presets: presets stored in the processor survive a control system replacement, presets stored only in control code do not.

What a Correctly Specified Video Wall Processor Delivers

Operationally, the payoff is a wall the staff actually drive. When the layouts operators asked for exist as one-touch presets and switch without artifacts, the wall gets used as an instrument rather than left on a single default view for months. That is the difference between a capital purchase that earns its budget and one that becomes a very expensive backdrop.

The maintenance payoff is fewer site visits. Structured cabling from rack to wall means a failed link is a patch-cord swap and a tester reading rather than a technician pulling a 40-foot HDMI run out of a ceiling. A modular chassis means an input failure is a card replacement with the rest of the wall still live. Processors with proper control integration and network monitoring report their own state, so a display that failed to wake is known before the morning shift walks in. For walls in mission-critical rooms, Clarity Remote Monitoring watches the gear around the wall around the clock.

The lifecycle payoff is headroom that gets used. A processor specified with input and pixel margin absorbs the sources and panels added over the next five years without a forklift replacement, which is the outcome that determines total cost of ownership far more than the original purchase price of the chassis.

Planning a Video Wall Processor Project

• Collect the operations team's three to five real layouts and treat that list, not the display count, as the composition specification.
• Confirm display technology first — tiled LCD or direct-view LED — and specify an LED sending device or controller for any dvLED wall.
• Verify per-input format ceilings, aggregate pixel budget, and the HDCP version required by every source before selecting a chassis.
• Add input headroom of at least 25 percent and choose an architecture that can absorb it: cards in a modular chassis, or endpoints on an IP platform.
• Check RU height, chassis depth, airflow, and heat load against the rack, and confirm the control protocol and driver availability with the programmer.
• Where the project is federal or public sector, confirm TAA compliance on the processor and controller line items at quote stage.

If you are working through a wall layout and want the processor, distribution, and rack details checked before the bid goes out, Creation Networks' engineering team can review the panel schedule, source list, and operator layouts and return a specification sized with real headroom. Send the wall dimensions and the source inventory and we will work it through with you.

Frequently Asked Questions

What does a video wall processor do that an HDMI splitter or matrix can't?

A video wall processor scales and windows sources across an array of displays, so one image can span the whole wall, several sources can appear as independent windows, and layouts can be recalled in one action. A splitter or matrix routes whole sources to whole displays and cannot compose a layout.

How many outputs does a video wall processor need?

At least one output per display in the wall, but outputs are not the real constraint. What matters is how many independent source windows the processor can compose at once, at what resolution, so specify from the operators' real layouts rather than from the display count.

Do LED video walls need a different processor than LCD walls?

Yes. A direct-view LED wall needs an LED-specific sending device or controller to handle receiving-card mapping, pixel-level calibration, and refresh behavior, especially if the wall appears on camera. Tiled LCD walls use a general-purpose display processor.

Which Zio wall processor should I choose?

Choose the 1RU Zio W4008 for smaller walls and tight racks, the 4RU W4024, W4028, or W4040 for mission-critical control rooms that keep adding sources, and the Zio MWX when the wall will grow or be fed from more than one location over the network. The W4028 and W4040 add redundant power for walls that can't go down.

How much input headroom should I plan for?

At least 25 percent over the day-one source count for any operations environment. Control rooms add sources over time, and a processor with no headroom can only be expanded by replacing it.
