Novastar VX2000 Pro – 4K All-in-One LED Video Wall Controller, 13M Pixels

Product Overview

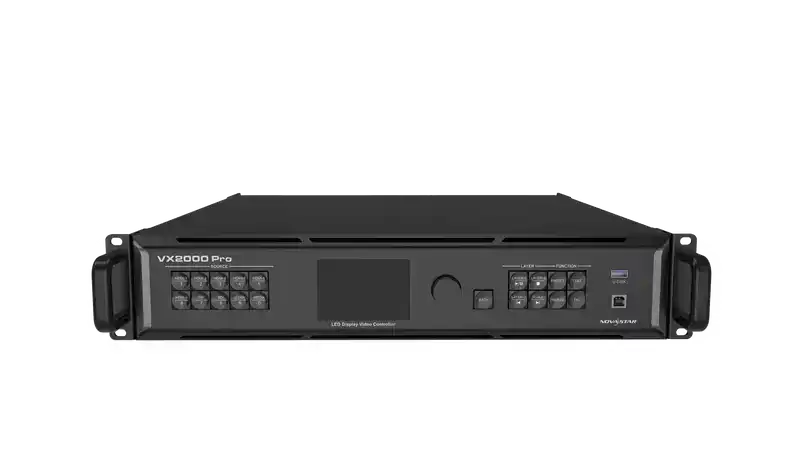

The Novastar VX2000 Pro is a professional all-in-one LED video wall controller that integrates video processing, video control, and LED screen configuration in a single 2U device. Designed for medium to high-end rental, staged events, and fine-pitch LED display installations, the VX2000 Pro supports a maximum input resolution of 4K×2K@60Hz and drives up to 13 million pixels across 20 Gigabit Ethernet output ports. Its 12G-SDI, DP 1.2, dual HDMI 2.0, and four HDMI 1.3 inputs make it well-suited for broadcast-grade signal environments where multiple source types must be managed simultaneously. Controlled via front panel knob, Unico software, NovaLCT, or the VICP app, the VX2000 Pro delivers a centralized LED display control solution for large-scale digital signage and live event production.

Product Description

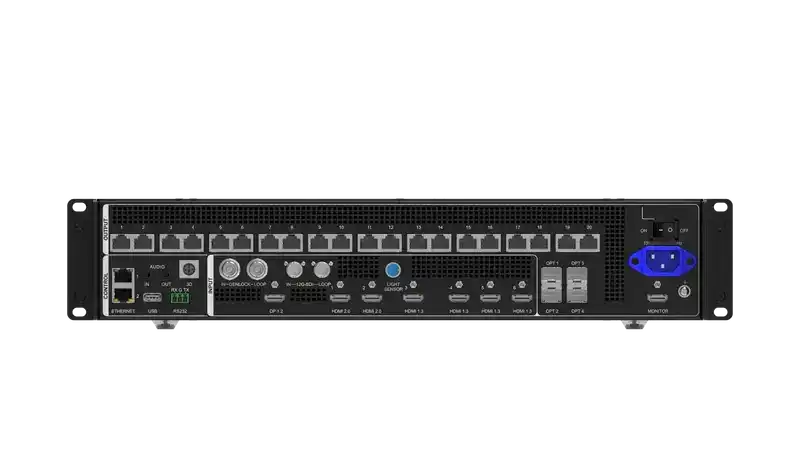

The VX2000 Pro is the top-tier model in NovaStar's VX Pro Series, offering the largest pixel load capacity and port count in the lineup. Its 20 Gigabit Ethernet output ports are complemented by four 10G optical fiber ports: OPT 1 and OPT 2 are self-adaptive for either video input or output, while OPT 3 and OPT 4 copy or back up the output of Ethernet ports 1–10 and 11–20 respectively. This architecture gives system designers a built-in redundancy path without requiring external backup devices.

On the input side, the VX2000 Pro accepts signals from all major professional video standards. The 12G-SDI input supports ST-2082 (12G), ST-2081 (6G), ST-424 (3G), and ST-292 (HD) with loop output, reaching up to 4096×2160@60Hz. Two HDMI 2.0 inputs support up to 4096×2160@60Hz with HDCP 1.4 and 2.2, and can be mosaicked to form a 4K×2K combined source. The DP 1.2 input also reaches 4096×2160@60Hz. Four HDMI 1.3 inputs handle 1920×1080@60Hz for secondary or auxiliary sources.

The VX2000 Pro supports 12 layers of 2K×1K resolution, which can be organized as 3×4K×2K, 6×4K×1K, or 12×2K×1K configurations depending on source input type. Up to 256 user-defined presets can be saved and recalled. Additional processing features include output scaling via SuperView III technology, OSD (text, image, weather, and time overlays), HDR10 and HLG output, 3D display support, pixel-level brightness and chroma calibration via NovaLCT, and low-latency operation down to 0 frames in ByPass mode. The device operates across three working modes: video controller, fiber converter, and ByPass, providing adaptability for both live production and fixed installation environments.

Key Features

• 13 Million Pixel Load Capacity — Drives ultra-wide and ultra-tall LED screens at up to 16,384 pixels wide and 8,192 pixels tall from a single controller unit.
• 20 Gigabit Ethernet Output Ports — Each port handles up to 650,000 pixels at 8-bit color depth, with the full port array capable of sustaining a 13-million-pixel canvas.
• 4 × 10G Self-Adaptive Optical Fiber Ports — OPT 1 and OPT 2 can serve as either video input or sending-card output; OPT 3 and OPT 4 provide copy or hot-backup paths for built-in signal redundancy.
• 12G-SDI Input with Loop Output — Supports 12G, 6G, 3G, and HD-SDI formats up to 4096×2160@60Hz, integrating the VX2000 Pro directly into broadcast and live production signal chains.
• Dual HDMI 2.0 and DP 1.2 Inputs — Each HDMI 2.0 input reaches 4K@60Hz with HDCP 1.4/2.2 support; the DP 1.2 input supports HDCP 1.3 and up to 4096×2160@60Hz.
• 12 Layers with Flexible Configuration — Supports 12×2K×1K, 6×4K×1K, or 3×4K×2K layer arrangements with adjustable size, position, and priority for complex multi-source displays.
• 256 User-Defined Presets — Presets can be saved, overwritten, previewed, and loaded with a single button press, including configurable switching transition effects.
• HDR10 and HLG Output — Delivers high dynamic range content to compatible NovaStar receiving cards for enhanced brightness and color fidelity on fine-pitch LED panels.
• ByPass Mode with 0-Frame Latency — When operating in ByPass mode, signal latency is reduced to 0 frames, meeting the requirements of latency-critical broadcast and live production applications.
• OSD Overlay Support — Supports text (static, dynamic, weather, time) and image OSD layers with customizable font, color, opacity, scrolling direction, and position settings.
• End-to-End Redundancy — Supports backup between devices, input sources, Ethernet ports, OPT and Ethernet ports, and dual receiving card backup for reliable uninterrupted operation.
• Unico, NovaLCT, and VICP Control — Compatible with Windows, macOS, and web-based Unico software; front panel knob and optional remote control are also supported.

Typical Applications

• Live event and concert stage LED video wall processing
• Broadcast studio large-format LED display control
• Auditorium and large venue fine-pitch LED installations
• High-end rental LED display staging and touring rigs
• Multi-purpose room and all-hands room LED video wall deployments
• Government and enterprise boardroom digital signage systems
