tvONE CM-HDMI-4K-2IN – Dual HDMI 4K Input Module for CORIOmaster
Product Overview

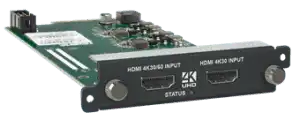

The tvONE CM-HDMI-4K-2IN is a 2-input HDMI 4K module for CORIOmaster video wall processors. It accepts two HDMI inputs at resolutions up to 4K30, or one input at 4K60, and supports HDMI 2.0 and HDMI 1.4 standards along with HDCP 1.4. Resolutions up to 3840x2160 and 4096x2160 are supported depending on color format and frame rate. Compatible with CORIOmaster C3-540 and CORIOmaster mini C3-510 chassis (sold separately).
Product Description
The CM-HDMI-4K-2IN installs in any available I/O bay of a CORIOmaster or CORIOmaster mini chassis and provides two HDMI inputs with support for 4K UHD resolutions. In two-input mode, each input accepts signals up to 4K30 (3840x2160 at 30Hz). In single-input mode, one input can receive 4K60 (3840x2160 at 50/59.94/60Hz in 4:2:0 8-bit) using the HDMI 2.0 standard. The module also supports 4096x2160 (DCI 4K) at 4:2:0 at 50/59.94/60Hz. For standard HD and lower resolutions, both inputs operate across a range from 480i and 576i through 720p, 1080i, and 1080p at frame rates from 24Hz to 60Hz. Color space support follows BT.601 for standard resolutions and BT.709 for HD and 4K content. HDCP 1.4 compliance allows protected content from Blu-ray, cable, and streaming sources to be accepted without errors. The module supports both HDMI 2.0 (required for 3840x2160 4:2:0 at 50/59.94/60Hz) and HDMI 1.4 for all other resolutions, covering the full range of HDMI source equipment in professional and consumer AV environments.
Key Features
- Dual HDMI 4K Inputs — Two HDMI inputs accept 4K30 each, or single-input mode supports 4K60, covering the most common 4K HDMI source configurations.
- HDMI 2.0 and HDMI 1.4 Support — Compatible with both HDMI 2.0 (for 4K60 4:2:0) and HDMI 1.4 sources, covering a wide range of source devices.
- HDCP 1.4 Compliant — Accepts HDCP 1.4-protected content from Blu-ray, cable, and HDMI sources without triggering content protection errors.
- Wide Resolution Range — Supports 480i through 4K UHD (3840x2160 and 4096x2160), handling legacy and high-resolution sources in the same module.
- BT.709 Color for HD and 4K — Correct color space handling for HD (720p, 1080i/p) and 4K content using BT.709, with BT.601 for standard-definition resolutions.
- Tool-Free Installation — Slides into any CORIOmaster I/O bay without tools, simplifying field installation and module replacement.
Typical Applications
- Boardroom — HDMI 4K laptop or presentation input for video wall displays
- Conference room — dual HDMI input for multi-source presentation environments
- Broadcast studio — 4K HDMI camera and playback input for monitor walls
- Auditorium — 4K source input from presentation or event production equipment
- House of worship — HDMI 4K input from cameras and media players for display walls
- Training room — dual HDMI input for multi-source instructional content
Technical Specifications
| Specification | Value |
|---|---|
| SKU | CM-HDMI-4K-2IN |
| Input Connectors | 2x HDMI |
| Inputs (dual mode) | 2 x 4K30 |
| Input (single mode) | 1 x 4K60 |
| Maximum Resolution (4:4:4) | 3840x2160 @ 23.98/24/25/29.97/30Hz, 8-bit |
| Maximum Resolution (4:2:0) | 3840x2160 and 4096x2160 @ 50/59.94/60Hz, 8-bit |
| Standard Definition Support | 480i, 576i |
| HD Support | 720p, 1080i, 1080p @ 24–60Hz |
| HDMI Standard | HDMI 2.0 (4K 4:2:0 @ 50/59.94/60Hz); HDMI 1.4 (other resolutions) |
| HDCP Compliance | HDCP 1.4 |
| Color Space | BT.601 (SD); BT.709 (720p, 1080i/p, 2160p) |
| Compatible Chassis | CORIOmaster C3-540, CORIOmaster mini C3-510 |
| Power | Supplied by chassis |
| Installation | Tool-free, slides into I/O bay |
Frequently Asked Questions
Which CORIOmaster chassis is the CM-HDMI-4K-2IN compatible with?
This module is compatible with the CORIOmaster C3-540 and the CORIOmaster mini C3-510. Both chassis are sold separately. Contact Creation Networks to confirm CORIOmaster2 CM2-547 compatibility.
Can both HDMI inputs run at 4K simultaneously?
Yes. In two-input mode, both HDMI inputs accept signals up to 4K30 (3840x2160 at 30Hz) simultaneously. For 4K60, only one input is used at a time.
Does this module require HDMI 2.0 sources for 4K input?
HDMI 2.0 is required only for 4K 4:2:0 content at 50, 59.94, or 60Hz. HDMI 1.4 sources are supported for 4K30 (4:4:4 up to 30Hz) and all HD and SD resolutions.
Is the CM-HDMI-4K-2IN HDCP compliant?
Yes. The module supports HDCP 1.4, accepting protected content from Blu-ray, cable, and HDMI sources.
What color space does this module use for 4K content?
4K content (2160p) is handled in BT.709 color space. Standard-definition content uses BT.601, and HD resolutions (720p, 1080i, 1080p) also use BT.709.
How many CM-HDMI-4K-2IN modules can be installed in a single chassis?
The CORIOmaster C3-540 has 14 I/O bays. Multiple input modules can be installed alongside output modules based on your system I/O requirements.
What is the warranty on this module?
tvONE products carry a standard manufacturer warranty. Contact Creation Networks at creationnetworks.net for current warranty details and support.
