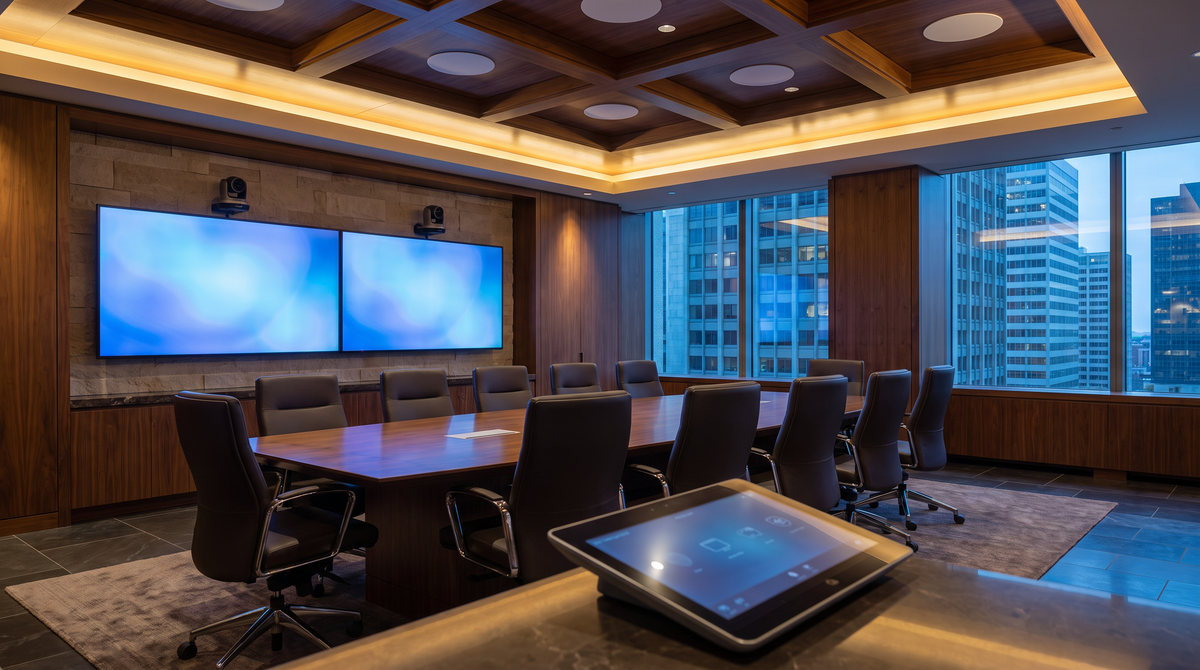

Executive boardrooms carry different requirements than a standard conference room. Larger tables, multiple camera angles, layered audio zones, and a control system that has to work flawlessly with no AV support standing by all push boardroom AV design toward higher-end, purpose-built equipment rather than a simplified conferencing bundle. This guide covers the core categories a commercial AV buyer needs to plan for when specifying a boardroom system.
Browse the full Boardroom AV Solutions collection.
Control and Signal Processing Foundations
A boardroom's control processor is the backbone the rest of the system depends on, since it manages camera switching, audio routing, display control, and integration with the room's video conferencing platform. QSC's Q-SYS Core series, including the Core 8 Flex and the Core 24f, provides networked audio, video, and control processing scaled to different room complexities, with the Core 8 Flex suited to a more compact boardroom deployment and the Core 24f offering greater I/O and processing headroom for larger or more complex rooms. Touch control is typically handled through a dedicated panel such as the QSC TSC-101-G3, a 10-inch PoE touch screen controller that gives users a single interface for starting meetings, adjusting camera presets, and controlling room audio. For rooms requiring AV signal distribution beyond a single display, matrix switchers such as the AMX PR-0808 8x8 4K60 HDMI matrix switcher let a boardroom route multiple sources to multiple displays without manual cable swapping.
Multi-Camera Coverage for Larger Tables
Boardrooms with long tables or seating on multiple sides benefit from multi-camera systems rather than a single fixed camera position. The Q-SYS Microsoft Teams Room Multi-Camera Boardroom bundle is built specifically for this scenario, combining certified Teams Rooms compute with multiple camera inputs so remote participants get a properly framed view of whoever is speaking rather than a single wide shot of the entire table. QSC's NC-12x80 and NC-20x60 Q-SYS network PTZ cameras, with 12x and 20x optical zoom respectively, extend camera reach for boardrooms where a single camera has to cover both ends of a long table from a fixed mounting position. When specifying multi-camera boardroom systems, factor in how automatic camera switching or voice-tracking logic will behave with the specific table shape and seating layout in the room, since a rectangular table and a U-shaped table call for different camera placement strategies.
Audio Coverage and Furniture Integration
Boardroom audio needs to reach every seat clearly, including seats at the far end of a long table, which is why beamforming and distributed microphone technology matters more here than in a standard conference room. The QSC NM-T1 PoE tabletop beamforming microphone provides targeted pickup across a table without requiring a ceiling microphone array, simplifying installation in rooms where ceiling access is limited or architecturally sensitive. Cable and power management at the table itself also deserves early planning: modular tabletop enclosures such as the AMX HydraPort HPX-1200 series integrate power outlets and AV connectivity into a single in-table unit, keeping cabling organized and out of sight on a boardroom table where appearance matters as much as function. Retractable touch panels, such as the AMX Modero X G5 MXR-1001-BL, offer a similar concealment approach for the room's control interface, staying flush with the table surface until a user needs it.
Planning a Boardroom AV Upgrade
Before finalizing a boardroom AV design, walk the room to confirm table shape, seating capacity, ceiling height, and existing cable pathways, and decide early whether camera coverage will rely on a single multi-camera bundle or a combination of fixed and PTZ cameras. Because boardrooms typically get less day-to-day AV support than a standard meeting room, prioritize control simplicity and reliability over adding features that increase the chance of something going wrong during an executive meeting.
A boardroom AV system built on solid control and switching infrastructure, camera coverage matched to the table layout, and audio and furniture integration planned around the room's finish and seating, gives an organization a system that performs consistently for its highest-visibility meetings.
