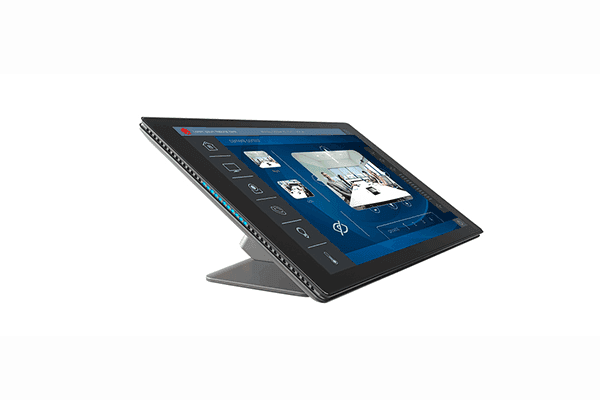

QSC TSC-101-G3 – 10-Inch Q-SYS PoE Touch Screen Controller (Black)

Product Overview

The QSC TSC-101-G3 is a 10-inch Q-SYS touch screen controller that provides a customizable control interface for AV systems in conference rooms, boardrooms, and training rooms. As a PoE touch screen controller for the Q-SYS ecosystem, it loads user control interface (UCI) pages directly from the Q-SYS Core over a single Ethernet cable, giving end users a clean wall-mounted panel for volume, source, display, and room control. Its high-resolution 1920 x 1200 display and projective-capacitive multi-touch surface make it the flagship Q-SYS room controller for commercial AV deployment.

Product Description

The TSC-101-G3 uses a 10.07-inch (255.8 mm) 16:10 LCD with 1920 x 1200 resolution, 24-bit color, up to 380 nits brightness, and a projective-capacitive multi-touch surface. UCI pages with faders, buttons, meters, and indicators are built in Q-SYS Designer Software and load automatically from the active Q-SYS design, so no separate programming environment is required. The controller communicates with the Core over 1000 Mbps Ethernet using standard TCP/IP through a rear RJ-45 jack and is an IEEE 802.3at Class 4 PoE device, drawing power and data over one cable. It mounts to standard North American and European wall and junction boxes in landscape or portrait orientation, protruding 1.54 inches from the wall, and integrates an ambient light sensor and proximity wake for a polished end-user experience. The TSC-101-G3 operates from 0 to 50 degrees C in up to 85% non-condensing humidity. For smaller spaces, the TSC-70-G3 and TSC-50-G3 offer the same workflow at smaller screen sizes.

Key Features

• 10-Inch High-Resolution Display — A 1920 x 1200, 24-bit color LCD at up to 380 nits provides a crisp, readable control surface.
• Projective-Capacitive Multi-Touch — A PCAP touch surface supports responsive, modern multi-touch interaction.
• Native Q-SYS UCI — Control pages built in Q-SYS Designer load automatically from the Core, with no separate programming environment.
• Single-Cable PoE — IEEE 802.3at Class 4 PoE delivers power and data over one Ethernet cable for simplified installation.
• Landscape or Portrait Mounting — Mounts to standard North American and European wall and junction boxes in either orientation.
• Ambient Light and Proximity Sensors — Automatic brightness adjustment and proximity wake refine the user experience.

Typical Applications

• Conference room and boardroom control
• Huddle rooms and multi-purpose rooms
• Training rooms and commercial meeting spaces
• All-hands rooms

Technical Specifications

Frequently Asked Questions

Does the TSC-101-G3 require custom programming? No. Control pages are built in Q-SYS Designer Software using the UCI tool and load automatically from the Q-SYS Core, so no separate programming environment is needed.

How is it powered and connected? A single Ethernet cable provides both power and data; the controller is an IEEE 802.3at Class 4 PoE device communicating over 1000 Mbps TCP/IP.

How does it mount? It mounts to standard North American and European wall and junction boxes in landscape or portrait orientation.

What is the difference between the TSC-101-G3, TSC-70-G3, and TSC-50-G3? They share the same Q-SYS UCI workflow and PoE installation; the models differ primarily by screen size (10-inch, 7-inch, and 5-inch) and resolution.

What about warranty and support? The TSC-101-G3 is covered under QSC warranty terms; contact Creation Networks support for Q-SYS control design and AV integration assistance.
