Symetrix 80-0228 T-5 Glass

Product Overview

The Symetrix 80-0228 T-5 Glass is a 5-inch capacitive touchscreen room controller for commercial AV installations on the Symetrix DSP platform. The most compact touchscreen in the T-Series family, the T-5 Glass is designed for huddle rooms, small conference rooms, and secondary control positions where a full 7- or 10-inch panel is not required. PoE-powered and wall-mounted, it runs the Symetrix SymVue interface for room audio control — volume, source selection, scene recall, and muting — and is compatible with Symetrix Radius NX, Prism, EDGE, and Server D100 DSP platforms.

Product Description

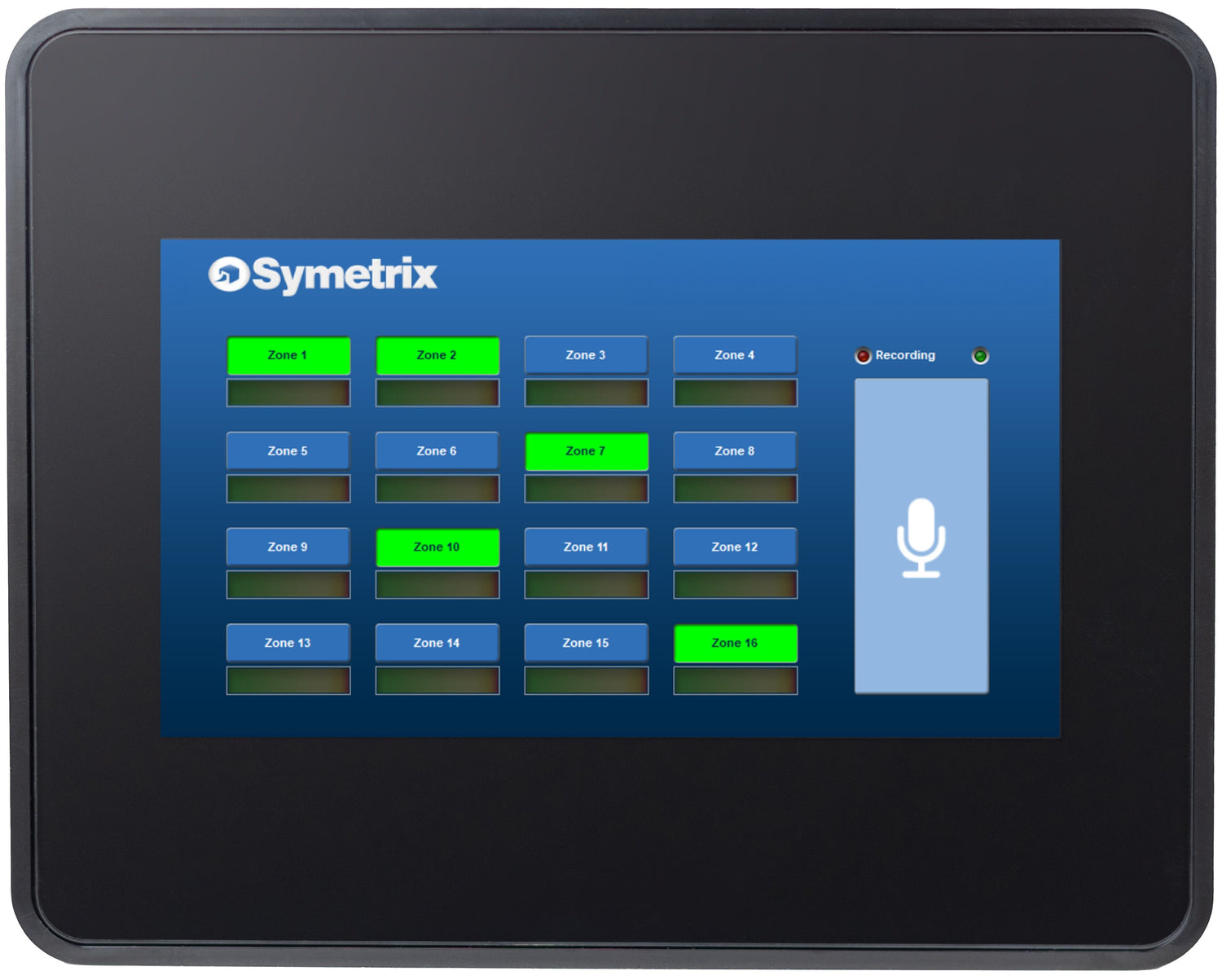

The T-5 Glass features a 5-inch capacitive multi-touch display with a glass front surface, wall-mounted via the included bracket. Power and network are delivered over a single Cat cable via PoE. The touchscreen runs a SymVue control interface configured in Symetrix Composer or Control Server, presenting the room's audio controls in a compact, touch-friendly layout. The T-5 is the entry point of the T-Series family and is well suited to smaller rooms where cost efficiency is a priority or where the control panel footprint needs to be minimized. For larger rooms or primary control positions requiring greater display area, the T-7 Glass (80-0221) or T-10 Glass (80-0190) are available. All T-Series touchscreens are compatible with the T-Series Tabletop Stand (80-0192).

Key Features

• 5-Inch Capacitive Touchscreen — Compact multi-touch display with glass front surface, suited for huddle rooms and small conference rooms where display area is secondary to footprint.
• PoE Powered — Receives power and network from a single Cat cable via standard PoE (IEEE 802.3af), compatible with a wider range of network switches than PoE+.

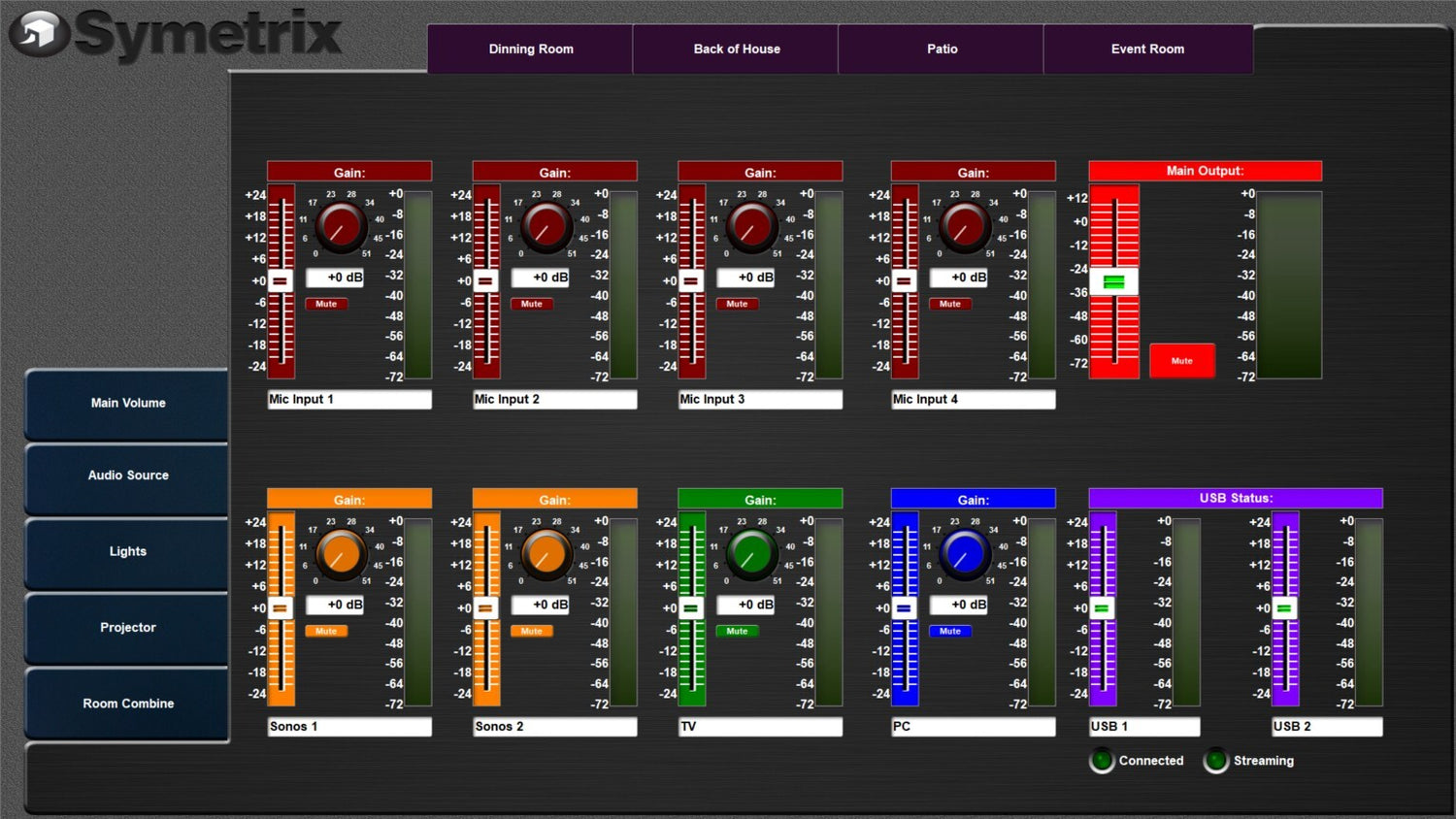

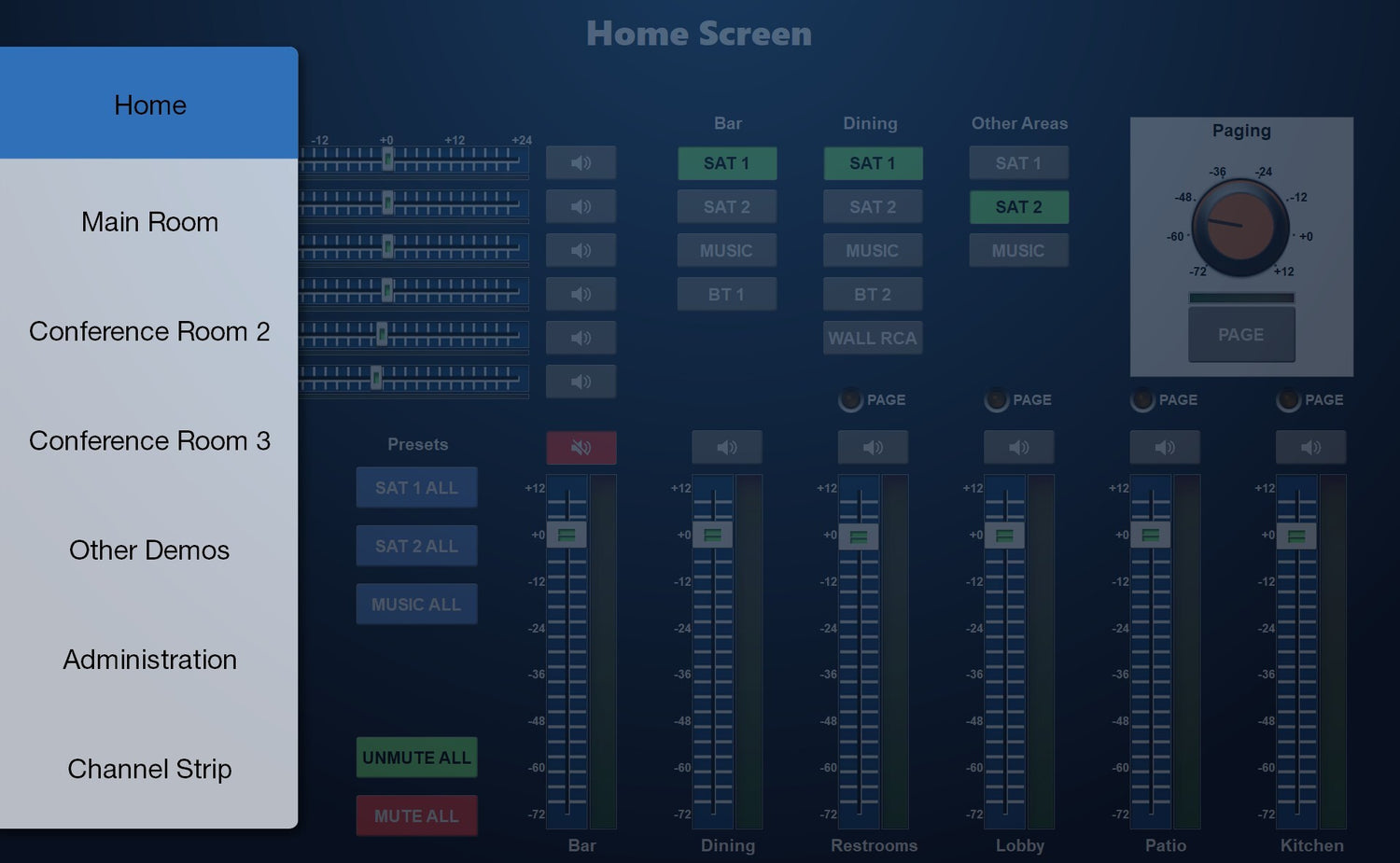

• SymVue Room Control Interface — Runs a customizable SymVue interface for volume, source selection, scene recall, muting, and do-not-disturb functions.
• Symetrix DSP Compatibility — Compatible with Symetrix Radius NX, Prism, EDGE, and Server D100.

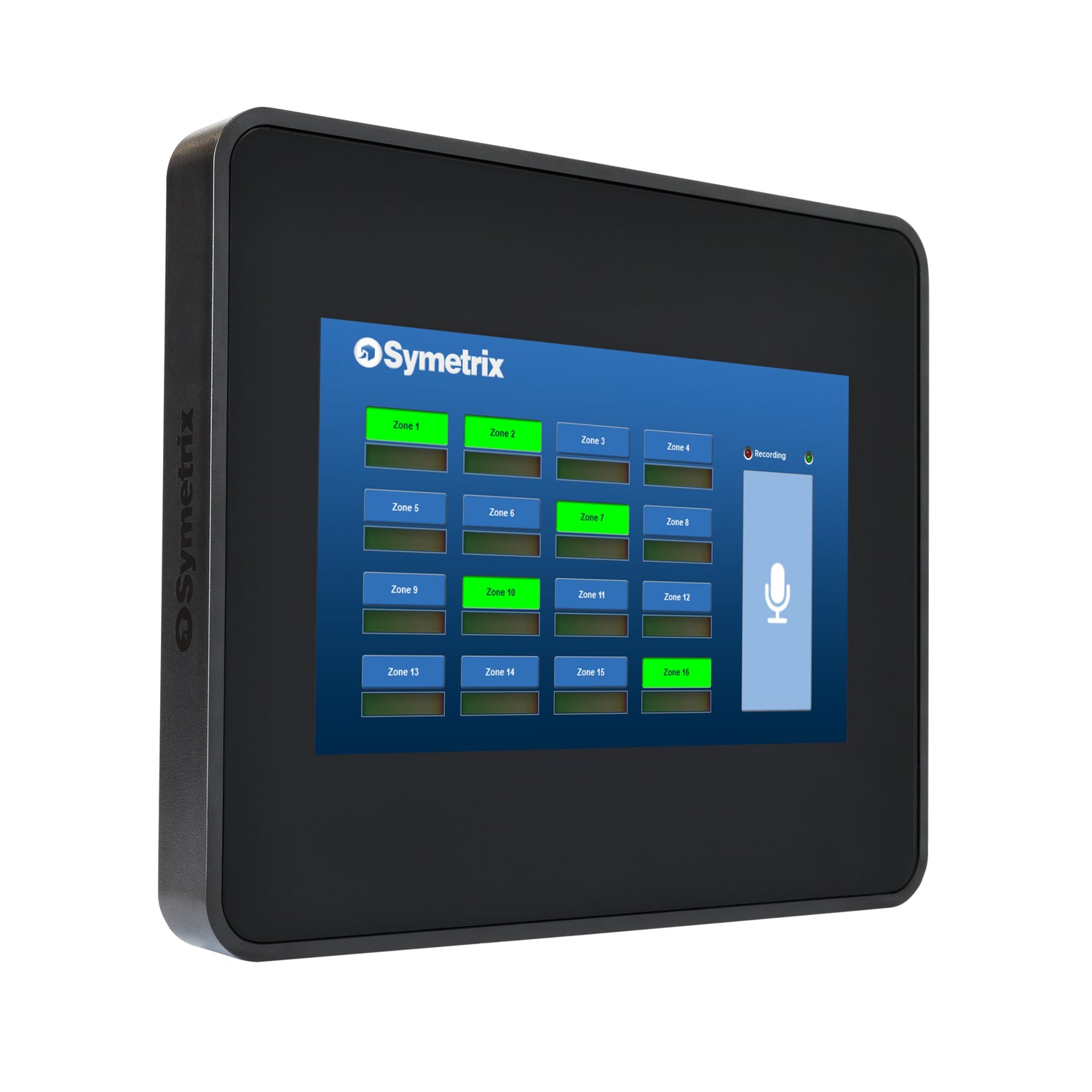

• Wall-Mount with Included Bracket — Ships with a wall-mount bracket for standard back box or surface mount installation.
• Glass Front Surface — Flush glass faceplate provides a professional appearance in commercial AV installations.
• Tabletop Deployment Option — Compatible with the T-Series Tabletop Stand (80-0192) for table-top deployment.
• Most Compact T-Series Option — The smallest and most cost-effective touchscreen in the T-Series family, appropriate for budget-conscious deployments or rooms with limited wall space.

Typical Applications

• Huddle room audio touchscreen controller
• Small conference room SymVue control panel
• Secondary control point in a larger room
• Commercial meeting space compact AV touch panel

Technical Specifications

Frequently Asked Questions

Q: Does the T-5 Glass require a Symetrix Control Server?

A: The T-5 can operate with or without a Control Server depending on system complexity. For advanced multi-room control and scheduling, a Control Server (80-0119) is recommended.

Q: Does the T-5 require PoE or PoE+?

A: The T-5 Glass is powered by standard PoE (IEEE 802.3af, 15.4W), not PoE+. This makes it compatible with a broader range of network switches without requiring PoE+ ports or injectors.

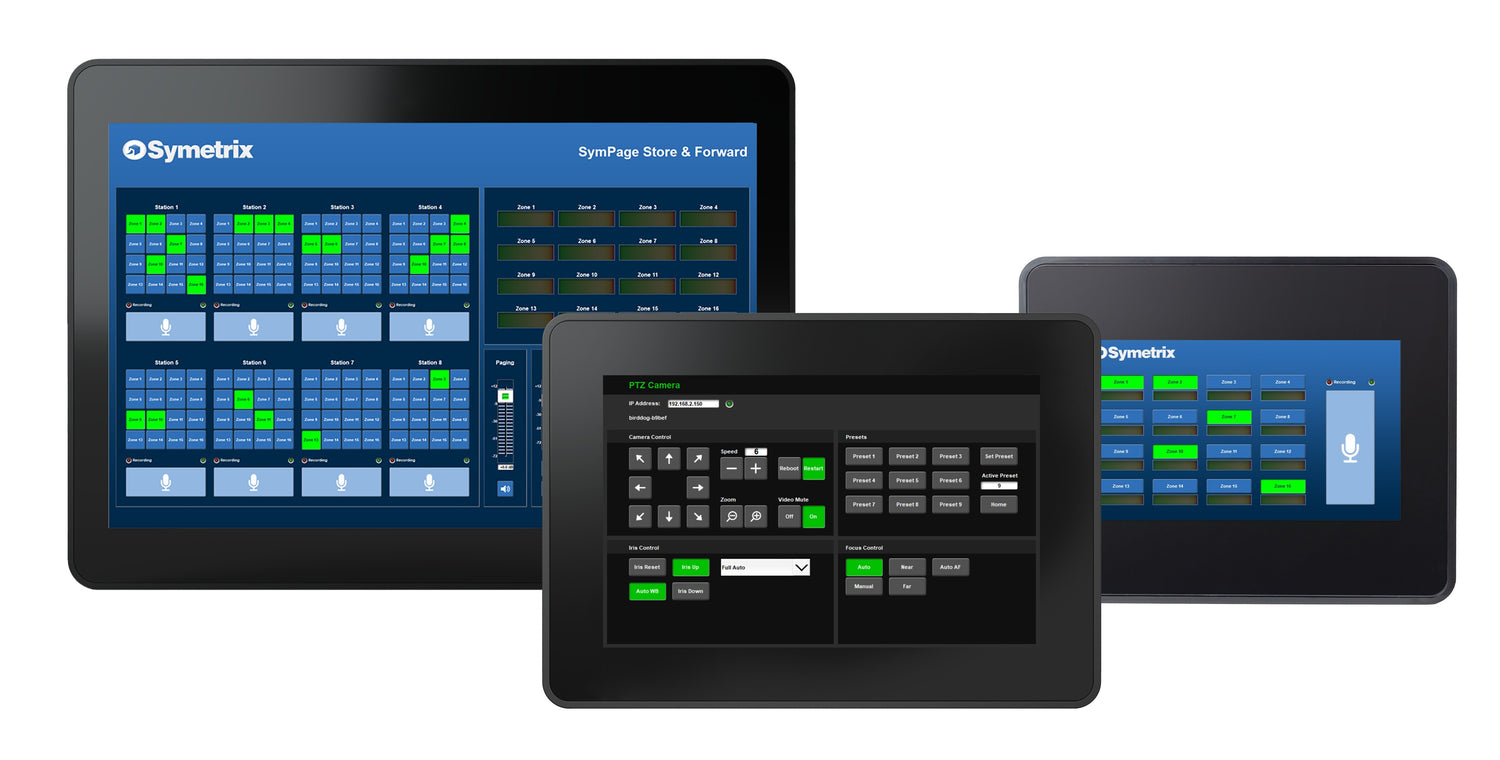

Q: What is the difference between the T-5, T-7, and T-10?

A: The three touchscreens differ only in display size — 5, 7, and 10 inches respectively — and power requirement (T-5 uses PoE; T-7 and T-10 use PoE+). Functionality and DSP compatibility are identical across all three.

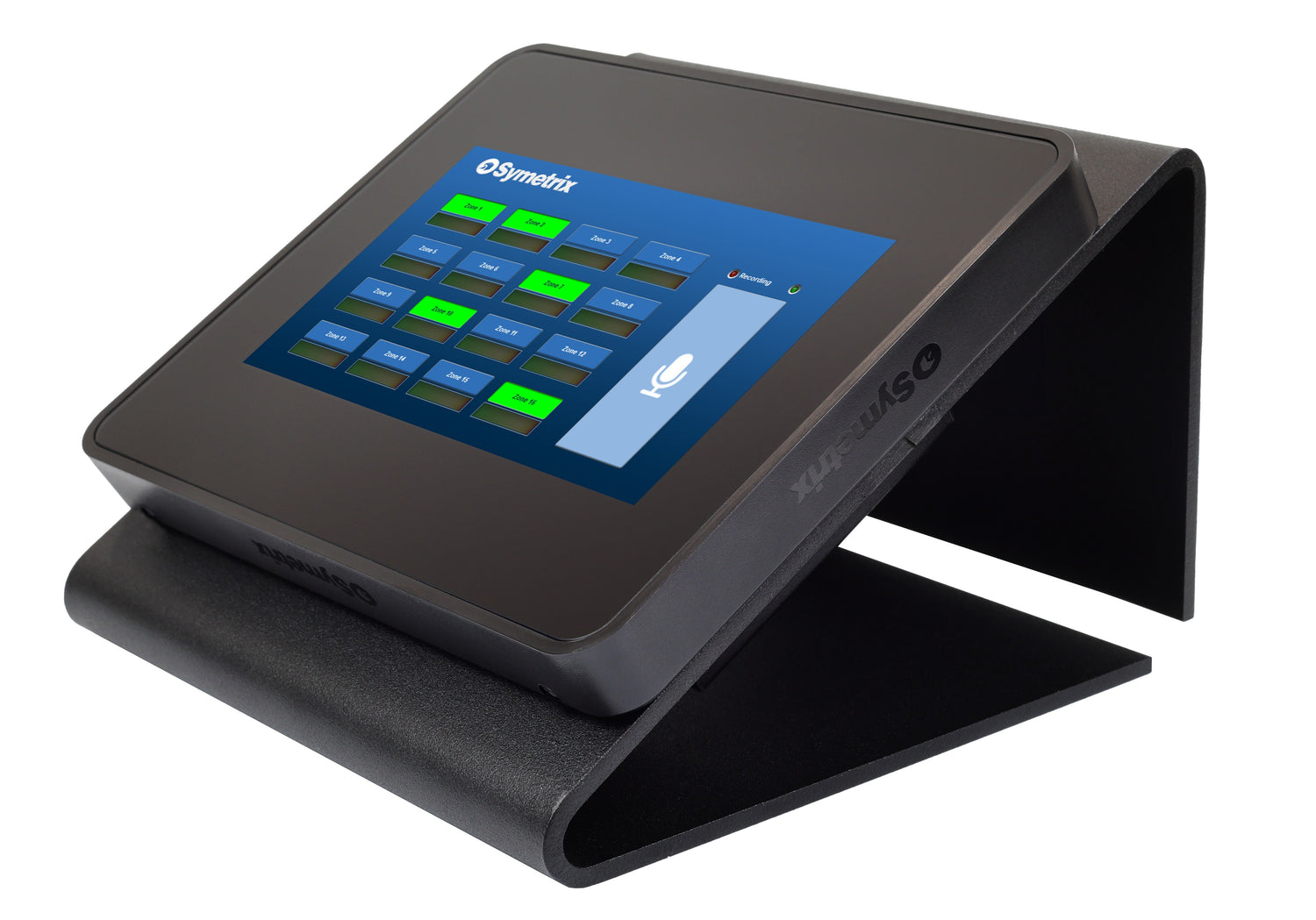

Q: Can the T-5 Glass be used as a tabletop controller?

A: Yes. The T-Series Tabletop Stand (80-0192) is available separately for tabletop deployment of any T-Series touchscreen.
