Symetrix 80-0221 T-7 Glass

Product Overview

The Symetrix 80-0221 T-7 Glass is a 7-inch capacitive touchscreen room controller for commercial AV installations on the Symetrix DSP platform. Designed for conference rooms, huddle rooms, and secondary control positions in larger spaces, this PoE+-powered wall-mount touchscreen runs the Symetrix SymVue interface for room audio control — volume, source selection, scene recall, muting, and paging. The T-7 Glass is compatible with Symetrix Radius NX, Prism, EDGE, and Server D100 DSP platforms and provides a glass-front appearance suited to commercial meeting environments. Its 7-inch form factor makes it the mid-size option in the T-Series family, balancing display area with a more compact footprint than the T-10.

Product Description

The T-7 Glass features a 7-inch capacitive multi-touch display with a flush glass front surface, wall-mounted via the included bracket. Power and network connectivity are delivered over a single Cat cable via PoE+. The touchscreen runs a SymVue control interface configured by the integrator in Symetrix Composer or Control Server, presenting volume, source, mute, scene, and paging controls for the room's audio system. The T-7 is appropriate as the primary room controller in smaller conference rooms and huddle rooms, or as a secondary control point in larger boardrooms alongside a T-10. For the smallest room control footprint, the T-5 Glass (80-0228) is available. All T-Series touchscreens are compatible with the T-Series Tabletop Stand (80-0192) for tabletop deployment.

Key Features

• 7-Inch Capacitive Touchscreen — Responsive multi-touch display with glass front surface, suited for conference rooms and huddle rooms where a mid-size control panel is appropriate.
• PoE+ Powered — Receives power and network from a single Cat cable via PoE+, eliminating the need for a separate power supply at the wall.
• SymVue Room Control Interface — Runs a customizable SymVue interface for volume, source selection, scene recall, muting, paging, and do-not-disturb functions.
• Symetrix DSP Compatibility — Compatible with Symetrix Radius NX, Prism, EDGE, and Server D100.
• Wall-Mount with Included Bracket — Ships with a wall-mount bracket for installation against standard back boxes or surface mounting.
• Glass Front Surface — Flush glass faceplate provides a professional finish appropriate for commercial conference environments.
• Custom UI Design — Integrators configure the SymVue interface in Composer or Control Server with custom layout and branding.
• Tabletop Deployment Option — Compatible with the T-Series Tabletop Stand (80-0192) for conference table deployment.

Typical Applications

• Conference room primary SymVue touchscreen controller
• Huddle room audio room control panel
• Boardroom secondary or overflow room control point
• Commercial meeting space audio touchscreen
• Multi-purpose room AV control interface

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Q: Does the T-7 Glass require a Symetrix Control Server?

A: The T-7 Glass can operate with or without a Symetrix Control Server (80-0119), depending on the complexity of the installation. For advanced multi-room control, scheduling, and third-party integration, the Control Server is recommended. Simpler single-room installations may operate directly with the DSP platform.

Q: What PoE standard does the T-7 require?

A: The T-7 Glass requires PoE+ (IEEE 802.3at). Ensure the switch or injector supports PoE+. The Symetrix PoE+ Kit 30W (60-0024) is available as a compatible injector.

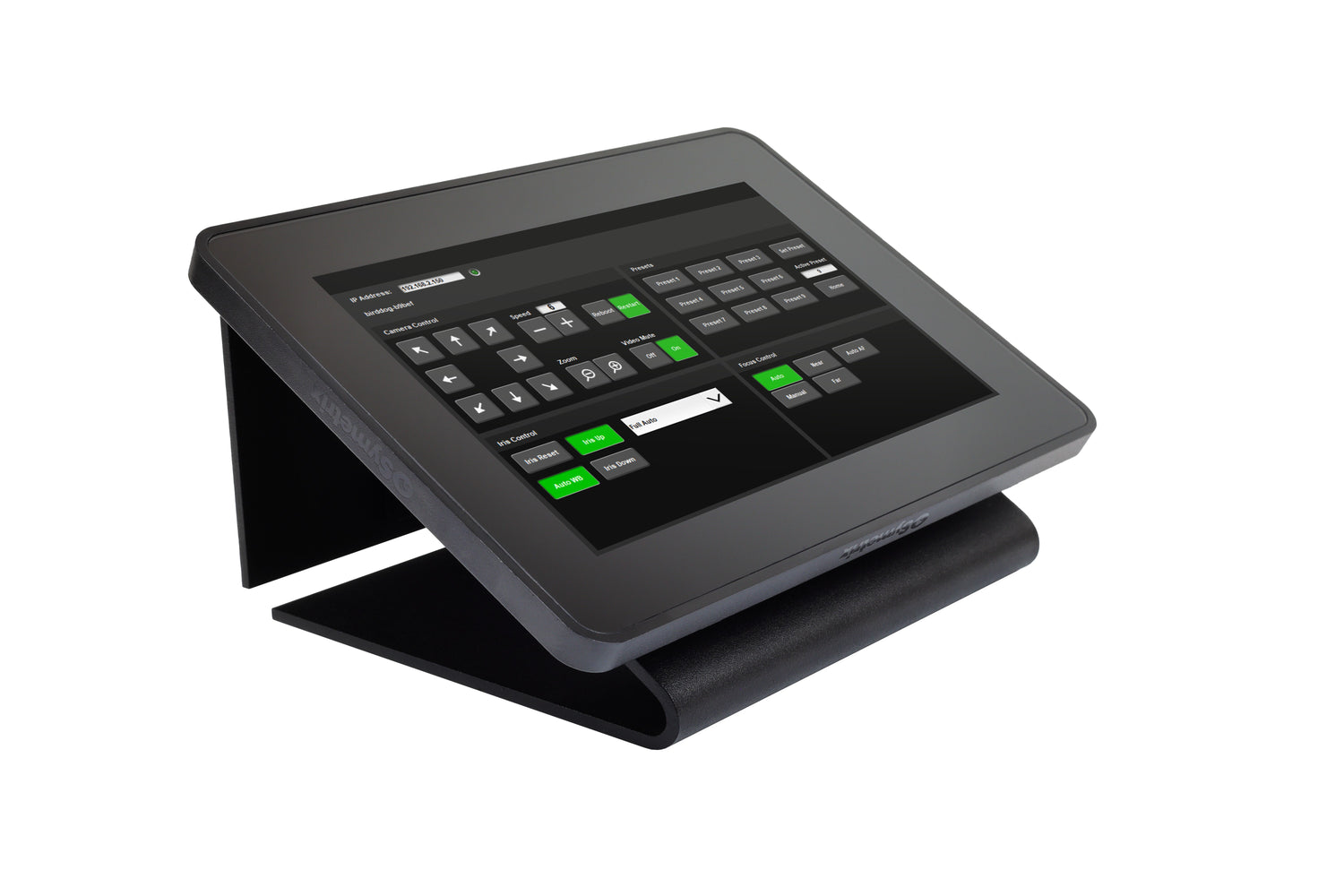

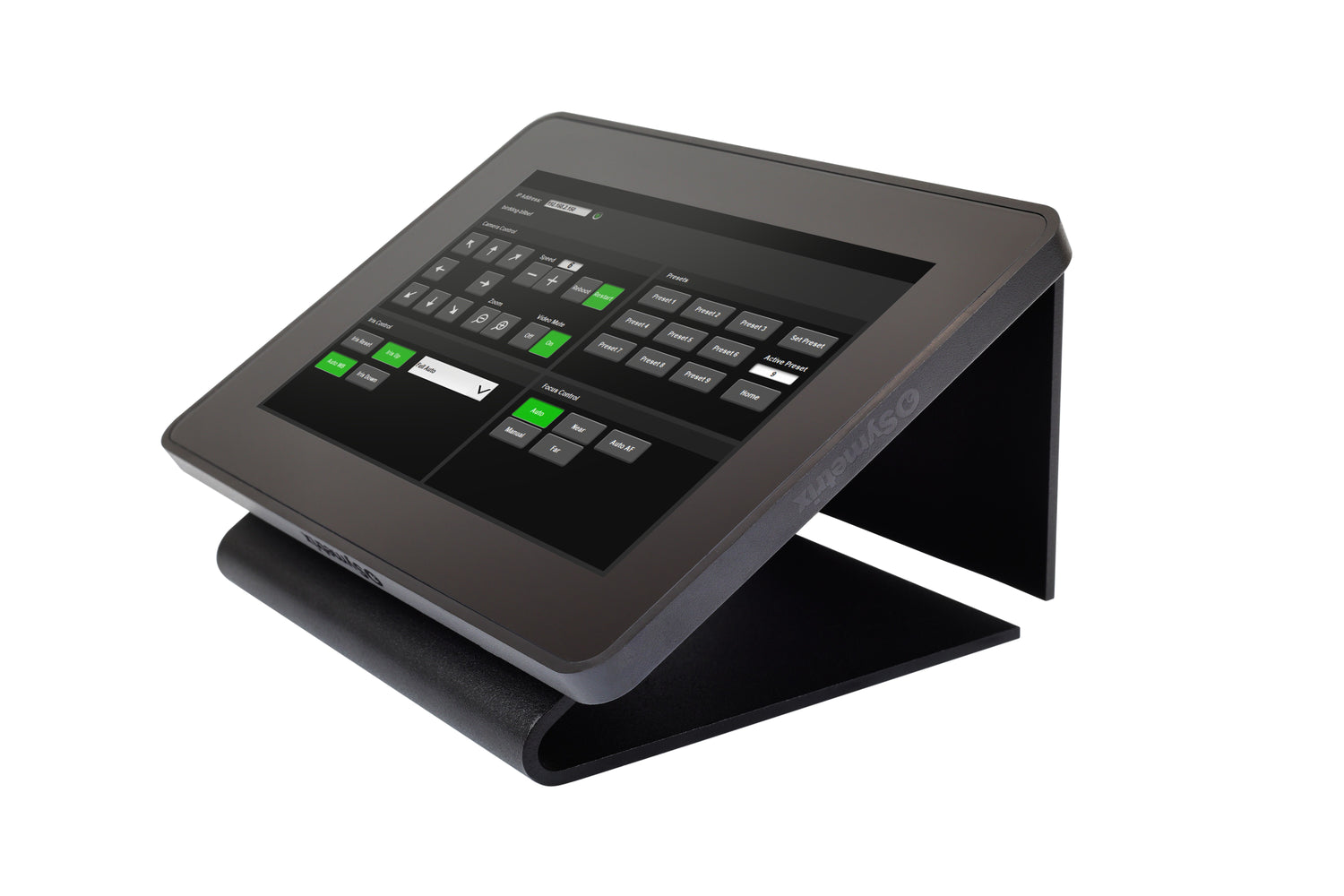

Q: Can the T-7 Glass be used as a tabletop controller?

A: Yes. The Symetrix T-Series Tabletop Stand (80-0192) is available separately for tabletop deployment.

Q: What is the difference between the T-7 and the T-10?

A: The T-10 (80-0190) has a 10-inch display and is suited to larger rooms or primary control positions requiring maximum visibility. The T-7 has a 7-inch display, making it more appropriate for smaller conference rooms, huddle rooms, or secondary control positions. Functionality is identical between the two.

Q: Which DSP platforms does the T-7 support?

A: The T-7 Glass is compatible with Symetrix Radius NX, Prism, EDGE, and Server D100.
