Symetrix 80-0119 Control Server

Product Overview

The Symetrix 80-0119 Control Server is a dedicated 1U rack-mount control system server for Symetrix AV installations that runs the SymVue control platform — serving custom-designed control interfaces to Symetrix T-Series touchscreens (T-5, T-7, T-10 Glass), iOS/Android devices running the SymVue app, and Windows PCs. It is required for all deployments using the Symetrix T-Series touchscreens and is the host platform for the CS SymVue App (20-0027) and CS Mixer App (20-0026) software licenses.

Product Description

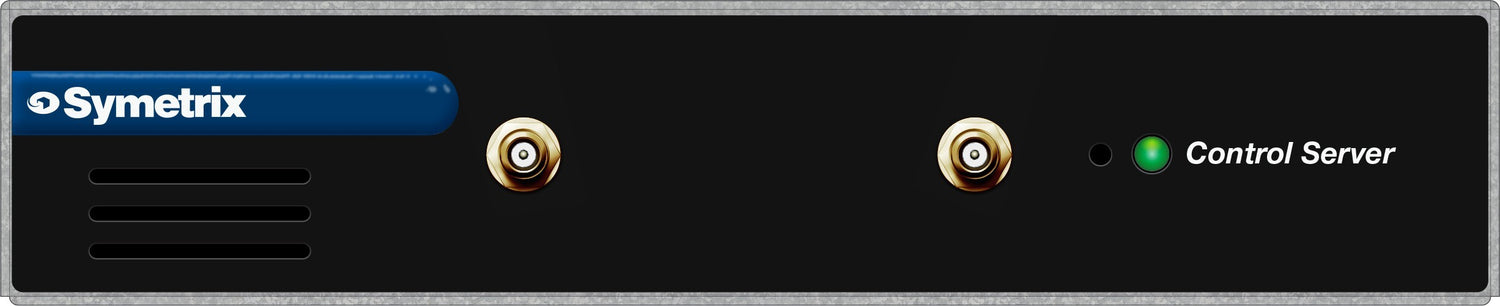

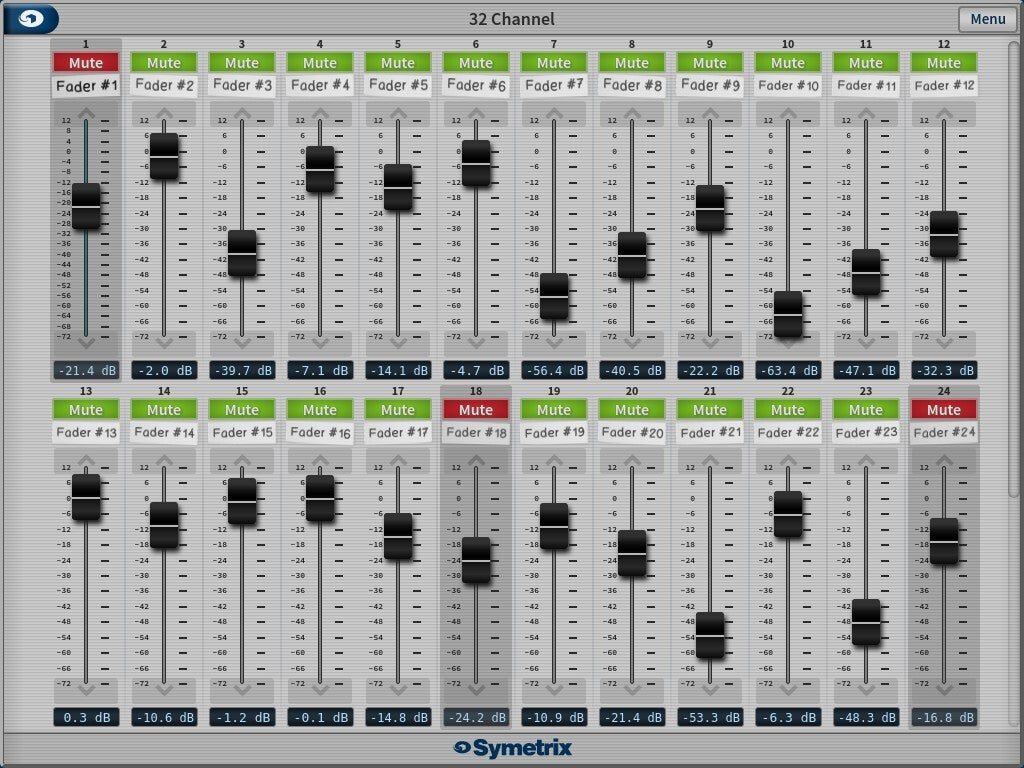

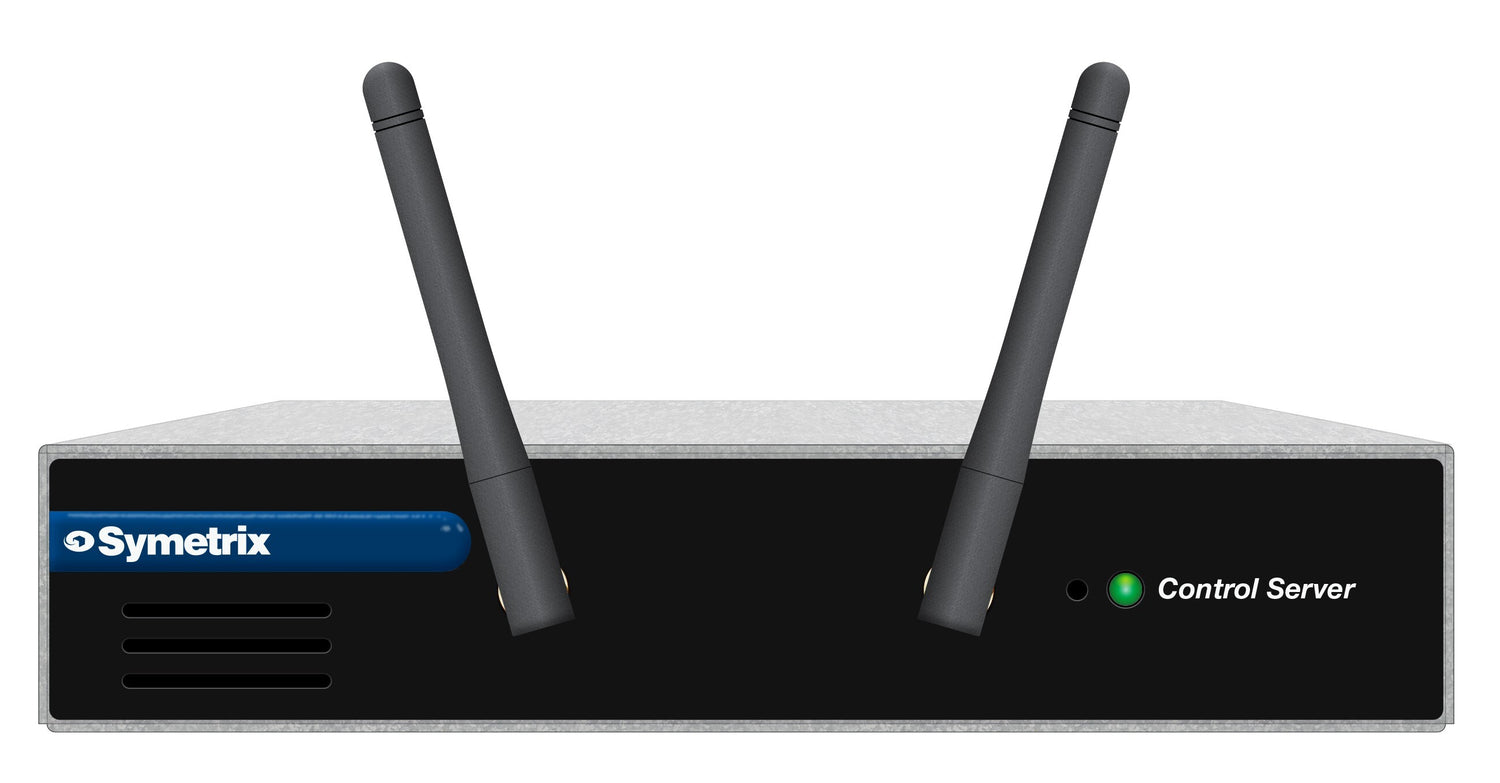

The Control Server hosts the SymVue control interface files designed by the integrator in Symetrix Composer and serves them over the facility network to connected T-Series touchscreens and mobile devices. It provides both Ethernet and Wi-Fi connectivity, enabling flexibility in how control clients connect. The front panel includes a display and control inputs for local system management. It ships with built-in application support for SymVue room control interfaces and mixer interfaces, which are activated by the corresponding CS App software licenses. The Control Server is the central hub for all SymVue-based control in a Symetrix system, coordinating with the Symetrix DSP platform (Prism, EDGE, Radius NX, Server D100) to translate user interface interactions into DSP parameter changes in real time.

Key Features

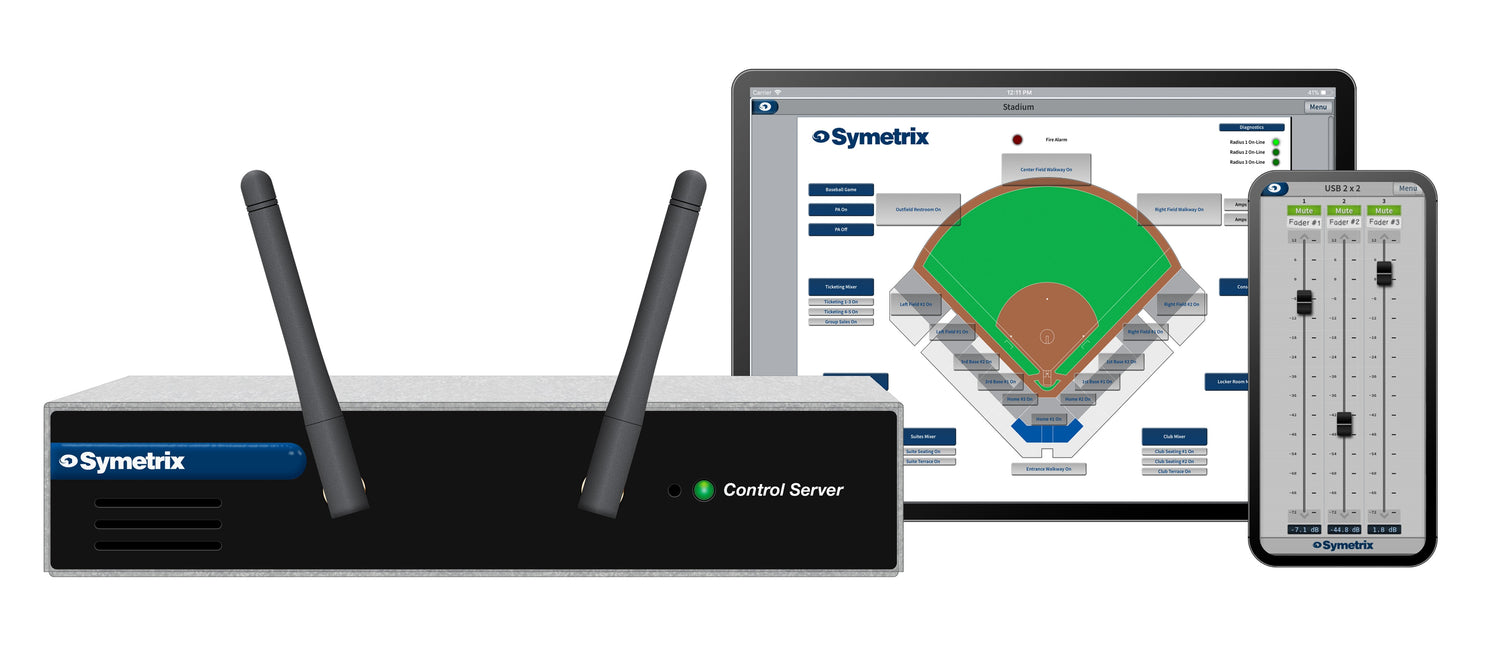

• SymVue Control Platform Host — Serves custom control interfaces to T-5, T-7, T-10 Glass and mobile devices.
• CS App License Host — Required for CS SymVue App (20-0027) and CS Mixer App (20-0026).

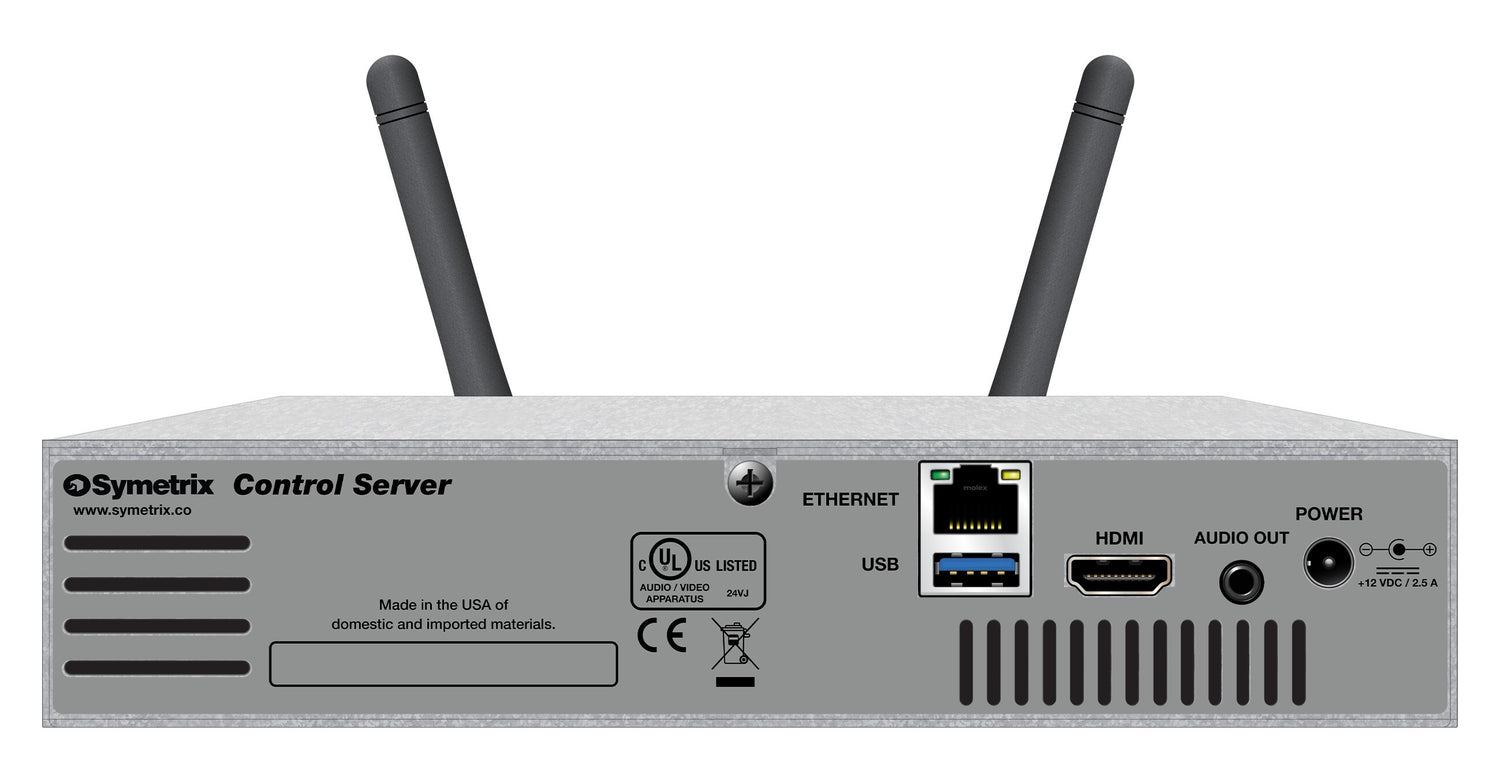

• Ethernet + Wi-Fi Connectivity — Flexible client connection for touchscreens and mobile devices.
• 1U Rack-Mount — Standard rack installation alongside the Symetrix DSP.
• Composer Integration — Interface design and system configuration in Symetrix Composer.
• Compatible with All Current Symetrix DSPs — Prism, EDGE, Radius NX, Server D100.

Typical Applications

• Conference rooms and boardrooms using T-Series touchscreens for DSP control
• Houses of worship with tablet-based or touchscreen audio control systems
• Corporate campuses with multi-room SymVue control deployments
• Performing arts centers with custom operator control interfaces on touchscreens
• Government AV systems requiring custom touchscreen DSP control interfaces

Technical Specifications

Frequently Asked Questions

Is the Control Server required for T-Series touchscreens?

Yes. The T-5, T-7, and T-10 Glass touchscreens require the Symetrix Control Server to serve the SymVue interface. The touchscreens cannot operate as standalone Composer control surfaces without the Control Server.

Can one Control Server serve multiple rooms?

Yes. A single Control Server can serve SymVue interfaces to multiple T-Series touchscreens and mobile devices across multiple rooms on the same network. Contact Creation Networks for Control Server concurrent client specifications.
