Symetrix 80-0190 T-10 Glass

Product Overview

The Symetrix 80-0190 T-10 Glass is a 10-inch capacitive touchscreen room controller designed for commercial AV installations on the Symetrix DSP platform. Purpose-built for conference rooms, boardrooms, and multi-purpose meeting spaces, this PoE+-powered wall-mount touchscreen runs the Symetrix SymVue interface for room audio control — including volume, source selection, scene recall, and paging. The T-10 Glass is compatible with Symetrix Radius NX, Prism, EDGE, and Server D100 DSP platforms and provides a finished, glass-front appearance appropriate for executive and high-finish commercial environments. US version.

Product Description

The T-10 Glass features a 10-inch capacitive multi-touch display with a flush glass front surface, wall-mounted via an included bracket that terminates to a standard back box or surface mount. Power and network connectivity are delivered over a single Cat cable via PoE+, eliminating the need for a separate power supply in most installations. The touchscreen runs a SymVue control interface designed in the Symetrix Control Server or directly on the DSP platform, presenting the room's audio controls — zone volume, source selection, microphone mute, scene recall, do-not-disturb, and paging — in a custom-branded UI configured by the integrator. The T-10 is the largest and highest-resolution display in the Symetrix T-Series touchscreen family, making it appropriate for primary room control in boardrooms and large conference rooms where visibility and ease of use are priorities. For smaller rooms or secondary control points, the T-7 Glass (80-0221) or T-5 Glass (80-0228) offer the same functionality in reduced form factors.

Key Features

• 10-Inch Capacitive Touchscreen — Large, responsive multi-touch display with glass front surface, providing a high-finish appearance appropriate for executive and boardroom environments.
• PoE+ Powered — Receives power and network connectivity from a single Cat cable via PoE+, eliminating the need for a separate power supply or AC outlet at the wall position.

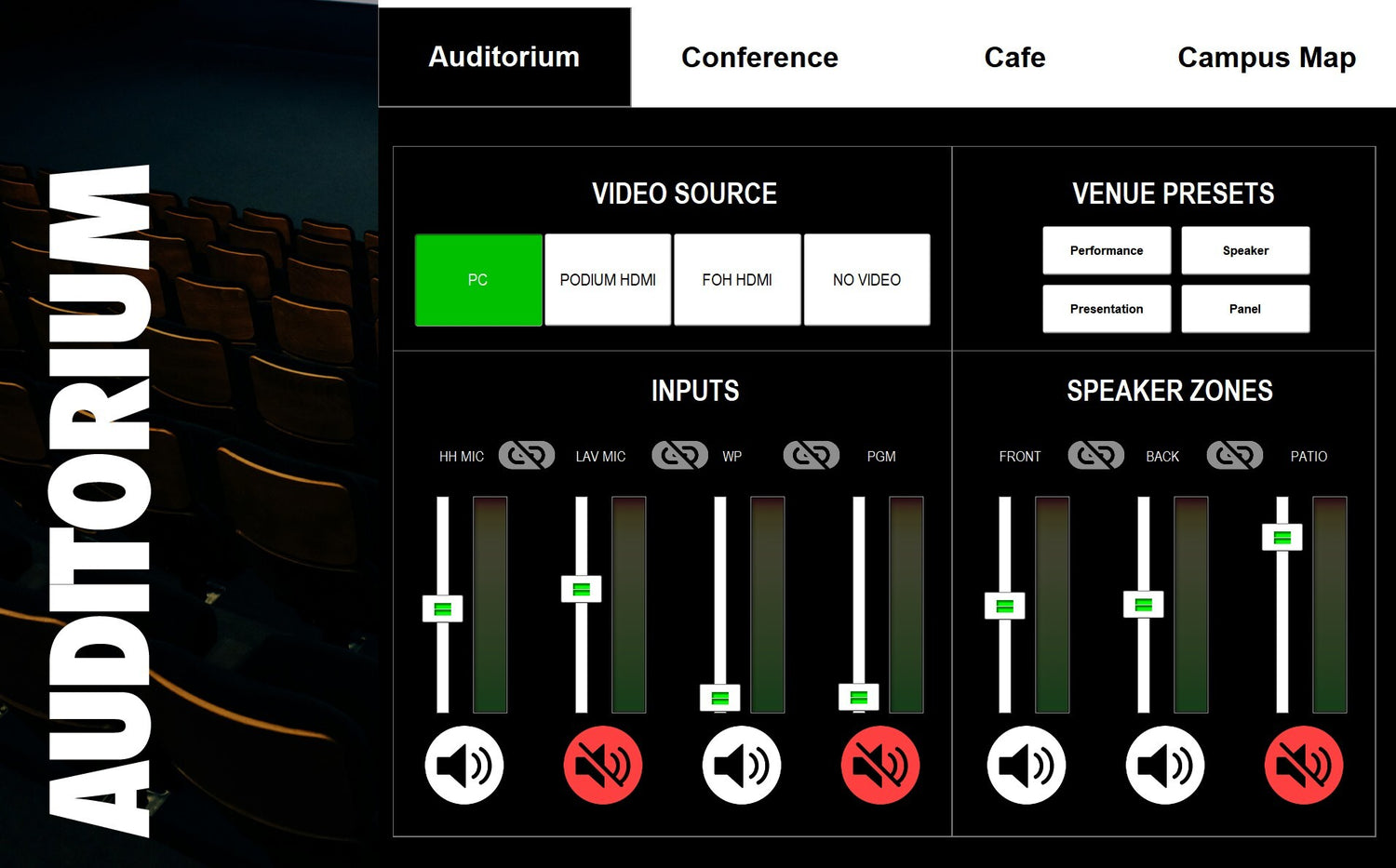

• SymVue Room Control Interface — Runs a customizable SymVue control interface for volume, source selection, scene recall, muting, paging, and do-not-disturb functions.
• Symetrix DSP Compatibility — Compatible with Symetrix Radius NX, Prism, EDGE, and Server D100 DSP platforms.
• Wall-Mount with Included Bracket — Ships with a wall-mount bracket for installation against standard back boxes or surface mounting.
• Glass Front Surface — Flush glass faceplate gives a premium appearance consistent with high-finish boardroom and conference room AV installations.
• Custom UI Design — Integrators configure the SymVue interface in Symetrix Composer or Control Server, with room for custom branding and layout.
• Largest T-Series Display — The 10-inch form factor is the largest in the T-Series family, suited to primary control positions in large rooms where display visibility matters.

Typical Applications

• Boardroom primary audio room controller
• Conference room SymVue touchscreen control point
• All-hands room or multi-purpose room AV touch panel
• Government space primary room control touchscreen
• Training room audio control interface

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Q: Does the T-10 Glass require a Symetrix Control Server to operate?

A: The T-10 Glass can operate in conjunction with a Symetrix Control Server (80-0119) for advanced multi-room control, scheduling, and third-party integration. For simpler installations, it may operate directly with the DSP platform. Consult Symetrix Composer documentation for the configuration appropriate to your system design.

Q: What PoE standard does the T-10 Glass require?

A: The T-10 Glass requires PoE+ (IEEE 802.3at, 30W). Ensure the supplying network switch or PoE injector supports PoE+. The Symetrix PoE+ Kit 30W (60-0024) is available as a compatible injector if a PoE+ switch is not present.

Q: Can the SymVue interface be customized with a company logo or custom layout?

A: Yes. The SymVue interface is designed in Symetrix Composer or Control Server and supports custom layout, labeling, and branding by the integrator.

Q: Can the T-10 Glass be used as a tabletop controller?

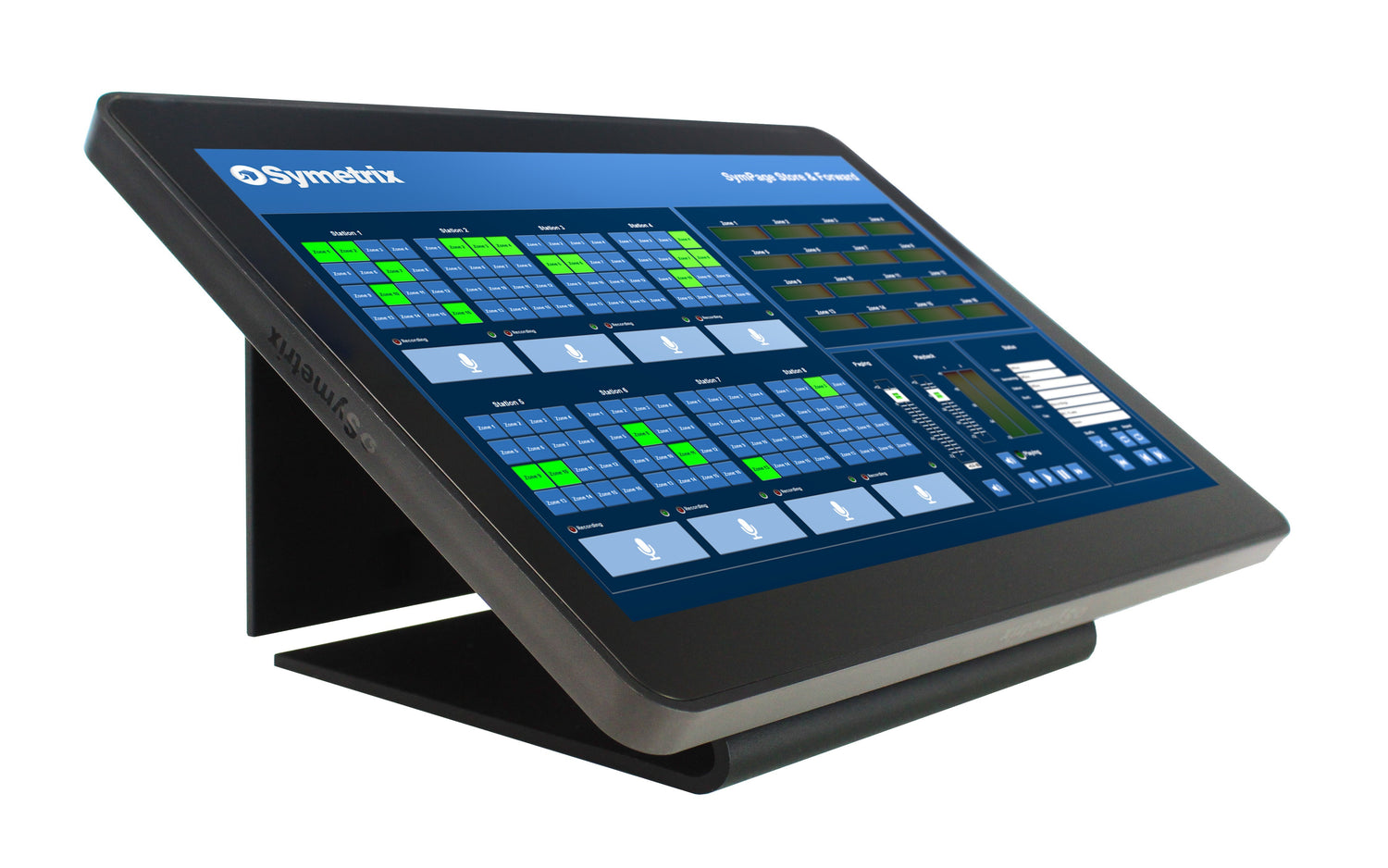

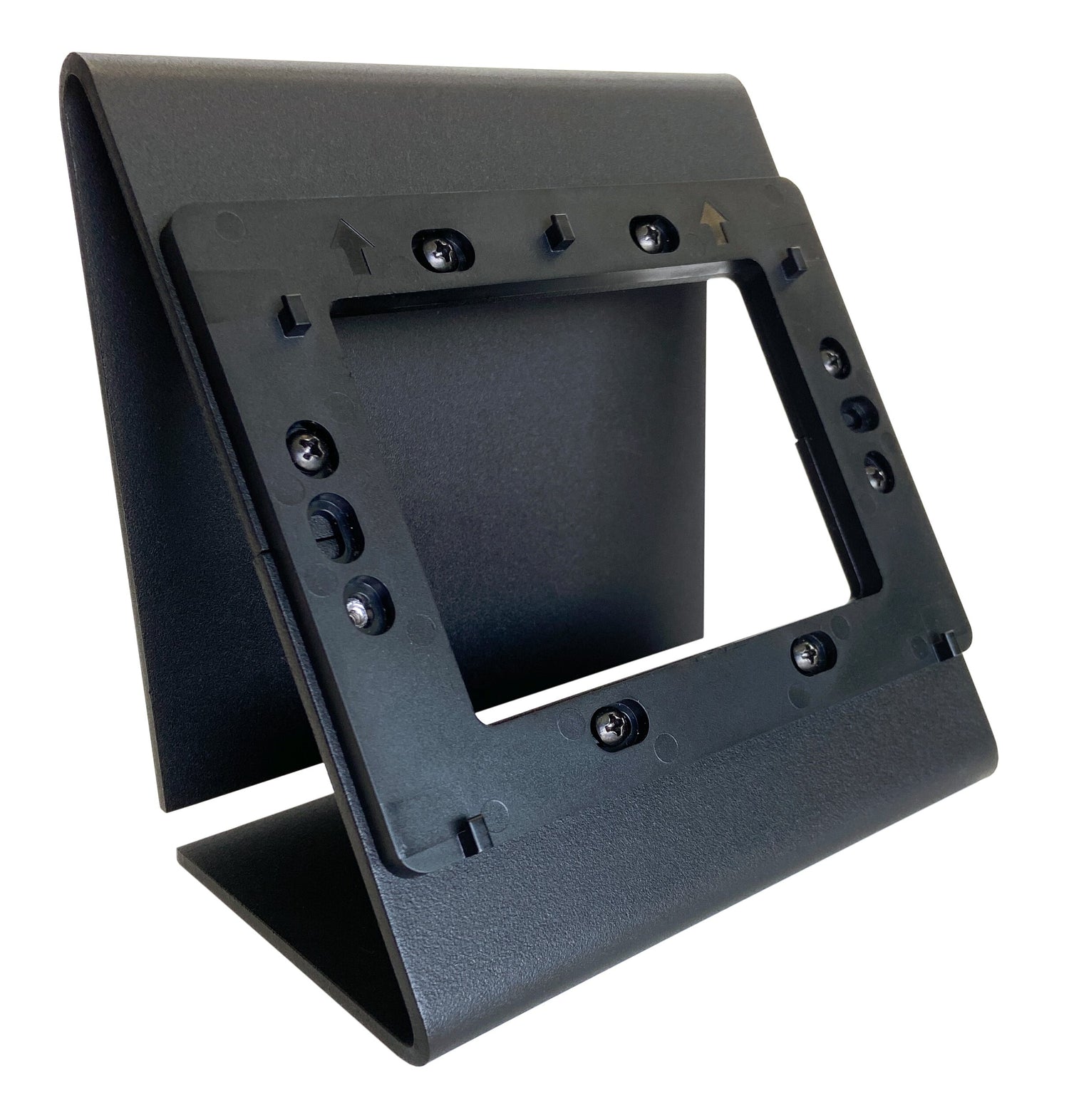

A: Yes. The Symetrix T-Series Tabletop Stand (80-0192) is available separately and allows any T-Series touchscreen to be deployed on a conference table or desk rather than wall-mounted.

Q: Which Symetrix DSP platforms does the T-10 support?

A: The T-10 Glass is compatible with Symetrix Radius NX, Prism, EDGE, and Server D100 DSP platforms.
