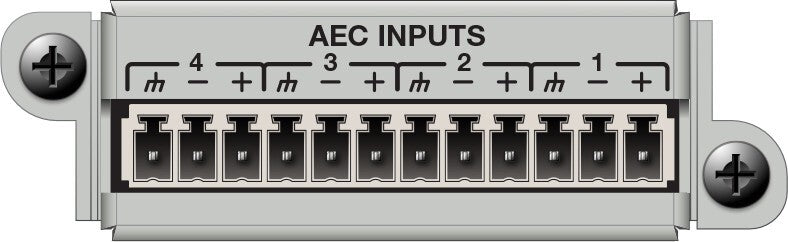

Symetrix 80-0064 4 Channel AEC In Card

Product Overview

The Symetrix 80-0064 4 Channel AEC In Card is an expansion card for the Symetrix EDGE DSP that adds four channels of acoustic echo cancellation input processing. Designed for AV integrators deploying EDGE in conference room and commercial meeting space environments, this expansion card enables full-duplex conferencing on up to four simultaneous microphone inputs from a single card slot, without requiring external AEC hardware modules. Installation is straightforward: the card seats in an available EDGE expansion slot and is configured entirely within Symetrix Composer.

Product Description

The 4 Channel AEC In Card extends the Symetrix EDGE DSP's conferencing capability by adding four dedicated AEC processing channels directly in the chassis. Each channel removes loudspeaker audio from a microphone pickup path, preventing echo from reaching far-end conference participants during telephone or video conferencing sessions. For large conference rooms, boardrooms, or multi-microphone installations where the EDGE's native AEC channel count is insufficient, this expansion card provides a cost-effective capacity increase. The card occupies one EDGE expansion card slot and the four AEC channels are configured in Symetrix Composer alongside all other DSP routing and processing. For rooms requiring additional AEC capacity beyond four channels, multiple cards can be installed across available EDGE expansion slots.

Key Features

• 4-Channel Hardware AEC — Adds four independent acoustic echo cancellation input channels to the Symetrix EDGE DSP, enabling full-duplex conferencing on four simultaneous microphone inputs.
• EDGE Expansion Card Form Factor — Installs in a standard Symetrix EDGE DSP expansion card slot, requiring no external hardware or additional cabling outside the chassis.
• Symetrix Composer Integration — All four AEC channels are configured within Composer alongside EDGE routing, mixing, and processing, maintaining a unified design environment.
• Multi-Mic Conference Room Support — Suited for boardrooms, large conference rooms, and training rooms with multiple microphone inputs requiring echo cancellation.
• Scalable AEC Capacity — Multiple cards can be installed in available EDGE slots to support higher AEC channel counts in larger installations.

Typical Applications

• Boardroom EDGE DSP AEC channel expansion
• Large conference room multi-microphone echo cancellation
• All-hands room or training room conferencing AEC upgrade
• Government or commercial multi-participant meeting room

Technical Specifications

Frequently Asked Questions

Q: How many 4 Channel AEC In Cards can be installed in one EDGE DSP?

A: The number of cards that can be installed depends on the available expansion slots in the Symetrix EDGE chassis. Consult the EDGE product documentation or contact Symetrix/Creation Networks for slot capacity and maximum AEC channel counts.

Q: Is this card compatible with Symetrix DSPs other than EDGE?

A: The 80-0064 is designed specifically for the Symetrix EDGE DSP expansion card slot. For AEC expansion on Radius NX or legacy platforms, see the AEC-1 (80-0152) and AEC-2 (80-0153) external modules.

Q: Is configuration handled in Symetrix Composer?

A: Yes. All four AEC channels are configured within Symetrix Composer as part of the EDGE DSP signal flow design.

Q: What is the warranty?

A: Symetrix products are covered by a standard manufacturer warranty. Contact Creation Networks or Symetrix for current terms.
