Symetrix 80-0132 USB Audio Card
Product Overview
The Symetrix 80-0132 USB Audio Card is an expansion card for the Symetrix EDGE DSP that adds a USB-B computer audio interface for BYOD soft-codec conferencing integration. Designed for conference rooms and meeting spaces where a laptop or computer must be connected to the room's DSP audio system via USB, this expansion card enables the EDGE to appear as a USB audio device to any connected computer without requiring proprietary drivers. It provides a direct integration path for Zoom, Microsoft Teams, Webex, and other soft-codec platforms into the EDGE-based room audio system.
Product Description

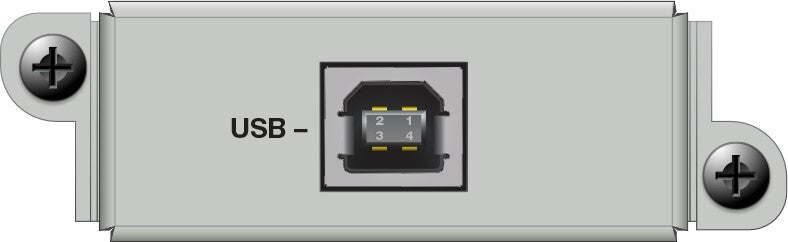

The USB Audio Card installs in a standard EDGE expansion slot and presents a USB-B (device) port on the card's rear panel. When a laptop or PC connects via a standard USB cable, the computer recognizes the EDGE as a USB audio input/output device and routes conferencing application audio through the DSP. This allows the room's microphones, AEC processing, and speaker system to handle conference audio rather than the laptop's built-in microphone and speakers — a critical distinction for audio quality in professional AV environments. The USB audio connection is bidirectional: the laptop sends far-end speech to the room speakers, and the room microphones send near-end audio back to the conferencing application. All audio processing is configured within Symetrix Composer.
Key Features
- USB-B Computer Audio Interface — Presents the Symetrix EDGE DSP as a USB audio device to a connected laptop or PC, enabling direct soft-codec conferencing integration.
- BYOD Soft-Codec Support — Compatible with Zoom, Microsoft Teams, Webex, and other USB audio class-compliant conferencing applications.
- Driver-Free Operation — Operates as a standard USB audio class device, recognized natively by Windows and macOS without proprietary driver installation.
- Bidirectional Audio — Both send (near-end room audio) and receive (far-end speech) are handled through the EDGE DSP, enabling full-duplex conferencing with DSP-grade processing.
- EDGE Expansion Card Form Factor — Installs in a standard EDGE expansion slot, adding USB audio capability without external USB audio adapters.
- Symetrix Composer Integration — USB audio channels are configured within Composer as part of the EDGE signal flow design.
Typical Applications
- Conference room BYOD soft-codec laptop audio integration
- Boardroom Zoom or Teams meeting USB audio interface
- Training room presenter laptop audio connection via EDGE DSP
- Commercial meeting space USB conferencing audio card
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 80-0132 |
| Interface | USB-B (device port) |
| USB Audio Class | Standard USB audio class (driver-free) |
| Audio Direction | Bidirectional (send and receive) |
| Card Type | USB audio interface expansion card |
| Compatible DSP | Symetrix EDGE |
| Card Slot | Standard EDGE expansion slot |
| Configuration Software | Symetrix Composer |
Frequently Asked Questions
Q: Does this card require special drivers on the connected laptop?
A: No. The USB Audio Card operates as a standard USB audio class device, natively supported by Windows and macOS without proprietary drivers.
Q: Is this card compatible with DSPs other than the EDGE?
A: The 80-0132 is designed for the Symetrix EDGE DSP expansion slot and is not compatible with other Symetrix platforms.
Q: Can this card handle both microphone (send) and speaker (receive) audio?
A: Yes. The USB audio connection is bidirectional. The connected laptop sends far-end audio to the room speakers, and the room microphones send near-end audio back to the conferencing application.
Q: Is configuration handled in Symetrix Composer?
A: Yes. USB audio channels are configured within Composer as part of the EDGE signal flow design.
Q: What is the warranty?
A: Symetrix products are covered by a standard manufacturer warranty. Contact Creation Networks or Symetrix for current terms.
