Symetrix 80-0062 4 Channel Analog In Card

Product Overview

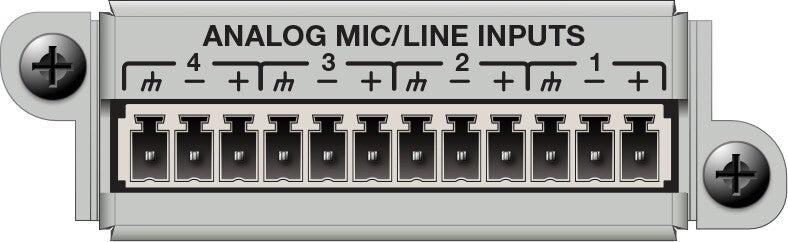

The Symetrix 80-0062 4-Channel Analog Input Card is an expansion card for the Symetrix EDGE DSP that adds four balanced analog inputs to the EDGE chassis via one of its four expansion card slots. It is used to increase the analog input count of an EDGE installation beyond the base 8 balanced inputs when more microphone or line-level sources need to be connected to the DSP. Up to four expansion cards of any type can be installed simultaneously in a single EDGE chassis.

Product Description

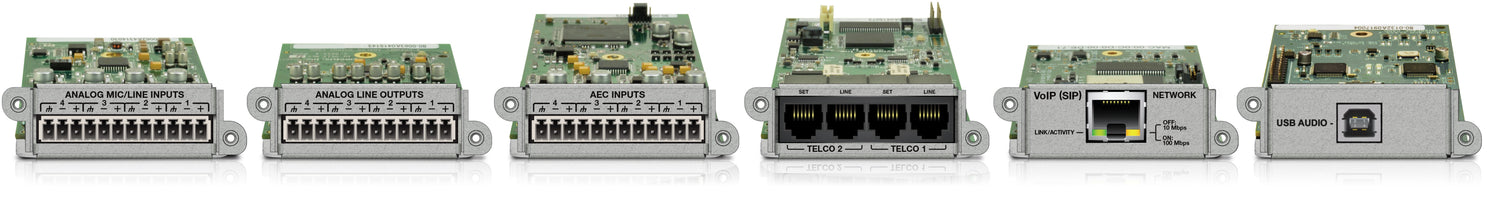

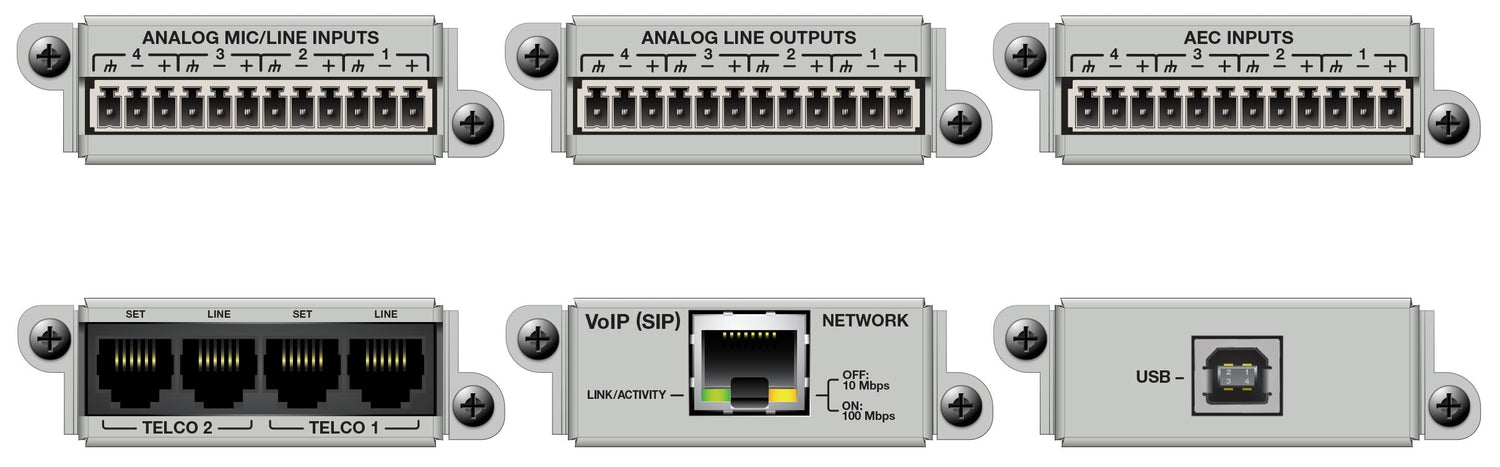

The 4-Channel Analog Input Card installs in any of the four expansion slots of the EDGE Dante (80-0048) or EDGE non-Dante (80-0204). Each card adds four balanced mic/line inputs to the DSP’s available I/O, which are fully accessible in Symetrix Composer for signal routing, processing, and control. Expansion cards can be mixed freely: a single EDGE chassis can simultaneously accept Analog Input, Analog Output, AEC Input, VoIP, PSTN, and USB Audio cards in any combination across its four slots. This allows the EDGE to be configured precisely for the channel count and I/O type required by each installation without changing the chassis.

Key Features

• 4 Balanced Analog Inputs — Adds four balanced mic/line input channels to the EDGE chassis.
• EDGE Expansion Slot Compatible — Installs in any expansion slot on EDGE Dante or EDGE non-Dante.
• Mixable with Other Card Types — Can be combined with Analog Out, AEC, VoIP, PSTN, and USB Audio cards in the same chassis.
• Composer Programmable — Added inputs are immediately accessible in Symetrix Composer for routing and processing.

Typical Applications

• EDGE installations requiring more than 8 analog inputs for additional microphone or line sources
• Conference rooms with ceiling mic arrays requiring expanded mic input capacity
• Multi-zone audio systems with additional line-level source inputs
• Houses of worship requiring additional input channels without changing the DSP chassis

Technical Specifications

Frequently Asked Questions

How many 4-Channel Analog Input Cards can be installed in one EDGE?

The EDGE has four expansion card slots. All four can be populated with Analog Input Cards if needed, adding up to 16 additional inputs beyond the 8 base inputs, for a total of 24 analog inputs.

Is the card compatible with both EDGE Dante and EDGE non-Dante?

Yes. The 4-Channel Analog Input Card is compatible with both the EDGE Dante (80-0048) and EDGE non-Dante (80-0204).
