Symetrix 80-0063 4 Channel Analog Out Card
Product Overview

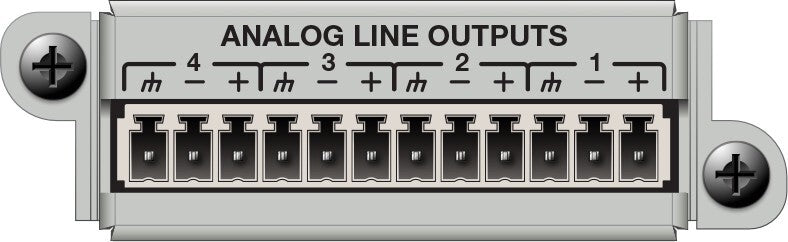

The Symetrix 80-0063 4-Channel Analog Output Card is an expansion card for the Symetrix EDGE DSP that adds four balanced analog outputs to the EDGE chassis via one of its four expansion card slots. It is used to increase the EDGE’s analog output count when more speaker zones, amplifier feeds, or line-level outputs are required beyond the base 8 balanced outputs.
Product Description
The 4-Channel Analog Output Card installs in any expansion slot of the EDGE Dante (80-0048) or EDGE non-Dante (80-0204) and is immediately accessible in Symetrix Composer for signal routing. It can be combined freely with other card types in the remaining expansion slots. Installations requiring additional speaker zones for distributed audio, monitor sends, or sub-zone routing commonly use one or two Analog Output Cards alongside the base 8 analog outputs to reach the required total output count without a larger chassis.
Key Features
- 4 Balanced Analog Outputs — Adds four balanced line-level output channels to the EDGE.
- EDGE Expansion Slot Compatible — Installs in any expansion slot on EDGE Dante or non-Dante.

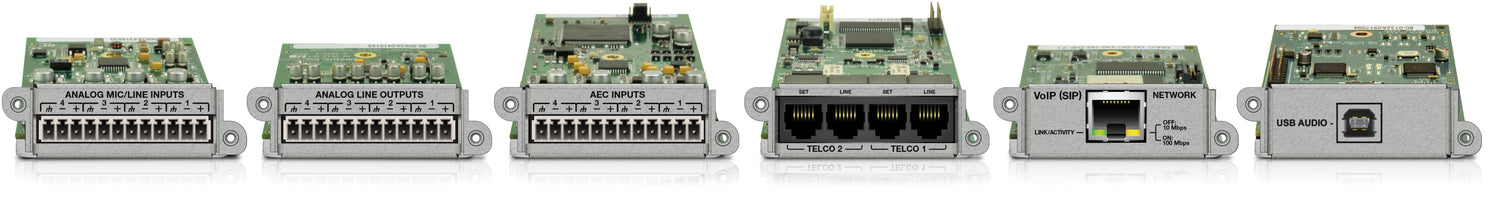

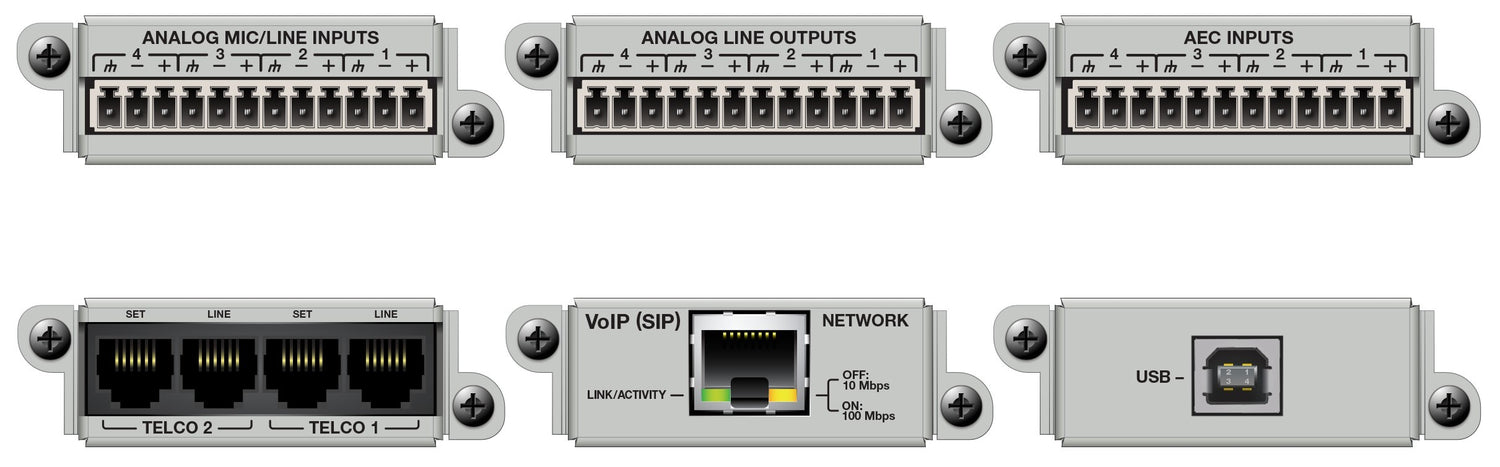

- Mixable with Other Card Types — Combine with AEC, input, VoIP, and USB Audio cards in the same chassis.
- Composer Programmable — Added outputs accessible in Symetrix Composer immediately after installation.
Typical Applications
- Multi-zone audio systems requiring more than 8 analog output feeds
- Houses of worship with monitor mixes and distributed speaker zones beyond base EDGE outputs
- Conference rooms with additional speaker zone outputs for overflow areas
- Commercial audio installations with dedicated sub-zone amp feeds
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 80-0063 |
| Card Type | 4-Channel Analog Output |
| Compatible Chassis | Symetrix EDGE Dante (80-0048), EDGE non-Dante (80-0204) |
| Channels Added | 4 balanced analog outputs |
| Installation | Internal expansion slot |
