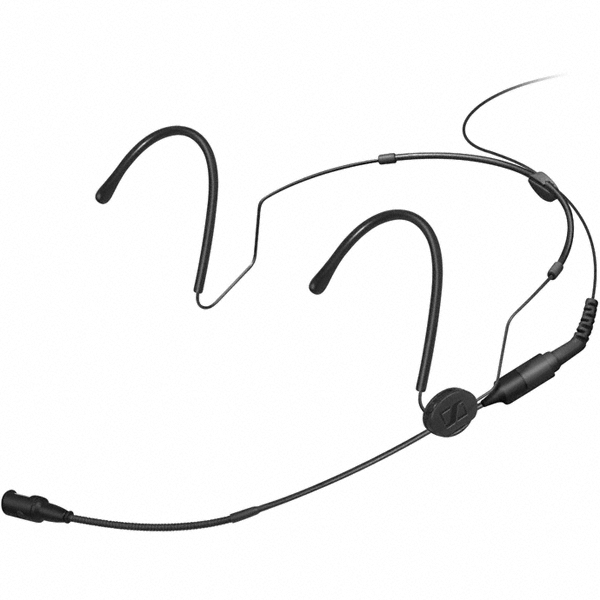

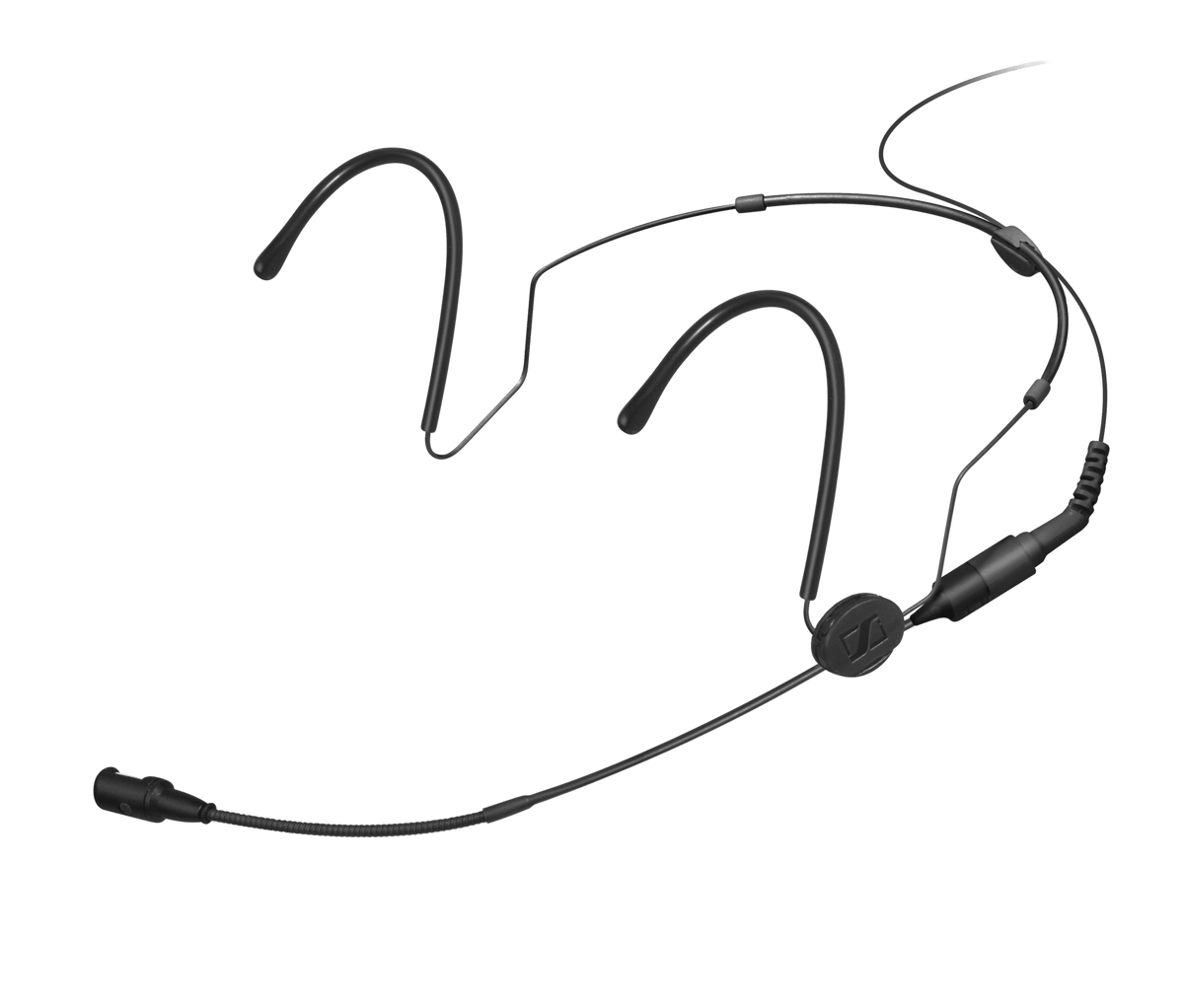

Sennheiser HSP 4 Neckband microphone

Product Overview

The Sennheiser HSP 4 is a cardioid headset microphone available in anthracite or beige, terminated either with a locking 3-pin SE connector for SK 50, SK 250, SK 2000, SK 5212, SK 6000 and SK 9000 bodypacks, or with the ew connector for evolution wireless transmitters. The directional capsule trades a little off-axis tolerance for markedly better rejection of stage wash, which makes it the specification of choice where gain before feedback is the constraint.

Product Description

Where the omnidirectional HSP 2 is forgiving of head movement, the HSP 4's cardioid pattern rejects sound arriving from behind and to the sides of the capsule. In a room with foldback wedges, a loud front-of-house system, or an open platform, that rejection is what buys usable level before the system rings. The trade is that boom placement matters more: keep the capsule consistently at the corner of the mouth and off-axis colouration stays controlled.

The neckband carrier distributes weight without clamping pressure. Choose the finish for the production — anthracite disappears against dark hair and under stage lighting, beige against lighter skin tones on camera — and the termination for the transmitter. The locking 3-pin SE version fits Sennheiser professional bodypacks across the 2000, 5000, 6000 and 9000 families, most often an SK 6000 bodypack transmitter or SK 9000 into an EM 6000 receiver, or the EM 6000 Dante where the channel needs to land on an audio network. The ew version fits evolution wireless bodypacks. Where the pack itself has to be concealed in costume, the SK 6212 mini bodypack accepts the same 3-pin capsule.

The supplied kit covers the consumables that fail first in a working inventory: five boom clips, a silicone tube, a connection cable, an MZW 4 windscreen and a foam-lined transport case. Spare HSP 2/4 black 3-pin cables and boom clips are stocked separately. If the wearer moves a lot and level consistency matters more than room rejection, specify the omnidirectional HSP 2 instead.

Key Features

• Cardioid Capsule — Rejects stage wash and foldback to raise gain before feedback.

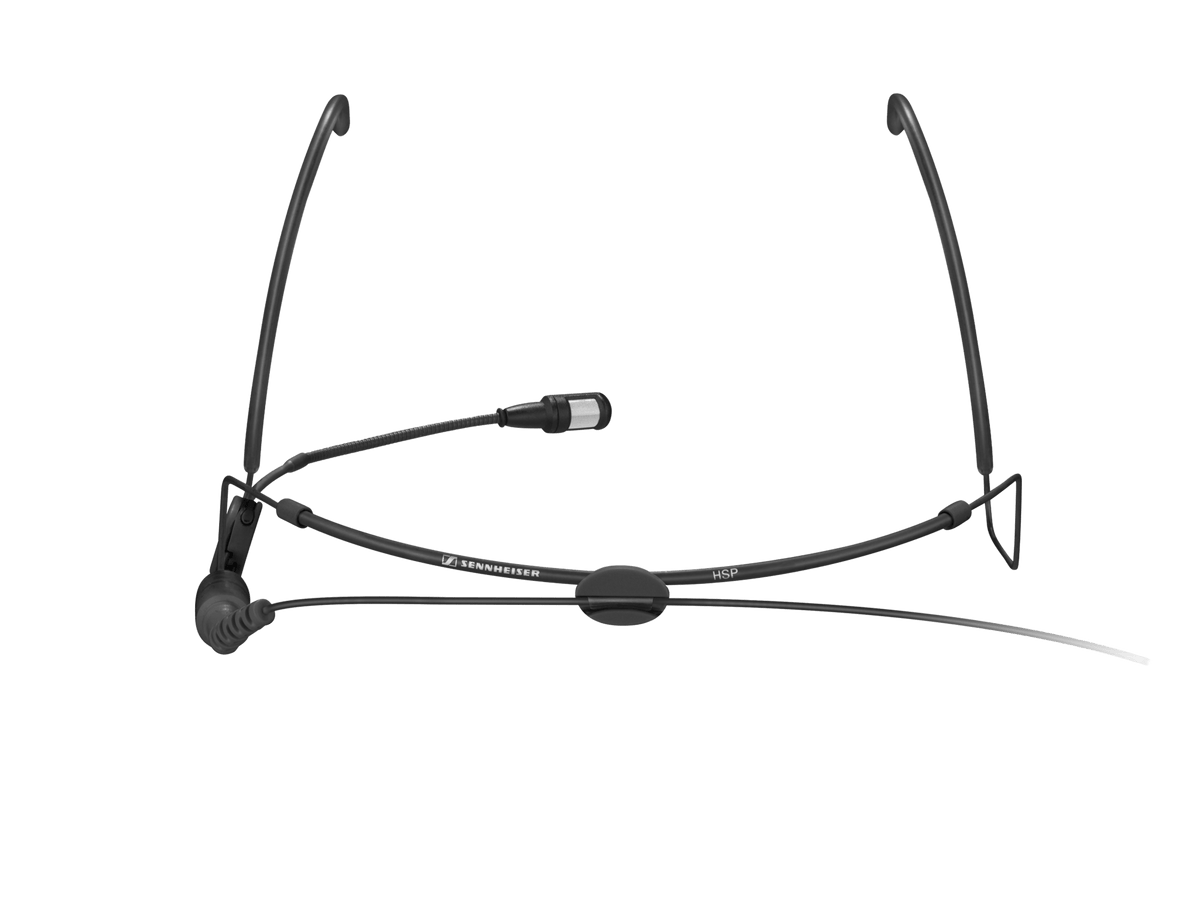

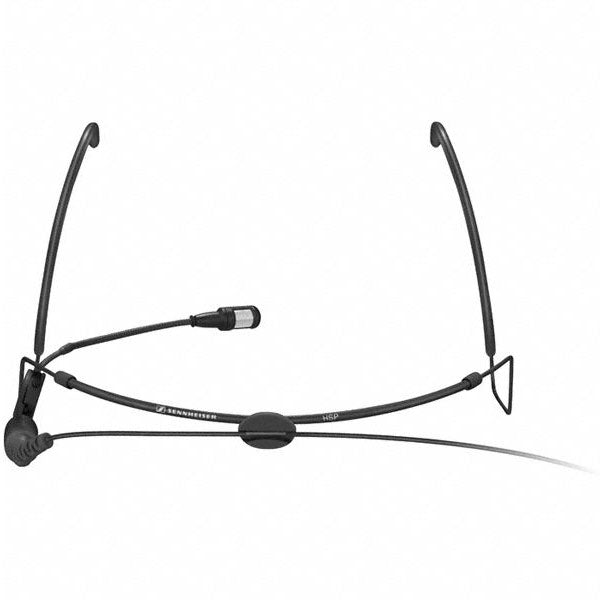

• Neckband Carrier — Places the boom stably without over-ear clamping pressure.
• 3-Pin SE or ew Termination — Locking 3-pin for SK 50, SK 250, SK 2000, SK 5212, SK 6000 and SK 9000 bodypacks; ew for evolution wireless.

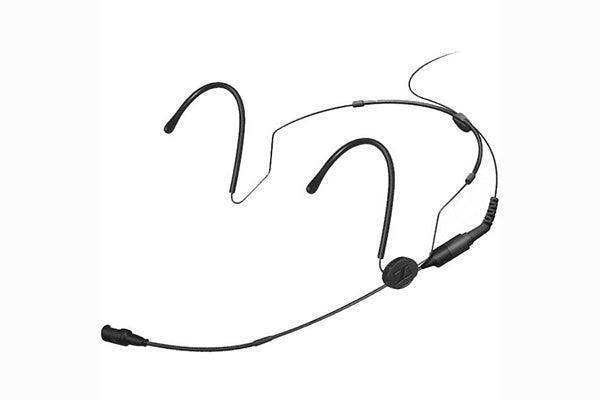

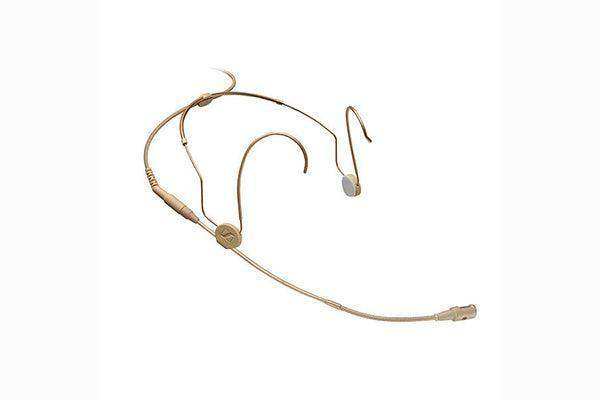

• Anthracite or Beige Finish — Keeps the microphone low-visibility under stage lighting or on camera.

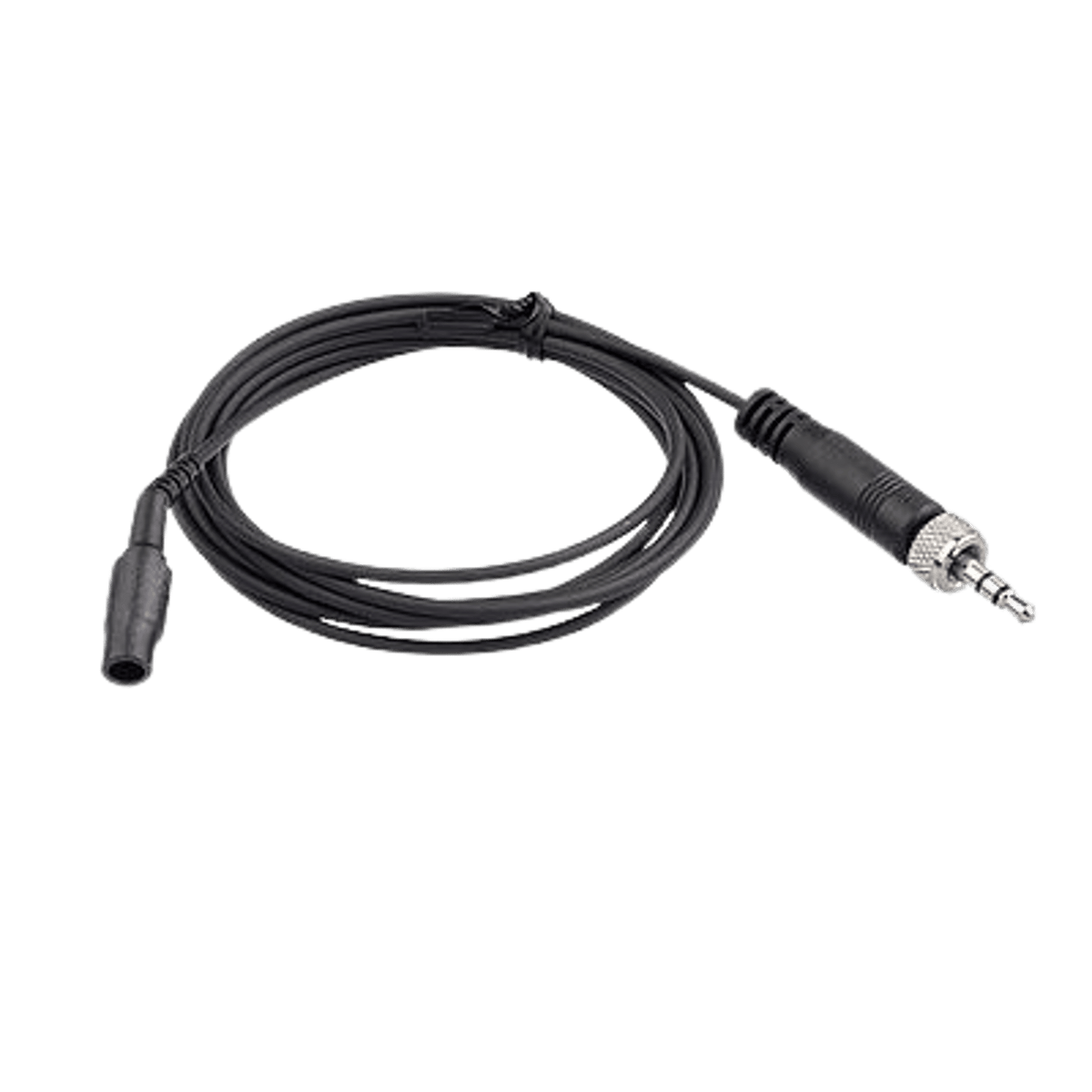

• 1.6 m Cable — Routes comfortably to a belt- or waistband-worn transmitter.
• Complete Service Kit — Includes five boom clips, silicone tube, windscreen and transport case.

Typical Applications

• Houses of worship with loud front-of-house systems
• Auditoriums and theatre productions
• All-hands rooms and large commercial meeting spaces
• Training rooms and multi-purpose rooms
• Broadcast studio presentation

Technical Specifications

What's in the Box

• (1) HSP 4 headworn microphone
• (1) Neckband
• (5) Clips for attaching the microphone boom
• (1) Silicone tube
• (1) Connection cable
• (1) MZW 4 windscreen
• (1) Foam-lined plastic transport case

Frequently Asked Questions

How does the HSP 4 differ from the HSP 2?

The HSP 4 is cardioid and the HSP 2 is omnidirectional. Specify the HSP 4 where rejecting stage wash and maximising gain before feedback matters most; specify the HSP 2 where the wearer moves a lot and consistent level off-axis matters more.

Which bodypack transmitters does each connector fit?

The locking 3-pin SE termination fits SK 50, SK 250, SK 2000, SK 5212, SK 6000 and SK 9000 bodypacks. Evolution wireless transmitters require an ew-terminated variant, so confirm the transmitter family before ordering.

How does it integrate into an installed AV system?

The microphone terminates at the bodypack; integration happens at the receiver. An EM 6000 offers analog and AES3 outputs, and the EM 6000 Dante version delivers the channel to a Dante network for DSP, conferencing platforms and recording.

What placement does the cardioid pattern require?

Position the capsule consistently at the corner of the mouth. A cardioid is less forgiving of drift than an omnidirectional capsule, so brief presenters on placement or fit the boom clips so it cannot move during a service or performance.

Are replacement cables and boom clips available?

Yes. HSP 2/4 cables in 3-pin and ew terminations, boom clips and windscreens are stocked as separate line items, so a damaged cable does not take a channel out of service.

What warranty and support are available?

The HSP 4 carries Sennheiser's manufacturer warranty. Creation Networks supports integrators with compatibility review against the transmitter and receiver in the design, plus post-sale support.
