Q-SYS RoomSuite Collaboration Bar (RS-CB-MTRW-B)

The Q-SYS RoomSuite Collaboration Bar is a Windows-based, all-in-one AV solution that quickly scales and deploys across small-to-large meeting spaces. It features built-in audio, video, and integrated compute, supports Microsoft Teams Rooms and bring-your-own-meeting (BYOM) conferencing, and includes a 10.9-inch touchscreen controller for meeting and AV control. Up to four optional Q-SYS RoomSuite table microphones (with systemwide mute sync) extend audio coverage.

📄 Download the full specifications sheet (PDF)

Key Features

• Windows-based device for Microsoft Teams Rooms with integrated cameras, microphone array, loudspeakers, and built-in compute
• Intel® i5 1340P processor

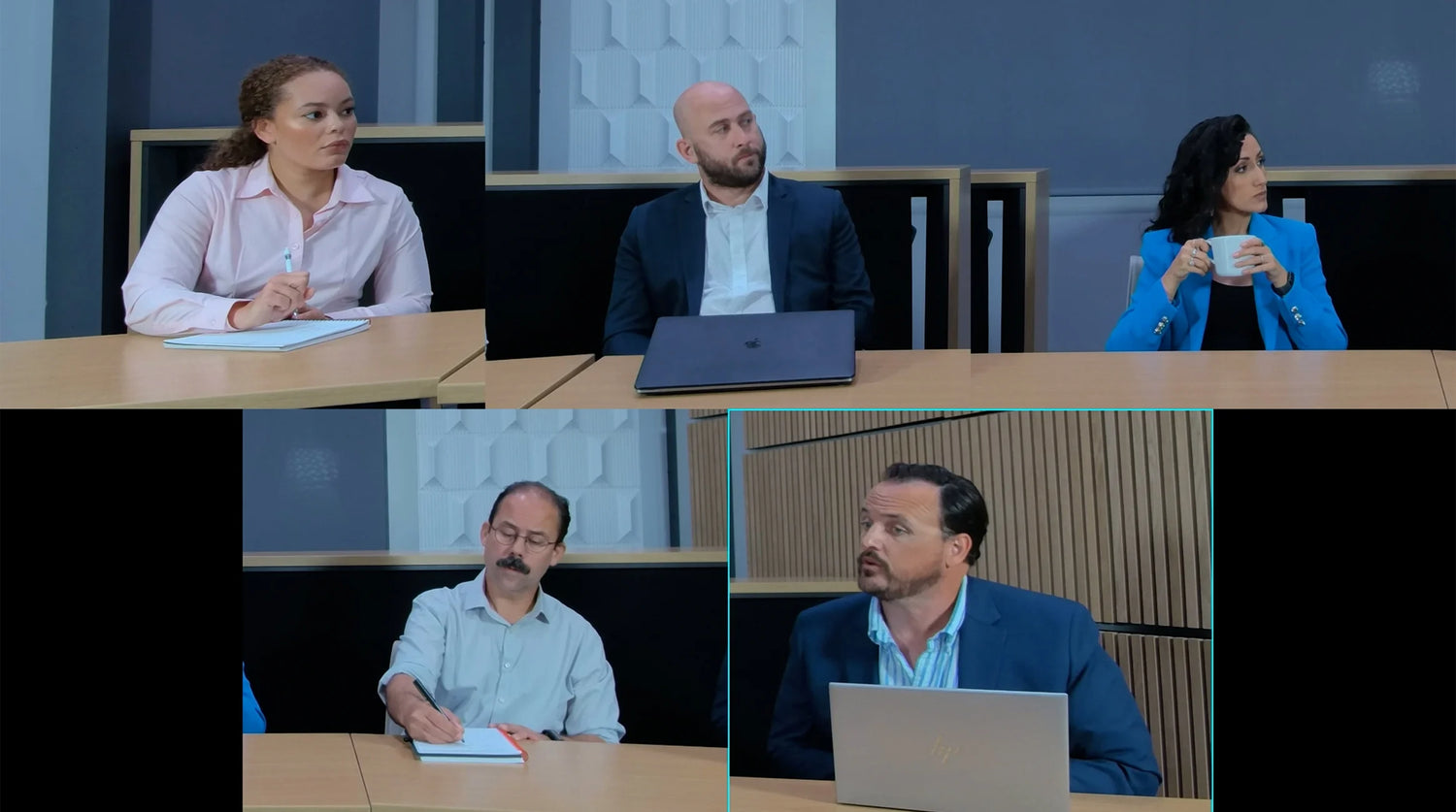

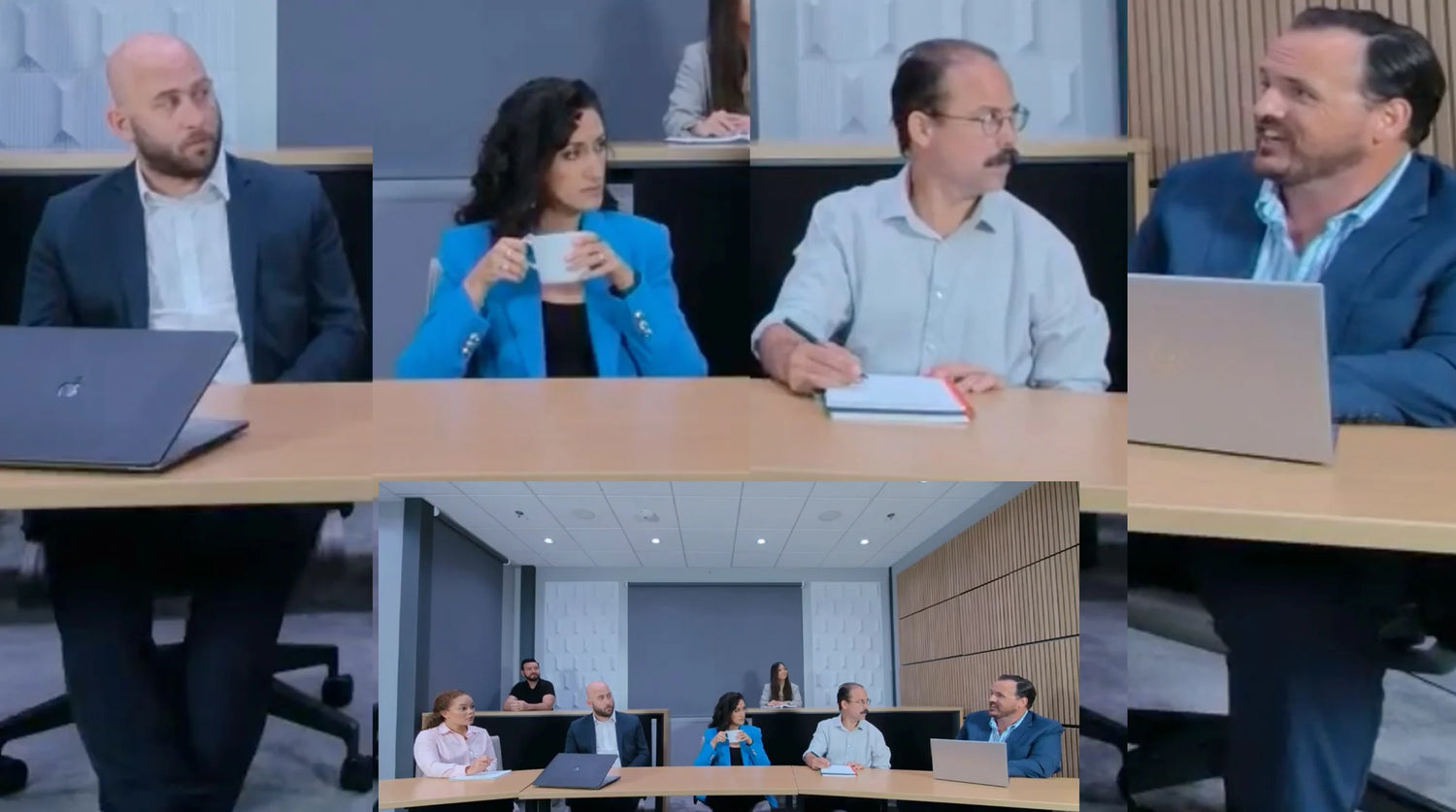

• Four built-in 50 MP cameras with 125° FoV and AI-driven features: Active Speaker Framing, Tile View (Beta), Active Speaker Tiling (Beta), and Video Fence
• 16-element microphone array with up to 33 ft (10 m) pickup range

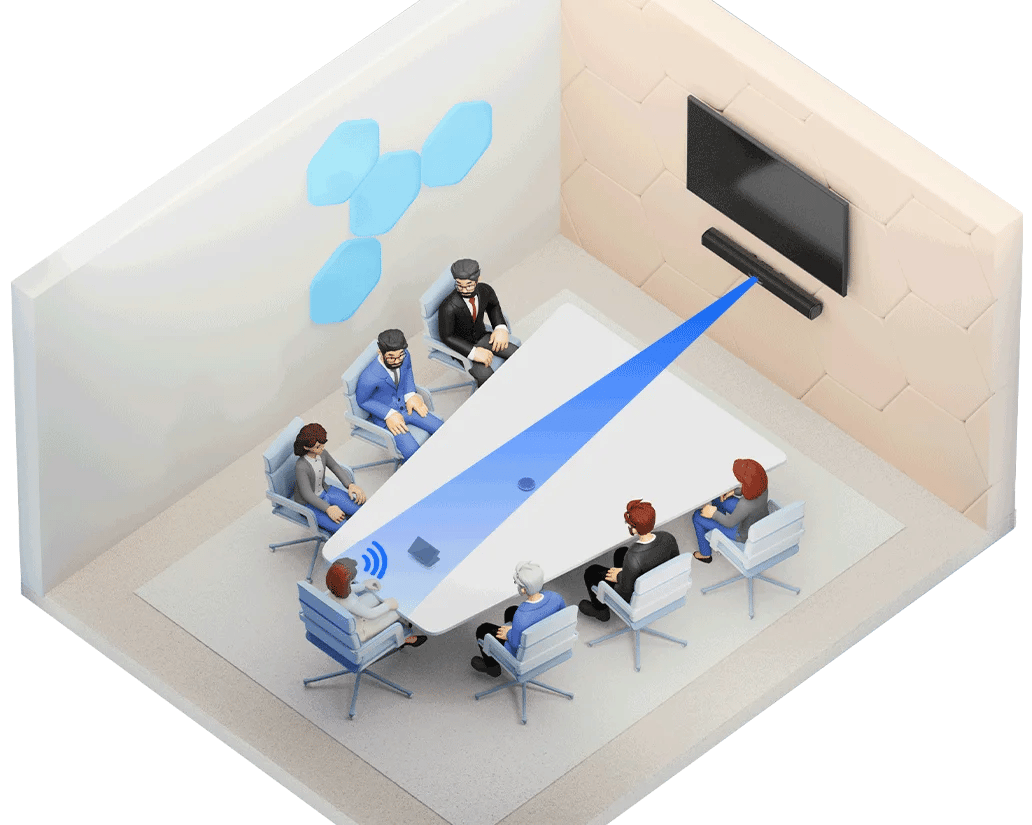

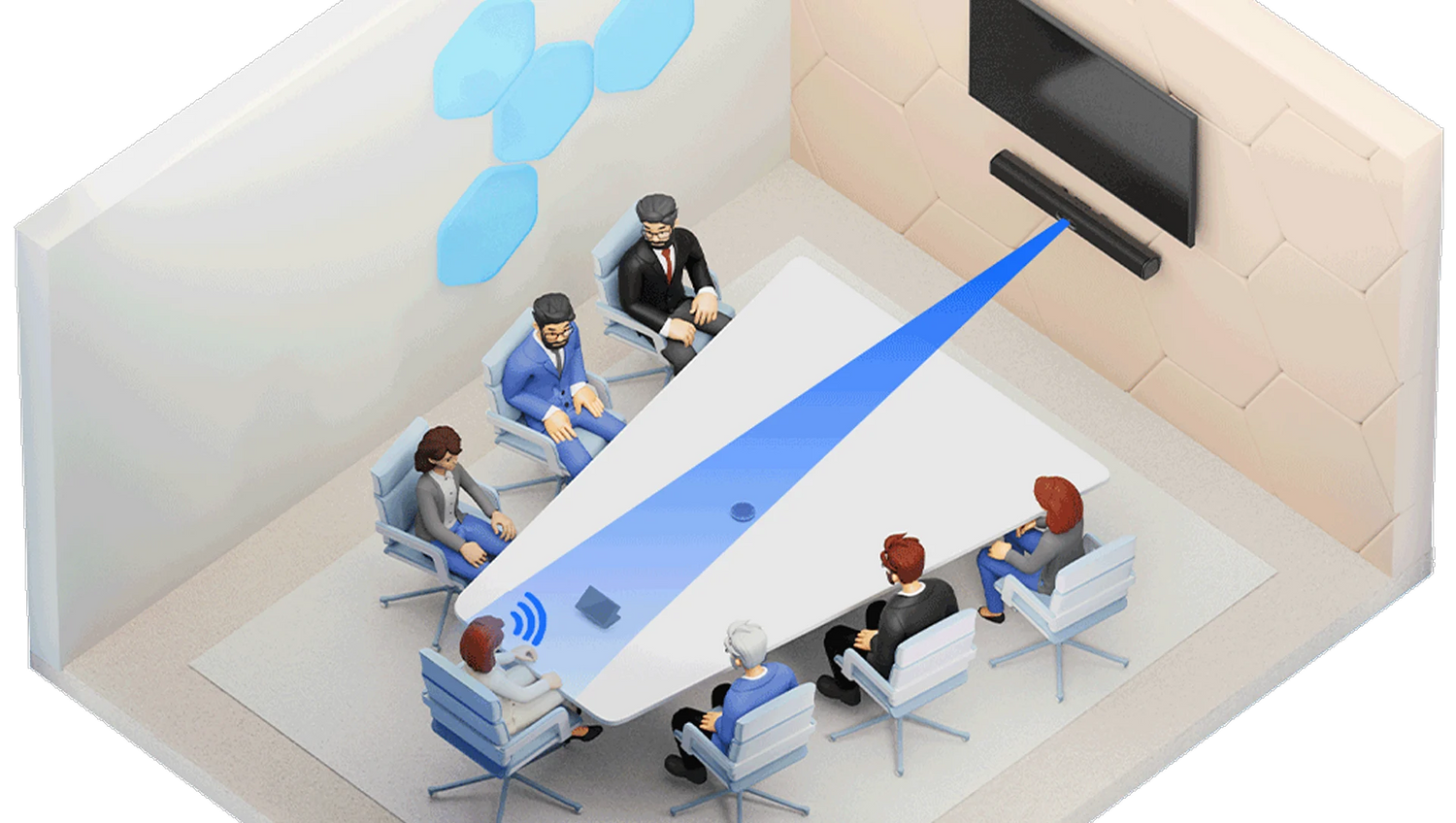

• Audio features including adaptive noise control, acoustic echo cancellation, automatic gain control, and Audio Fence
• Dual 20 W loudspeakers

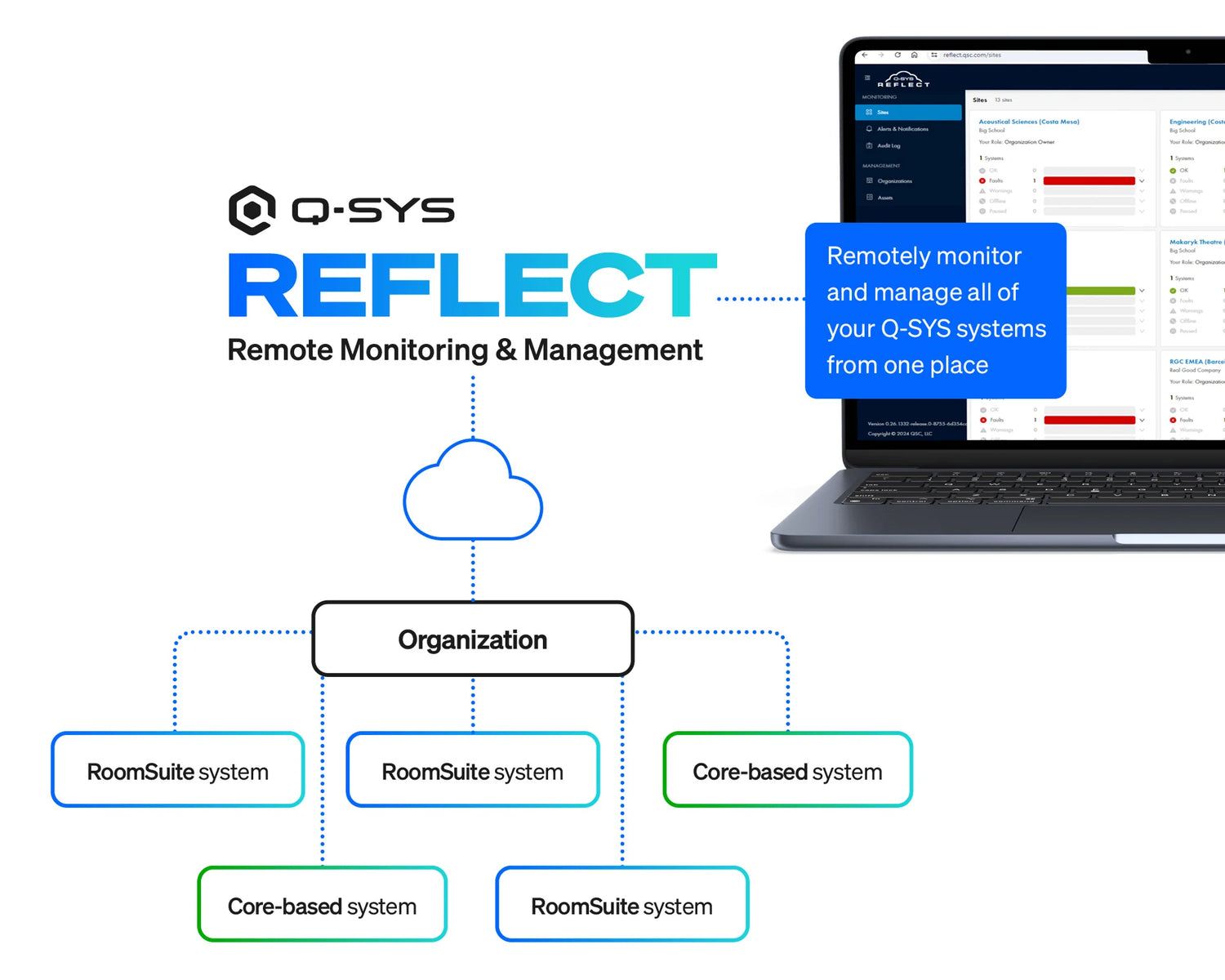

• Connects natively to Q-SYS Reflect for remote monitoring and management; fully supported in the Microsoft Teams Rooms Pro Management portal

Bundle Contents (RS-CB-MTRW-B)

• Q-SYS RoomSuite Collaboration Bar (RS-CB-MTRW)
• Q-SYS RoomSuite Collaboration Bar Controller (RS-CB-CTL11)

Collaboration Bar (RS-CB-MTRW) Specifications

System

• Product type: Collaboration bar with integrated cameras, loudspeakers, and microphone array
• Operating system: Windows 11 IoT Enterprise SAC
• Power: 19 V DC input (power supply included)
• Peripheral support: Up to 4 Q-SYS RoomSuite Table Microphones (sold separately)
• Controls & indicators: Microphone status LED indicators; camera privacy screen

Compute & Performance

• Processor: Intel® i5 1340P · Memory: 16 GB RAM · Storage: 256 GB
• Graphics: Intel® UHD Graphics (12th Gen)

Camera

• Quantity: 2x wide-angle, 2x telephoto · Resolution: 4x 50 MP image sensors
• Zoom: 8x hybrid · Privacy: automatic lens shutter
• Field of view — Wide: 125°H / 50°V / 130°D · Telephoto: 42°H / 32°V / 52°D

Audio

• Configuration: Stereo (2.0) · Power output: 20 W max per loudspeaker (40 W max total)
• Max SPL: 88 dB SPL (+/- 2 dB) @ 1 W / 0.5 m · Frequency range: 80 Hz – 20 kHz

Microphone

• 16-element array · Pickup range: up to 33 ft (10 m) · Sensitivity: -36 dBFS
• Sample rate: 48 kHz · Frequency range: 20 Hz – 16 kHz

Wireless & Networking

• Wi-Fi 6 (2x2 MIMO), 2.4 GHz + 5 GHz
• 4x RJ45 ports: 1x 1Gbps internet, 1x 1Gbps BYOD wired, 1x 1Gbps PSE PoE+ auxiliary control, 1x 1Gbps PSE PoE auxiliary microphones
• Bluetooth 5.2 + BLE (Proximity Join only)

Video & USB I/O

• HDMI inputs: 4K60 capable, 1080p30 supported for ingest
• HDMI outputs: 3x total (2x supported), 4K60 capable, CEC supported
• USB: 1x USB-A 3.0; 1x USB-A 2.0 (not supported)
• Content sharing: HDMI local sharing 1080p30

Controller (RS-CB-CTL11) Specifications

• Display: 10.95 in (278 mm), 1920 x 1080, 60 Hz, 250–300 nits, ELED backlight
• Touch: capacitive, anti-glare / anti-fingerprint surface · PIR motion sensor (auto wake-up)
• Content sharing: USB-C local sharing 1080p30 · AV bridging via USB-C
• Ethernet: CTL A (1 Gbps + PoE+ input, controller display); CTL B (1 Gbps, BYOM) · Power: PoE+
• Mounting: optional wall mount and 180° swivel mount (sold separately)

Physical & Environmental (Bundle RS-CB-MTRW-B)

• Bar: 33.1 x 4.6 x 4.1 in (840.6 x 117.6 x 104 mm), 11 lbs (5.0 kg)
• Controller: 10.6 x 6.7 x 3.4 in (269.2 x 170.2 x 86.4 mm), 2.6 lbs (1.2 kg)
• Packaged w/Controller: 38.8 x 11.4 x 10.8 in (985 x 290 x 275 mm), 30.86 lbs (14 kg)
• Included accessories: power adapter; 5 ft AC cable (country-specific); 2x 10 ft HDMI cables; 3x 10 ft Ethernet cables; 6 ft USB-C cable; bar mounting components
• Operating: 32° to 104°F (0° to 40°C), 10–90% humidity · Storage: -4° to 140°F (-20 to 60°C), 10–90% humidity
