QSC TSC-50-G3 – 5-Inch Q-SYS PoE Touch Screen Controller (Black)

Product Overview

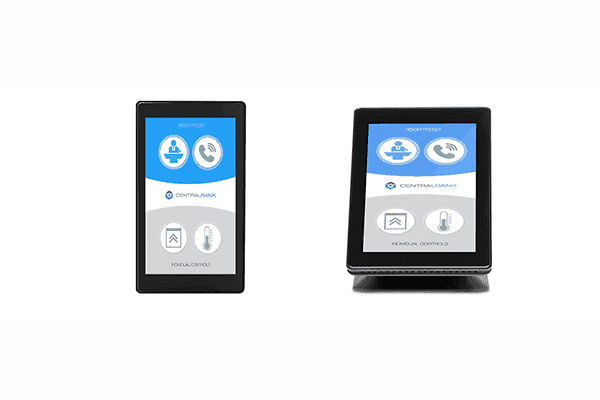

The QSC TSC-50-G3 is a 5-inch Q-SYS touch screen controller that provides a compact, customizable control interface for AV systems in huddle rooms, conference rooms, and meeting spaces. As a PoE touch screen controller for the Q-SYS ecosystem, it loads user control interface (UCI) pages directly from the Q-SYS Core over a single Ethernet cable, giving end users a clean panel for volume, source, display, and room control. Its 1280 x 720 display and projective-capacitive multi-touch surface make it an efficient entry point to Q-SYS room control for commercial AV deployment.

Product Description

The TSC-50-G3 uses a 5-inch LCD with 1280 x 720 resolution, 24-bit color, up to 450 nits brightness, and a projective-capacitive multi-touch surface. UCI pages with faders, buttons, meters, and indicators are built in Q-SYS Designer Software and load automatically from the active Q-SYS design, so no separate programming environment is required. The controller is PoE-powered for single-cable installation and can wall-mount into a standard 1-gang backbox or sit on a desk with an optional tabletop stand, in portrait or landscape orientation. As the most compact member of the family, it pairs naturally with the larger TSC-101-G3 and TSC-70-G3, which share the same control workflow.

Key Features

• 5-Inch High-Resolution Display — A 1280 x 720, 24-bit color LCD at up to 450 nits provides a bright, compact control surface.
• Projective-Capacitive Multi-Touch — A PCAP touch surface supports responsive, modern multi-touch interaction.
• Native Q-SYS UCI — Control pages built in Q-SYS Designer load automatically from the Core, with no separate programming environment.
• Single-Cable PoE — Power and data arrive over one Ethernet cable for simplified installation.
• Flexible Mounting — Wall-mounts into a standard 1-gang backbox or uses an optional tabletop stand, in portrait or landscape orientation.
• Compact Footprint — The 5-inch form factor suits huddle rooms and entry points where a smaller panel is preferred.

Typical Applications

• Huddle rooms and conference rooms
• Multi-purpose rooms and commercial meeting spaces
• Training rooms
• Boardroom auxiliary control

Technical Specifications

Frequently Asked Questions

Does the TSC-50-G3 require custom programming? No. Control pages are built in Q-SYS Designer Software and load automatically from the Q-SYS Core, so no separate programming environment is needed.

How is it powered and connected? It is PoE-powered, so a single Ethernet cable provides both power and data.

How does it mount? It wall-mounts into a standard 1-gang backbox or uses an optional tabletop stand, in portrait or landscape orientation.

How does it compare to the other TSC-G3 models? It shares the same Q-SYS UCI workflow and PoE installation as the 7-inch TSC-70-G3 and 10-inch TSC-101-G3, differing mainly in screen size and resolution.

What about warranty and support? The TSC-50-G3 is covered under QSC warranty terms; contact Creation Networks support for Q-SYS control design and AV integration assistance.
