Poly Studio X70 – Dual-Camera 4K Video Bar with TC8

Product Overview

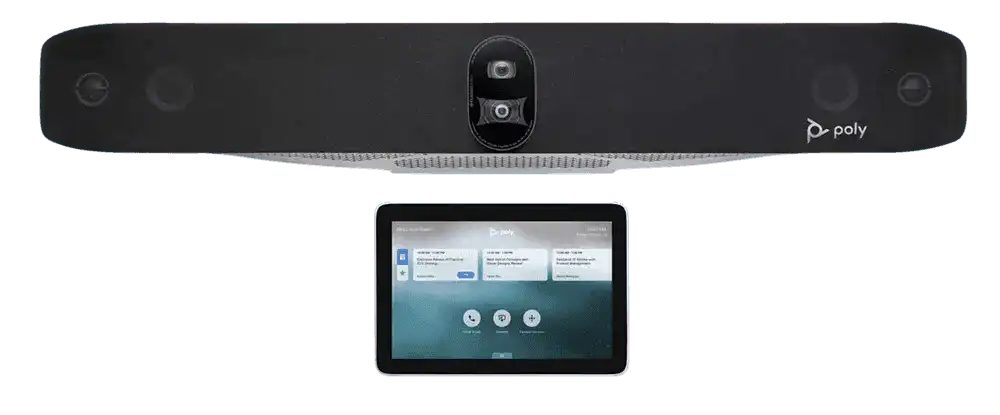

The Poly Studio X70 with TC8 (83Z52AA) is a complete large-room video conferencing kit pairing HP Poly's dual-camera 4K video bar with the Poly TC8 tabletop touch controller. The bar carries a dual-lens 20MP camera, two-way stereo speakers, and a four-microphone array in one wall-mounted unit, and the TC8 puts one-touch join and in-room control on the conference table. Certified for Microsoft Teams, Zoom, and Google Meet, the built-in codec runs cloud video natively, so no room PC is required. This is the ordering path for integrators who want a single part number covering both the bar and the controller for a large conference room.

Product Description

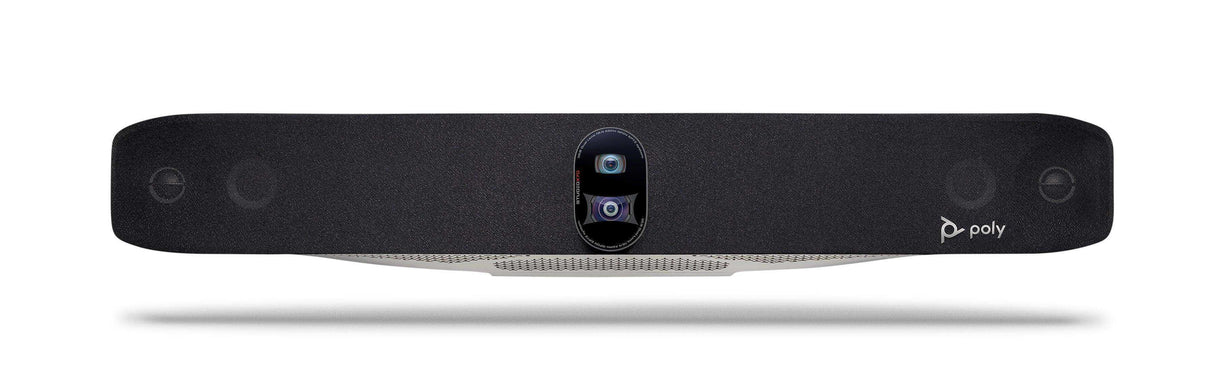

HP Poly rates the Studio X70 for large rooms up to roughly 30 ft. by 20 ft. Two 20 MP sensors capture 2160p 4K UHD, one behind a 120° horizontal wide lens covering the whole table and one behind a 70° horizontal narrow lens for close framing, with 7.3x digital zoom. Poly DirectorAI performs people framing, group framing, and speaker framing by cutting between the two lenses rather than cropping one sensor, so remote participants see a composed shot instead of a soft digital crop as the conversation moves around a long table. A motorized electronic privacy shutter closes the optics when the room is idle.

Audio is what separates the X70 from a medium-room bar. Two-way stereo speakers with aluminum cone tweeters and advanced bass ports deliver 2 x 20 W RMS on the mid drivers and 2 x 15 W RMS on the tweeters, covering a full boardroom without an external amplifier or DSP in the rack. Two MEMS microphones and two second-order gradient microphones pick up to 25 ft. down the table, and Poly NoiseBlockAI and Acoustic Fence suppress keyboard noise, HVAC, and voices from outside the room. On unusually long tables, add a Poly Studio expansion table microphone rather than a second bar.

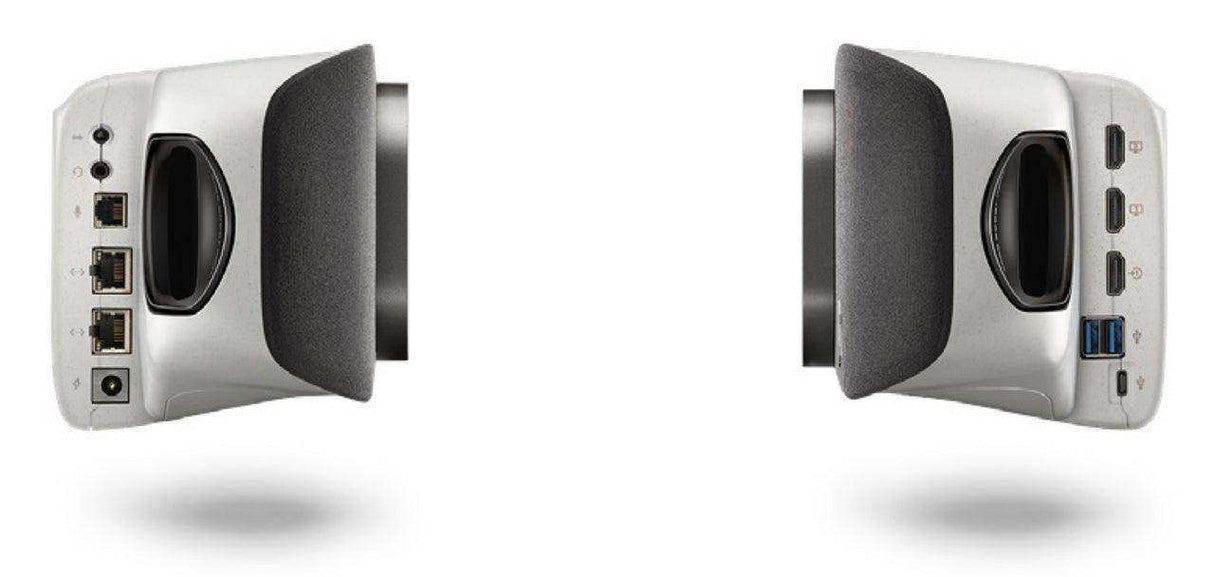

The bundled Poly TC8 touch controller connects over the network and gives users scheduled meeting join, call control, and content sharing without teaching them the room's underlying platform. Rooms that prefer a larger 10.1-inch console can move to the Poly TC10 touch controller instead. Connectivity on the bar covers two HDMI 1.4 outputs for dual-display rooms, one HDMI 1.4 input, one USB Type-C and two USB Type-A ports at 5 Gbps, two RJ-45 interfaces, and analog audio in and out. Content shares wired over HDMI or wirelessly through Apple AirPlay, Miracast, and digital whiteboarding. A wall mount kit ships in the box; for VESA-pattern display installs use the Poly VESA mount for Studio X70. Poly Lens handles cloud monitoring, firmware distribution, and room analytics across every deployed bar.

Key Features

• Bundled Poly TC8 Controller — An 8-inch tabletop touch panel ships with the bar, so the room has one-touch join and in-room control under a single part number.
• Dual-Lens 20MP Camera System — Separate 120° wide and 70° narrow 4K sensors cover the whole room and the active speaker without a mechanical PTZ head.
• Poly DirectorAI Framing — People, group, and speaker framing switch between lenses automatically so no camera operator is needed in a large room.
• 7.3x Digital Zoom — Reaches the far end of a 30-foot room while keeping participants legible to remote attendees.
• High-Output Stereo Speakers — Two-way drivers with aluminum cone tweeters and bass ports fill a large boardroom with no external amplifier or DSP.
• Four-Microphone Array — Two MEMS and two second-order gradient microphones pick up to 25 ft. down the conference table.
• NoiseBlockAI and Acoustic Fence — Reject keyboard noise, HVAC, and corridor conversations instead of gating the entire audio channel.
• Built-In Codec, No Room PC — Microsoft Teams, Zoom, and Google Meet run natively on the bar, with H.323 and SIP for standards-based estates.
• Dual-Display Output — Two HDMI outputs separate people and content across two screens; USB device mode supports a connected laptop.
• Poly Lens Cloud Management — Centralizes monitoring, firmware control, and room analytics for IT teams running many large rooms.

Typical Applications

• Boardroom
• Conference room
• Training room
• All-hands room
• Multi-purpose room
• Commercial meeting space
• Government space

Technical Specifications

Frequently Asked Questions

What is included in the Studio X70 with TC8 kit?
Part number 83Z52AA ships the Studio X70 video bar together with the Poly TC8 tabletop touch controller, plus the AC power adapter, two HDMI cables, an Ethernet cable, and a wall mount kit. Ordering the kit avoids reconciling two separate part numbers on a purchase order.

How does the TC8 connect to the bar?
The TC8 is a network-attached touch controller that pairs with the Studio X70 over the room LAN, so the table only needs a single cable drop rather than a run back to the bar. It provides scheduled meeting join, call control, and content sharing.

Should I choose the TC8 or the TC10?
Both provide the same core in-room control. The TC8 is an 8-inch panel that suits most conference tables; the TC10 is a 10.1-inch panel preferred in boardrooms and executive spaces where a larger console is expected. The X70 supports either.

What room size does this kit cover?
HP Poly rates the Studio X70 for large rooms up to approximately 30 ft. by 20 ft., with microphone pickup to 25 ft. A Poly Studio expansion table microphone extends coverage on longer tables.

How is the bar mounted in a large conference room?
A wall mount kit ships in the box for mounting below or above the display. For VESA-pattern installs on a display or mobile cart, use the Poly VESA mount for Studio X70; the Poly Studio X70/X72/V72 table stand covers credenza placement.

How does the X70 integrate with an existing AV system?
USB Type-C and Type-A connections let the bar act as a USB peripheral for a room PC, and analog audio in and out tie into an installed sound system. Two HDMI outputs drive a dual-display room, and H.323 and SIP support connects to standards-based video infrastructure.

What warranty and support are included?
The kit carries the Poly standard one-year limited warranty. Poly+ service agreements are available separately for extended coverage, advance hardware replacement, and technical support; contact Creation Networks for the tier that matches your deployment.
