Poly VESA Mount – For Studio X70, X72 and V72 Video Bars

Product Overview

The Poly VESA mount for Studio X70 (875L2AA) is the OEM display-mounting kit for HP Poly's large-room video bars, covering the Poly Studio X70, Studio X72, and Studio V72. It attaches the bar to a commercial display through the display's VESA hole pattern and supports both above-display and below-display positions. Installation uses four screws with up to 24 washers so the fastener stack can be shimmed to the VESA boss depth of the specific panel. For integrators standardizing large conference rooms and boardrooms, this is the supported way to get a 20 lb-class dual-camera bar onto a display and keep it aligned.

Product Description

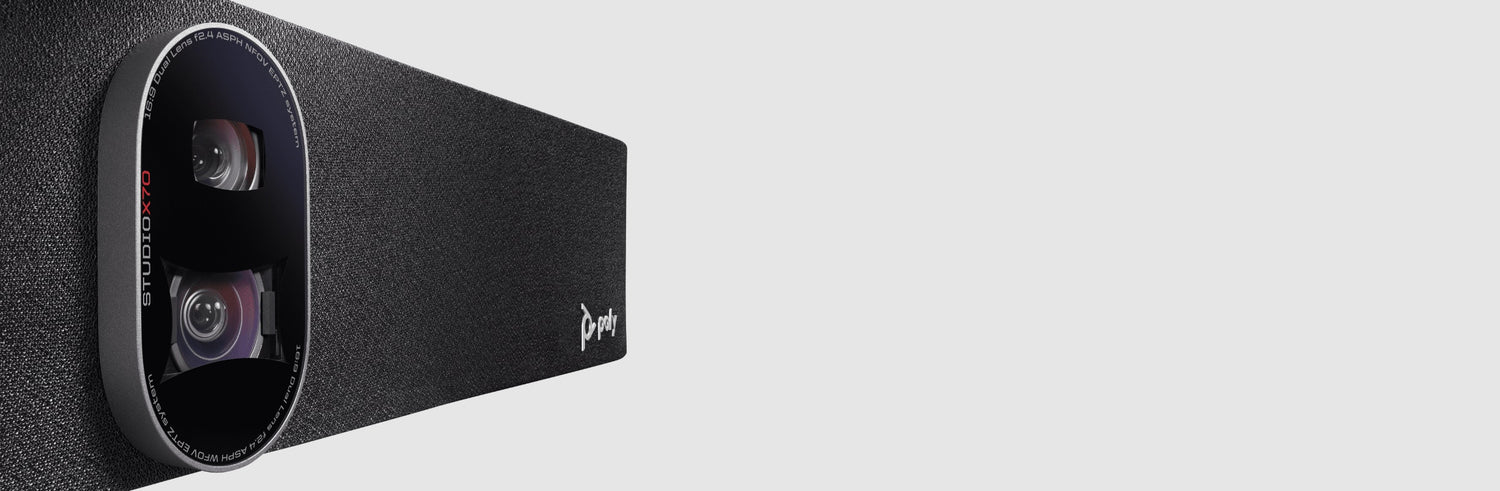

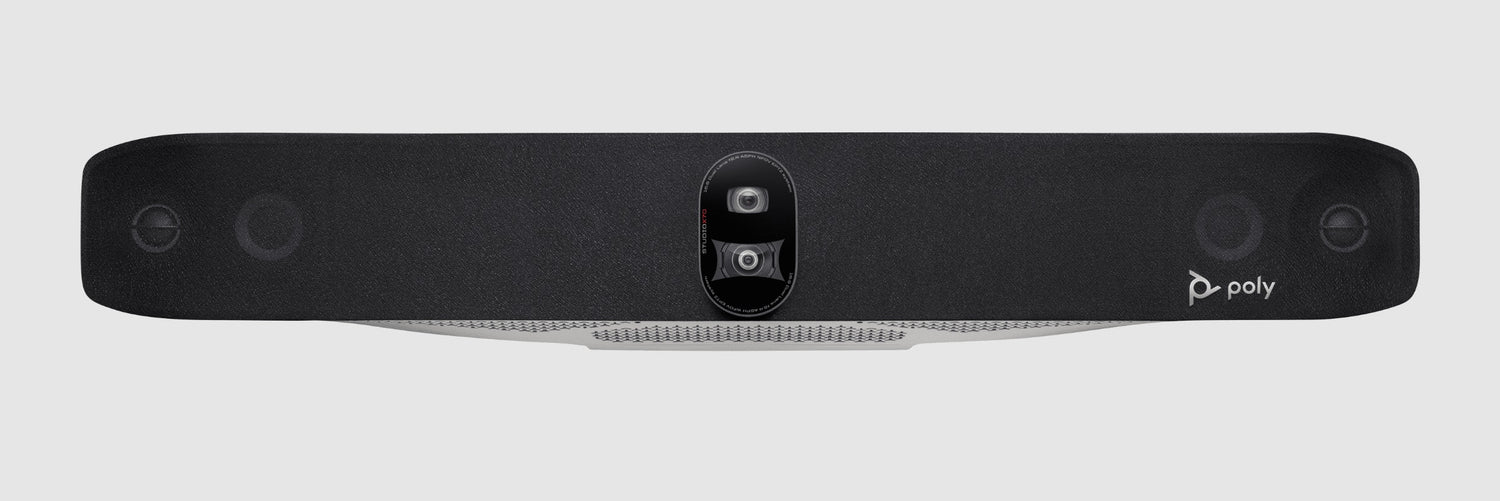

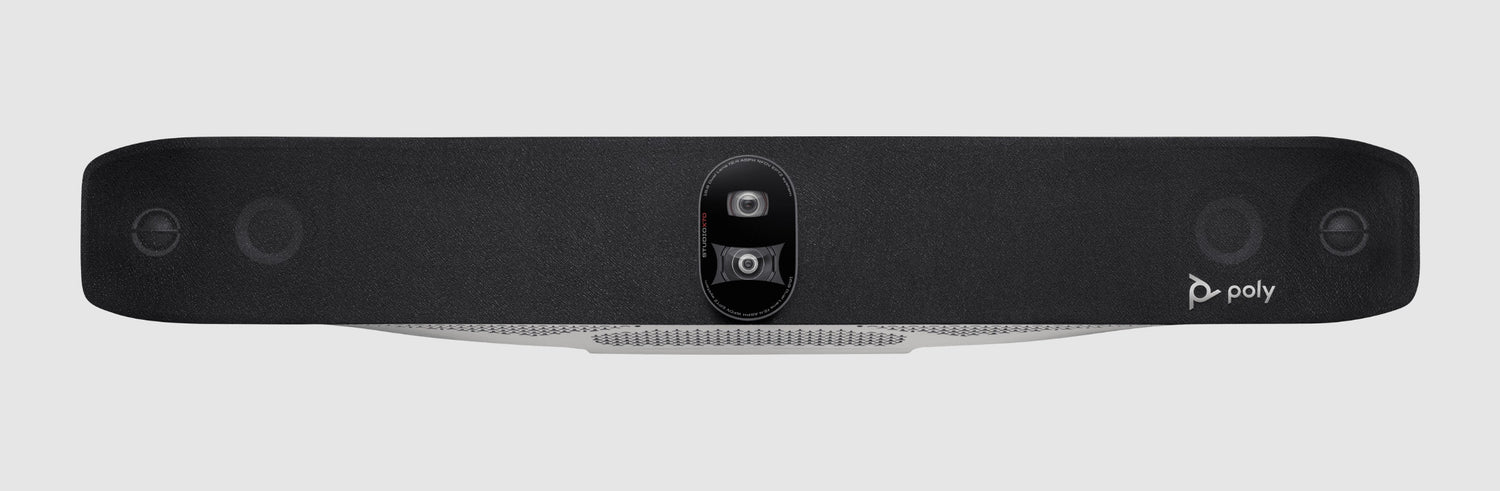

The Studio X70 and its X72 and V72 successors are large-room bars: dual-lens optics, a wide microphone array, and enough physical mass that placement is a structural decision rather than a preference. Setting one on a credenza in a boardroom puts the camera below eye line, buries the microphones behind laptop screens, and leaves the bar free to be pushed out of alignment. Mounting it to the display fixes the optical centerline to the display centerline, which is the geometry the DirectorAI framing behavior assumes.

The kit works off the display's VESA interface, so the panel itself can remain on a commercial wall mount, a floor stand, or an AV cart. Above-display mounting is the default for boardrooms and large conference rooms where the camera should look down the table; below-display mounting is used where a low ceiling, a tall panel, or an existing wall plate rules out the top position. Because VESA bosses vary in depth from one commercial panel to the next, the kit supplies four screws and a range of washers — nothing to zero and up to 24 pieces — so the installer can build the correct standoff for the display in front of them rather than sourcing hardware on site.

Specify one mount per bar. It pairs with the Poly Studio X70 all-in-one 4K video bar and with the federal builds — the TAA-compliant Studio X70 and the No Radio JITC-certified Studio X70 used in secure government spaces. Where the room is long enough that the bar's integrated array does not reach the far end of the table, add a Poly Studio table microphone. The mount is passive hardware with no power, firmware, or configuration.

Key Features

• Covers X70, X72 and V72 — One part number serves three generations of large-room bar, which keeps the mounting standard stable as a room fleet is refreshed.
• VESA Display Attachment — The bar mounts through the display's VESA hole pattern, leaving the panel free to hang on a commercial wall mount or AV cart.
• Above or Below Display — Both orientations are supported so the bar can clear a low ceiling, a tall panel, or an existing wall plate.
• Shimmable Fastener Stack — Four screws with up to 24 washers let the installer match the VESA boss depth of the specific commercial display on site.
• Fixed Optical Centerline — Locking the bar to the display centerline gives DirectorAI framing the geometry it expects instead of a shifting credenza position.
• Passive Hardware — No power, firmware, or commissioning steps, so the mount adds nothing to the room handover checklist.

Technical Specifications
