Poly Studio Table Microphone – For X50/X52/X70/X72 and USB

Product Overview

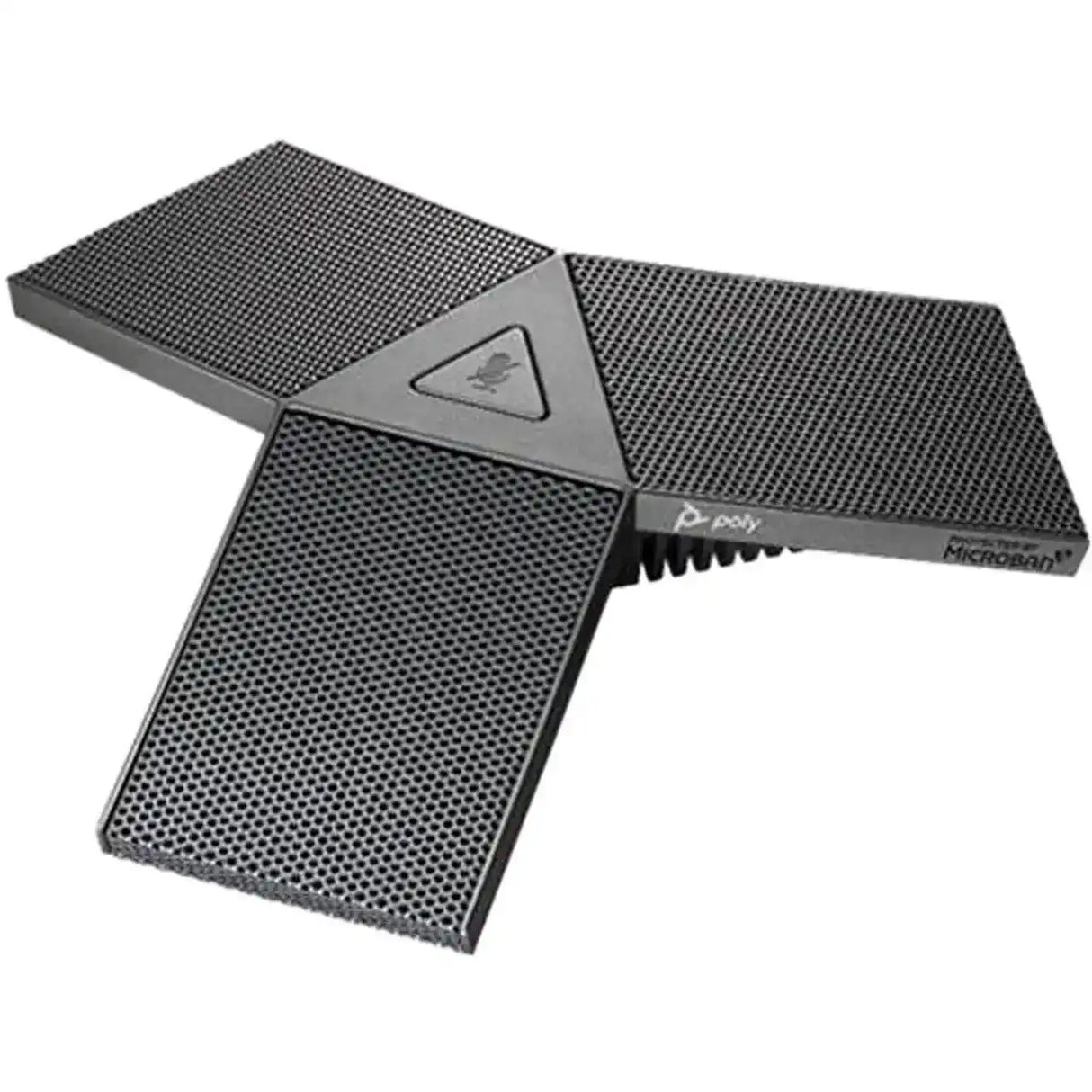

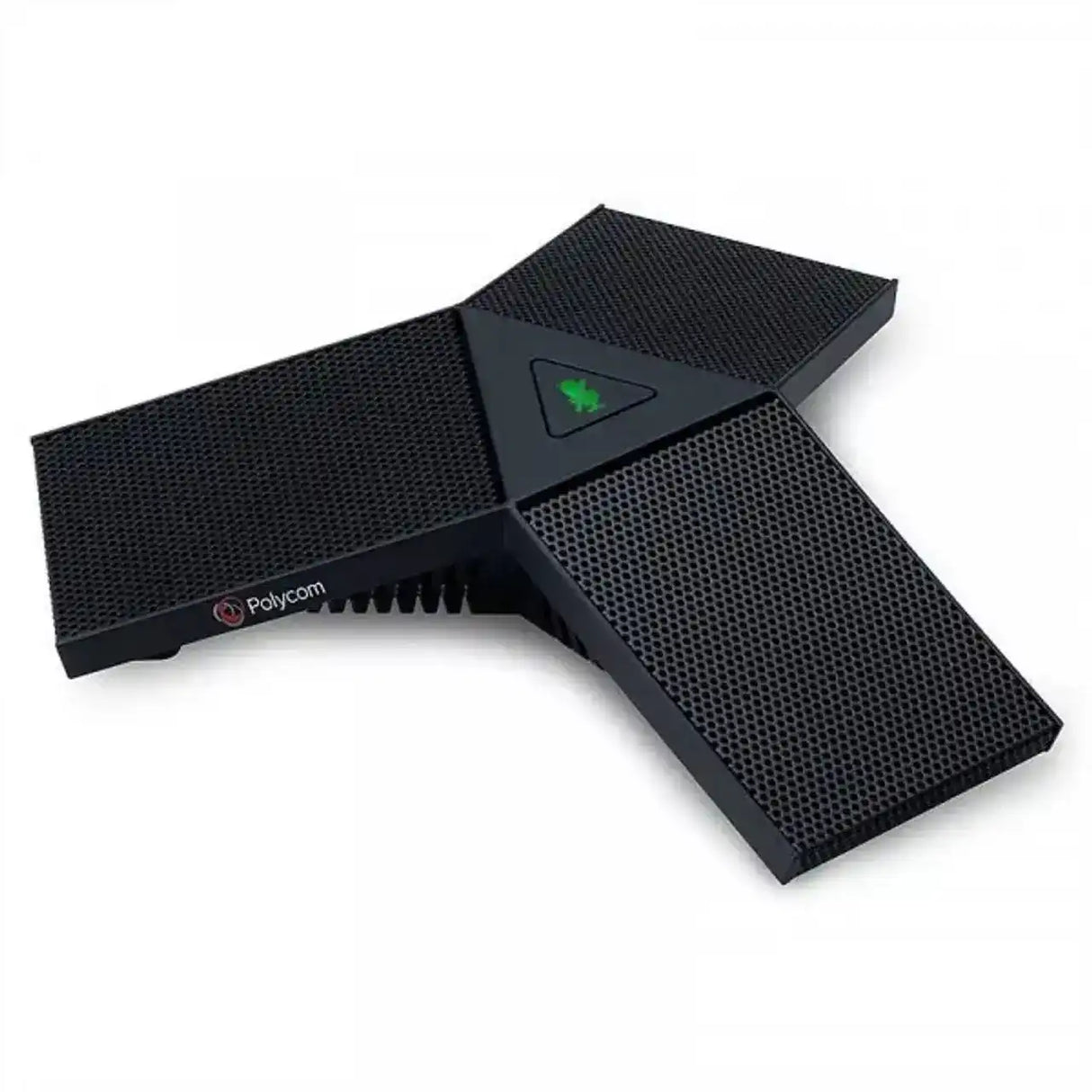

The Poly Studio table microphone (875M6AA) is the OEM tabletop expansion microphone for the Poly Studio USB, Studio X50, Studio X52, Studio X70, and Studio X72 video bars. It adds a second pickup point on the conference table for rooms where the integrated bar microphones no longer reach the far end of the seating area. Three unidirectional cardioid capsules provide 3-way audio pickup out to 2.5 m (8.2 ft.) from the puck, with Poly NoiseBlockAI and automatic level control applied in the host video bar. A single RJ-11 cable run is the entire installation, so an integrator can extend microphone coverage in a medium or large conference room without adding a DSP or a separate audio network.

Product Description

HP Poly designed this table microphone as the supported way to extend voice pickup on a Studio room system rather than replacing it with a modular audio chain. In a medium conference room, the bar-integrated array typically covers the first few seats comfortably; past that, participants at the far end of the table drop in level and the far side of the call starts asking people to repeat themselves. Dropping one expansion microphone at the midpoint of the table restores intelligibility without changing the codec, the display mount, or the network design.

Because the capsules are unidirectional cardioid rather than a single omnidirectional element, the microphone rejects more of the reflected energy coming off a glass wall or a hard tabletop than a simple boundary mic would. That matters in commercial meeting spaces with lots of glazing, and in training rooms where HVAC and projector noise sit in the same band as speech. Processing is handled upstream: the host video bar applies NoiseBlockAI noise suppression and auto-leveling across all connected microphone inputs, so the expansion mic behaves as one more element of the same array rather than a separate channel an installer has to gain-stage.

Connection is a single RJ-11 cable, included in the box, from the microphone to the RJ-11 port on the video bar. For tables longer than the supplied cable can reach, HP Poly offers the Studio Expansion Mic Cable Extender Pack (875M4AA) for longer runs. A mute button on the top face with a color-coded LED gives participants local control and a clear visual mute state from anywhere at the table, and Microban antimicrobial protection is applied to the touched surfaces for shared-desk and multi-tenant environments. The microphone pairs with the Poly Studio USB video bar, the Poly Studio X50, the Poly Studio X52, and the Poly Studio X70 — order one per additional pickup zone the room design calls for.

Key Features

• Three Cardioid Capsules — Three unidirectional cardioid microphones deliver 3-way pickup that favors voices at the table over reflections off glass and hard surfaces.
• 2.5 m Pickup Range — Each microphone covers participants up to 2.5 m (8.2 ft.) away, so one unit typically extends a medium room to full-table coverage.
• Single RJ-11 Connection — One included RJ-11 cable carries the microphone to the video bar, keeping the install to a single cable pull with no DSP or audio network required.
• NoiseBlockAI and Auto-Leveling — The host Studio video bar applies Poly NoiseBlockAI noise suppression and automatic level control to the expansion microphone as part of the same array.
• Illuminated Mute Control — A top-face mute button with a color-coded LED gives participants local mute and an unambiguous mute state visible across the room.
• Broad Studio Compatibility — One part number covers the Poly Studio USB, Studio X50, Studio X52, Studio X70, and Studio X72, which simplifies spares stocking across a mixed room fleet.
• Cable Extender Support — The Studio Expansion Mic Cable Extender Pack (875M4AA) is available separately when the table run exceeds the supplied cable length.
• Microban Antimicrobial Protection — Touched surfaces carry integrated Microban protection for shared conference tables and hot-desk environments.

Technical Specifications
