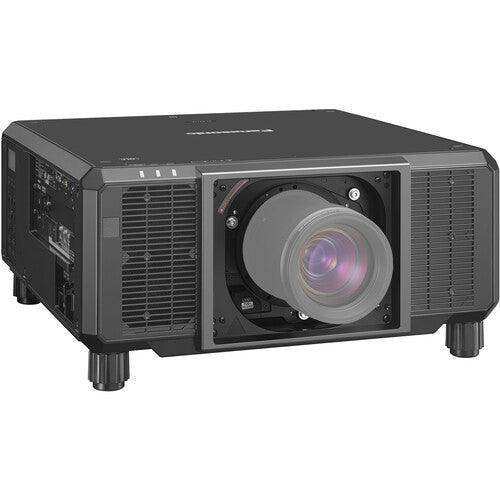

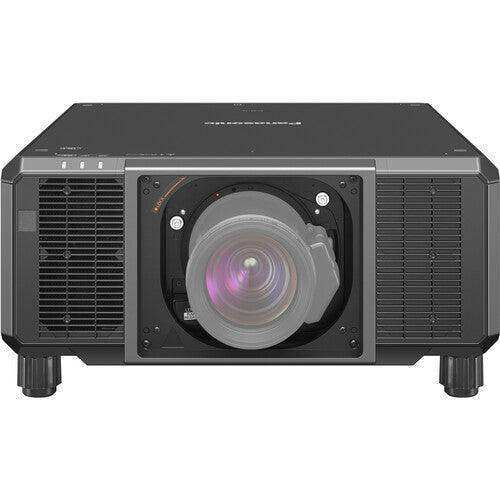

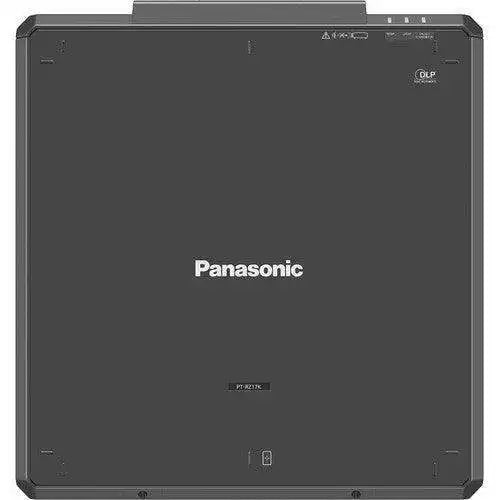

Panasonic PT-RZ14KU 14800 Lumens (center), 3DLP Laser, WUXGA (1920X1200) Resolution (No Lens)

Product Overview

The Panasonic PT-RZ14KU is a 14,800-lumen (center) WUXGA 3-chip DLP laser projector for large-venue fixed installation and rental and staging. Based on the RQ25K Series platform, this large venue laser projector is roughly 20% lighter and 40% smaller than the previous RZ12K, with IP5X dust resistance and filter-free liquid cooling for dependable continuous operation. Integrators specify the PT-RZ14KU when a venue needs strong WUXGA brightness, lens flexibility, and 24/7 reliability in a transportable chassis.

Product Description

The PT-RZ14KU delivers 14,000 lumens (14,800 lumens center) from a 3-chip DLP engine at native WUXGA (1,920 x 1,200), with Dynamic Contrast increasing to 25,000:1 and new scene-analysis circuitry that better distinguishes light and dark areas for heightened realism. It supports existing 3-chip DLP lenses and full-brightness projection on AC 100–240 V, and an Intel SDM-ready slot integrates proprietary or third-party function boards to adapt and scale connectivity. Gradation Smoother corrects color banding, and control-point black-level adjustment supports edge blending on curved screens. The optical engine and laser module comply with the IP5X dust-protected standard and, with filterless liquid cooling, enable 20,000 hours of maintenance-free projection, while Backup Input and a Multi-Laser Drive Engine add insurance against interruptions. The projector ships without a lens; pair it with a Panasonic ET-D3LE-series lens. Step up to the PT-RZ17KU or PT-RZ24KU, or compare the 4K PT-RQ25KU.

Key Features

• 14,800 Lumens Center, WUXGA — 3-chip DLP imaging at native 1,920 x 1,200 for bright, sharp large-venue projection.
• Compact, Lighter Chassis — About 20% lighter and 40% smaller than the RZ12K for efficient transport and installation.
• 25,000:1 Dynamic Contrast — New scene-analysis circuitry distinguishes light and dark areas for heightened realism.
• IP5X Dust Resistance — Optical engine and laser module meet the IP5X dust-protected standard for harsh environments.
• Filter-Free Liquid Cooling — Enables 20,000 hours of maintenance-free projection.
• Backup Input + Multi-Laser Drive Engine — Add insurance against signal and brightness interruptions during live events.
• Intel SDM-Ready Slot — Add proprietary or third-party function boards to scale connectivity.
• 360-Degree Install, Lens Compatible — Mounts in any orientation and uses existing 3-chip DLP lenses.

Typical Applications

• Auditorium — Auditoriums and lecture halls needing bright WUXGA imagery.
• House of Worship — Sanctuaries and worship venues with continuous schedules.
• Broadcast Studio — Studio backdrops and large-format displays.
• All-Hands Room — Large all-hands and general-session spaces.
• Government Space — Briefing and simulation rooms requiring durable, low-maintenance projection.

Technical Specifications

Specifications sourced from Panasonic / vendor data. Exact power consumption, dimensions, weight, and lens-shift ranges require manual review against the current Panasonic PT-RZ14K spec sheet.

Competitor Comparison

Frequently Asked Questions

Is the PT-RZ14KU a 4K projector? No. It is native WUXGA (1,920 x 1,200). For 4K in a related compact chassis, consider the PT-RQ25KU.

Does it include a lens? No. It is a no-lens model that uses existing Panasonic 3-chip DLP (ET-D3LE-series) lenses. Select the lens by throw ratio for your screen and position.

How durable is it for demanding environments? The optical engine and laser module meet the IP5X dust-protected standard, and filterless liquid cooling supports 20,000 hours of maintenance-free operation.

How does it integrate into an AV system? Two HDMI inputs and one DisplayPort cover standard sources, and the Intel SDM-ready slot adds optional terminals to scale connectivity. NFC supports mobile setup.

What about warranty and support? The PT-RZ14KU carries Panasonic's commercial projector warranty and ProVideo service support. Creation Networks can advise on warranty, lens selection, and integration.
