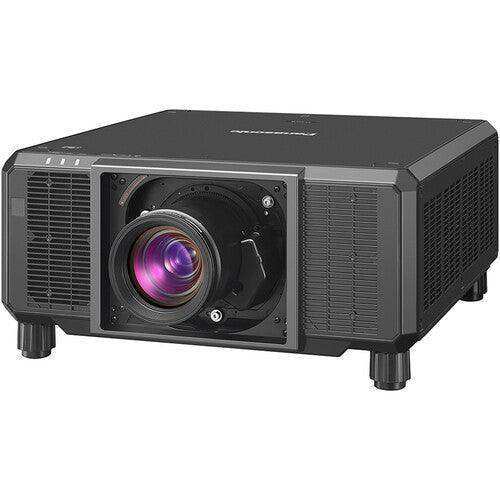

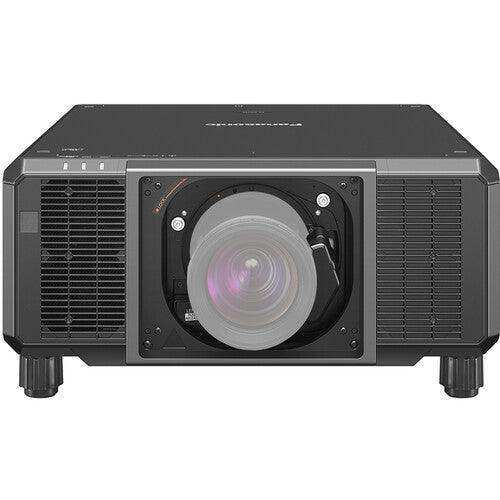

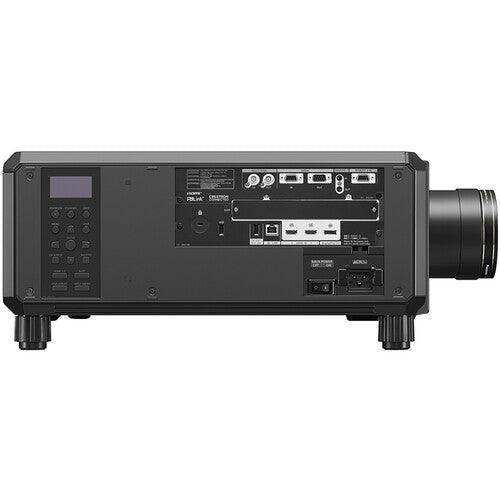

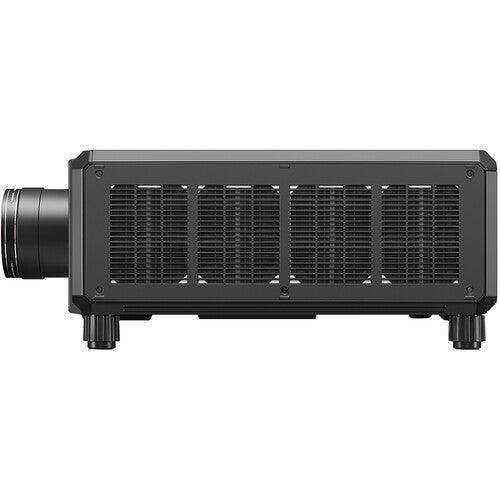

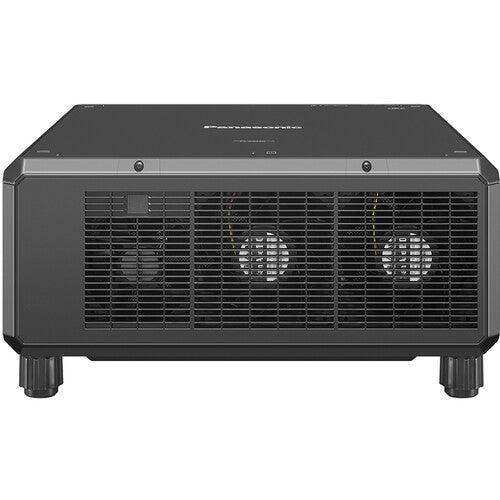

Panasonic PT-RZ24KU 21,000 Lumens (center), 3DLP Laser, WUXGA (1,920 x 1,200) Resolution, Filter-Free (No Lens, Black)
Panasonic PT-RZ24KU 21,000 Lumens (center), 3DLP Laser, WUXGA (1,920 x 1,200) Resolution, Filter-Free (No Lens, Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Panasonic PT-RZ24KU 21,000 Lumens (center), 3DLP Laser, WUXGA (1,92...
Product Overview
The Panasonic PT-RZ24KU is a 21,000-lumen (center) WUXGA 3DLP laser projector for large-venue fixed installation and rental and staging. This large venue laser projector is roughly 40% smaller and 35% lighter than the prior PT-RQ22K, with a body close to a 10,000-lumen 1-chip DLP unit, so it rigs easily in tight spaces. Integrators choose the PT-RZ24KU when a venue needs high WUXGA brightness and filter-free reliability without paying for 4K resolution.
Product Description
The PT-RZ24KU delivers 20,000 lumens standard and 21,000 lumens center from a 3-chip DLP engine at native WUXGA (1,920 x 1,200), with a 20,000:1 contrast ratio for strong, high-impact images on large screens. An Intel SDM-ready slot integrates preferred terminals with optional proprietary or third-party function boards, and Smart Projector Control with NFC, Remote Preview Lite, and preactivated Geometry Manager Pro upgrade kits streamline installation and edge-blended projection mapping. Laser operation provides roughly 20,000 hours normal and up to 24,000 hours economy for low-maintenance continuous use, and the compact, lighter body simplifies transport and ceiling rigging. The projector ships without a lens; pair it with a Panasonic ET-D3LE-series lens. Step up to the PT-RZ34KU for more output, drop to the PT-RZ17KU, or compare the 4K sibling PT-RQ25KU.
Key Features
- 21,000 Lumens Center, WUXGA — 3-chip DLP imaging at native 1,920 x 1,200 delivers high brightness for large, bright venues.
- Compact, Lightweight Chassis — About 40% smaller and 35% lighter than the PT-RQ22K, easing transport and rigging.
- Intel SDM-Ready Slot — Add proprietary or third-party function boards to tailor input terminals to your signal plan.
- Smart Projector Control with NFC — Mobile network setup speeds commissioning and on-site service.
- Remote Preview Lite — Remote content preview streamlines setup in large installations.
- Geometry Manager Pro Ready — Preactivated upgrade kits enable advanced geometry, edge blending, and mapping.
- Long Laser Life — Roughly 20,000 hours normal and up to 24,000 hours economy for low-maintenance operation.
- 20,000:1 Contrast — High dynamic contrast for deep blacks and detailed imagery.
Typical Applications
- Auditorium — Large auditoriums and lecture halls needing bright WUXGA imagery.
- House of Worship — Sanctuaries and worship venues with continuous schedules.
- Broadcast Studio — Studio backdrops and large-format displays where output matters more than 4K.
- All-Hands Room — Large all-hands and general-session spaces served by one high-output projector.
- Government Space — Briefing and command rooms requiring bright, low-maintenance projection.
Technical Specifications
| Projector type | 3-Chip DLP laser projector |
|---|---|
| Light source | Laser diode |
| Brightness | 20,000 lm standard / 21,000 lm center |
| Native resolution | WUXGA (1,920 x 1,200) |
| Native aspect ratio | 16:10 |
| Contrast ratio | 20,000:1 |
| Light source life | 20,000 hours (NORMAL) / 24,000 hours (ECO) |
| Max diagonal image | Approx. 83.33 ft (1,000 in) |
| Lens | Optional ET-D3LE-series lenses (no lens included) |
| Expansion | Intel SDM-ready slot |
| Interfaces | HDMI, USB, Network (RJ-45) |
| Power consumption | 1,520 W |
| Dimensions | Approx. 21.7 in W x 8.7 in H |
| Shipping weight | Approx. 141 lbs |
| UPC | 885170392427 |
| Country of origin | Japan |
Specifications sourced from Panasonic / vendor data. Full depth dimension and lens-shift ranges require manual review against the current Panasonic PT-RZ24K spec sheet.
Competitor Comparison
| Criterion | Panasonic PT-RZ24KU | Barco UDX-W22 | Christie Crimson WU25 |
|---|---|---|---|
| Brightness | 20,000–21,000 lm WUXGA in a compact body. | Approx. 22,000 lm WUXGA, larger chassis. | Approx. 25,000 lm WUXGA. |
| Imaging | Native WUXGA (1,920 x 1,200) 3-chip DLP. | Native WUXGA 3-chip DLP. | Native WUXGA 3-chip DLP. |
| Light source | Laser diode, filter-free, 20,000 hr. | Laser-phosphor. | Laser-phosphor. |
| Form factor | ~40% smaller, ~35% lighter than PT-RQ22K. | Larger, heavier chassis. | Large chassis. |
| Expansion | Intel SDM-ready slot for flexible I/O. | Barco-specific I/O options. | Christie-specific I/O options. |
| Best fit | High-brightness WUXGA installs where size and weight matter. | Barco-standard rental fleets. | Christie-standard venues. |
Frequently Asked Questions
Is the PT-RZ24KU a 4K projector? No. It is native WUXGA (1,920 x 1,200). For 4K on screen in a similar class, consider the 4K Quad Pixel Drive PT-RQ25KU.
Does it include a lens? No. It is a no-lens model that uses Panasonic ET-D3LE-series lenses. Select the lens by throw ratio for your screen and position.
How does it integrate into an AV system? HDMI, USB, and RJ-45 networking cover standard sources and control, and the Intel SDM-ready slot adds optional terminals for your signal plan.
What maintenance does it need? The filter-free laser design provides roughly 20,000 hours normal and up to 24,000 hours economy, supporting low-maintenance continuous use.
What about warranty and support? The PT-RZ24KU carries Panasonic's commercial projector warranty and ProVideo service support. Creation Networks can advise on warranty, lens selection, and integration.
