Panasonic PT-RQ25KU 21,000 Lumens (center), 3DLP Laser, 4K (3840 x 2400) Resolution with Quad Pixel Drive, Filter-Free (No Lens, Black)
Panasonic PT-RQ25KU 21,000 Lumens (center), 3DLP Laser, 4K (3840 x 2400) Resolution with Quad Pixel Drive, Filter-Free (No Lens, Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Panasonic PT-RQ25KU 21,000 Lumens (center), 3DLP Laser, 4K (3840 x ...
Product Overview

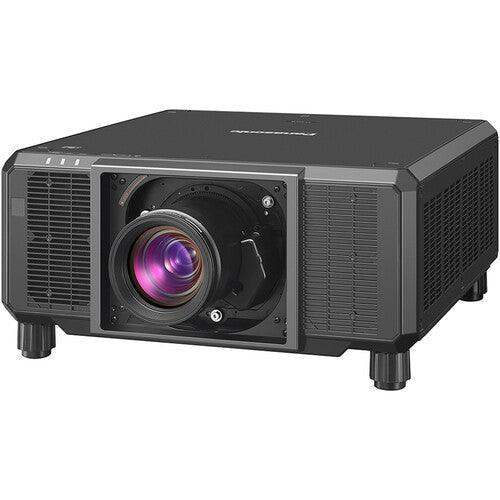

The Panasonic PT-RQ25KU is a 21,000-lumen (center) 3DLP laser projector with 4K Quad Pixel Drive resolution, sized for large-venue fixed installation and rental and staging where space and weight matter. This large venue laser projector is roughly 40% smaller and 35% lighter than the prior 20,000-lumen PT-RQ22K, with a body comparable to a 10,000-lumen 1-chip DLP unit. Integrators specify the PT-RQ25KU when a venue needs 4K detail and high brightness from a compact, easy-to-rig chassis.
Product Description
The PT-RQ25KU combines a three-chip DLP engine with Quad Pixel Drive to display 4K (3840 x 2160) content at 20,000 lumens standard and 21,000 lumens center brightness, backed by a 20,000:1 contrast ratio for deep, high-impact images. An Intel SDM-ready slot lets integrators add preferred terminals using proprietary or third-party function boards, simplifying signal integration into a commercial AV system. A Smart Projector Control app with NFC, Remote Preview Lite, and preactivated Geometry Manager Pro upgrade kits speed installation, commissioning, and edge-blended projection mapping. Laser operation provides roughly 20,000 hours in normal mode and up to 24,000 hours in economy mode for low-maintenance, continuous deployment, and the compact, lighter body simplifies transport and ceiling rigging. The projector ships without a lens, so specify a Panasonic ET-D3LE-series lens for your throw and screen. Step up to the PT-RQ35KU or the flagship PT-RQ50KU for higher output, or compare the PT-RQ18KU for a lower-brightness 4K option.
Key Features
- 21,000 Lumens Center, 4K Quad Pixel Drive — Three-chip DLP with Quad Pixel Drive delivers 4K (3840 x 2160) detail at high brightness for large screens.
- Compact, Lightweight Chassis — About 40% smaller and 35% lighter than the PT-RQ22K, easing transport, rigging, and concealment.
- Intel SDM-Ready Slot — Add proprietary or third-party function boards to tailor input terminals to your signal plan.
- Smart Projector Control with NFC — Mobile setup, including network configuration, accelerates commissioning and service.
- Remote Preview Lite — Preview content remotely to streamline setup and operation in large installations.
- Geometry Manager Pro Ready — Preactivated upgrade kits enable advanced geometry, edge blending, and projection mapping.
- Long Laser Life — Roughly 20,000 hours normal and up to 24,000 hours economy support low-maintenance operation.
- 20,000:1 Contrast — High dynamic contrast yields deep blacks and detailed images.
Typical Applications
- Auditorium — Mid-to-large auditoriums needing 4K imagery from a compact projector.
- House of Worship — Sanctuaries and worship venues with large screens and continuous use.
- Broadcast Studio — Studio backdrops and sets requiring 4K detail in a space-constrained rig.
- All-Hands Room — Large all-hands and general-session spaces served by a single high-output projector.
- Government Space — Briefing and simulation rooms requiring high-resolution, low-maintenance projection.
Technical Specifications
| Projector type | 3-Chip DLP laser projector (SOLID SHINE) |
|---|---|
| Light source | Laser diode |
| Brightness | 20,000 lm standard / 21,000 lm center |
| Resolution | 4K with Quad Pixel Drive (up to 3840 x 2160) |
| Native aspect ratio | 16:10 |
| Contrast ratio | 20,000:1 |
| Light source life | 20,000 hours (NORMAL) / 24,000 hours (ECO) |
| Max diagonal image | Approx. 83.33 ft (1,000 in) |
| Lens | Optional ET-D3LE-series lenses (no lens included) |
| Projection method | Front, rear, ceiling |
| Expansion | Intel SDM-ready slot for optional function boards |

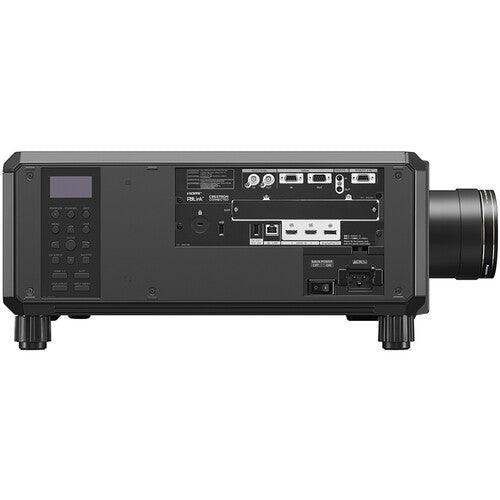

| Interfaces | HDMI, USB, Network (RJ-45) |
| Power consumption | 1,540 W |
| Shipping weight | Approx. 95 lbs |
| UPC | 885170392397 |
| Country of origin | Japan |
Specifications sourced from Panasonic / vendor data. Full terminal list, dimensions, and lens-shift ranges require manual review against the current Panasonic PT-RQ25K spec sheet.
Competitor Comparison
| Criterion | Panasonic PT-RQ25KU | Barco UDX-4K22 | Christie M 4K25 RGB |
|---|---|---|---|
| Brightness | 20,000 lm (21,000 center) from a compact chassis. | Approx. 22,000 lm in a larger body. | Approx. 25,000 lm with RGB laser. |
| Imaging | 3-chip DLP with Quad Pixel Drive for 4K (3840 x 2160). | Native 4K UHD 3-chip DLP. | Native 4K RGB pure-laser. |
| Form factor | ~40% smaller, ~35% lighter than PT-RQ22K; ~95 lbs shipping. | Larger, heavier chassis. | Large RGB-laser chassis. |
| Expansion | Intel SDM-ready slot for flexible terminal integration. | Barco-specific I/O options. | Christie-specific I/O options. |
| Setup tools | Smart Projector Control with NFC, Remote Preview Lite, Geo Pro kits. | Barco control ecosystem. | Christie control ecosystem. |
| Best fit | Compact 4K large-venue installs where size and weight matter. | Rental fleets standardized on Barco. | RGB color-critical premium work. |
Frequently Asked Questions
Does the PT-RQ25KU include a lens? No. It is a no-lens model that uses Panasonic ET-D3LE-series lenses. Select the lens by throw ratio for your screen size and projector position.
Is it true 4K? The PT-RQ25KU uses Quad Pixel Drive to display 4K (3840 x 2160) content. It delivers 4K on-screen detail; if native-4K chips are a hard requirement, consider the PT-RQ50KU.
How does the SDM slot help integration? The Intel SDM-ready slot accepts proprietary or third-party function boards, so integrators can add the input terminals a project requires rather than being limited to fixed I/O. Confirm board availability for your signal plan.
What maintenance does it need? Laser operation provides roughly 20,000 hours in normal mode and up to 24,000 hours in economy mode, supporting low-maintenance, continuous use in permanent installs.
What about warranty and support? The PT-RQ25KU carries Panasonic's commercial projector warranty and ProVideo service support. Creation Networks can advise on warranty terms, lens selection, and integration planning.
