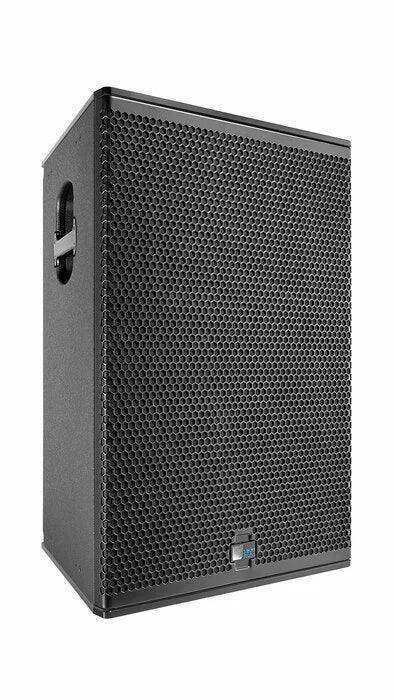

Meyer Sound UPQ-D1-WP-3 15" 2-Way Active Speaker, 3-Pin Input (with Weather Protection) - 09.291.001.08

 Meyer Sound’s UPQ‑D1 loudspeaker evolves from the UPQ-1P and UPQ‑2P product line, now optimized using the advanced amplifier and processing technology that made the LEO® family an award-wining product line.

Meyer Sound’s award-winning UPQ loudspeakers have been core components in both portable and installed systems for more than a decade. Characterized by a high power-to-size ratio; smooth, uniform coverage; and consistent polar response; these two-way, self-powered loudspeakers are available in three coverage patterns to fit any application, from FOH mains in small-to-mid-scale systems to fills in large systems.

Predictable performance is key to accurate system design. The UPQ family’s signature Constant Q horn design delivers a consistent beam-width across a wide frequency range, with gentle, uniform roll-off outside its defined coverage area and ultra-flat amplitude and phase response for tonal accuracy and precise imaging.

We've brought the technology from our flagship LEO Family to these stalwarts of our line which are now lighter weight and powered by an all-new built-in 2-channel Class D amplifier with reduced current draw. Count on UPQ loudspeakers to deliver high output with low distortion, thanks to sophisticated DSP that includes limiters, correction filters, phase-corrected processing, and driver-protection circuitry.

UPQ loudspeakers are smooth operators in the field, packed with practical features like Meyer Sound’s Intelligent AC power supply, which adapts to any voltage worldwide and provides soft-turn on and transient protection; and optional RMS monitoring that lets you keep an eye on system stats from a remote PC.

Tour-tough enclosures are equipped with convenient attachment points and are compatible with Quickfly rigging options for fast deployment. Weather protection and custom color finishes are also available.

Features

• Wide horizontal pattern covers broad listening areas and focused vertical pattern allows precise coverage
• Constant-Q horn with -6 dB points at 80° horizontal x 50° vertical (-10 dB points at 100° horizontal x 60° vertical)
• Constant-Q horn affords uniform response throughout coverage area
• Highly energy efficient amplifier with sophisticated digital signal processing that provides extraordinarily flat amplitude and phase response for tonal accuracy and precise imaging
• Exceptional size to power ratio provides application flexibility
• Consistent and predictable performance ensures accurate system design
• An innovative, newly designed, highly efficient Class D amplifier with reduced current draw that reproduces any sound with linearity over a wide dynamic range
• Optimized frequency and phase response characteristics
• Lightened cabinet weight
• Redesigned cabinet that retains the original size, grille frame, and rigging options of previous UPQ products.
