Meyer Sound 750-LFC 3100W 15-inch Powered Subwoofer - 09.271.001.10
Product Overview

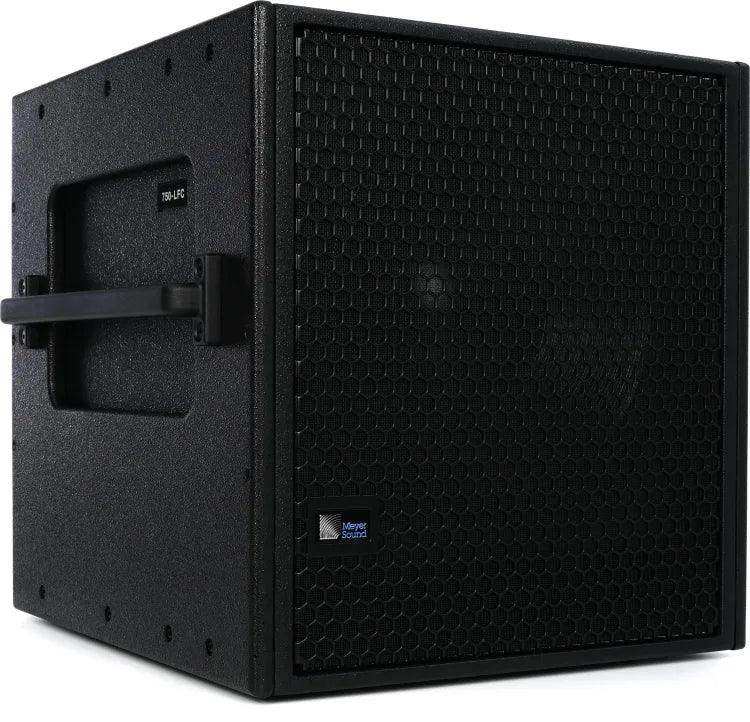

The Meyer Sound 750-LFC is a very compact self-powered low-frequency control element built for scalable low-frequency reinforcement in portable rigs and fixed installations of any size. Driven by a single 15-inch long-excursion driver and an onboard class D amplifier, it delivers high continuous output with extremely low distortion in a lightweight cabinet. It is a natural low-frequency complement for Meyer Sound LINA, LEOPARD, and ULTRA Series loudspeaker systems.
Product Description
The 750-LFC offers the same sonic linearity as the larger 900-LFC in a smaller, lighter enclosure that suits portable and corporate applications. Inside, a two-channel open-loop class D amplifier rated at 3100 W peak resides in a single field-replaceable module containing the amplifier and control circuitry. The integral pole mount supports placing one or two LINA loudspeakers on top using the MUB-MINA/LINA U bracket or MYA-MINA/LINA yoke, or pairing with ULTRA Series loudspeakers. When equipped with the optional MRK-750 rigging kit, the captive GuideALinks allow flying from the MG-MINA/LINA grid without a transition frame, with subwoofer-array splay angles of 0, 1.5, 3.25, or 4.75 degrees. For a larger 18-inch low-frequency element consider the Meyer Sound 900-LFC subwoofer, or the Meyer Sound VLFC arrayable subwoofer for very low frequencies. Pair it with the Meyer Sound LEOPARD line array loudspeaker or browse the full Meyer Sound collection.
Key Features
- 15-inch LF Driver — A single dual-coil, long-excursion 15-inch cone driver with 2 ohm nominal impedance produces high-output, low-distortion low frequencies.
- Self-Powered Class D Amplifier — A two-channel, open-loop class D amplifier rated at 3100 W peak is housed in a field-replaceable module.
- Compact, Lightweight Cabinet — At 89 lb without rigging, the enclosure suits portable and corporate deployments.
- Low Distortion — THD, IM, and TIM measure below 0.02 percent for exceptional linearity and transient reproduction.
- Integral Pole Mount — A built-in pole mount supports LINA loudspeakers above or pairing with ULTRA Series loudspeakers.
- Array Compatible — With the optional MRK-750 rigging kit it flies in regular and cardioid arrays from the MG-MINA/LINA grid.
- RMS Ready — An optional RMS module reports all amplifier operating parameters to a Mac or Windows host computer.
Typical Applications
- House of Worship — Provides compact low-frequency reinforcement for worship spaces.
- Conference Room — Adds controlled low end for high-quality presentation and media playback.
- Multi-Purpose Room — Supports portable low-frequency support across varied events.
- Auditorium — Extends low-frequency response for theatrical and presentation systems.
Technical Specifications
| Operating Frequency Range | 35 Hz – 125 Hz |
| Frequency Response | 37 Hz – 110 Hz ±4 dB |
| Phase Response | 43 Hz – 110 Hz ±30° |
| Linear Peak SPL | 130.5 dB with crest factor >9 dB (M-noise) |
| Low Frequency Driver | One 15-inch dual-coil, long-excursion cone driver; 2 Ω nominal |
| Amplifier | Two-channel, open-loop, class D; 3100 W peak |
| THD, IM, TIM | < 0.02% |
| AC Power | powerCON 20 input with loop; 90–265 V AC, 50–60 Hz |
| Dimensions without Rigging | W 21.80 in x H 20.30 in x D 20.88 in (554 x 515 x 530 mm) |
| Weight without Rigging | 89 lb (40.3 kg) |
| Enclosure | Premium multi-ply birch with textured black finish |
Specifications sourced from Meyer Sound. Subject to change without notice.
Competitor Comparison
| Criteria | Meyer Sound 750-LFC | L-Acoustics KS21 | d&b V-SUB |
| Amplification | The 750-LFC is self-powered with an integrated class D amplifier in the cabinet. | The KS21 is externally amplified and requires an LA-series amplified controller. | The V-SUB is externally amplified and requires a d&b amplifier. |
| Driver Configuration | It uses a single 15-inch long-excursion driver in a very compact cabinet. | It uses a single 21-inch driver in a larger cabinet. | It uses a cardioid-arranged multi-driver design. |
| Monitoring | It supports optional Meyer Sound RMS remote monitoring of amplifier parameters. | Monitoring is handled through the external amplifier and LA Network Manager. | Monitoring is handled through the external amplifier and R1 software. |
| System Integration | It integrates directly with LINA arrays using the shared MG-MINA/LINA grid. | It integrates within the L-Acoustics Kara and Kiva ecosystem. | It integrates within the d&b V-Series ecosystem. |
Frequently Asked Questions
Which Meyer Sound systems does the 750-LFC complement? It is designed as a low-frequency complement for LINA, LEOPARD, and ULTRA Series loudspeakers.
Can I mount loudspeakers on top of it? Yes. The integral pole mount supports one or two LINA loudspeakers using the MUB-MINA/LINA U bracket or MYA-MINA/LINA yoke, or ULTRA Series loudspeakers.
Does it require an external amplifier? No. The 750-LFC is self-powered and can be driven and aligned using a Meyer Sound Galileo GALAXY Network Platform.
How is it monitored? An optional RMS module reports all amplifier operating parameters to a Mac or Windows host computer.
What warranty applies? This product is covered under Meyer Sound's standard product warranty. For details please contact us.
