Product Overview

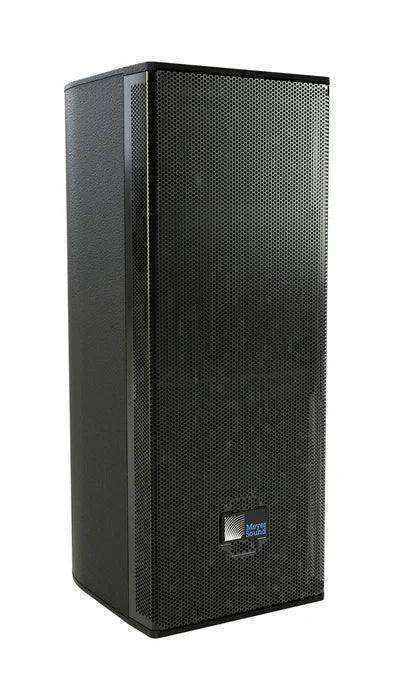

The Meyer Sound ULTRA-X23 with MILAN AVB is the network-audio version of the broad-coverage member of the ULTRA-X20 family. Its symmetrical 110° x 110° constant-Q horn projects a wide, even pattern for near-field fills, under-balcony seating, and short-throw applications while integrating into networked AV systems. Two 5-inch low-frequency drivers and a 2-inch compression driver are powered by an internal three-channel Class-D amplifier. Milan-certified etherCON connectivity and integrated Compass monitoring make it well suited to managed installations.
Product Description
This digital ULTRA-X23 carries a Milan-certified audio format on an etherCON TOP connector while retaining the broad 110° x 110° coverage that defines the model. A concentric driver configuration delivers coaxial-style point-source behavior with directional control of frequencies down to 600 Hz, and phase-corrected electronics maintain flat amplitude and phase response. AC power is supplied through a powerCON TRUE1 TOP connector with loop output, and monitoring is integrated directly into Compass Control Software. For an analog 3-pin version, see the standard ULTRA-X23; for narrower patterns, compare the ULTRA-X20 MILAN AVB and ULTRA-X22 MILAN AVB, or browse the full Meyer Sound range. Pair with a 750-LFC to extend low-frequency output.
Key Features
- MILAN-Certified Network Audio — A digital etherCON TOP connection carries Milan-certified audio for deterministic, low-latency networked distribution.
- Broad 110° x 110° Coverage — A symmetrical constant-Q horn projects an exceptionally wide, even pattern for near-field and short-throw applications.
- Integrated Monitoring — Built-in monitoring through Compass Control Software requires no external RMS hardware.
- Concentric Driver Configuration — Two 5-inch cone drivers and a 2-inch compression driver provide point-source performance with directional control down to 600 Hz.
- High Output — Delivers a linear peak SPL of 127.5 dB measured with M-noise at a 20 dB crest factor.
- Self-Powered Three-Channel Amplifier — An onboard Class-D amplifier delivers 860 W peak with integrated crossover, correction filters, and driver protection.
- powerCON TRUE1 TOP Power — Locking AC input with loop output and automatic voltage selection from 90–265 V AC.

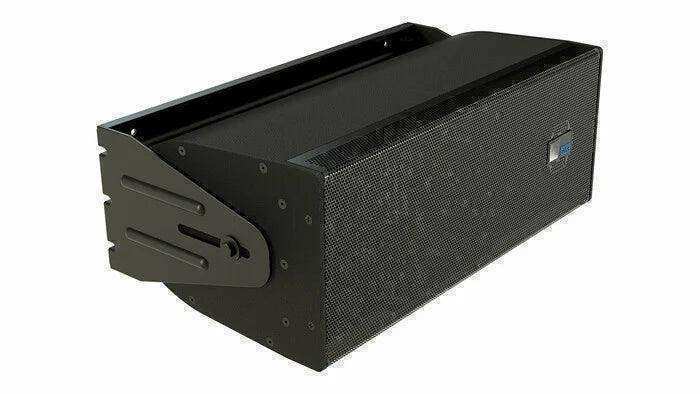

- Flexible Rigging — Integral M8 points on each end plus rear M6 threaded holes support pole, yoke, U-bracket, wall, and ceiling mounting.
Typical Applications
- House of Worship — Networked broad coverage fills wide seating areas and under-balcony zones from a single cabinet.
- Conference Room — Milan connectivity and wide dispersion deliver consistent voice reinforcement across networked AV rooms.
- Multi-Purpose Room — The 110° x 110° pattern adapts to low-ceiling and reconfigurable networked event spaces.
- All-Hands Room — Broad dispersion and integrated monitoring provide uniform level across large gathered audiences.
Technical Specifications
| Operating Frequency Range | 60 Hz – 18 kHz |
| Frequency Response | 65 Hz – 17.5 kHz ±4 dB |
| Phase Response | 95 Hz – 18 kHz ±45° |
| Linear Peak SPL | 127.5 dB with 20 dB crest factor (M-noise); 124 dB (Pink Noise); 125.5 dB (B-noise) |
| Coverage | 110° x 110° |
| Low Frequency | Two 5-inch cone drivers; 6 Ω nominal impedance |
| High Frequency | One 2-inch diaphragm compression driver; 8 Ω nominal impedance |
| Digital Audio Format | Milan Certified; etherCON TOP connector |
| Amplifier | Three-channel, Class-D; 860 W peak total output |
| THD, IM, TIM | <0.02% |
| AC Power | powerCON TRUE1 TOP input with loop output; automatic voltage selection 90–265 V AC, 50–60 Hz |
| Remote Monitoring | Integrated monitoring via Compass Control Software |
| Dimensions | W: 7.44 in (189 mm) x H: 19.04 in (484 mm) x D: 8.66 in (220 mm) |
| Weight | 27 lb (12.3 kg) |
| Enclosure | Aluminum with slightly textured black finish; powder-coated, round-perforated steel grille |
| Rigging | Two integrated M8 points on each end; four rear M6 threaded holes (127 mm x 70 mm pattern) |
Specifications sourced from Meyer Sound. Subject to change without notice.
Frequently Asked Questions
What is the difference between this version and the analog ULTRA-X23?
This version carries a Milan-certified digital audio format on an etherCON TOP connector with integrated monitoring, whereas the standard model uses an analog XLR 3-pin input. The acoustic performance is identical.
When should I choose the broad ULTRA-X23 coverage?
Choose the 110° x 110° pattern for near-field and short-throw coverage, under-balcony fills, low-ceiling rooms, and wide audience areas.
Does it require an external monitoring module?
No. The digital version provides integrated monitoring directly through Compass Control Software with no separate RMS hardware required.
What connectors does it use?
Audio is carried on an etherCON TOP connector and AC power on a powerCON TRUE1 TOP connector with loop output.
Is this loudspeaker covered by warranty?
Yes. It is covered under Meyer Sound's standard product warranty. For details, please contact us.
