MaxHub XBoard V7 V Series 86" for Microsoft Teams Rooms, 4K Flat Panel UHD Display - V865T

Product Overview

The MaxHub V865T XBoard V7 is an 86-inch Microsoft Teams Rooms certified interactive display built for conference rooms, boardrooms, and commercial meeting spaces that require an all-in-one Teams Rooms solution. Delivering 4K UHD (3840×2160) on a 16:9 IPS panel, the V865T integrates the Trident Lens triple camera system, a 16-microphone array, 2.1-channel speakers, and a Windows 11 IoT compute module in a single unit. The 86-inch Teams Rooms display format is the most widely deployed size in enterprise conference rooms, making the V865T the standard choice for IT managers and AV integrators specifying a Microsoft Teams Rooms certified flat panel display at the 86-inch tier.

Product Description

The MaxHub V865T is factory-certified for Microsoft Teams Rooms and ships with Windows 11 IoT and the Teams Rooms application pre-installed. The Trident Lens system provides three 50-megapixel cameras (one panoramic at 99° diagonal FOV, two telephoto with 2× optical and 5× hybrid zoom) driven by AI for auto-framing, speaker tracking, and multi-speaker tracking—eliminating the need for a separate PTZ camera or USB camera bar. The 16-microphone array captures voices across a 15-meter range at 180° with AI noise cancellation and acoustic echo cancellation. The 2.1-channel speaker system (2×10W plus 20W subwoofer) provides full-room audio without an external sound bar. The 50-point infrared touchscreen with zero-parallax 9H glass supports Windows Ink whiteboarding, direct annotation, and palm rejection. The onboard 12th Gen Intel Core i5 compute module, 16 GB DDR4 RAM, and 256 GB SSD run the full Windows environment, with an OPS slot for future module swaps. Connectivity includes HDMI 2.0×2, USB-C×1 (DP 1.2 + BYOD), USB 3.0, RJ45, Wi-Fi 6, and Bluetooth 5.2. For a bundle including the ST33M mobile stand, see the V865T + ST33M bundle. For a smaller Teams display, see the V755T 75" or the V655T 65".

Key Features

• 86" 4K UHD Display — 3840×2160 IPS panel with DLED backlight, 350 nits brightness, 1200:1 contrast, and 178°/178° viewing angles for clear presentation in any conference room.
• Microsoft Teams Rooms Certified — Factory-certified MTR unit with Windows 11 IoT and Teams Rooms pre-installed, enabling out-of-box deployment with no additional licensing setup for the hardware.

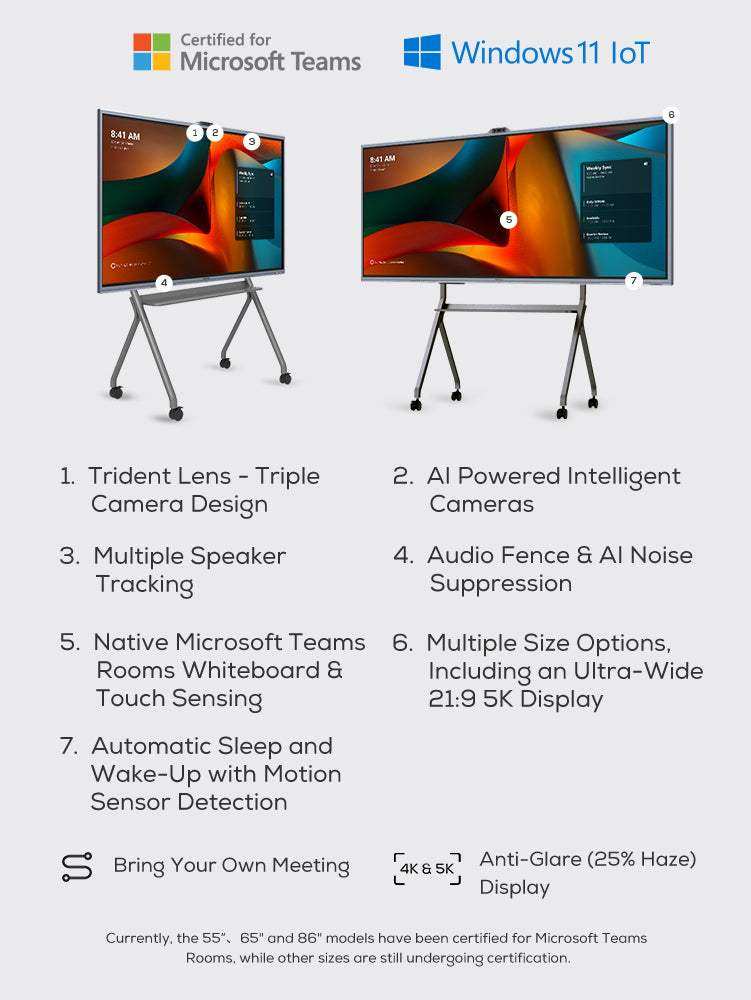

• Trident Lens Triple Camera System — 3×50 MP cameras (panoramic + 2 telephoto) with AI auto-framing, speaker tracking, multi-speaker tracking, and 5× hybrid zoom; no external PTZ camera required.
• 16-Microphone Array — 180° array with 15-meter pick-up range, AI noise cancellation, AEC, and AGC for clear voice capture in rooms up to large conference size.
• 2.1-Channel Integrated Speaker System — 2×10W tweeters plus 20W subwoofer with adaptive EQ, providing full-room audio without an external speaker bar.
• 50-Point Touch & Windows Ink — Zero-parallax 9H tempered glass (25% haze), 50-point infrared touch with Windows Ink, direct annotation, palm rejection, and handwriting recognition.
• 12th Gen Intel Core i5 Compute — Integrated Windows 11 IoT module (i5-1240P, 16 GB DDR4, 256 GB SSD) with OPS slot for future upgrades.
• Wi-Fi 6, Bluetooth 5.2, & Gigabit Ethernet — Dual-band 802.11ax Wi-Fi, Bluetooth 5.2, and wired Ethernet support for all network and wireless sharing scenarios.

Typical Applications

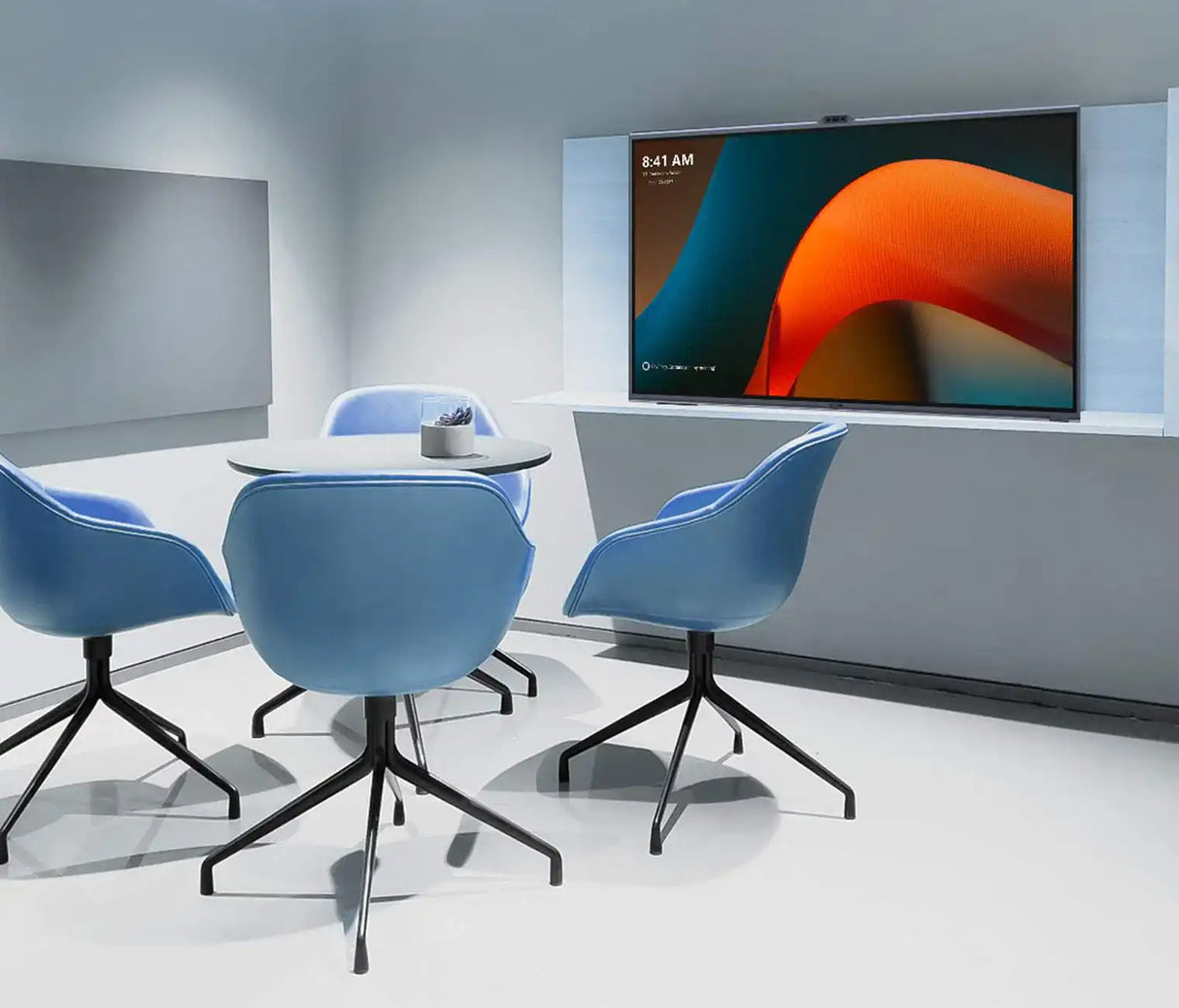

• Conference room
• Boardroom
• All-hands room
• Training room
• Commercial meeting space
• Government space
• House of worship
• Multi-purpose room

Technical Specifications

Specifications sourced from MaxHub (maxhub.com).

Frequently Asked Questions

Is the V865T certified for Microsoft Teams Rooms out of the box?
Yes. The V865T is factory-certified for Microsoft Teams Rooms. Windows 11 IoT and the Teams Rooms application ship pre-installed. An active Microsoft Teams Rooms license is required to activate the service—contact your IT team or Creation Networks for licensing guidance.

Can the V865T also run Zoom Rooms?
The V865T runs Windows 11 IoT, so Zoom Rooms software can be installed on the platform. The unit is certified and optimized for Teams Rooms; Zoom compatibility should be validated with your UC vendor for the specific software version.

Does the V865T need an external camera or microphone?
No. The Trident Lens triple camera system and 16-microphone array are fully integrated. The unit ships as a complete, self-contained Teams Rooms solution for rooms up to large conference size.

What are the mounting options for the V865T?
The V865T supports VESA wall mounting for permanent installation. For mobile or flexible deployments, the V865T + ST33M bundle includes the MaxHub ST33M mobile stand. Contact Creation Networks for mount specifications and professional installation.

How do BYOD participants share content?
Wired BYOD is supported via HDMI 2.0 or USB-C (DisplayPort 1.2). Wireless sharing works through the MAXHUB Share app, Miracast, AirPlay, and Chromecast. Ultrasonic P2P mode enables instant wireless connection without joining the room Wi-Fi network.

Who do I contact for AV integration or post-sale support?
Contact Creation Networks for commercial AV system design, volume quotes, and warranty support. Creation Networks is an authorized MaxHub dealer.
