MaxHub XBoard V7 V Series 65" for Microsoft Teams Rooms, 4K Flat Panel UHD Display - V655T

Product Overview

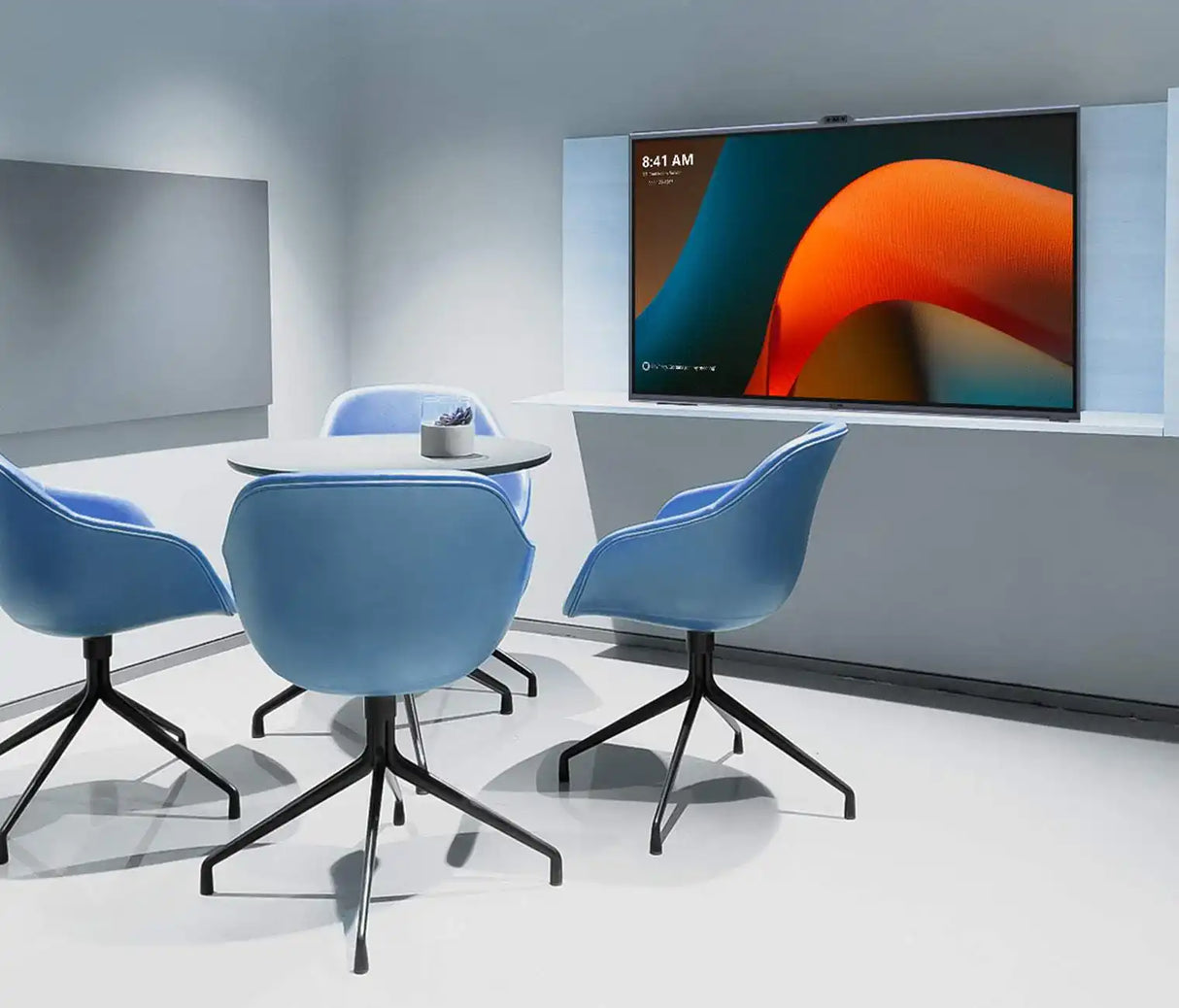

The MaxHub V655T XBoard V7 is a 65-inch Microsoft Teams Rooms certified interactive display built for huddle rooms, small conference rooms, and commercial meeting spaces where a compact all-in-one Teams Rooms panel is required. The V655T delivers 4K UHD (3840×2160) on a 16:9 IPS panel with the complete XBoard V7 feature set: Trident Lens triple camera, 16-microphone array, 2.1-channel speakers, and a Windows 11 IoT compute module—all integrated into a 65-inch form factor. For IT managers and AV integrators specifying a 65-inch Microsoft Teams Rooms display for smaller spaces, the V655T provides the same certified platform as the larger 75-inch and 86-inch V7 models.

Product Description

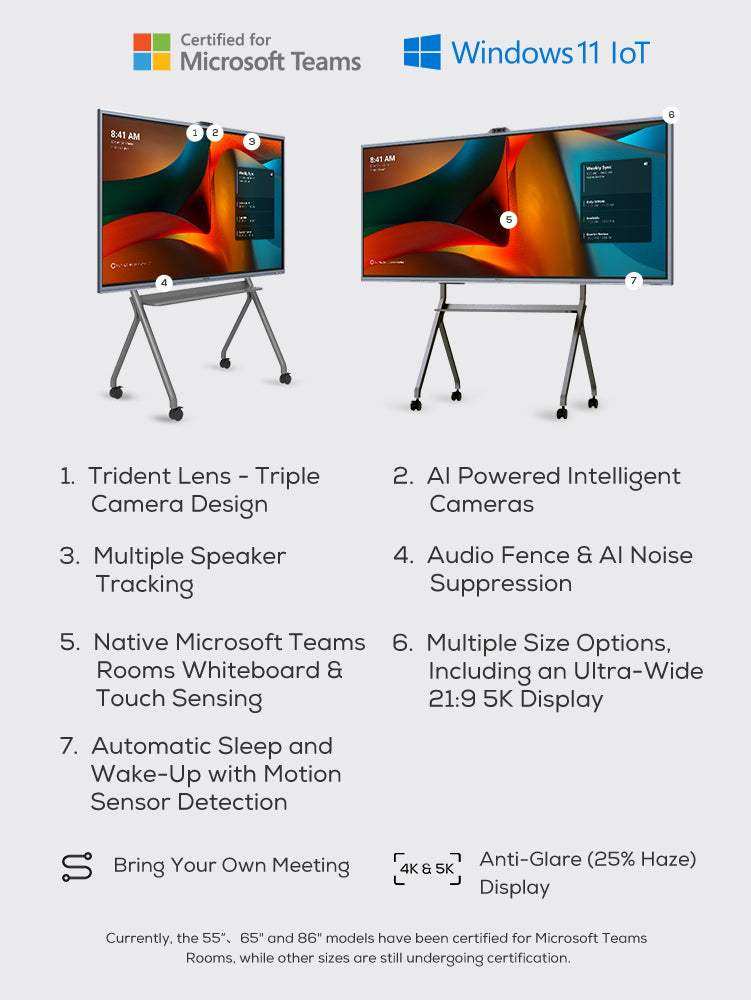

The V655T is built on the XBoard V7 platform and carries full Microsoft Teams Rooms certification. Its Trident Lens system integrates three 50-megapixel cameras (one panoramic at 99° diagonal FOV, two telephoto) with AI auto-framing, speaker tracking, and 5× hybrid zoom to maintain accurate framing of participants in smaller rooms without a separate PTZ camera. The 16-microphone array provides 15-meter pick-up at 180° with AI noise cancellation, sufficient for rooms seating up to 8 participants. The 2.1-channel speaker system (2×10W plus 20W subwoofer) delivers clear audio reproduction without an external speaker bar. The 50-point infrared touch interface with 9H zero-parallax glass supports Windows Ink, direct annotation, and palm rejection for interactive whiteboarding in Teams Rooms. Connectivity includes HDMI×2, USB-C×1 (DP 1.2 + BYOD), USB 3.0, RJ45, Wi-Fi 6, and Bluetooth 5.2. For a larger Teams Rooms display, see the V755T 75" or the V865T 86". Browse all MaxHub displays at Creation Networks.

Key Features

• 65" 4K UHD Display — 3840×2160 IPS panel with DLED backlight, 350 nits brightness, 1200:1 contrast, and 10-bit color (1.07B, 90% NTSC) for accurate content reproduction.
• Microsoft Teams Rooms Certified — Factory-certified MTR unit with Windows 11 IoT and Teams Rooms pre-installed for immediate deployment in huddle rooms and small conference spaces.
• Trident Lens Triple Camera — 3×50 MP cameras with AI auto-framing, speaker tracking, multi-speaker tracking, and 5× hybrid zoom built into the display; no external camera required.
• 16-Microphone Array — 180° capture, 15-meter range, AI noise cancellation, AEC, and AGC for clear voice pick-up in huddle rooms and small conference rooms.
• 2.1-Channel Integrated Audio — 2×10W tweeters plus 20W subwoofer; complete audio system with no external speaker bar needed.
• 50-Point Touch with Windows Ink — Zero-parallax 9H tempered glass (25% haze), 50-point IR touch, Windows Ink, direct annotation, palm rejection, and handwriting recognition.
• 12th Gen Intel Core i5 Compute — Integrated i5-1240P, 16 GB DDR4, 256 GB SSD running Windows 11 IoT; OPS slot for future compute module upgrades.
• Wi-Fi 6, Bluetooth 5.2 & Gigabit Ethernet — Full wireless and wired connectivity for content sharing via MAXHUB Share app, Miracast, AirPlay, and Chromecast.

Typical Applications

• Huddle room
• Conference room
• Training room
• Commercial meeting space
• Government space
• Multi-purpose room

Technical Specifications

Specifications sourced from MaxHub (maxhub.com).

Frequently Asked Questions

Is the V655T suitable for a small huddle room?
Yes. The 65-inch form factor and integrated AI camera system with auto-framing make the V655T well-suited for rooms seating 2–8 participants. The Trident Lens cameras and 16-microphone array ensure clear video and audio at this scale.

Is the V655T Microsoft Teams Rooms certified?
Yes. The V655T is factory-certified for Microsoft Teams Rooms and ships with Windows 11 IoT and the Teams Rooms application pre-installed. A Microsoft Teams Rooms license is required from Microsoft to activate the service.

Can the V655T work with Zoom Rooms?
The V655T runs Windows 11 IoT, so Zoom Rooms software can be installed. The unit is optimized and factory-certified for Teams Rooms; confirm Zoom compatibility for the specific software version with your UC vendor.

What connectivity is available for BYOD users?
Wired BYOD connections are available via HDMI 2.0 or USB-C (DisplayPort 1.2 + USB data). Wireless BYOD is supported through the MAXHUB Share app, Miracast, AirPlay, and Chromecast, including P2P wireless without joining the room network.

Can the V655T integrate with a third-party AV control system?
Yes. The RS232 port and RJ45 Ethernet interface support integration with Crestron, Extron, and Q-SYS control systems via IP or serial protocol. The unit also supports MAXHUB Pivot for centralized device management.

Who do I contact for installation, volume pricing, or support?
Contact Creation Networks for AV system design, volume pricing, and post-sale support. Creation Networks is an authorized MaxHub reseller.
