MaxHub V865T XBoard V7 86" Microsoft Teams Room Display & ST33M Mobile Stand

Product Overview

This bundle pairs the MaxHub V865T XBoard V7 86-inch Microsoft Teams Rooms certified interactive display with the MaxHub ST33M mobile stand, delivering a complete, mobile-ready Teams Rooms solution for conference rooms, training rooms, and multi-purpose spaces. The V865T is a factory-certified Microsoft Teams Rooms all-in-one panel with integrated Trident Lens triple camera, 16-microphone array, 2.1-channel speakers, and Windows 11 IoT compute—no external PC or audio system required. The ST33M mobile stand provides a heavy-duty, height-adjustable wheeled base that enables the display to be moved between rooms without disassembly, making this bundle ideal for organizations that need a portable 86-inch Teams Rooms display solution.

Product Description

The MaxHub V865T brings the full XBoard V7 Teams Rooms feature set to the 86-inch format: 4K UHD (3840×2160) IPS display, Trident Lens system with three 50-megapixel AI cameras (auto-framing, speaker tracking, 5× hybrid zoom), 16-microphone array (15-meter range, 180°, AI noise cancellation), and 2.1-channel speakers (2×10W plus 20W subwoofer). The integrated 12th Gen Intel Core i5 Windows 11 IoT module runs Teams Rooms natively with no separate compute box. The 50-point touch interface supports Windows Ink, direct annotation, and palm rejection for collaborative whiteboarding sessions. The ST33M mobile stand is MaxHub’s commercial-grade wheeled base engineered for large-format displays up to 86 inches. It features locking casters for stable positioning, a cable management channel, and a built-in storage shelf for peripherals. Height adjustability and sturdy steel construction make the ST33M the recommended mobile base for the V865T in environments where room-to-room mobility is required. For the V865T without the stand, see the V865T standalone. For smaller Teams displays, see the V755T 75" or the full MaxHub collection.

Key Features

• Complete Teams Rooms Bundle — V865T display plus ST33M mobile stand shipped together, providing a fully self-contained, mobile-ready Microsoft Teams Rooms solution.
• 86" 4K UHD IPS Display — 3840×2160, 350 nits, 1200:1 contrast, 16:9, DLED backlight, 178° viewing angles for clear visibility across the room.
• Microsoft Teams Rooms Certified — Factory MTR-certified with Windows 11 IoT and Teams Rooms pre-installed for out-of-box deployment.
• Trident Lens Triple Camera — 3×50 MP cameras with AI auto-framing, speaker tracking, multi-speaker tracking, and 5× hybrid zoom built into the display frame.
• 16-Microphone Array — 180° pick-up, 15-meter range, AI noise cancellation and AEC for full-room voice capture without an external microphone system.

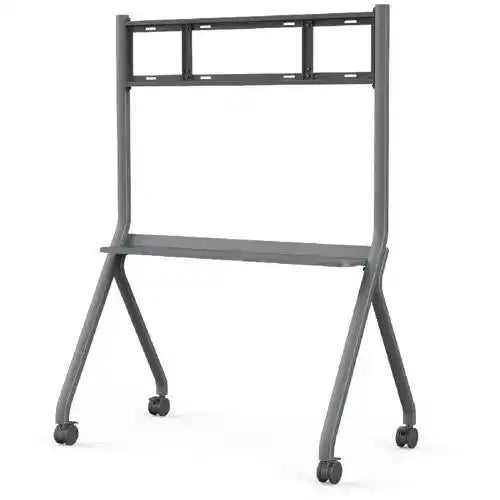

• ST33M Mobile Stand — Heavy-duty steel wheeled base with locking casters, cable management, and a storage shelf; designed for 55"–86" MaxHub displays.
• 50-Point Touch & Windows Ink — Zero-parallax 9H tempered glass with 50-point IR touch, Windows Ink, palm rejection, and direct annotation.
• 12th Gen Intel Core i5 Compute — Integrated Windows 11 IoT module (i5-1240P, 16 GB DDR4, 256 GB SSD) with OPS slot.

Typical Applications

• Conference room
• Training room
• Multi-purpose room
• Boardroom
• Commercial meeting space
• House of worship
• Government space

Technical Specifications

Specifications sourced from MaxHub (maxhub.com).

Frequently Asked Questions

What is included in this bundle?
This bundle includes the MaxHub V865T XBoard V7 86-inch Microsoft Teams Rooms certified display and the MaxHub ST33M mobile stand. All necessary hardware for a mobile Teams Rooms deployment is included; a Microsoft Teams Rooms license is required separately.

Can the ST33M stand be used with other MaxHub display sizes?
The ST33M is designed for MaxHub XBoard displays ranging from 55 to 86 inches. It is not recommended for the 92-inch V925T or V925 due to size and weight constraints. Contact Creation Networks to confirm compatibility with specific models.

Is the V865T still Teams Rooms certified when mounted on the ST33M stand?
Yes. The Teams Rooms certification applies to the V865T display unit regardless of the mounting solution. The ST33M stand does not affect the certification status.

How does room-to-room mobility work with the ST33M?
The ST33M features locking casters that release for movement and lock in place during use. The display connects to the stand without disassembly, allowing a single person to roll the complete Teams Rooms unit between adjacent rooms or spaces on the same floor.

What AV inputs are available for BYOD participants?
Wired BYOD is supported via HDMI 2.0 or USB-C (DisplayPort 1.2 + USB 2.0 data). Wireless sharing is available through the MAXHUB Share app, Miracast, AirPlay, and Chromecast.

Who do I contact for volume pricing or installation support?
Contact Creation Networks for bundle pricing, AV integration services, and post-sale support. Creation Networks is an authorized MaxHub reseller.
