MaxHub V755T XBoard V7 Series 75" for Microsoft Teams Rooms, 4K Interactive Display

Product Overview

The MaxHub V755T XBoard V7 is a 75-inch Microsoft Teams Rooms certified interactive display designed for mid-size conference rooms, huddle rooms, and commercial meeting spaces. Delivering 4K UHD (3840×2160) resolution on a 16:9 IPS panel, the V755T integrates the Trident Lens triple camera system, a 16-microphone array, 2.1-channel speakers, and Windows 11 IoT compute into a single all-in-one unit. At 75 inches, the V755T hits the ideal balance between screen real estate and room scale for conference rooms seating 6–12 people, making it one of the most specified sizes in the XBoard V7 Teams Rooms lineup for medium-format deployments.

Product Description

The V755T shares the full XBoard V7 Teams Rooms hardware platform with its larger siblings. The Trident Lens system provides three 50-megapixel cameras (one panoramic at 99° diagonal FOV, two telephoto with 2× optical and 5× hybrid zoom) and AI-driven auto-framing, speaker tracking, and multi-speaker tracking that maintain focus on active participants without a dedicated camera operator or external PTZ unit. The 16-microphone array covers 15 meters at 180° with AI noise cancellation and acoustic echo cancellation. The integrated 2.1-channel speaker system (2×10W plus 20W subwoofer) delivers clear room audio without an external sound bar. The 50-point touch interface with zero-parallax 9H glass supports Windows Ink, direct annotation, palm rejection, and handwriting recognition for whiteboard-style collaboration in Teams Rooms. The onboard 12th Gen Intel Core i5 Windows 11 IoT module runs Teams Rooms natively with no external PC. For a larger Teams display, see the V865T 86" or the V925T 92" ultra-wide. For a smaller footprint, see the V655T 65".

Key Features

• 75" 4K UHD Display — 3840×2160 IPS panel with DLED backlight, 350 nits brightness, 1200:1 contrast, 178°/178° viewing angles, and 10-bit color depth at 90% NTSC.
• Microsoft Teams Rooms Certified — Factory MTR-certified with Windows 11 IoT and Teams Rooms pre-installed; deploy in any conference room without additional hardware configuration.
• Trident Lens Triple Camera System — 3×50 MP cameras with AI auto-framing, speaker tracking, multi-speaker tracking, and 5× hybrid zoom; no separate camera or camera bar required.
• 16-Microphone Array — 180° capture, 15-meter range, AI noise cancellation, AEC, and AGC for clean audio in rooms up to medium-large conference size.
• 2.1-Channel Speaker System — 2×10W plus 20W subwoofer provides full-room audio coverage without an external speaker bar.
• 50-Point Touch with Windows Ink — Zero-parallax 9H tempered glass (25% haze), 50-point IR touch, Windows Ink, direct annotation, palm rejection, and handwriting recognition.
• 12th Gen Intel Core i5 Compute — Integrated i5-1240P, 16 GB DDR4, 256 GB SSD running Windows 11 IoT; OPS slot for future module upgrades.
• Wi-Fi 6, Bluetooth 5.2 & Gigabit Ethernet — Full wireless and wired connectivity for MAXHUB Share, Miracast, AirPlay, Chromecast, and wired network integration.

Typical Applications

• Conference room
• Huddle room
• Boardroom
• Training room
• Commercial meeting space
• Government space
• Multi-purpose room

Technical Specifications

Specifications sourced from MaxHub (maxhub.com).

Frequently Asked Questions

Is the V755T appropriate for a huddle room or smaller conference room?
Yes. At 75 inches, the V755T is well-suited for rooms seating 4–12 people. The integrated camera system with auto-framing and speaker tracking ensures all participants are captured clearly regardless of seating position.

Is the V755T certified for Microsoft Teams Rooms?
Yes. The V755T is factory-certified for Microsoft Teams Rooms and ships with Windows 11 IoT and the Teams Rooms application pre-installed. A Microsoft Teams Rooms license is required from Microsoft.

Does the V755T require any external AV equipment?
No external camera, microphone, speaker bar, or compute unit is required. The V755T is a self-contained Teams Rooms solution. HDMI and USB-C inputs are available for BYOD participants.

What are the mounting options?

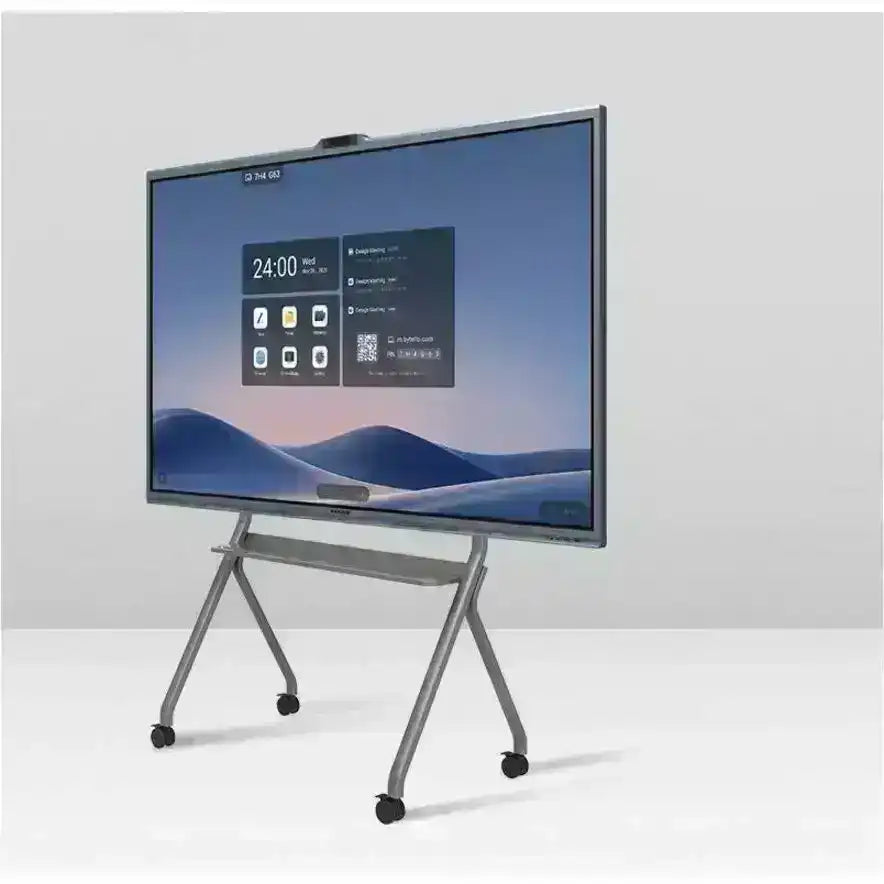

The V755T supports standard VESA wall mounting for permanent installation. For mobile deployments, the MaxHub ST33M stand (sold as a bundle with the V865T) is available separately. Contact Creation Networks for mount recommendations.

Can the OPS slot be used for alternative compute modules?
Yes. The OPS slot accepts compatible MaxHub compute modules, allowing the Windows module to be swapped for a different configuration in the future without replacing the entire display.

Who do I contact for AV integration or support?
Contact Creation Networks for volume pricing, system integration, and post-sale support. Creation Networks is an authorized MaxHub dealer.
