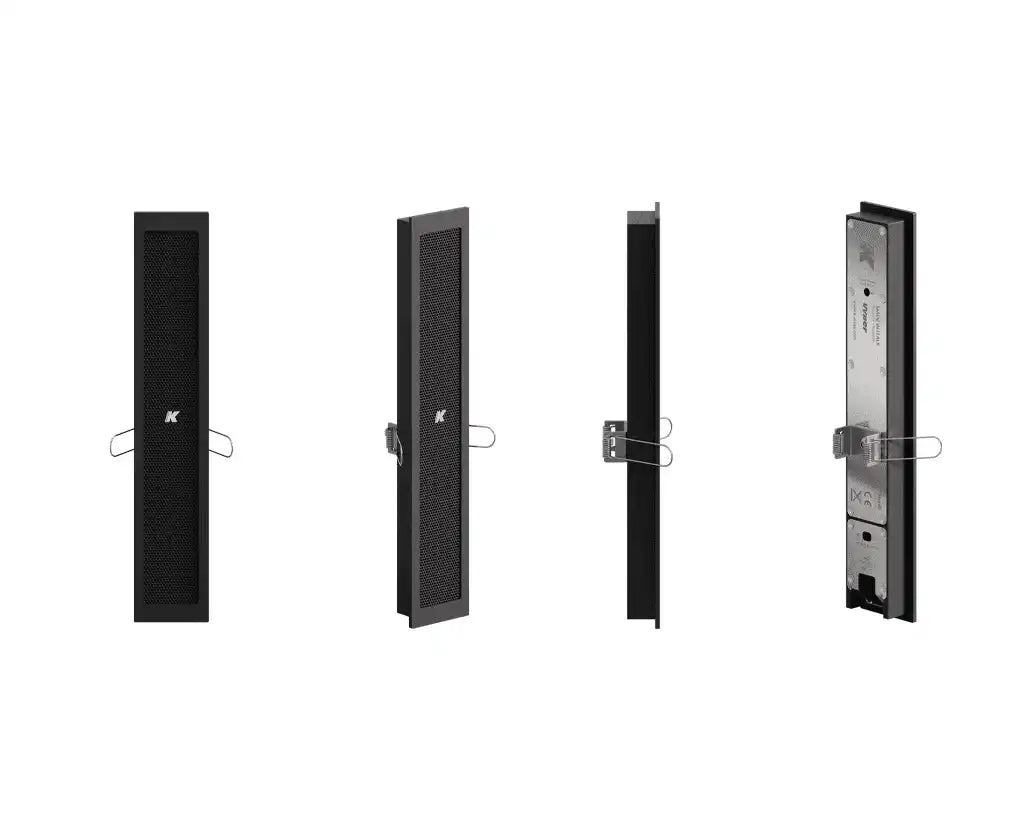

K-Array Vyper KV25R II – Ultra-Flat In-Wall Line Array Speaker (Black)

Product Overview

The K-Array Vyper KV25R II is an ultra-flat in-wall line array speaker built for recessed installations where pristine sound and clean architecture are both mandatory. Four 1-inch neodymium drivers in a 27 cm aluminum chassis deliver 108 dB peak SPL with true line array coherence, while selectable 8/32-ohm impedance lets integrators run up to eight units on a single amplifier channel without 70V lines. This flush-mount commercial line array is the recessed counterpart to the surface-mount Vyper KV25 II, serving boardrooms, auditoriums, houses of worship, and distributed government installations.

Product Description

The Vyper KV25R II houses four closely spaced 1-inch neodymium magnet transducers in an elegant yet sturdy aluminum chassis measuring 50 x 270 x 37 mm and weighing just 0.4 kg, designed specifically for in-wall recessed mounting. The tight driver spacing produces genuine line array characteristics: phase coherence, low distortion, and focused listening in both the near field and at a distance. Frequency response extends from 150 Hz to 18 kHz (-6 dB) — notably deeper than micro speakers — with a 25-degree vertical by 140-degree horizontal pattern that throws sound across rooms while controlling reflections, and a peak SPL of 108 dB.

The defining engineering feature is selectable nominal impedance: switch each speaker between 8 and 32 ohms, and at 32 ohms up to eight Vyper KV25 II-series loudspeakers connect to one 4-ohm amplifier output. That eliminates 70V transformer lines from wide distributed designs, preserving fidelity across long speaker runs. Wiring lands on an included 2-pin Euroblock connector. Drive the system with a Kommander KA02 I DSP amplifier and add Rumble KU44 subwoofers for full-range coverage. For surface mounting choose the Vyper KV25 II; a white recessed version is available as the Vyper KV25RW II.

Key Features

• In-wall recessed design — Purpose-built for flush wall installation, leaving only a slim aluminum face in the room.
• True line array behavior — Four closely spaced 1-inch cones provide phase coherence, low distortion, and focused listening near and far.
• 108 dB peak SPL — Serious output for a 0.4 kg ultra-flat element, covering full rooms rather than just near-field zones.
• 150 Hz extended response — Reaches lower than micro speakers, reducing subwoofer dependence in speech-focused systems.
• Selectable 8/32-ohm impedance — Run up to eight KV25 II-series speakers at 32 ohms on one 4-ohm amplifier channel.
• No 70V line required — High-impedance parallel wiring delivers distributed coverage without transformer-based fidelity loss.
• 25 x 140 degree coverage — Controlled vertical dispersion limits reflections while wide horizontal coverage spans seating areas.
• Euroblock connectivity — The included 2-pin Euroblock connector keeps terminations professional and serviceable.
• Aluminum chassis — An elegant, sturdy enclosure in black, white, or custom RAL finishes.

Typical Applications

• Boardrooms and conference rooms with flush-mounted reinforcement
• Auditoriums and all-hands rooms needing distributed coverage
• Houses of worship preserving sanctuary architecture
• Government spaces and commercial meeting spaces
• Multi-purpose rooms and training rooms
• Broadcast studios requiring low-profile playback

Technical Specifications

Frequently Asked Questions

How many KV25R II speakers can share one amplifier channel?
At the 32-ohm impedance setting, up to eight Vyper KV25 II-series loudspeakers can connect to a single 4-ohm amplifier output — the basis for distributed designs without 70V lines.

What is the difference from the surface-mount KV25 II?
The KV25R II shares the same drivers and performance as the Vyper KV25 II but is configured for recessed in-wall installation.

How does it compare to the Lyzard KZ14?
The Vyper is larger and more capable: 1-inch drivers instead of 0.5-inch, response down to 150 Hz versus 500 Hz, and 108 dB versus 98 dB peak SPL. Choose the Lyzard KZ14R I when minimum size outweighs output.

Does it need a subwoofer?
For speech and background music the 150 Hz extension is often sufficient; for full-range music programs add a Rumble KU44 series subwoofer, which shares the same 8/32-ohm selectable architecture.

What amplification is recommended?
K-Array amplification with the appropriate Vyper preset, such as the Kommander KA02 I. Our team can spec channel counts for multi-zone projects.

Is warranty included?
Yes — full K-Array manufacturer warranty through Creation Networks, an authorized dealer, plus design and integration support.
