K-Array Lyzard KZ14R I – Ultra-Mini In-Wall Line Array Speaker (Black)

Product Overview

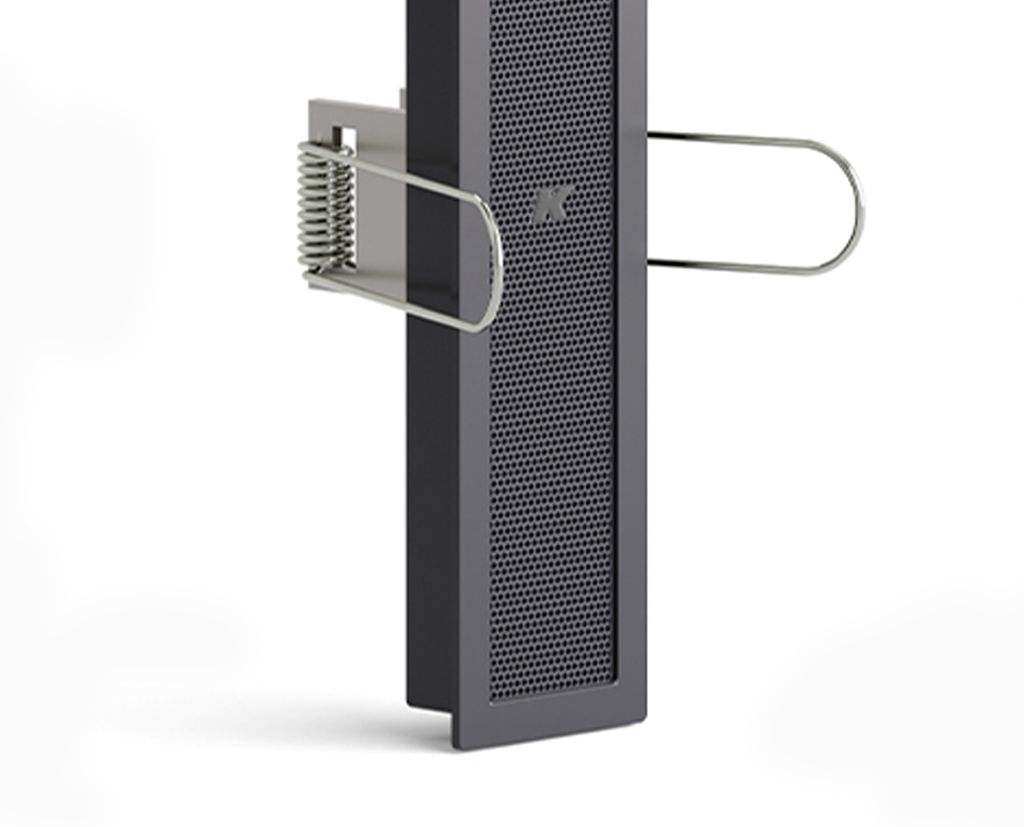

The K-Array Lyzard KZ14R I is an in-wall ultra-mini line array speaker that flush-mounts four drivers behind a slim 28 x 106 mm aluminum face. The recessed version of K-Array's smallest PAT array technology speaker, this flush-mount micro line array delivers 98 dB peak SPL with controlled vertical dispersion while leaving walls and ceilings architecturally clean. A metallic spring clip makes installation fast, and an IP64 rating extends use to humid and covered outdoor spaces — a strong fit for boardrooms, houses of worship, and government interiors.

Product Description

The Lyzard KZ14R I houses 4 x 0.5-inch long-excursion neodymium magnet transducers in an ultra-resistant milled aluminum enclosure measuring 28 x 106 x 11 mm and weighing just 59 grams. Its line array geometry produces a focused 40-degree vertical pattern that keeps sound on listeners rather than reflective surfaces, combined with 140-degree horizontal coverage across the room. Frequency response spans 500 Hz to 18 kHz (-6 dB) at up to 98 dB peak SPL with minimum residual noise. The metallic spring clip for recessed in-wall installation lets integrators cut an opening, terminate the wiring, and snap the speaker flush in seconds.

As a 16-ohm passive speaker with IN+/IN- screw terminals, the KZ14R I requires a K-Array amplifier loaded with the dedicated Lyzard preset, such as the Kommander KA02 I DSP amplifier, and pairs with Rumble KU44 subwoofers for full-range systems. The surface-mount version is the Lyzard KZ14 I — also the satellite in the Azimut KAMUT2L II system — and a white recessed version is offered as the KZ14RW I.

Key Features

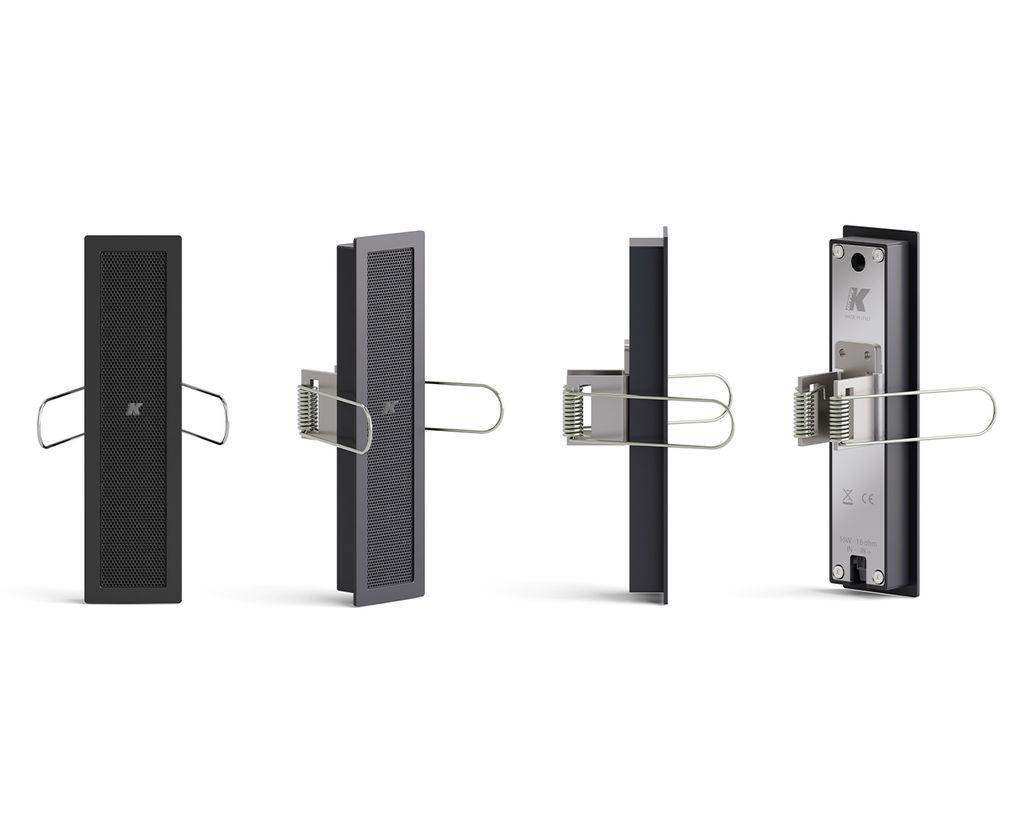

• Flush in-wall mounting — The metallic spring clip secures the speaker into a wall or ceiling cutout, leaving only a slim aluminum face visible.
• PAT array technology — True line array directivity from a recessed speaker barely 10.6 cm tall.
• Four neodymium drivers — 4 x 0.5-inch long-excursion transducers reach 98 dB peak SPL with minimum residual noise.
• 40-degree vertical control — Focused vertical coverage reduces ceiling and table reflections for clearer speech.
• 140-degree horizontal coverage — Wide horizontal dispersion covers broad seating areas from each recessed position.
• IP64 rated — Dust-tight, splash-resistant construction supports humid rooms and covered exterior areas.
• 16-ohm passive design — Multiple units combine per K-Array amplifier channel in distributed systems.
• Milled aluminum body — 59 grams of machined aluminum controls resonance and survives installation handling.

Typical Applications

• Boardrooms and conference rooms requiring flush-mounted reinforcement
• Houses of worship preserving sanctuary architecture
• Government spaces with strict finish standards
• Commercial meeting spaces and multi-purpose rooms
• Training rooms and all-hands rooms with recessed audio
• Auditorium and broadcast studio fill zones

Technical Specifications

Frequently Asked Questions

How is the KZ14R I installed?
Cut an opening in drywall, paneling, or millwork, connect speaker wire to the IN+/IN- screw terminals, and press the speaker in — the metallic spring clip holds it flush with no visible fasteners.

How does it differ from the standard KZ14 I?
Acoustics are identical. The R version adds the recessed spring-clip mounting system, a slightly larger 28 x 106 mm faceplate, and an IP64 rating; the surface-mount model is the KZ14 I.

Can it be used in humid or covered outdoor spaces?
Yes. The IP64 rating protects against dust and splashing water, though it is not intended for direct sustained water exposure.

What amplifier and subwoofer should I specify?
A K-Array amplifier with the Lyzard preset — the Kommander KA02 I — plus a Rumble KU44 series subwoofer for output below 500 Hz.

Is manufacturer warranty included?
Yes. Creation Networks is an authorized K-Array dealer; every unit ships with full manufacturer warranty and our AV design and integration support.
