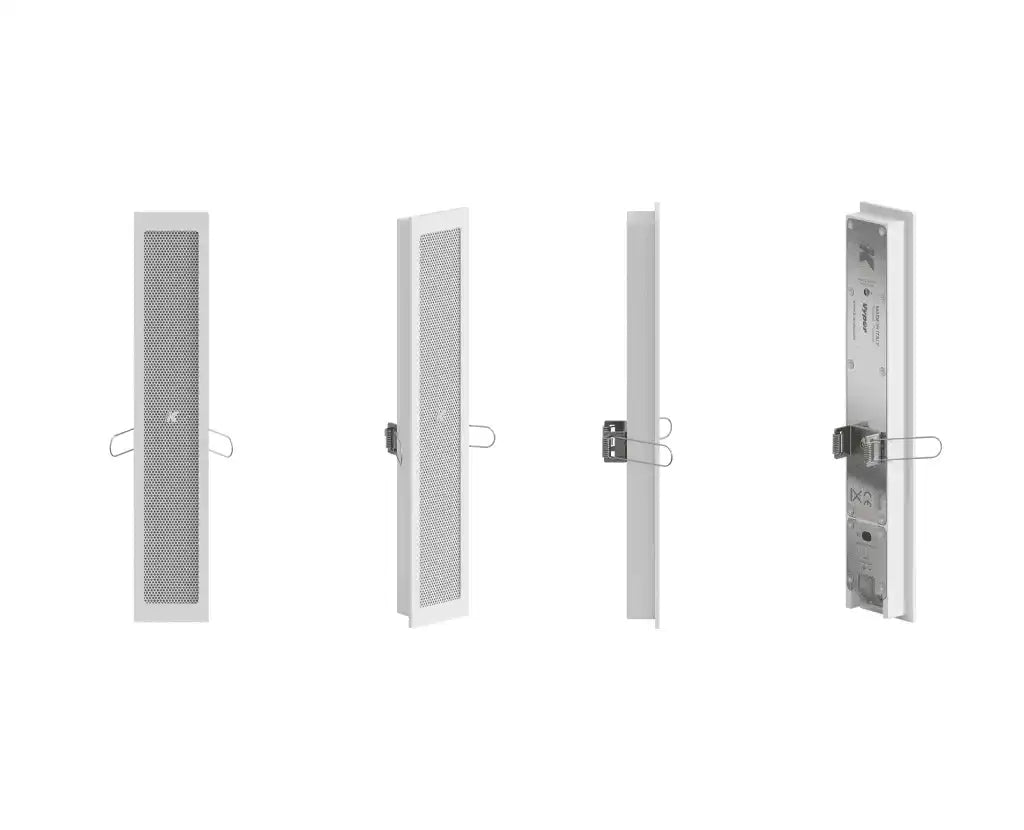

K-Array Vyper KV25RW II – Ultra-Flat White In-Wall Line Array

Product Overview

The K-Array Vyper KV25RW II is a white ultra-flat in-wall line array speaker that recesses into light-colored walls for distributed audio with no visual footprint. Its four 1-inch neodymium drivers produce 108 dB peak SPL with true line array coherence from a white aluminum chassis just 3.7 cm deep, and selectable 8/32-ohm impedance allows up to eight units per amplifier channel without 70V lines. This flush-mount white commercial line array fits boardrooms, auditoriums, houses of worship, and government interiors where finish quality is non-negotiable.

Product Description

The Vyper KV25RW II houses four closely spaced 1-inch neodymium magnet transducers in an elegant yet sturdy aluminum chassis measuring 50 x 270 x 37 mm at 0.4 kg, engineered for in-wall recessed installation. The tight driver spacing yields genuine line array characteristics — phase coherence, low distortion, and focused listening both in the near field and at distance. Frequency response runs 150 Hz to 18 kHz (-6 dB) with a 25-degree vertical by 140-degree horizontal coverage pattern, giving designers room-filling throw with controlled reflections at up to 108 dB peak SPL.

Selectable nominal impedance is the system-design advantage: set each speaker to 8 or 32 ohms, and at 32 ohms up to eight Vyper KV25 II-series loudspeakers run on one 4-ohm amplifier output — eliminating 70V transformer lines from wide distributed installations where pristine sound, intelligibility, and elegance are mandatory. Connections use an included 2-pin Euroblock connector. Power the system with a Kommander KA02 I DSP amplifier and add the white Rumble KU44W subwoofer for color-matched full-range coverage. The black recessed version is the Vyper KV25R II, and the surface-mount model is the Vyper KV25 II.

Key Features

• White recessed design — The flush white aluminum face disappears into light walls while delivering full-room coverage.
• True line array performance — Four closely spaced 1-inch cones provide phase coherence, low distortion, and focused listening near and far.
• 108 dB peak SPL — Output that covers complete rooms, not just near-field zones, from an ultra-flat element.
• 150 Hz – 18 kHz response — Extended low end reduces subwoofer dependence for speech and background music systems.
• Selectable 8/32-ohm impedance — Up to eight KV25 II-series speakers at 32 ohms share one 4-ohm amplifier channel.
• No 70V transformers needed — High-impedance parallel wiring keeps distributed systems full-fidelity end to end.
• 25 x 140 degree coverage — Controlled vertical dispersion limits reflections; wide horizontal coverage spans seating areas.
• Euroblock connector included — Professional 2-pin terminations that stay serviceable in recessed cavities.
• Custom RAL available — Factory color matching beyond standard white and black.

Typical Applications

• Boardrooms and conference rooms with white interiors
• Auditoriums and all-hands rooms with distributed audio
• Houses of worship preserving sanctuary aesthetics
• Government spaces and commercial meeting spaces
• Multi-purpose rooms and training rooms
• Broadcast studios needing recessed playback

Technical Specifications

Frequently Asked Questions

Is the KV25RW II the same speaker as the black KV25R II?
Yes — drivers, chassis, and performance are identical to the Vyper KV25R II; only the white finish differs.

How many speakers can run on one amplifier channel?
At the 32-ohm setting, up to eight Vyper KV25 II-series loudspeakers connect to a single 4-ohm amplifier output, enabling wide distributed systems without 70V lines.

What is required for installation?
A wall cavity sized for the 50 x 270 x 37 mm chassis and speaker wiring terminated on the included 2-pin Euroblock connector. Our team can advise on cutout details for your wall construction.

Does it need a subwoofer?
The 150 Hz extension handles speech and background music on its own; add a Rumble KU44W white subwoofer for full-range music programs.

Which amplifier should I specify?
K-Array amplification with the appropriate Vyper preset, such as the Kommander KA02 I. Contact us for multi-zone channel planning.

What warranty and support are included?
Full K-Array manufacturer warranty through Creation Networks, an authorized dealer, with pre-sale design assistance and post-sale integration support.
