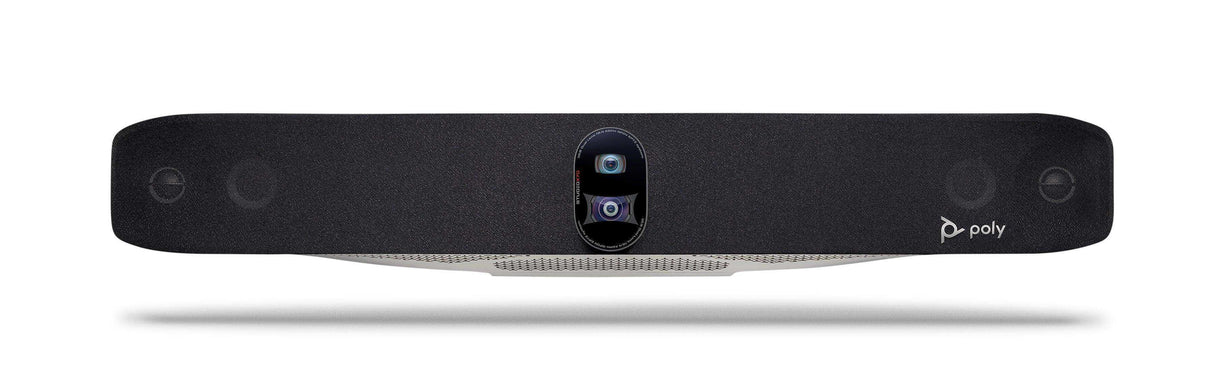

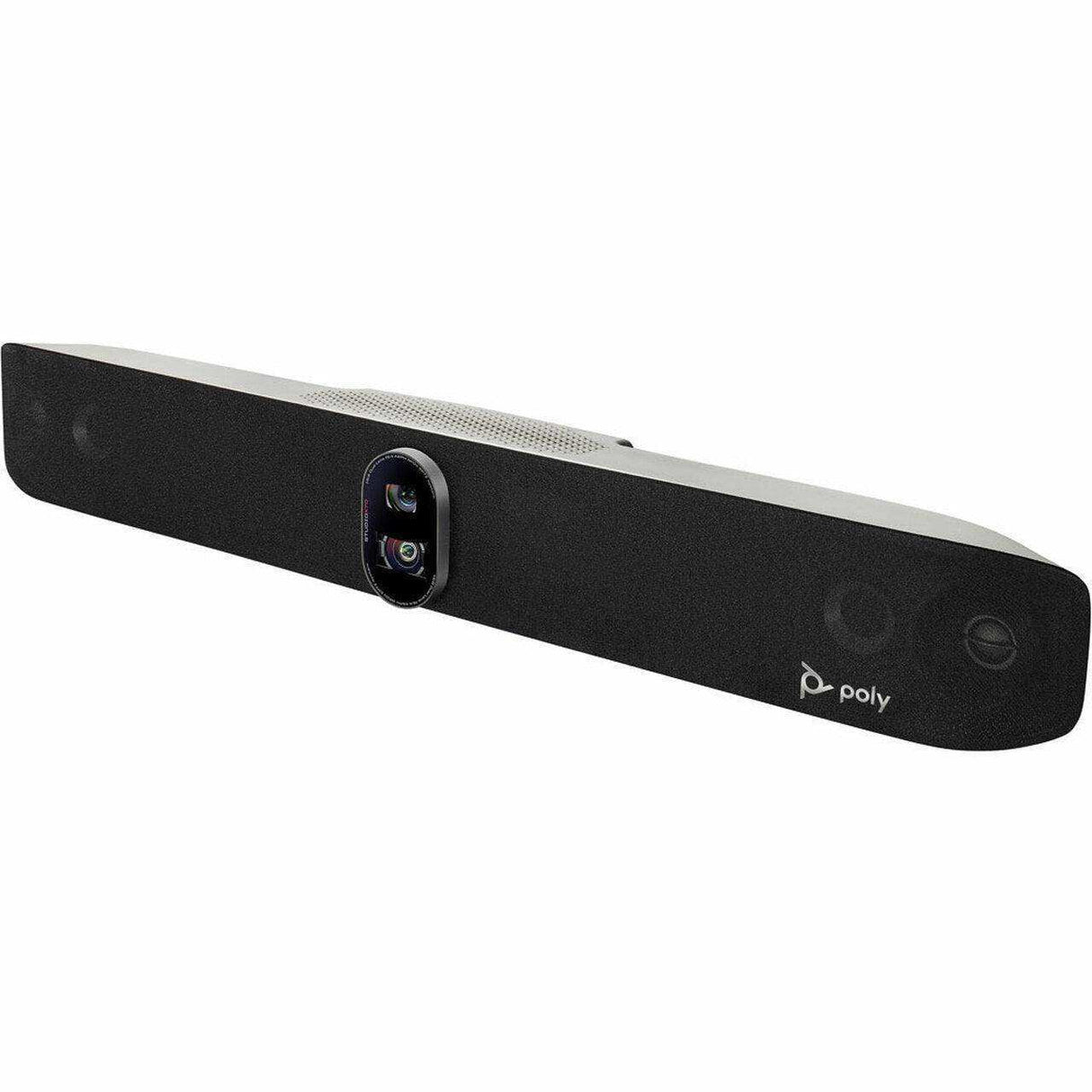

Poly Studio X70 – All-In-One Video Bar (No Radio, JITC Certified)

Product Overview

The Poly Studio X70 No Radio JITC video bar (842X0AA) is the secure-facility build of HP Poly's large-room all-in-one system, shipped without wireless radios and JITC certified for Department of Defense interoperability. It delivers the same dual-lens 20MP 4K camera, two-way stereo speakers, and four-microphone array as the standard X70, but in a configuration that satisfies facilities where Wi-Fi and Bluetooth are prohibited. The built-in codec runs cloud video and standards-based H.323 and SIP calling without a room PC, and Poly DirectorAI switches between the 120° wide and 70° narrow lenses to frame the group or track the active speaker. For integrators building government spaces and secure conference rooms, this SKU removes the RF exception from the accreditation paperwork.

Product Description

Secure meeting spaces impose two requirements that ordinary room systems fail: no emitting radios inside the accredited boundary, and demonstrated interoperability under the Joint Interoperability Test Command program. The 842X0AA Studio X70 addresses both. The wireless radios are omitted at manufacture rather than disabled in software, so the device presents no Wi-Fi or Bluetooth interface to be attested against, and all connectivity runs over the wired RJ-45 network interfaces. This is the build to specify for SCIF-adjacent conference rooms, command spaces, and any government space operating under an RF restriction.

Video performance is unchanged from the commercial X70. Two 20 MP sensors capture 2160p 4K UHD, one behind a 120° horizontal wide lens covering the full room and one behind a 70° horizontal narrow lens for close framing, with 7.3x digital zoom. Poly DirectorAI handles automatic people framing, group framing, and speaker framing by cutting between the two lenses, so a briefing runs without an AV operator in the room. A motorized electronic privacy shutter physically closes the optics between sessions, which is frequently a written requirement rather than a preference in these facilities.

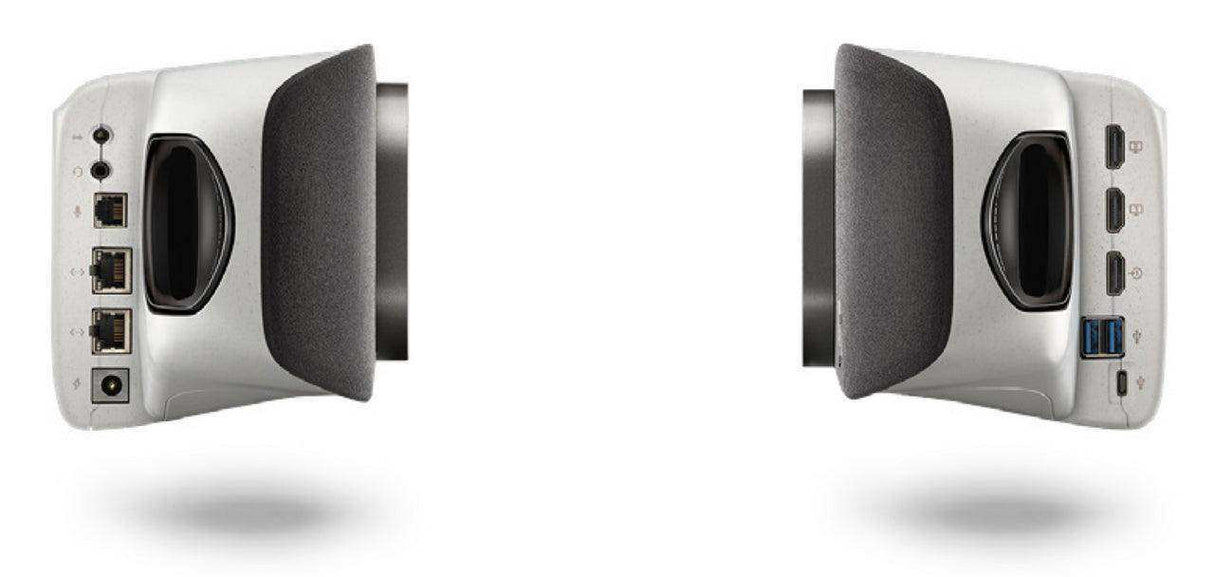

Audio matches the standard bar as well: two-way stereo speakers with aluminum cone tweeters and advanced bass ports at 2 x 20 W RMS on the mid drivers and 2 x 15 W RMS on the tweeters, plus two MEMS microphones and two second-order gradient microphones picking up to 25 ft. down the table. Poly NoiseBlockAI and Acoustic Fence suppress keyboard noise and voices from outside the room rather than gating the channel. Connectivity covers two HDMI 1.4 outputs for dual-display rooms, one HDMI 1.4 input, one USB Type-C and two USB Type-A ports at 5 Gbps, two RJ-45 interfaces, and analog audio in and out for tie-in to an installed sound system. Mount the bar with the included wall mount kit or the Poly VESA mount for Studio X70, place it on a credenza with the Poly Studio X70/X72/V72 table stand, and extend table pickup with a Poly Studio expansion table microphone. Because in-room control accessories must match the facility's RF policy, confirm the controller part number against your accreditation before ordering — contact Creation Networks and we will quote the matching configuration.

Key Features

• No Radio Configuration — Ships without wireless radios so the bar can be installed in facilities where Wi-Fi and Bluetooth emitters are prohibited.
• JITC Certified — Tested under the Joint Interoperability Test Command program, which is a standing requirement on many Department of Defense AV projects.
• Dual-Lens 20MP Camera System — Separate 120° wide and 70° narrow 4K sensors cover the whole room and the active speaker without a mechanical PTZ head.
• Poly DirectorAI Framing — Automatic people, group, and speaker framing lets a briefing run in a secure room with no AV operator present.
• Motorized Privacy Shutter — Physically closes the camera optics between sessions, satisfying a common written control in accredited spaces.
• Four-Microphone Array — Two MEMS and two second-order gradient microphones pick up to 25 ft. down a large conference table.
• NoiseBlockAI and Acoustic Fence — Suppress keyboard noise and voices originating outside the room instead of gating the whole channel.
• High-Output Stereo Speakers — Two-way drivers with aluminum cone tweeters fill a large briefing room without an external amplifier or DSP.
• Wired-Only Networking — Two RJ-45 interfaces carry all traffic, keeping the device inside a controlled wired boundary.
• Standards-Based Calling — H.323 and SIP support connects the room to existing government video infrastructure alongside built-in cloud video apps.

Typical Applications

• Government space
• Boardroom
• Conference room
• Training room
• All-hands room
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

What does the No Radio configuration actually change?
The wireless radios are omitted from the hardware rather than disabled in firmware, so the bar presents no Wi-Fi or Bluetooth interface. All network traffic runs over the wired RJ-45 interfaces, which is what most RF-restricted facilities require in their accreditation documentation.

What is JITC certification and why does it matter here?
Joint Interoperability Test Command certification verifies that a device interoperates correctly on Department of Defense networks. Many federal AV specifications name it as a mandatory line item, and specifying the 842X0AA satisfies that requirement directly.

Is this SKU also TAA compliant?
Yes. This build is listed as TAA compliant in addition to being JITC certified and No Radio. If you need TAA compliance but not the RF restriction, part number 842W9AA is the standard TAA-compliant Studio X70.

Does a touch controller ship with this bar?
No, this SKU is the bar only. Because in-room control accessories must match the facility's RF policy, confirm the controller part number against your accreditation before ordering and contact Creation Networks for the matching configuration.

How is the bar mounted and cabled in a secure conference room?
A wall mount kit, AC power adapter, two HDMI cables, and an Ethernet cable ship in the box. Use the Poly VESA mount for Studio X70 for VESA-pattern display installs, or the Poly Studio X70/X72/V72 table stand for credenza placement.

How does this bar connect to existing government video infrastructure?
The built-in codec supports standards-based H.323 and SIP calling alongside its cloud video apps, so the room can register to an existing on-premises call control platform. Two HDMI outputs support dual-display briefing rooms and analog audio in and out tie into an installed sound system.

What warranty and support are included?
The unit carries the Poly standard one-year limited warranty. Poly+ service agreements are available separately for extended coverage, advance hardware replacement, and technical support; contact Creation Networks for the correct tier and contract vehicle.
